Availability: | |
---|---|
200um
Product Application
High energy laser transmission
Prostatectomy, laser lithotripsy
Factory automation control
Near infrared spectroscopy
Optical temperature measurement
Medical diagnosis
Analytical instruments
Sensors
UV curing
Product Specifications
Performance | Parameter | Remark |
Optical fiber specifications | SI200/240/260-22/440E,SI272/300/330-22-500E, | customizable |
SI365/400/430-22/550E,SI550/600/630-22/750E | ||

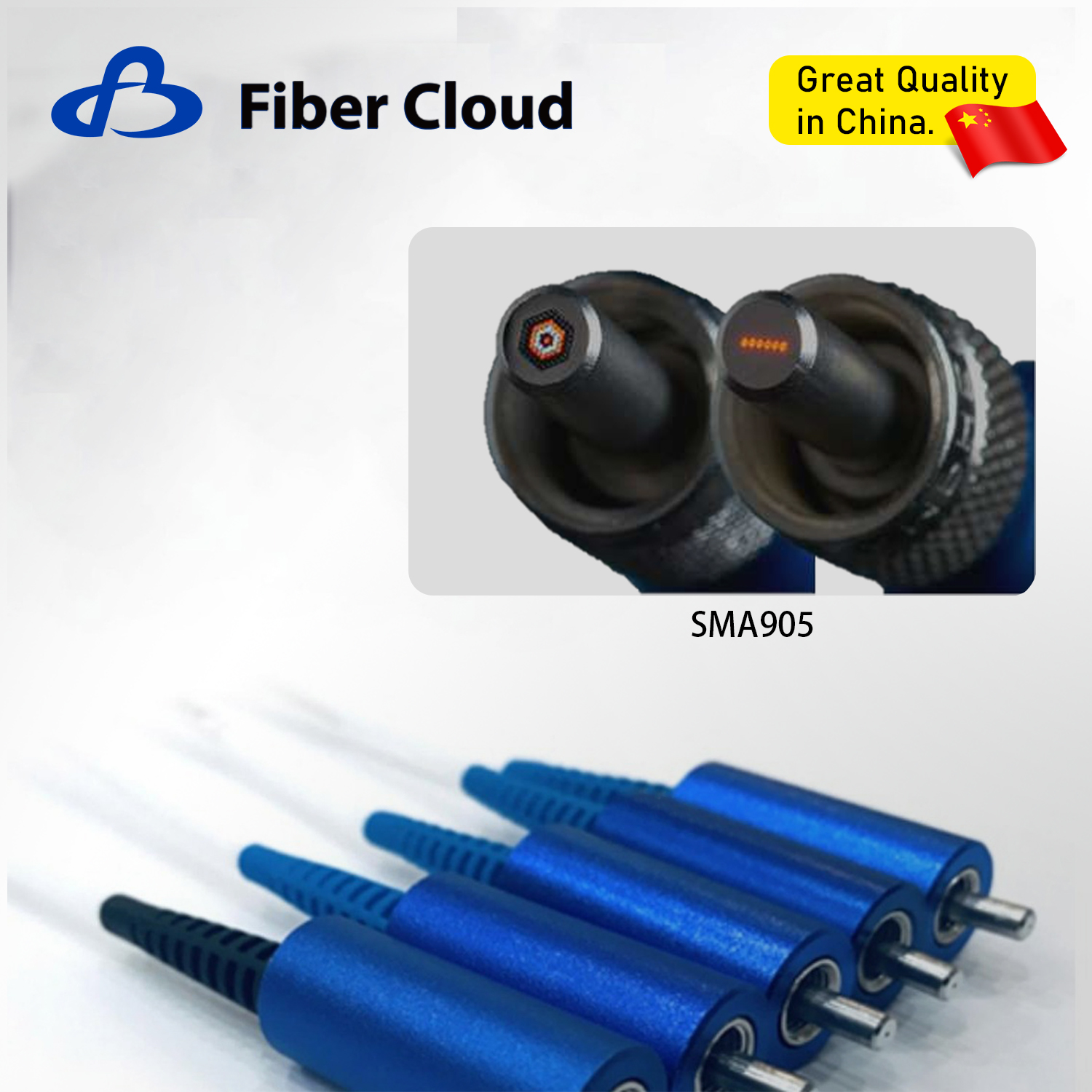

Connector type | SMA905/SMA906/FC/ST... | customizable |
End-face structure | Flat or suspended | - |
core count | Single core, multi-core, etc. | customizable |
length | 0.3~10m | customizable |
Working wavelength | 2100nm | customizable |
Transmission efficiency | ≥80%@2100nm(3m) | customizable |
Operating temperature | -65~+85ºC | - |
screening strength | 100 kpsi | - |
Type | Core Diameter | 1st Clad Diameter | 2nd Clad Diameter | Blue Coating Diameter |
WF200/240/265/400HBLT, NA=0.22 | 200um | 240um | 265um | 400um |
WF272/300/330/420HBLT,NA=0.22 | 272um | 300um | 330um | 420um |
WF365/400/430/550HBLT, NA=0.22 | 365um | 400um | 430um | 550um |
WF550/600/635/800HBLT, NA=0.22 | 550um | 600um | 635um | 800um |
WF800/840/870/990HBLT, NA=0,22 | 800um | 840um | 870um | 990um |
WF945/1000/1035/1400HBLT, NA=0.22 | 945um | 1000um | 1035um | 1400um |
