| Availability: | |
|---|---|

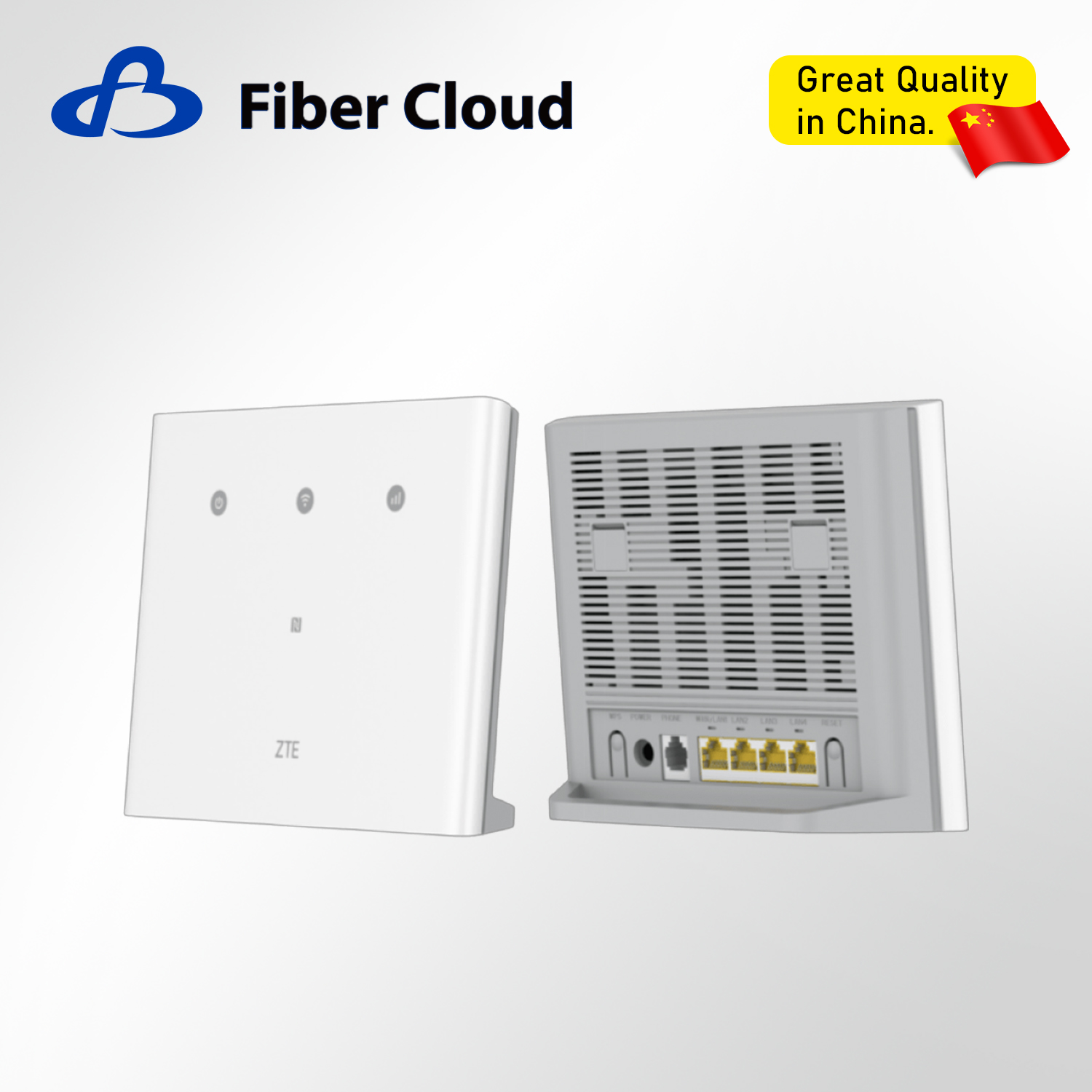

MF296R MF296D MF296C
ZTE
Product Application
Business trips
Picnics
Popular exhibitions
Road trips
Dormitoryshowdowns
Outdoor livestreams
Product Specifications
| Category | Specification |
| Model | MF296C |
| Network | FDD/TDD/UMTS/GSM LTE CAT6, DL 2CA |
| Peak Data Rate | FDD-LTE DL/UL: 300/50 Mbps TDD-LTE DL/UL: 220/10 Mbps UMTS DL/UL: 42/5.76 Mbps |
| Wi-Fi | 802.11b/g/n/ac, 2.4GHz 2x2 & 5GHz 2x2, DBDC 2.4GHz: 300Mbps, 5GHz: 867Mbps Up to 64 users supported Band Steering |
| Dimension | 145.5 (H) × 182 (W) × 27 mm |
| Interface | 4 x RJ45 (Gigabit Ethernet: 1×WAN/LAN, 3×LAN) 1 x RJ11 (FXS) 1 x SIM Slot (4FF) 2 x SMA (External Antenna) 1 x DC470 (12V DC Power supply) 1 x Micro USB (Factory Test) LED: Power, Wi-Fi, Network Button & Switch: WPS, Reset 2 External Antenna (Optional) |
| Other Configuration | LED: Power, Wi-Fi, Network Button & Switch: WPS, Reset 2 External Antenna (Optional) |
| Features | Data service; Voice Service WebUI; ZTE Link; FOTA/TR069 (Customized) Firewall; IPv6/IPv4; Mainstream OS supported |
| Category | Specification |
| Model | MF296D |
| Platform | ZX297520V3 + RTL8192ES |
| Cellular WAN | FDD/UMTS/GSM |
| Band Configuration | FDD-LTE: B1/B3/B7/B8/B20/B28 UMTS: B1/B2/B5/B8 GSM: Quad Bands |
| Wi-Fi | 802.11 b/g/n, 2.4GHz 2x2, up to 300Mbps, supports 16 users |
| Dimension | 107.5 × 63.8 × 14.8 mm |
| Interface | MicroUSB; SIM socket (3FF) |
| LED Indicators | 4 LEDs |
| Battery | 2000mAh, working time up to 8 hours |
| Buttons | WPS, Power, Reset |
| Features | Data service; WebUI; ZTE Link; FOTA |
| OS Support | Mainstream operating systems supported |
| Milestone | Launched |
| Category | Specification |
| Model | MF296R |
| Technology | FDD/TDD/UMTS/GSM LTE CAT6/7, DL 2CA supported |
| Bands configuration | FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 UMTS: B1/B8 GSM: Quad Bands |
| Peak Data Rate | FDD-LTE DL/UL: 300/50 Mbps (CAT6) TDD-LTE DL/UL: 220+/11+ Mbps (CAT6) DC-HSPA+ DL/UL: 42/5.76 Mbps |
| Wi-Fi | 802.11 a/b/g/n/ac, 2.4GHz 2x2 & 5GHz 2x2, DBDC Total 1.2Gbps, up to 64 users Band Steering |
| Dimension | 145.5 × 182 × 27 mm |
| Interface | 4 x RJ45 (Gigabit Ethernet: 1×WAN/LAN, 3×LAN) 1 x RJ11 (PXS, CSFB/VoLTE/VoIP Customized) 1 x SIM Slot 2 x SMA 1 x DC470 LEDs: Power, Wi-Fi, Network Buttons/Switches: WPS, Reset NFC for Wi-Fi connection (Optional) 2 External Antennas (Optional) |
| Features | Data service Voice service WebUI & ZTE Link APP FOTA/TR069 (Customized) Firewall IPv6/IPv4 Mainstream OS supported |
