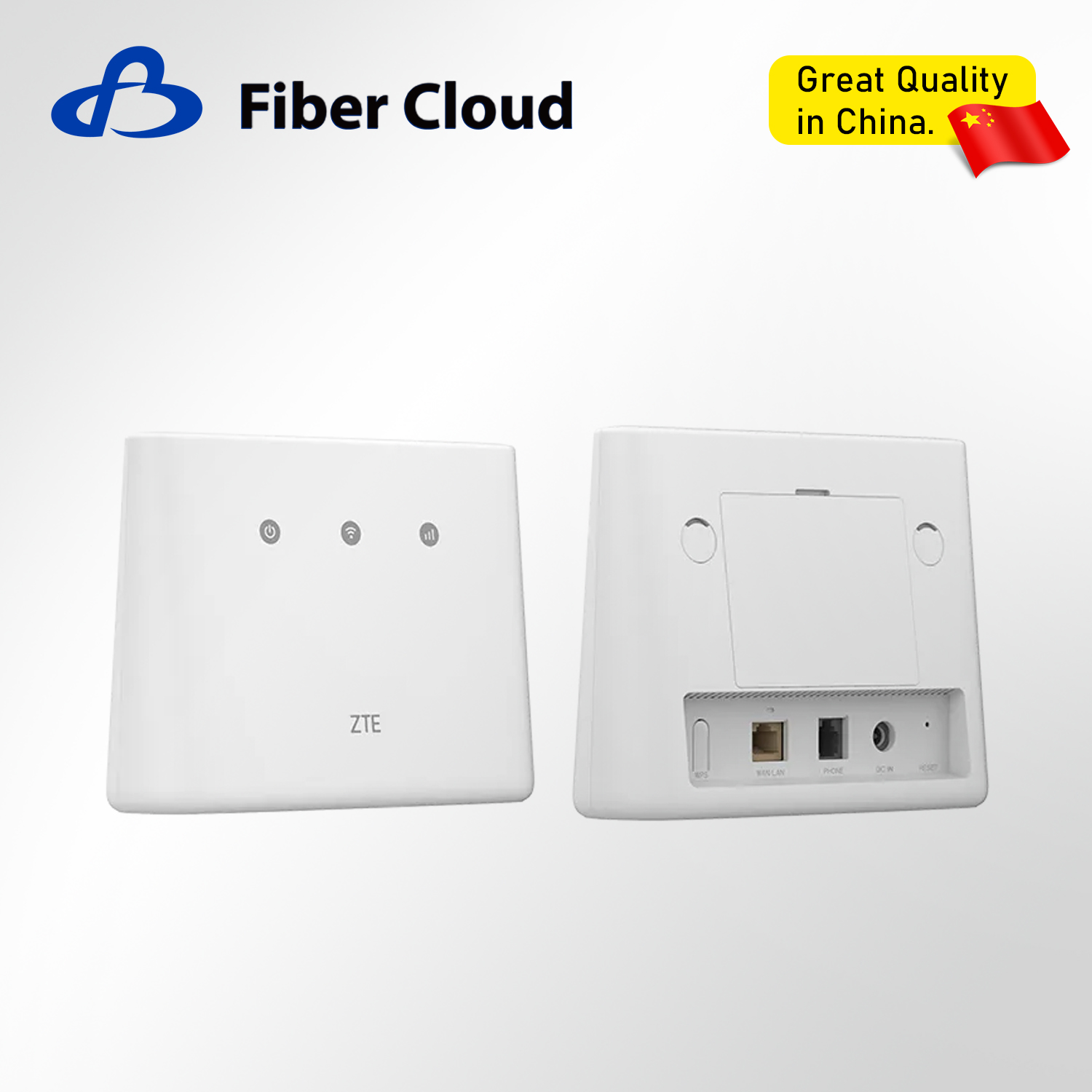

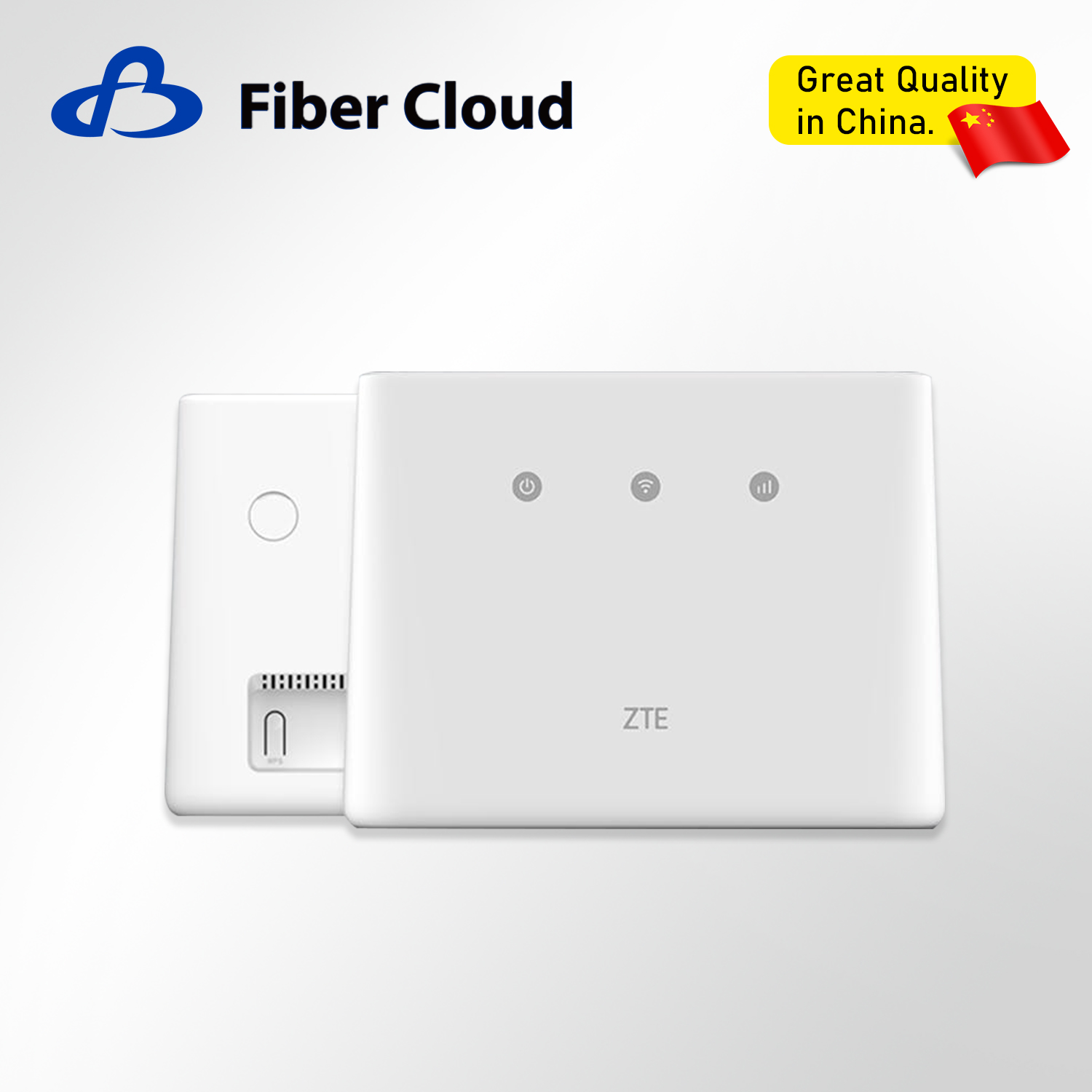

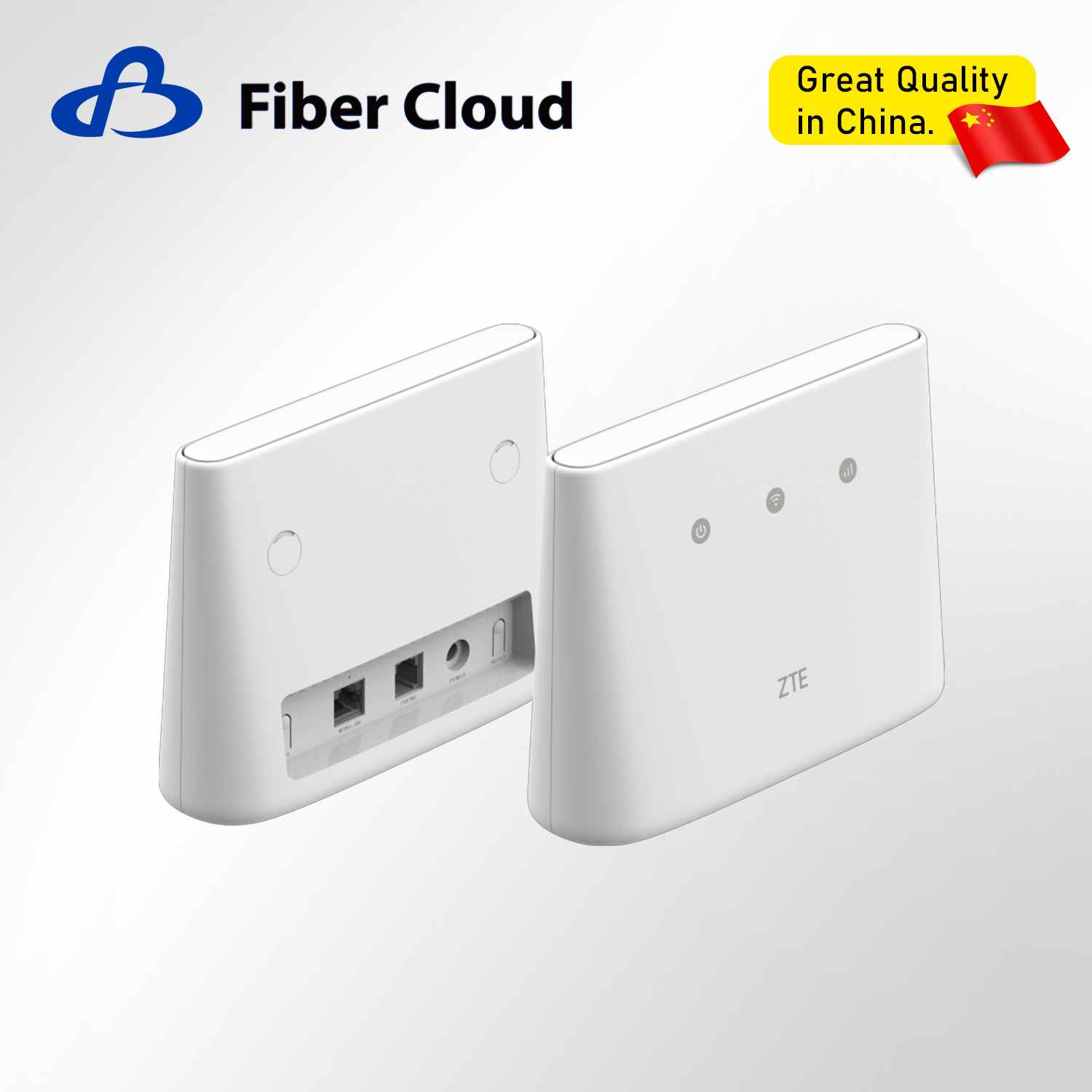

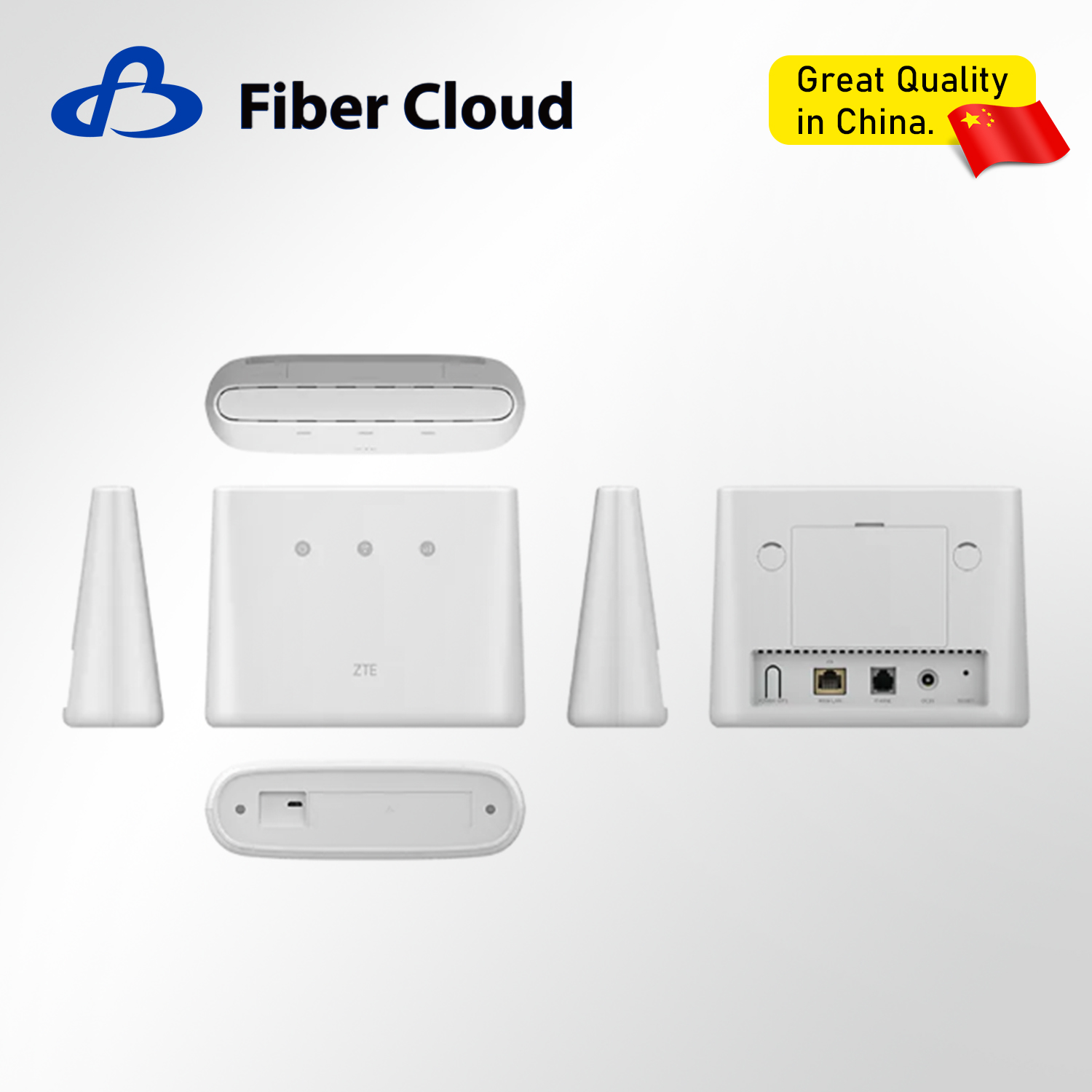

The ZTE MF293N is a 4G LTE Indoor CPE (Customer Premises Equipment), a router designed to convert cellular network signals into a stable Wi-Fi and wired Ethernet connection for a home or small office.Its key features include Category 4 LTE technology, supporting peak download speeds of 150 Mbps across major FDD and TDD LTE bands, ensuring broad global compatibility. It functions as a complete networking hub, featuring an integrated FXS port for VoLTE voice services and supporting simultaneous connectivity for up to 32 Wi-Fi users via its 2.4 GHz 802.11n Wi-Fi.This device is ideally suited for providing primary or backup broadband access in areas with limited fixed-line infrastructure, offering a reliable solution for essential data, voice calls, and internet browsing for SOHO users.
Characteristics
| Availability: | |
|---|---|
MF293N
ZTE
Product Application
Business trips
Picnics
Popular exhibitions
Road trips
Dormitoryshowdowns
Outdoor livestreams
Product Specifications
| Band Configuration | FDD-LTE: Band 1, 3, 7, 8, 20, 28 |
| TDD-LTE: Band 38, 40, 41 | |
| HSPA+/UMTS: Band 1, 8 | |
| EDGE/GPRS/GSM: Quad Bands | |
| Peak Data Rate | FDD-LTE: DL/UL 150/50Mbps (CAT4) |
| TDD-LTE: DL/UL 110+/11+Mbps (CAT4) | |
| HSPA+: DL/UL 21.6/5.76Mbps | |
| Wi-Fi | 802.11 b/g/n |
| 2.4GHz 2x2 MIMO | |
| Up to 300Mbps | |
| 32 users supported | |
| Dimension | 16.4 x 12.4 x 51.5mm |
| Interface | 1 x RJ45 (FE, WAN/LAN) |
| 1 x RJ11 (FXS, CSFB/VoLTE/VoIP(Customized)) | |
| 1 x SIM socket | |
| 2 x SMA | |
| 1 x DC470 (Power) | |
| Other Configuration | 3 LEDs: Power, Wi-Fi, Network |
| Buttons: WPS, Reset | |
| NFC for Wi-Fi connection (Optional) | |
| 2 x External Antenna (Optional) | |
| Features | Data service |
| Voice Service (CSFB/VoLTE/VoIP) | |
| WebUI & ZTE Link APP | |
| FOTA/TR069 (Customized) | |
| Firewall | |
| IPv6/IPv4 | |
| Mainstream OS supported |
