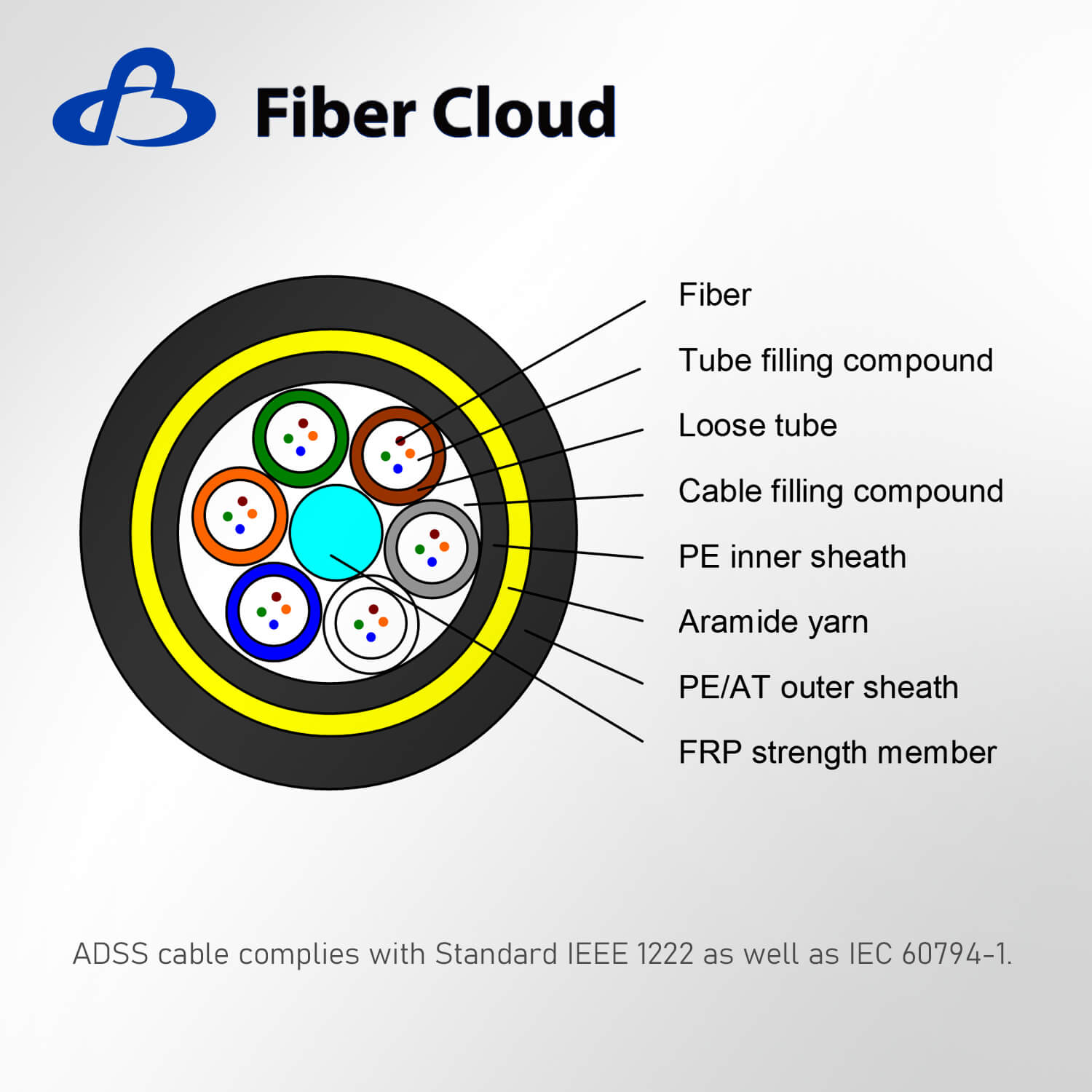

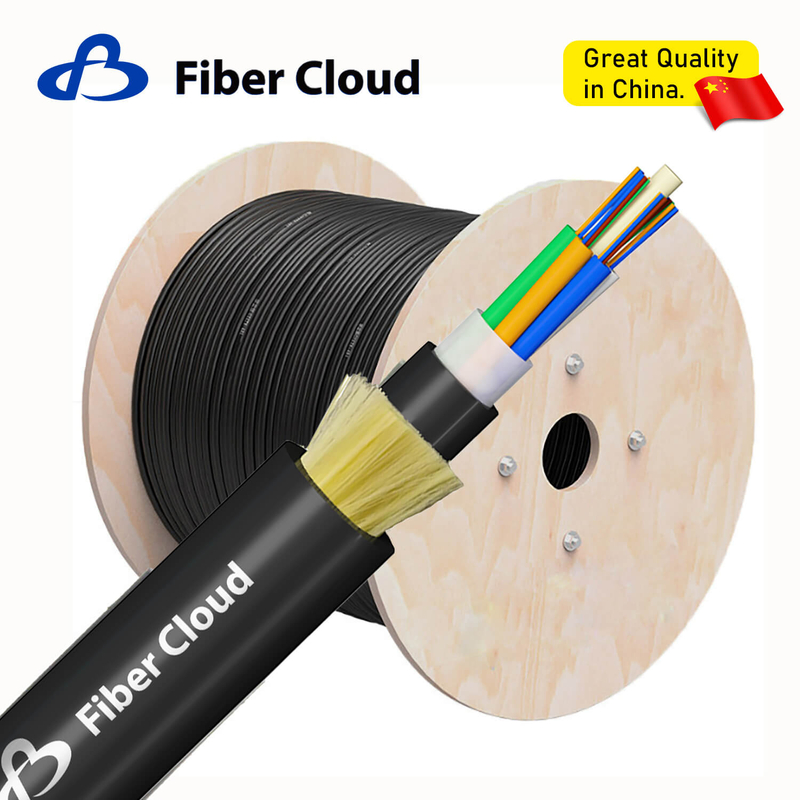

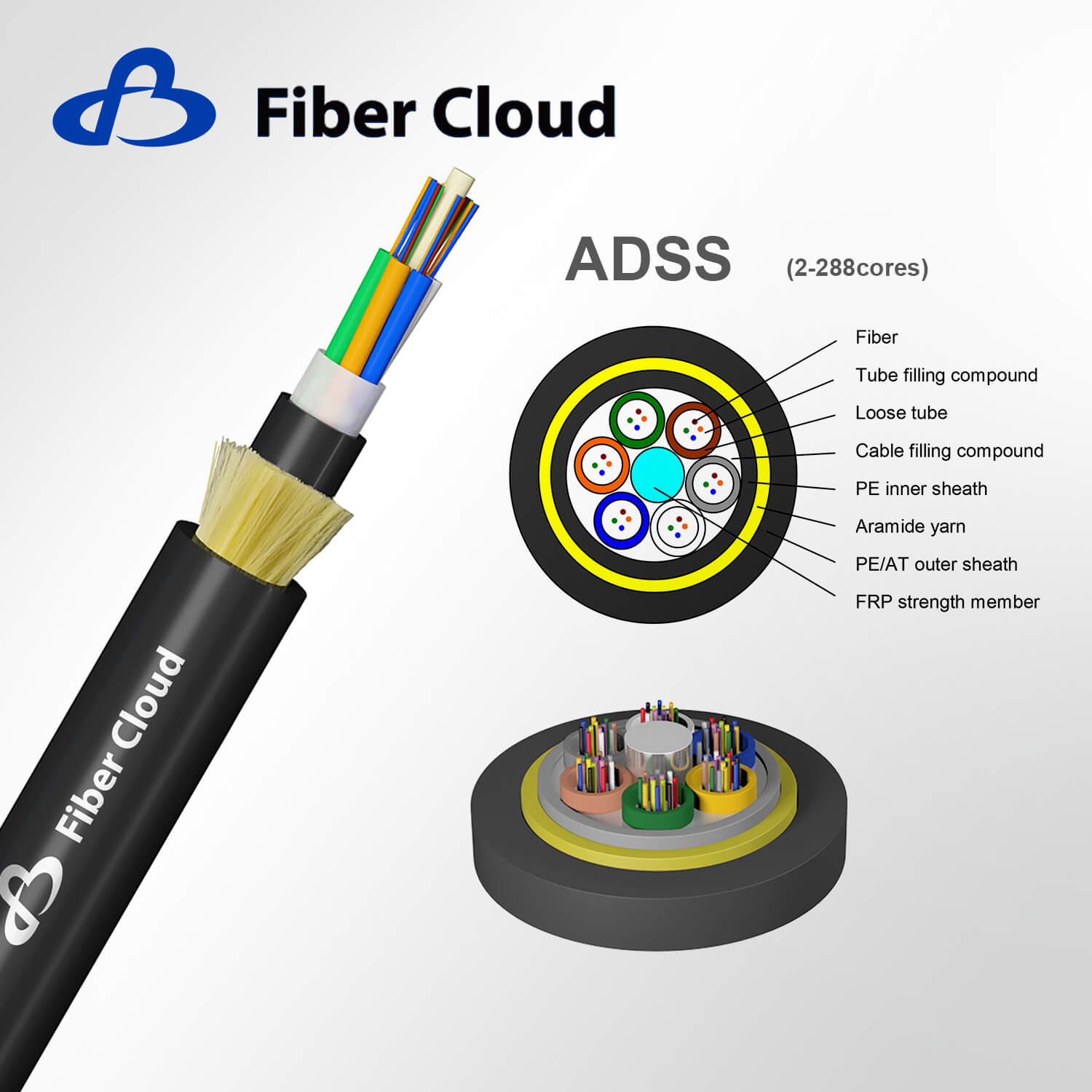

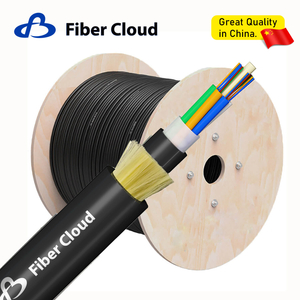

ADSS-Single Sheath(All Dielectric Self-supporting Single Sheath Aerial Cable)

ADSS optical cable complies with IEEE 1222 as well as IEC60794-1 standard.
• Can be installed without shuting off the power.
• For overhead power lines under 110kV, PE outer sheath is applied.
• For power lines equal to or over 110kV, AT outer sheath is applied.
• Excellent AT performence.The maxmium inductive at the operating point of AT sheath can reach 220KV.
• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
• Large span lengths and the largest span is over 1000m.
• Good performence of tensile strength and temperature.
• The design life span is over 30 years.

Availability:



Inquire Add to Basket

Product Description

FAQ

Technical Parameters

Ref. outer diameter	Ref. Weight(kg/km)		Rec. daily max working tension	Max allo wable working tension		Break strength	Strength member CSA		Modulus of elasticity	Heat expansion coefficient		Suitable span(m) NESC Standard(m)
(mm)	PE sheath	AT sheath	(kN)	(kN)	(kN)	(mm2)	(kN/mm2)	×10-6/K	A	B	C	D
11.8	117	124	1.5	4	10	4.6	7.6	1.8	160	100	140	100
12	121	129	2.25	6	15	7.6	8.3	1.5	230	150	200	150
12.3	126	134	3	8	20	10.35	9.45	1.3	300	200	290	200
12.6	133	141	3.6	10	24	13.8	10.8	1.2	370	250	350	250
12.8	138	145	4.5	12	30	14.3	11.8	1	420	280	400	280
13.1	145	153	5.4	15	36	18.4	13.6	0.9	480	320	460	320
13.5	155	163	6.75	18	45	22	16.4	0.6	570	380	550	380
13.8	163	171	7.95	22	53	26.4	18	0.3	670	460	650	460

NESC Standard(m): Applicable climate conditions of cable can be divided into four categories

Climate Type	Wind Speed(m/s)	Ice(mm)	Extra Load(N/m)
A	25	0	0.7
B	35	0	0.7
C	10	5	2.5
D	10	10	4.4

Optical Characteristics

Fiber Type	attenuation				bandwidth		Aperture value
	(+20ºC)
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA

Match ADSS installation accessories and installation drawings

ADSS.1 ADSS.2 ADSS.3

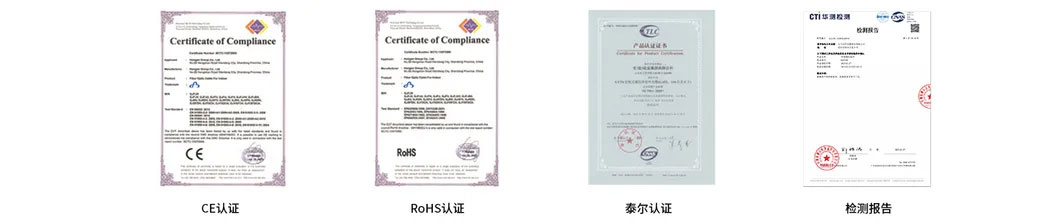

Certifications

Certifications

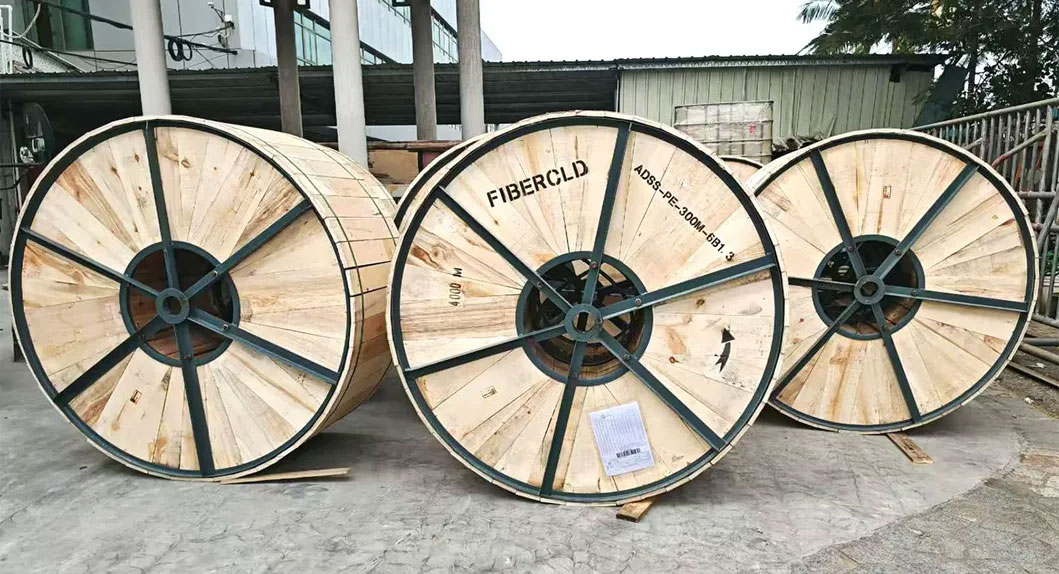

Packaging & Shipping

Packaging-&-Shipping

Our Service
1. Customers solutions in days, not weeks.
2. Warmly services with careful attentions.
3. Can provide your specific inquiry within 24 hours.
4. Save much costs, bring more benefit for customer to expand business.
5. We have been 10 years experience in this field. We are the prefessional supplier that you can trust.

Q1: How can you guarantee the delivery time?
A: 1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.

Q2: What's your best price?
A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

Q3:What's your BRAND?
A: FIBERCLOUD,YOFC,CORNING...

Q4: Can I print our own logo on the product?
A: Yes, Please send your logo to us.

Q5: Can you provide OEM/ODM service?
A: Yes, we can. Please tell us the details of your requirements

Q6: How to deal with the faulty?
A: First of all, our products are produced under a strict quality control system, and the defective rate will be less than 0.2%.
Secondly, we will conduct strict quality inspections and issue test reports before shipment to ensure the quality of the products.

Q7: Why choose us to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
