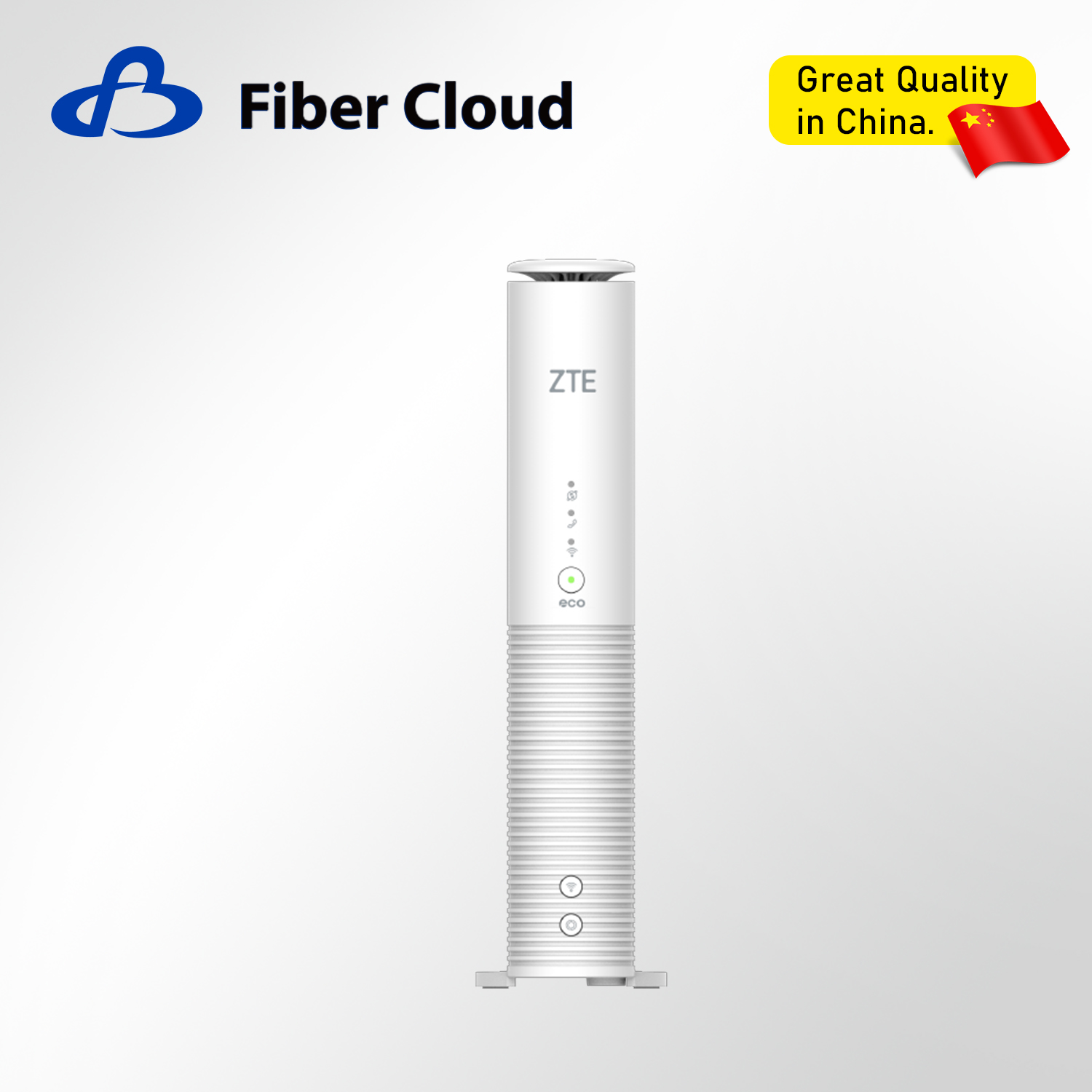

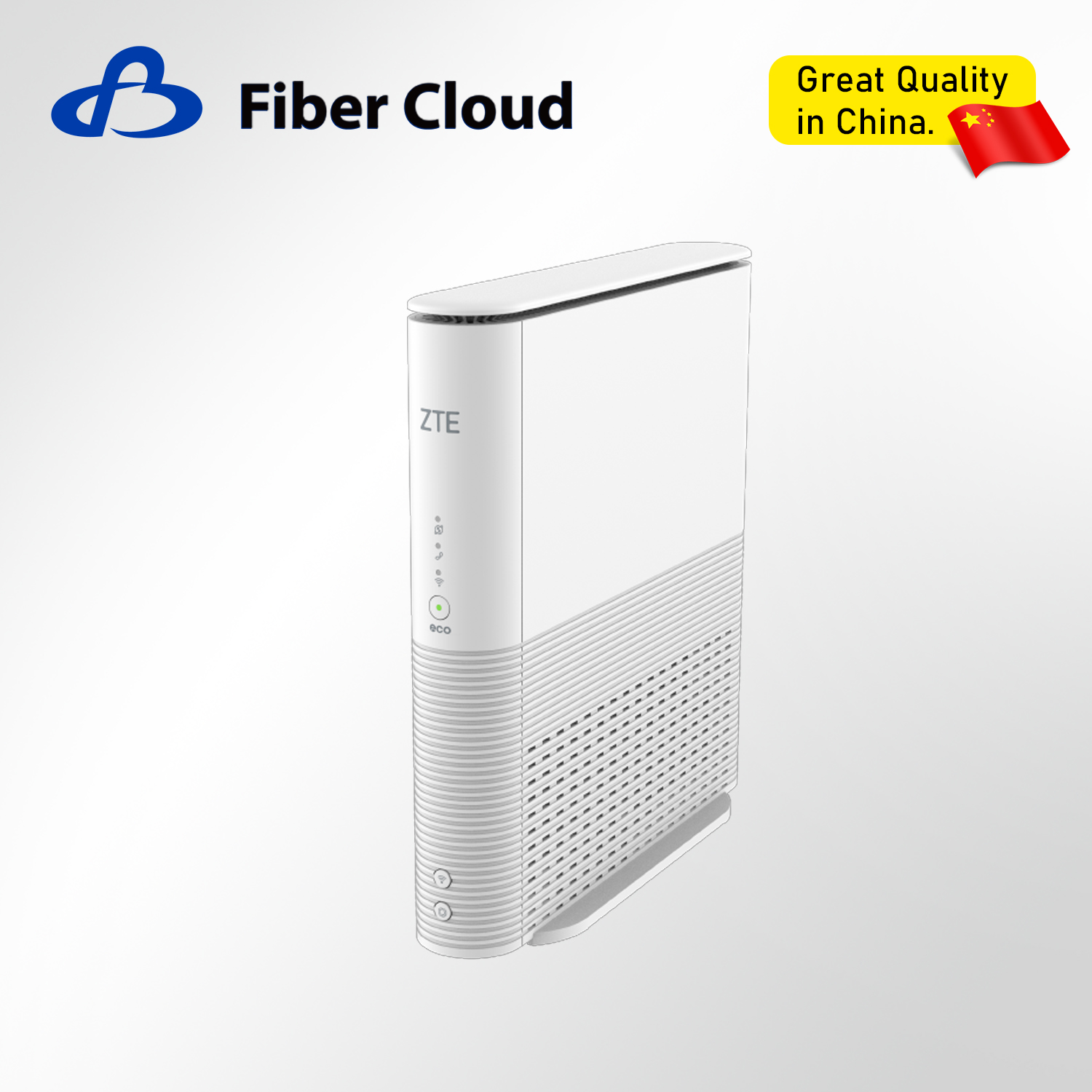

BE19000 Tri-Band Wi-Fi 7 XGS-PON ONT ZXHN F8748Q Router

The ZXHN F8748Q is a BE19000 XGS-PON Wi-Fi 7 gateway that provides one 10GE LAN port, four GE LAN ports, two phone ports, and triple band 4 x 4 Wi-Fi 7 with 320MHz @6GHz. It provides high bandwidth, low latency and multiple connections, meeting the Wi-Fi requirements of homes and small-sized enterprises.

Characteristics

XGS-PON and 10GE LAN
Complies with ITU-T G.988 OMCI
Complies with TR-069 management
Higher-order 4096-QAM modulation and up to 320 MHz bandwidth
Triple-band Wi-Fi 7 speed up to 19000 Mbps
Band steering and smart roaming optimize QoS

Availability:



Inquire Add to Basket

Model:
ZXHN F8748Q
Brand:
ZTE

Product Description

Product Application

Business trips

Picnics

Popular exhibitions

Road trips

Dormitoryshowdowns

Outdoor livestreams

Product Specifications

Attribute	Specification
WAN	XGS-PON
Buttons	Wi-Fi, WPS, Reset, Power On/Off, Eco
LEDs	Power, Internet, Wi-Fi, Phone
Operating Temperature	0°C ~ +40°C
Certification	CE, Wi-Fi 7 certification ready

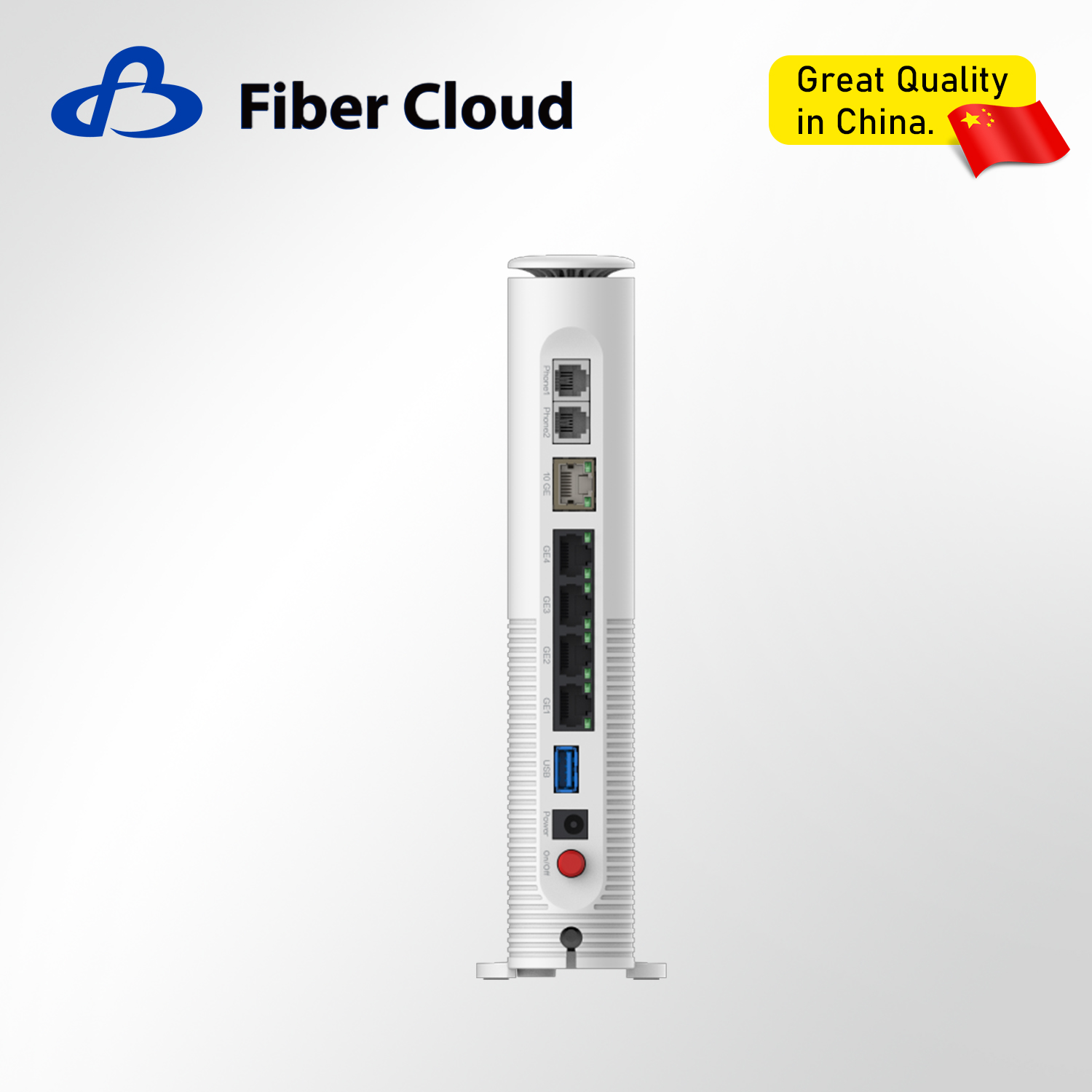

LAN	1 x 10GE + 4 x GE RJ-45 ports 2 x FXS RJ-11 ports 4 x 4 802.11b/g/n/ax/be Wi-Fi @2.4GHz 4 x 4 802.11a/n/ac/ax/be Wi-Fi @5GHz 4 x 4 802.11ax/be Wi-Fi @6GHz
Power Supply	AC adapter: 12 VDC, 3.0A
Dimensions (W x H x D)	228 x 215 x 40 mm
Humidity	5% - 95% (non-condensing)
