BE7200 Dual-Band Wi-Fi 7 GPON ONT ZXHN F6745 Router

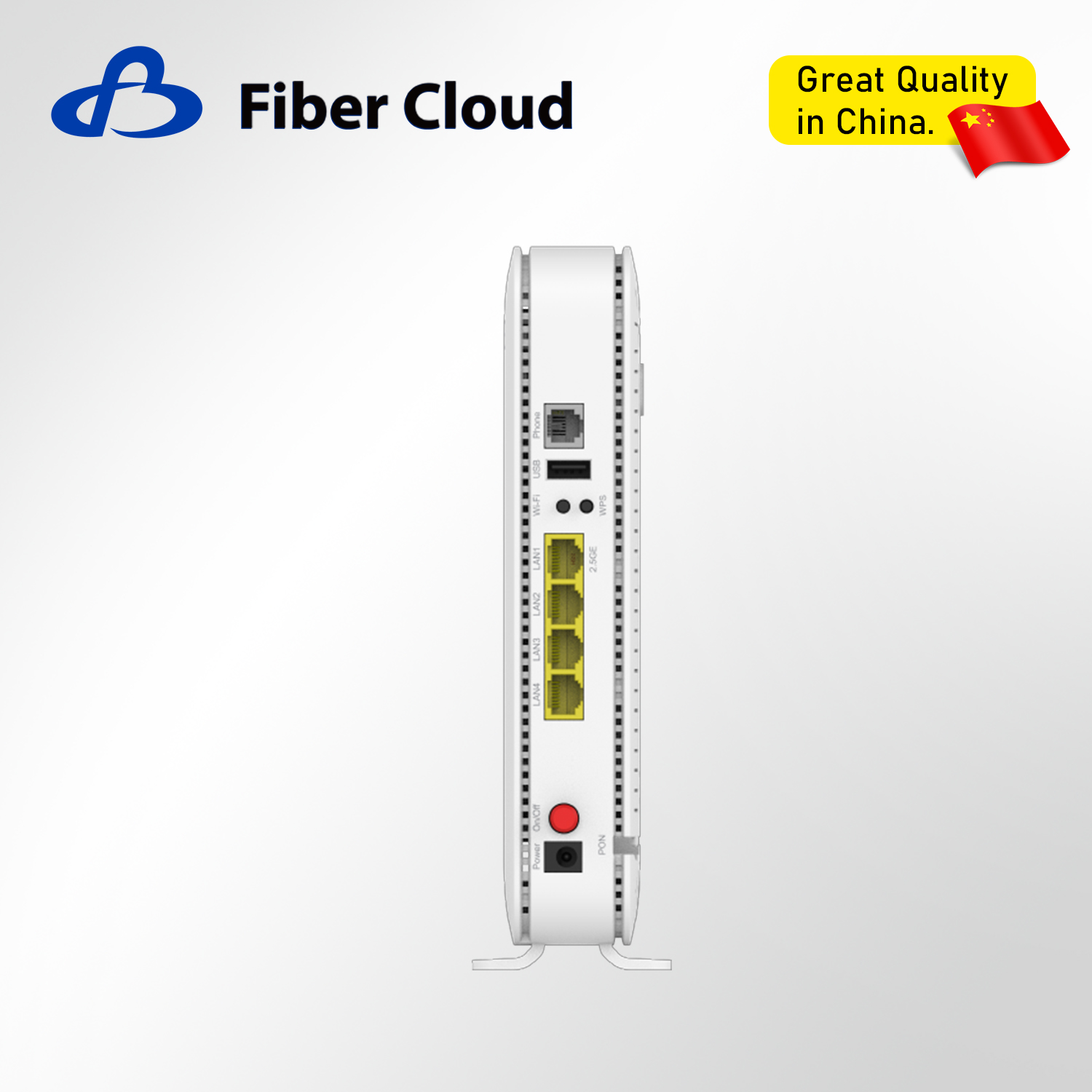

The ZXHN F6745 is a BE7200 dual-band Gigabit premium triple-play GPON gateway that provides one 2.5GE LAN port, three GE LAN ports, one phone port, and dual-band 4 x 4 Wi-Fi 7. The ZXHN F6745 supports high bandwidth, low latency and multiple connections, meeting the Wi-Fi requirements of the home scenarios and small-sized enterprise scenarios.

Characteristics

2.5GE Gigabit Speed
Complies with ITU-T G.988 OMCI
Complies with TR-069 management
Higher-order 4096-QAM modulation brings better concurrency and higher efficiency
Dual-band Wi-Fi 7 speed up to 7200 Mbps Band steering and smart roaming optimize QoS

Availability:



Inquire Add to Basket

Model:
ZXHN F6745
Brand:
ZTE

Product Description

Product Application

Business trips

Picnics

Popular exhibitions

Road trips

Dormitoryshowdowns

Outdoor livestreams

Product Specifications

Attribute	Specification
WAN	GPON
LAN	1 x 2.5GE RJ-45 port 3 x GE RJ-45 ports 1 x FXS RJ-11 port 1 x USB 2.0 port 4 x 4 802.11b/g/n/ax/be Wi-Fi @ 2.4 GHz 4 x 4 802.11a/n/ac/ax/be Wi-Fi @ 5 GHz
Buttons	Wi-Fi, WPS, Reset, Power On/Off
Power Supply	AC adapter: 12 VDC, 2.0A

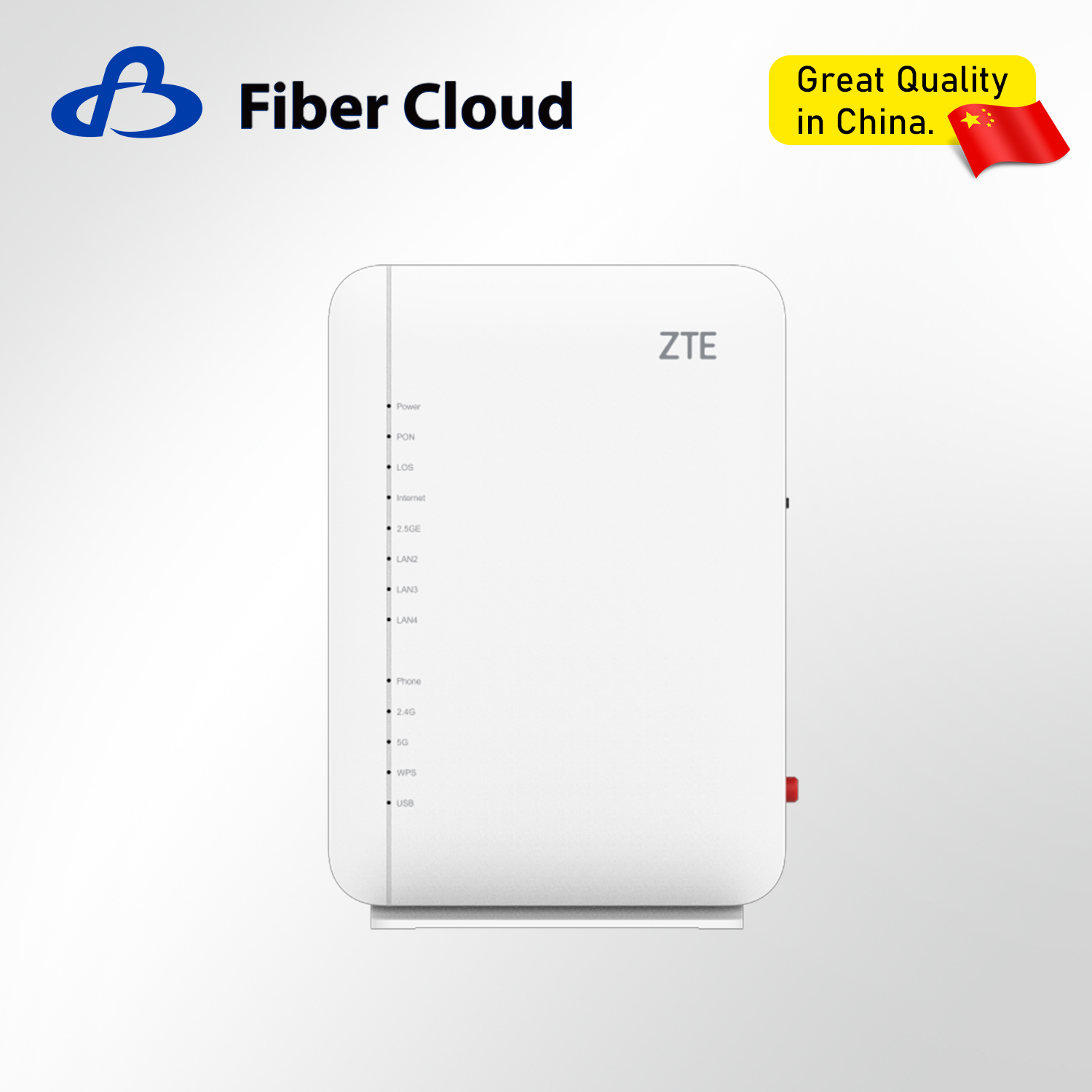

LEDs	Power, PON, LOS, Internet, Phone, 2.5GE, LAN2, LAN3, LAN4, Wi-Fi, WPS, USB
Dimensions (W x H x D)	150 x 210 x 41 mm
Operating Temperature	0°C ~ +40°C
Humidity	5% - 95% (non-condensing)
Certification	CE, RoHS, Wi-Fi 7 certification ready
