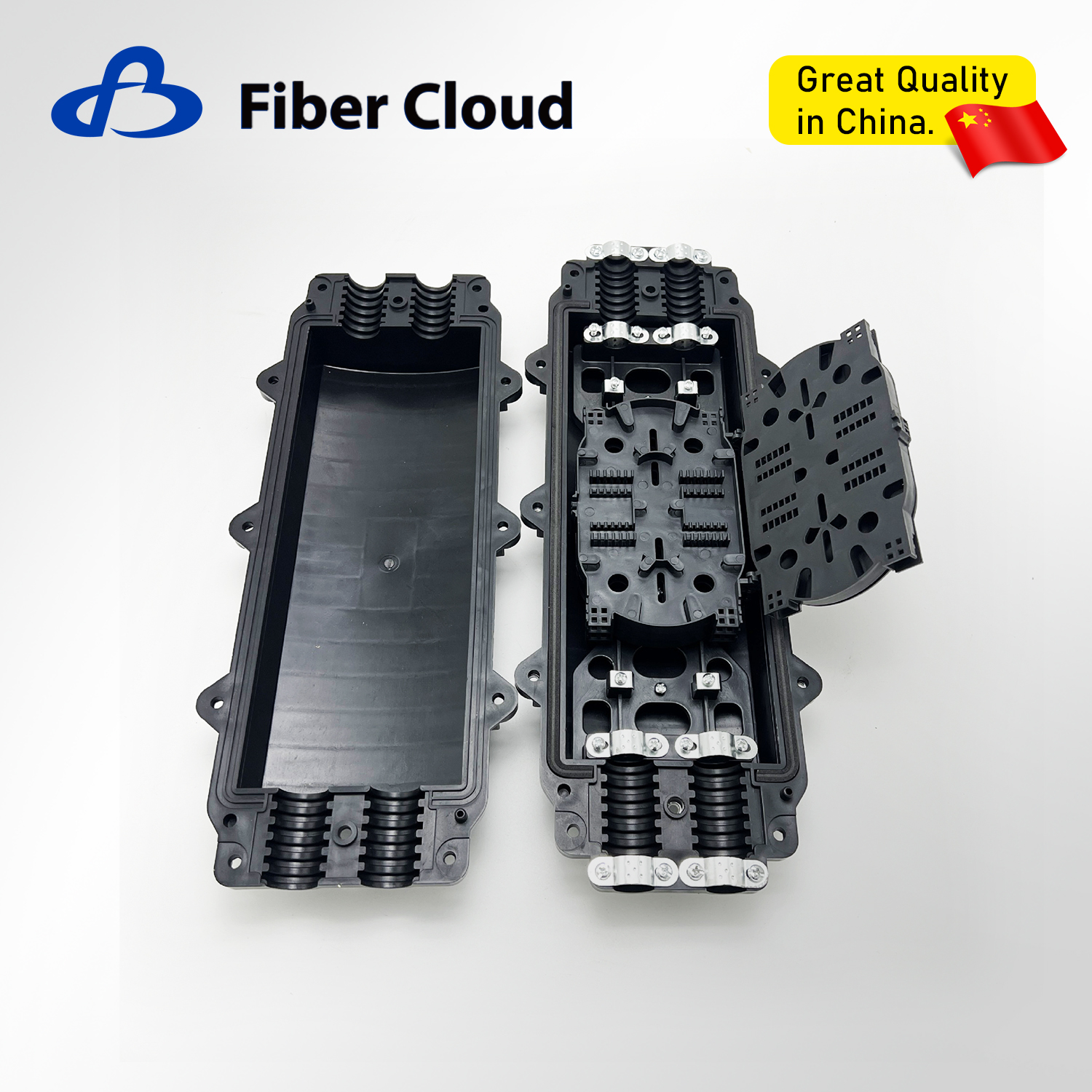

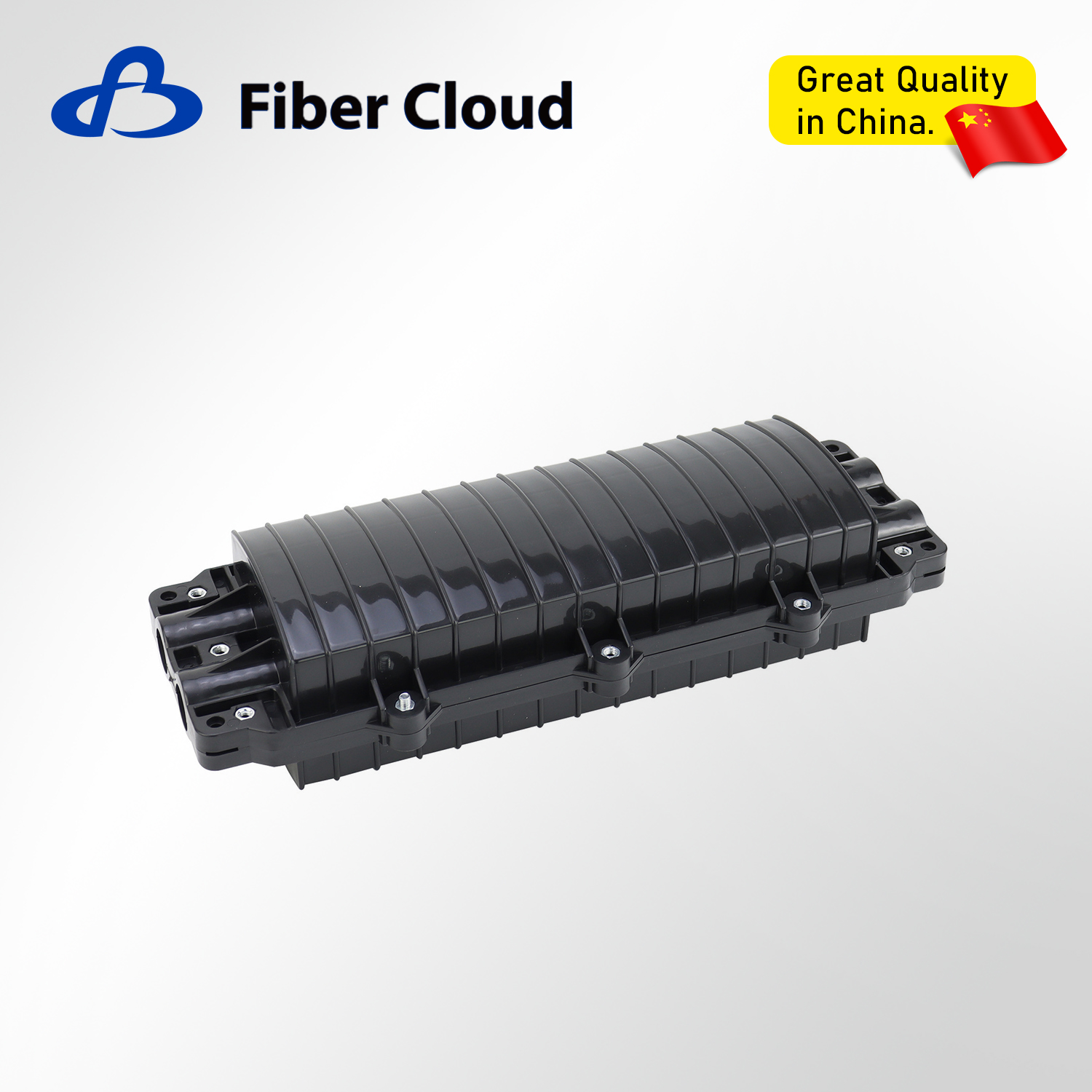

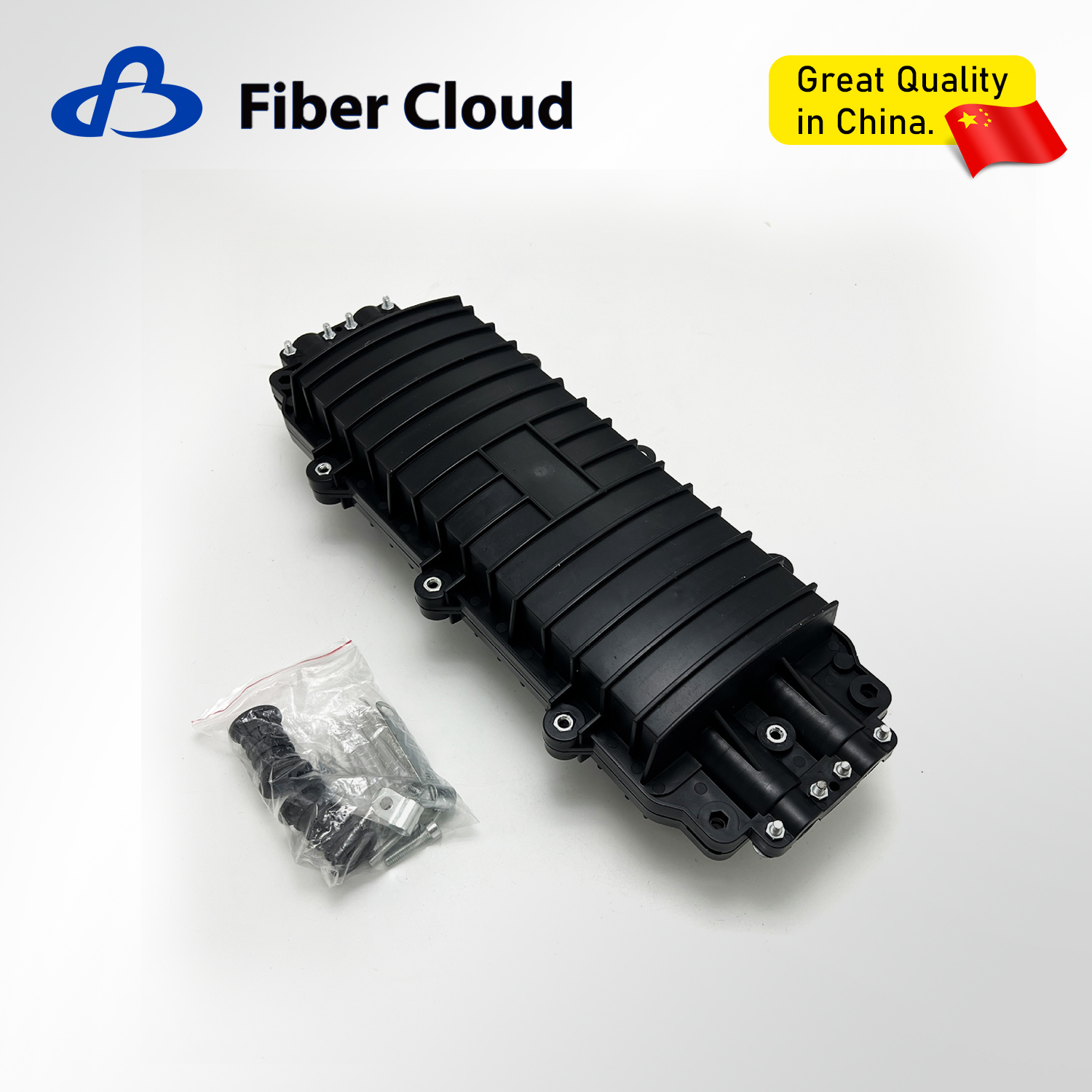

The optical cable splicing box belongs to the mechanical pressure sealing joint system, which is a splicing protection device that provides optical, sealing and mechanical strength continuity between adjacent optical cables. It is mainly suitable for the direct and branch connections of various structural optical cables in the overhead, pipeline, direct burial and other laying methods.
The box body is made of imported reinforced plastic, high strength, corrosion resistance, the terminal box is suitable for the connection in the terminal room of the structural optical cable, the structure is mature, the seal is reliable, and the construction is convenient. It is widely used in communication, network systems, CATV cable TV, optical cable network systems, etc.
Characteristics
- Adopt 2-time cable pressing technology
- Cable Neck: Φ20mm

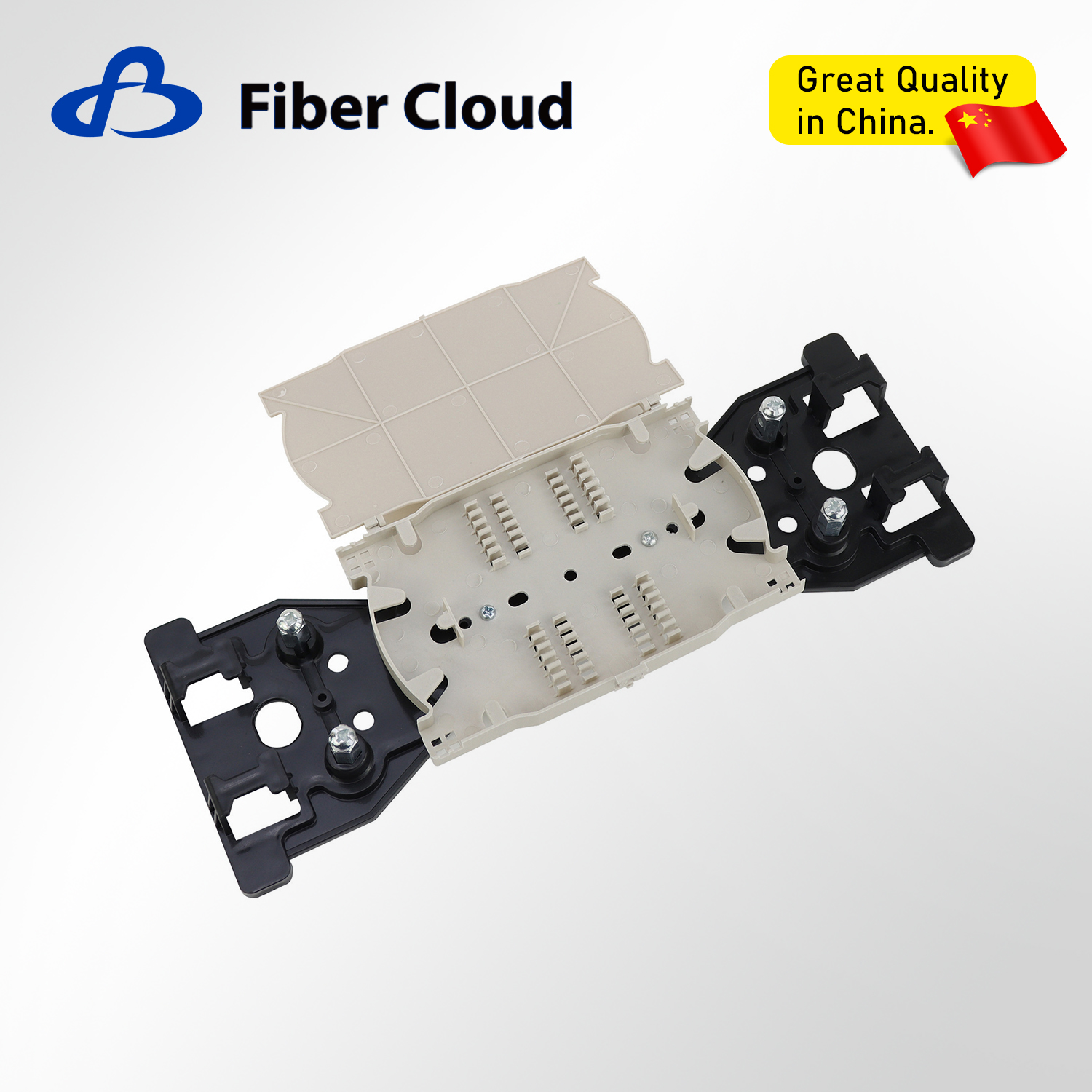

- Number of cores per disc: 12/24
- Maximum melting disc: minimum capacity 4 cores and maximum capacity 144 cores
- Maximum number of fused fiber discs: 6
- Tensile tightness: 2000N axial tension, no air leakage
- Withstand voltage strength: 15KV (DC)
