| System | Main Processor | H13536C |
| Operating System | Embedded Linux OS |
| System Resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface | Operation Interface | 16-bit true-color GUI, mouse-supported |
| Display Layout | 1/2/4/6/8/9/16/25/32 screens |
| Video | Video Input Mode | 32 channels of 4K (input bandwidth: 240Mbps) |
| Video Decoding | H.265A/H.265+ (compatible with H.265/H.264) |
| Monitoring Quality | Max: 4K |
| Playback Quality | 4K/5M/4M/3M/1080P |
| VR Support | Not supported |
| Human/Face Detection | Supported (requires Vmai front-end camera) |
| Audio | Standard | G.711A |
| Two-Way Audio | Supported |
| Recording & Playback | Recording Modes | Manual > Alarm > Motion Detection > Scheduled |
| Local Playback (Real-time + Non-real-time) | 4K (1+2), 5M (2+3), 4M (2+5), 3M (3+6), 1080P (5+9) |
| Recording Search | Time-based, calendar, event, channel, face recognition search |
| Recording Storage | Local HDD, network |
| Backup Methods | Network backup, USB HDD, USB burning, SATA burning |

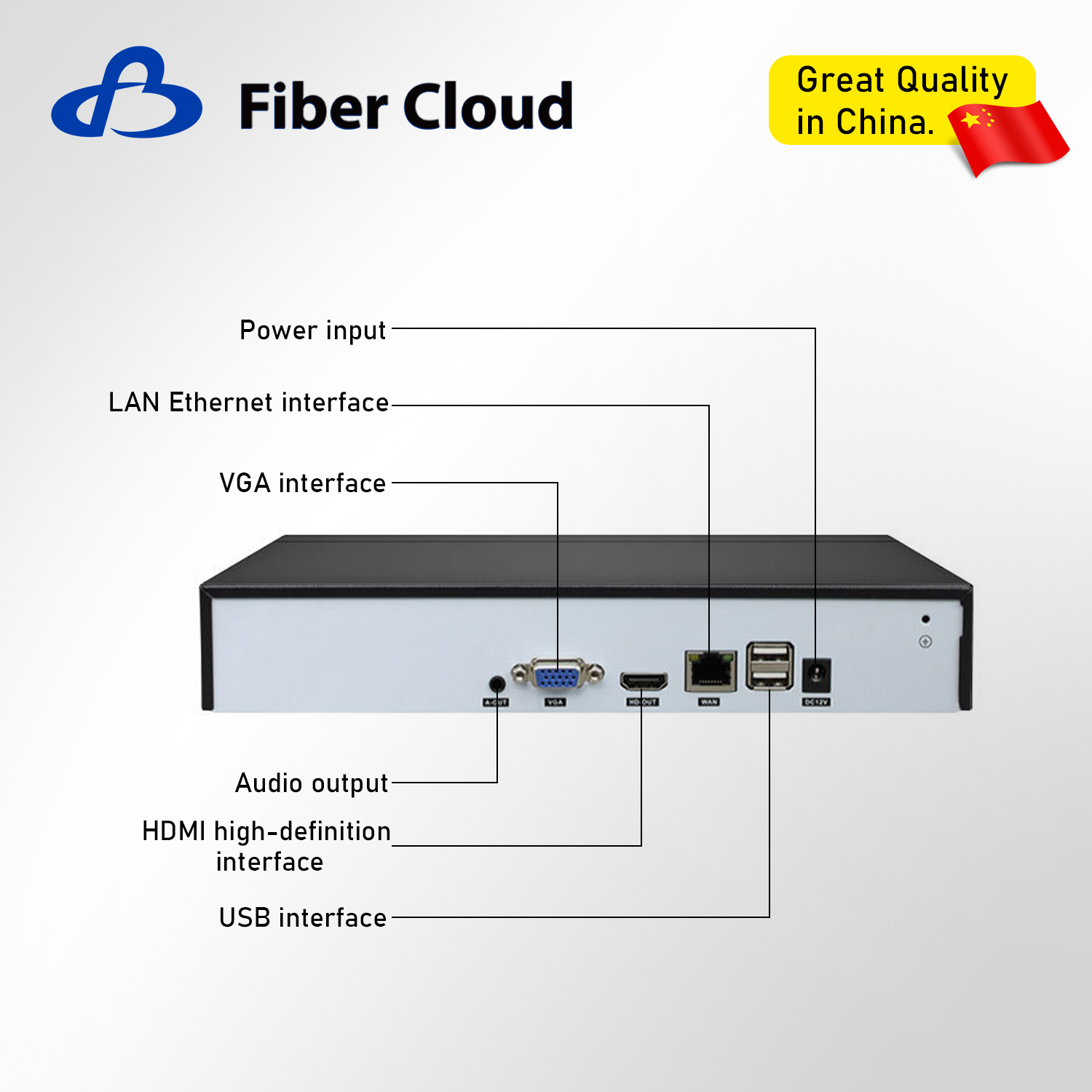

| Interfaces | Video Output | 1× HDMI, 1× VGA |
| Audio I/O | 1/1 (3.5mm jack) |
| Alarm I/O | 0/0 |
| Network Interface | 1× RJ45 10/100/1000Mbps Ethernet port |
| USB Ports | 2× USB 2.0 (expandable for 3G/WiFi) |
| HDD Interface | 2× SATA (supports up to 14TB each) |
| eSATA | Not available |
| Serial Port | Not available |

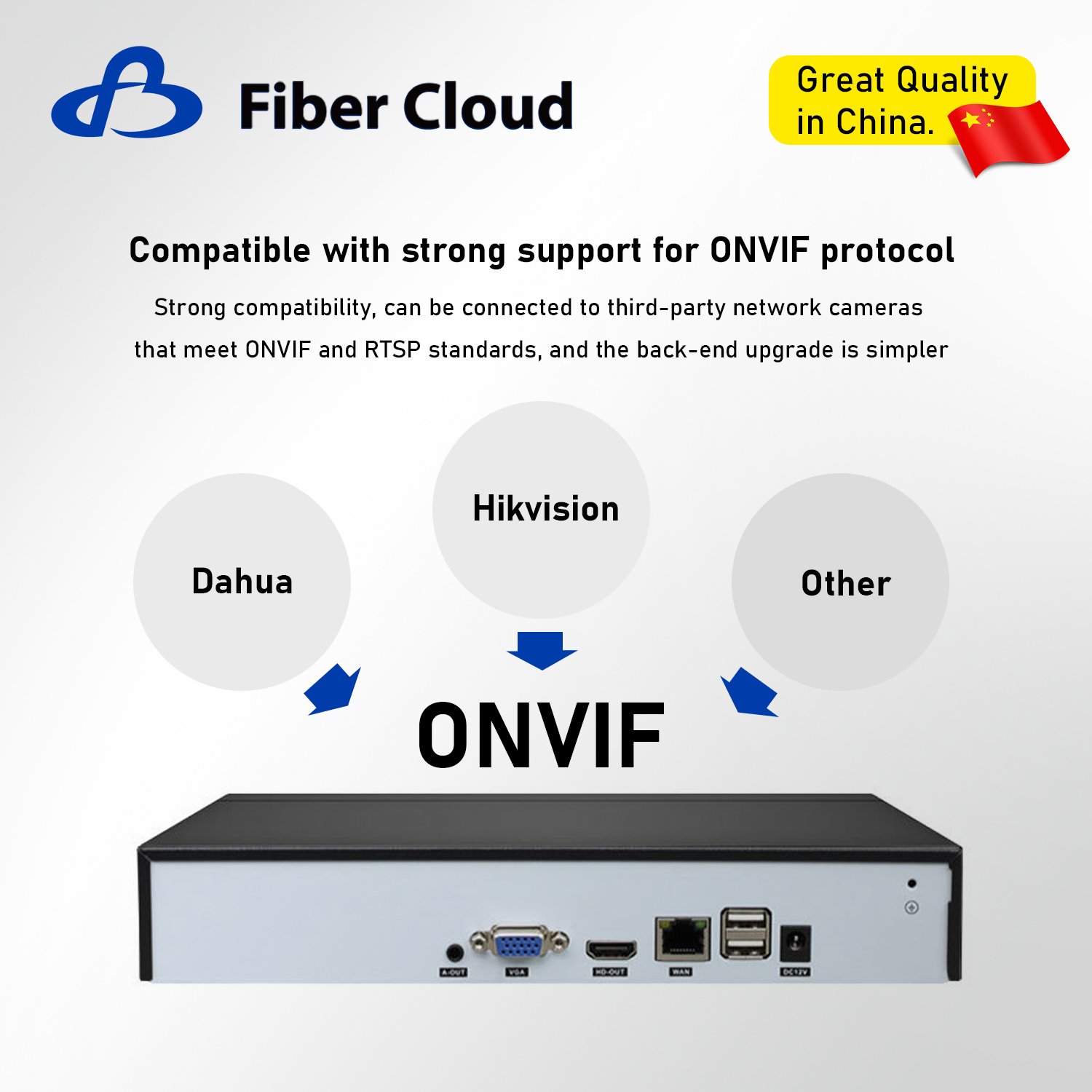

| Protocols | ONVIF Support | Yes |
| Power | Input | 12V/4A |
| Power Consumption | <10W (without HDD) |
