1-24 cores 600/2000/4000/5000m Steel Wire Direct Burial Armored Unrepeatered Submarine Optical Fiber Cable Armor Internet Cable

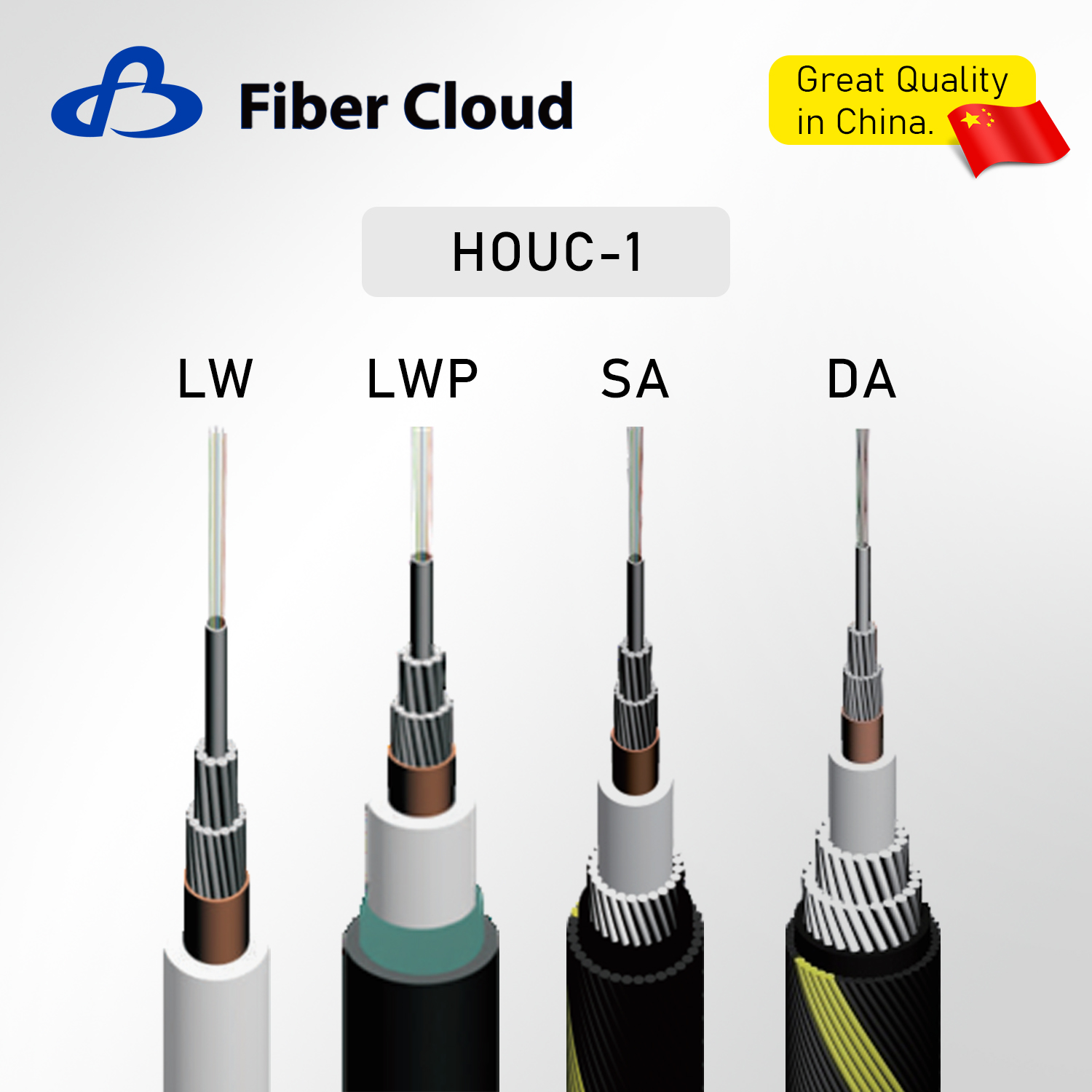

The repeatered submarine cable is developed for deep-sea transoceanic systems. It is used to transmit optical signals and deliver electrical power to the wet plants. The full series of repeatered cable types adopt the mature inner vault armoring structure design to ensure the mechanical strength of the submarine cable required in different scenarios such as storage, deployment, operation, and recovery.

Light Weight (LW) is the core of the cable family. The LW cable adopts inner vault steel wires design with polyethylene (PE) extrusion outside. The LW cable can be deployed & recovered down to 8,000m water depth.
Light Weight Protected (LWP) incorporates an external screen and an additional outer polyethylene sheath on the LW cable. The LWP cable is suitable for deployment in the environment that exposure to moderate abrasion and marine animal bites down to 7,000m water depth.
Single Armor (SA) equips a single layer of high strength galvanized armor wires at the external of the LW cable. The SA cable can be deployed & recovered at buried areas and risky regions with bottom trawling fishing etc. down to 2,000m water depth.
Double Armor (DA) adds two layers of high strength galvanized armor wires at the external of the LW cable. The DA cable is suitable for shallow water within 600m water depth where anchors can reach and abrasion might be a risk.

Availability:



Inquire Add to Basket

Model:
HOUC-1

Product Description

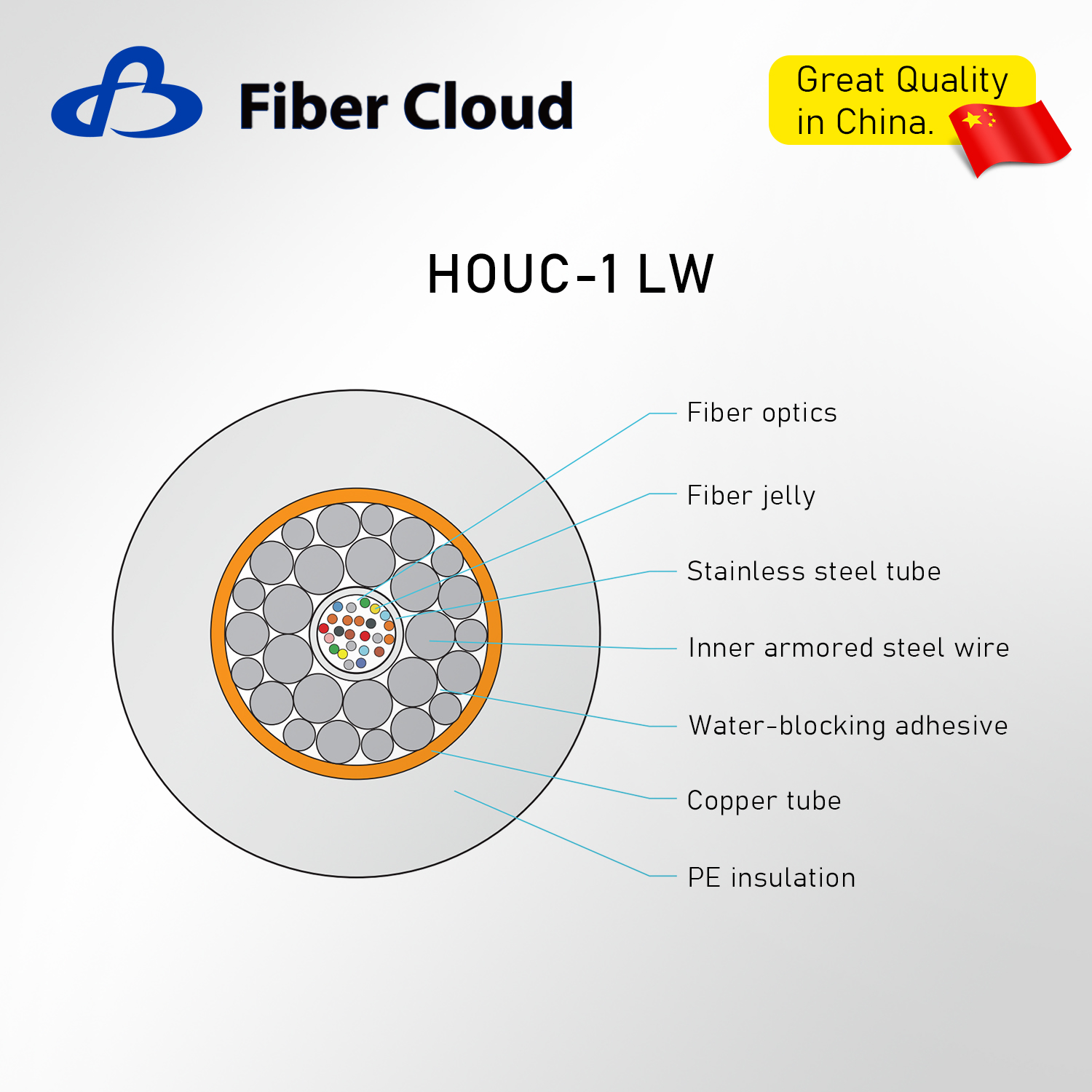

HOUC-1 LW

Optical Fiber Model	G652D or G654
Core Count	1-24 cores
Cable Outer Diameter	Φ13.6mm
Crush Resistance	15kN
Impact Resistance	60J
Insulation Resistance	>10 GΩ·km
Maximum Application Depth	5000m
Minimum Breaking Load	65kN
Operating Temp.(°C)	-10 to +40
Storage Temp.(°C)	-30 to +60

It is used in high-capacity optical communication transmission systems, with a maximum application depth of 5000 meters, and has obtained UQJ international certification.

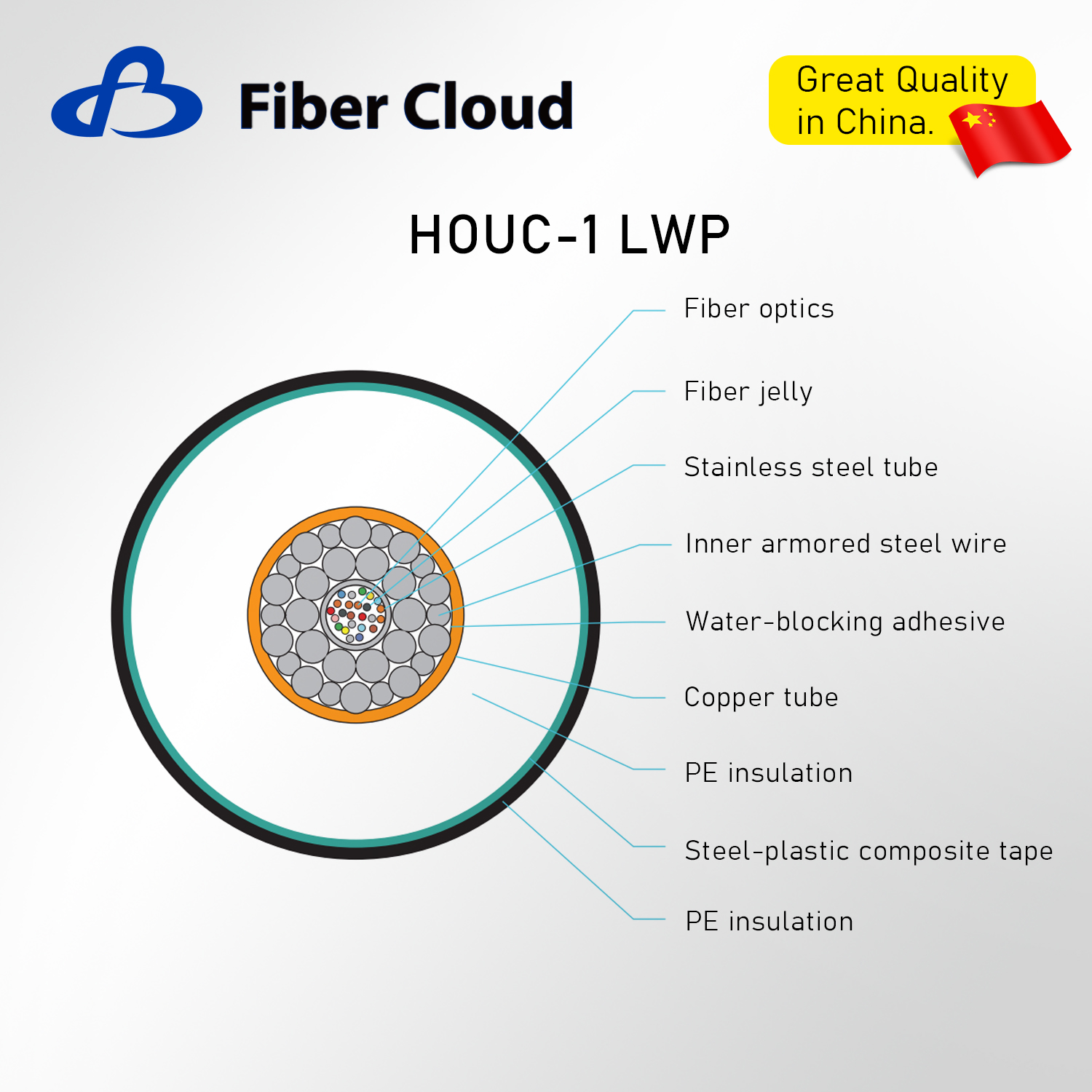

HOUC-1 LWP

Optical Fiber Model	G652D or G654
Core Count	1-24 cores
Cable Outer Diameter	Φ18.7mm
Crush Resistance	15kN
Impact Resistance	60J
Insulation Resistance	>10 GΩ·km
Maximum Application Depth	4000m
Minimum Breaking Load	65kN
Operating Temp.(°C)	-10 to +40
Storage Temp.(°C)	-30 to +60

It is used in high-capacity optical communication transmission systems, with a maximum application depth of 4000 meters, and has obtained UQJ international certification.

HOUC-1 SAL

Optical Fiber Model	G652D or G654
Core Count	1-24 cores
Cable Outer Diameter	Φ25.0mm
Crush Resistance	35kN
Impact Resistance	200J
Insulation Resistance	>10 GΩ·km
Maximum Application Depth	2000m
Minimum Breaking Load	140kN
Operating Temp.(°C)	-10 to +40
Storage Temp.(°C)	-30 to +60

It is used in high-capacity optical communication transmission systems, with a maximum application depth of 2000 meters, and has obtained UQJ international certification.

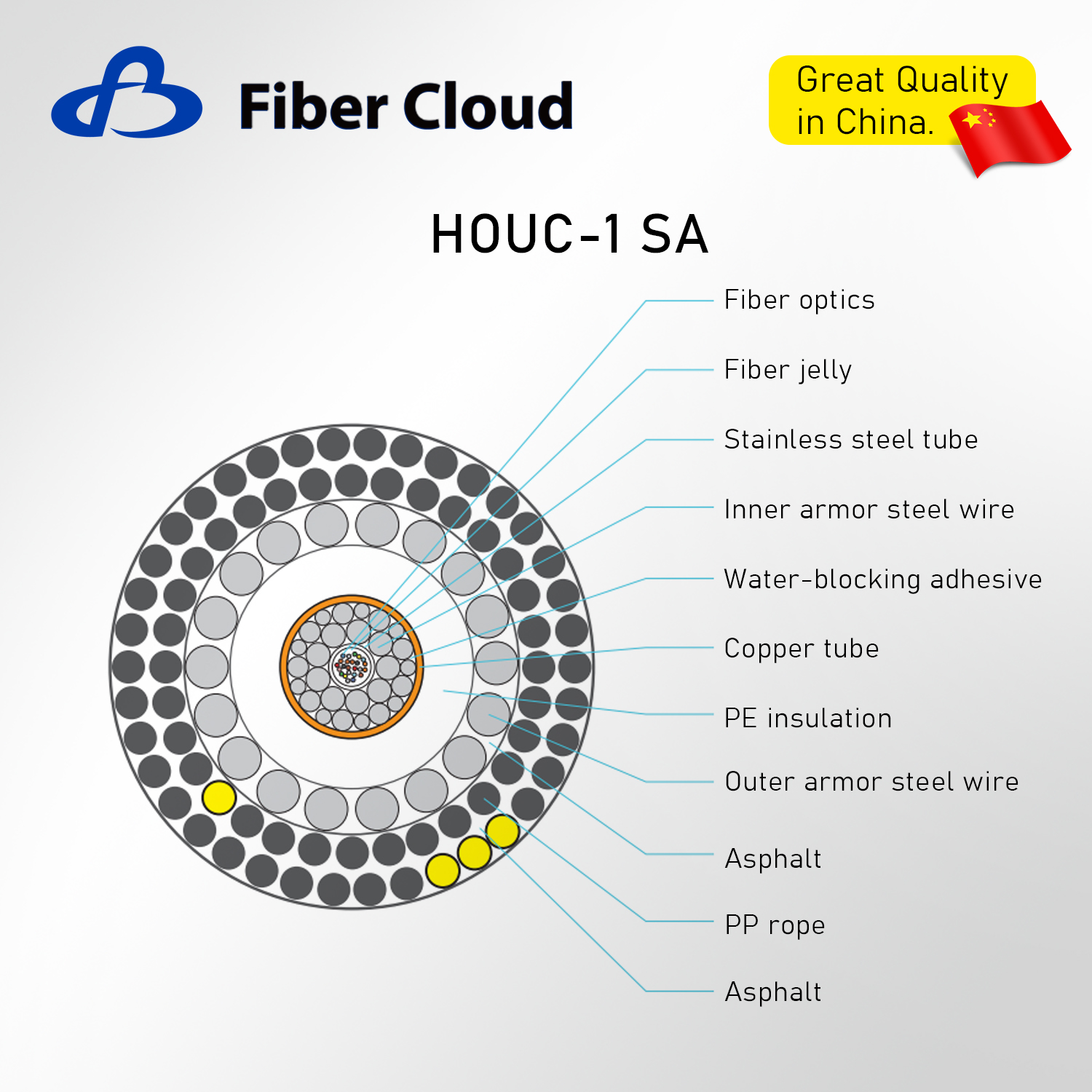

HOUC-1 SA

Optical Fiber Model	G652D or G654
Core Count	1-24 cores
Cable Outer Diameter	Φ26.0mm
Crush Resistance	35kN
Impact Resistance	250J
Insulation Resistance	>10 GΩ·km
Maximum Application Depth	2000m
Minimum Breaking Load	190kN
Operating Temp.(°C)	-10 to +40
Storage Temp.(°C)	-30 to +60

It is used in high-capacity optical communication transmission systems, with a maximum application depth of 2000 meters, and has obtained UQJ international certification.

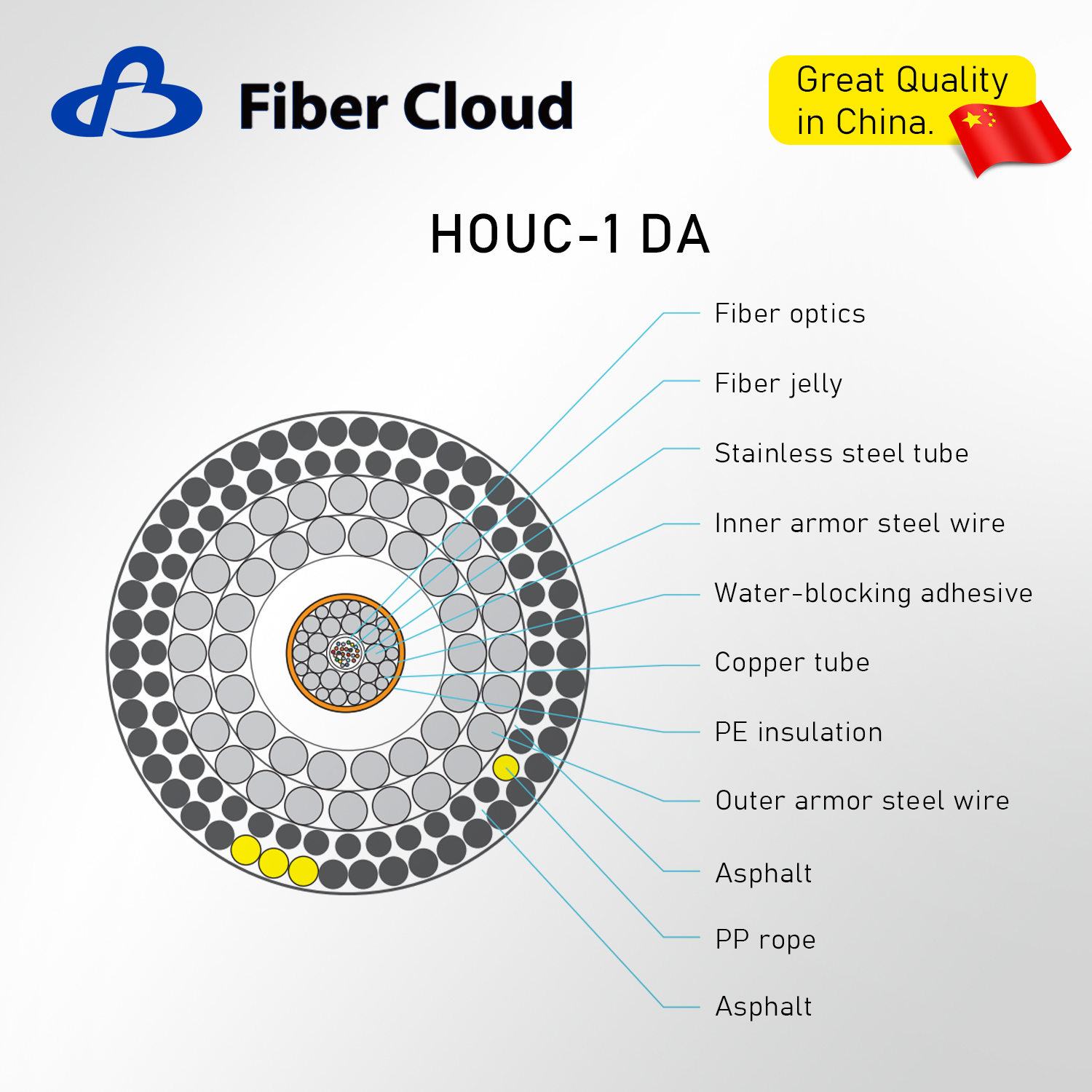

HOUC-1 DA

Optical Fiber Model	G652D or G654
Core Count	1-24 cores
Cable Outer Diameter	Φ26.0mm
Crush Resistance	40kN
Impact Resistance	300J
Insulation Resistance	>10 GΩ·km
Maximum Application Depth	2000m
Minimum Breaking Load	190kN
Operating Temp.(°C)	-10 to +40
Storage Temp.(°C)	-30 to +60

It is used in high-capacity optical communication transmission systems, with a maximum application depth of 600 meters, and has obtained UQJ international certification.
