Armored Self-supporting Figure 8 Cable (GYFC8Y53) Fiber Optic Cable

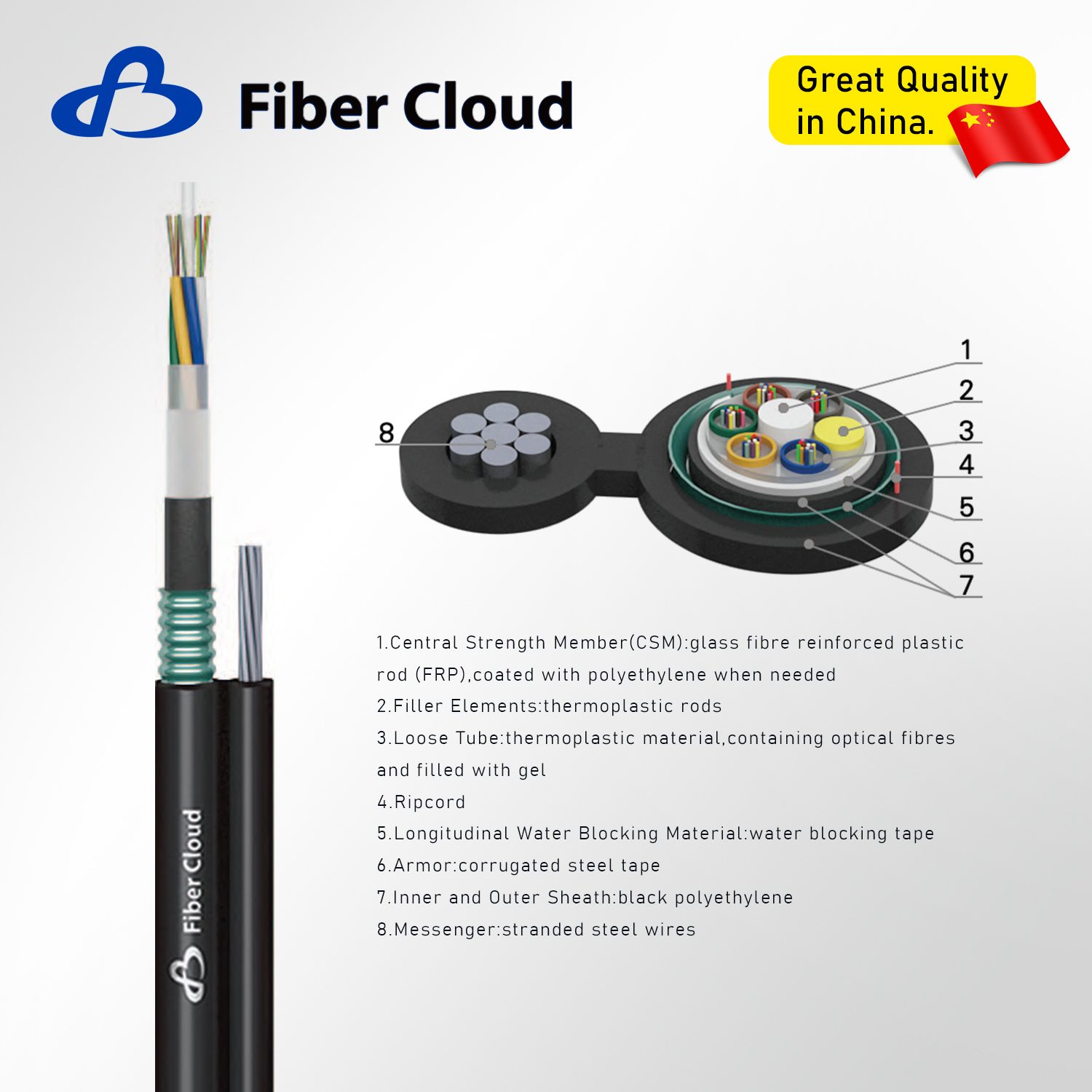

The loose tubes are made of high modulus plastics (PBT) and filled with a water resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP). The cable core wrapped with a water blocking tape, Polyethylene (PE) is extruded as inner sheath, then corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE sheath. This part integrated with a steel messenger is jacketed with polyethylene (PE) in a Figure-8 shape.

Characteristics

High tensile strength and crush resistance
Semi-dry core design, easy for installation and splice
Self-supporting aerial installation

Availability:



Inquire Add to Basket

Model:
GYFC8Y53

Product Description

Optical Characteristics

Parameter / Property	G.652.D	G.655	50/125μm	62.5/125μm
Attenuation @850nm	-	-	≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm	-	-	≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km	-	-
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km	-	-
Bandwidth @850nm	-	-	≥500 MHz·km	≥200 MHz·km
Bandwidth @1300nm	-	-	≥1000 MHz·km	≥600 MHz·km
Polarization mode dispersion (Individual fiber)	≤0.20 ps/√km	≤0.20 ps/√km	-	-
Design link value (M=20, Q=0.01%)	≤0.1 ps/√km	≤0.1 ps/√km	-	-

Technical Data

Item	Contents	Value
Item	Fibre Count	24	48	72	96	144
Loose tube	No.of tubes*fibres per tube	4*6	4*12	6*12	8*12	12*12
Loose tube	Outer diameter(mm)	1.9	2.4
Central strength member	Material	FRP
	Diameter(mm)	2.0	2.0	2.6	2.6	2.6
	Coated CSM diameter(mm)	-	-		4.2	7.4
Water blocking material	Material	Water blocking tape&yam
Inner sheath	Thickness(mm)	Nominal:1.0
Armor	Material	Corrugated steel tape
Messenger wire	Structure and diameter(mm)	7*1.6
Outer sheath	Thickness(mm)	Nominal:2.0
Cable diameter(mm)Approx		13.4*24.4	15.0*26.0	15.4*26.4	16.8*27.8	20.2*31.2
Cable weight(kg/km)Approx		270	320	350	390	420
Operating temperature range(℃)		-40~+70
Tensile strength short/long term(N)		8000/2700
Crush resistance short/long term(N/100mm)		3000/900

The colour arrangement of fibre and tube is specified in the color identification table.
Other structure and fibre count are also available according to customer requirements.

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 20Nm one in 3 different places	Additional attenuation ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation ≤ 0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m, 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	-40°C~+70°C	Attenuation change: ≤ 0.05dB/km after test
