125µm Diameter Operating at 1550nm Photonic crystal fiber

Fibercloud is dedicated to the research and development of this series of optical fiber products. Based on synthetic raw materials and chemical vapor deposition processes, and through theoretical simulation and calculation, we have developed endless single-mode photonic crystal fibers, polarization-maintaining photonic crystal fibers, photosensitive photonic crystal fibers, highly nonlinear photonic crystal fibers, hollow-core antiresonant fibers, Bragg cladding fibers, and hollow-core photonic crystal fibers.

Characteristics

Excellent radiation resistance
Flexible structural design
Adjustable fiber dispersion
Adjustable fiber nonlinear coefficient

Size:	8.8KM/ROLL
Availability:



Inquire Add to Basket

Product Description

Product Application

Broadband single-mode transmission
Energy transmission
Gas and liquid sensing
Fiber optic communications

Product Specifications

Item	Unit	Index

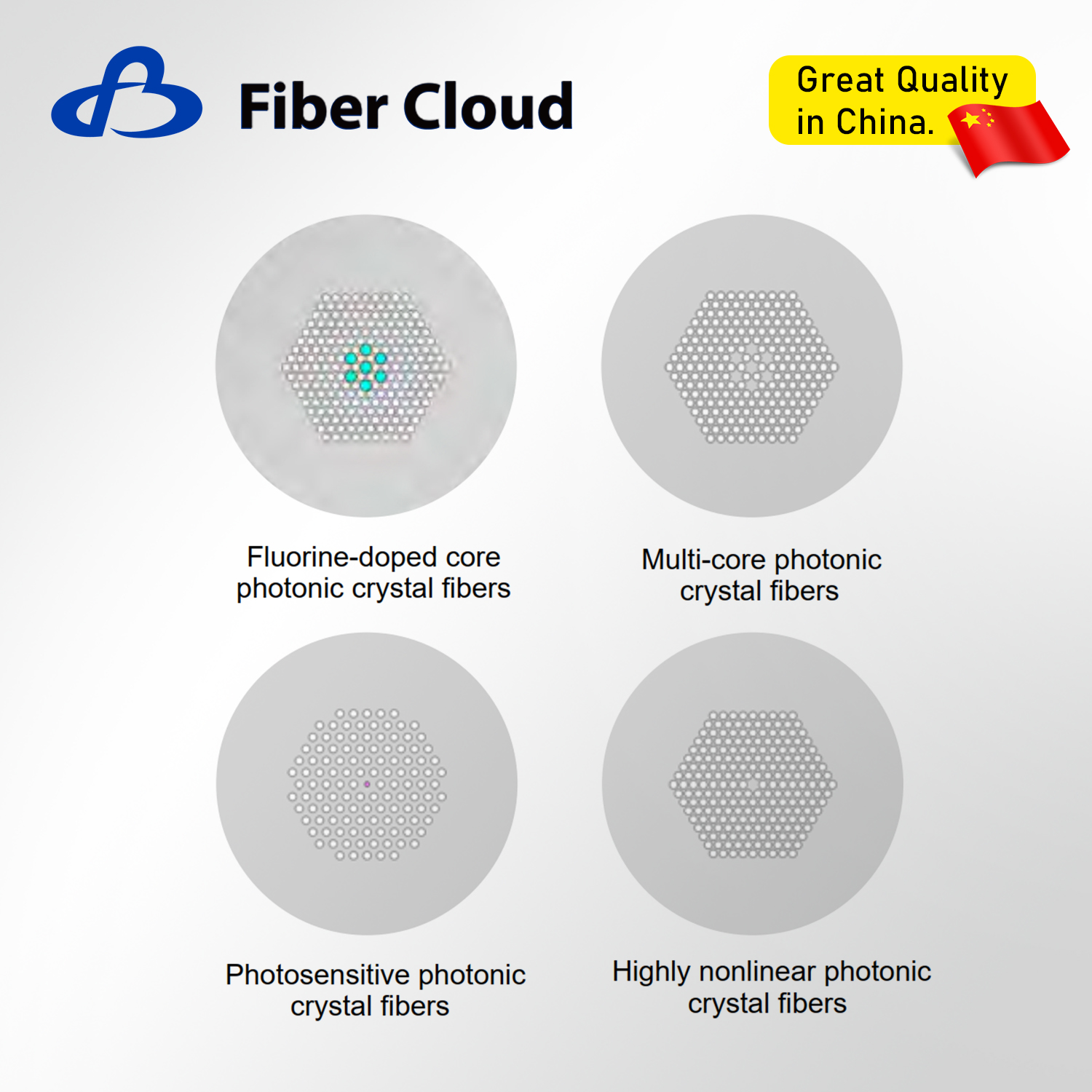

Product Model	/	FDPCF-15-125-250	MCPCF-15-125-250	PSPCF-15-125-250	HNPCF-15-125-250
Optical characteristics
Operating Wavelength	nm	1550	1550	1550	1550
Attenuation	dB/km	≤10.0	≤10.0	≤0.6	≤5.0
Geometric characteristics
Core Diameter	μm	5.5	4.5	0.6	3.5
Cladding Diameter	μm	125.0±2.0	125.0±2.0	125.0±2.0	125.0±2.0
Cladding Hole Diameter	μm	4.5±0.2	3.5±0.2	3±0.2	3±0.2
Cladding Hole Spacing	μm	5.5±0.2	4.5±0.2	5±0.2	3.5±0.2
Characteristics	/	Fluorine doping concentration <2.2wt%	Number of fiber cores≤7	/	/
