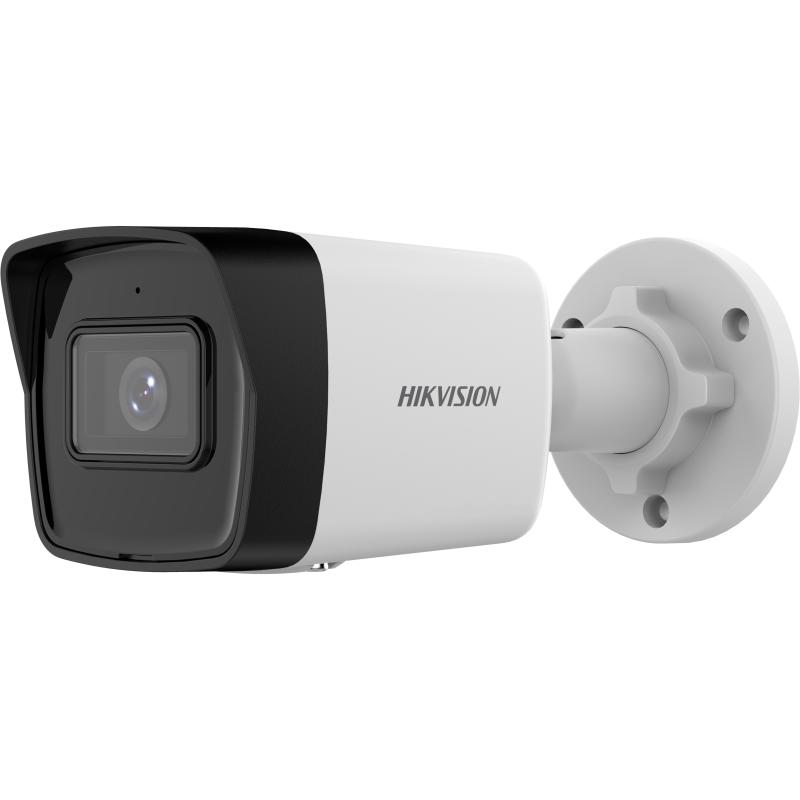

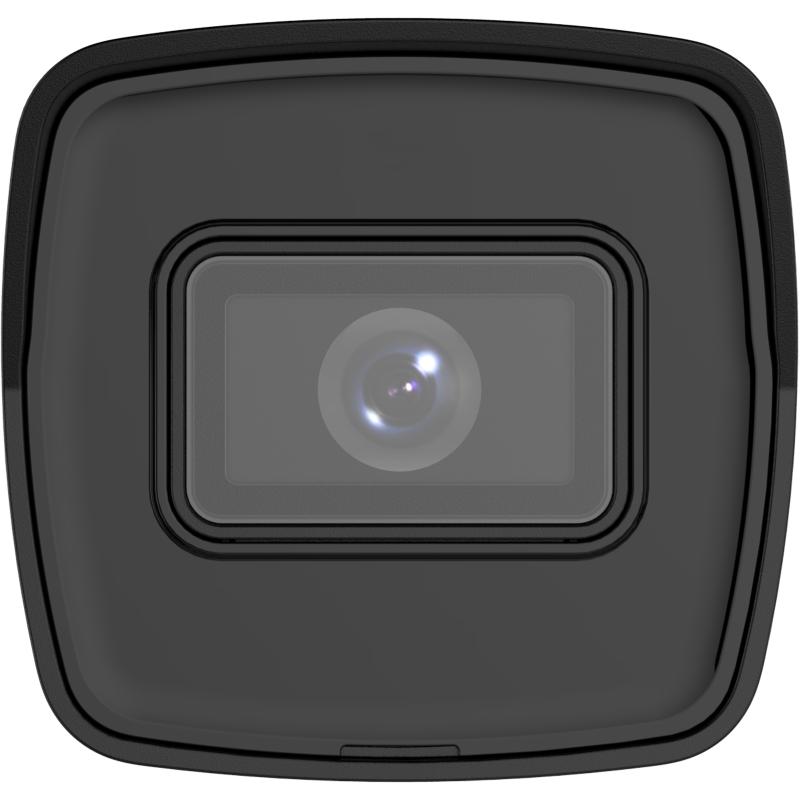

DS-2CD3021G0-I(UF)
Hikvison
8525801302
Image Sensor | 1/2.9" Progressive Scan CMOS |
Max. Resolution | 1920 × 1080 |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° |
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° | |
Supplement Light Range | Up to 30 m |
Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) |
60 Hz: 30 fps (1920 × 1080, 1280 × 720) | |
Wide Dynamic Range (WDR) | Digital WDR |
Material | Metal & Plastic |
Dimension | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
Weight | Approx. 265 g (0.6 lb.) |
Protection | IP67: IEC 60529-2013 |
Applications
Residential & Commercial: Secures home perimeters (doorways, garages) with 2MP clarity, WDR, and IP67 weather resistance, while monitoring small shops/offices via H.265+ cost-saving compression and 3D DNR for sharp theft-tracking or customer-flow visuals.
Public Areas: Serves light-commercial zones (community centers, local parking) and quiet walkways, using WDR for changing lighting and IP67 durability to reliably oversee daily activities.
Product standards
Imaging: Meets industry standards with 2MP resolution for detailed visuals, plus 120dB WDR to balance bright and dark areas and 3D DNR to reduce noises.
Compression: Follows industry-recognized norms by adopting H.265+ compression, efficiently transmits and stores high-quality video while cutting down on bandwidth usage and storage costs, without compromising image clarity.
