80/125µm Diameter Operating at 1530-1625nm Erbium-doped fiber

Fibercloud offers a series of erbium-doped active optical fibers, primarily used in erbium-doped lasers and amplifiers. By introducing a pump source to achieve positive feedback, laser oscillation is generated and the output is amplified. Its primary pump wavelengths include 1480nm and 980nm, achieving high energy conversion efficiency with relatively low pump power, meeting the needs of C-band and L-band optical amplification in communications applications. Erbium-doped fibers, with their low coupling loss and noise levels, are widely used in high-capacity, long-distance optical communications and fiber-optic sensing.

Characteristics

Uniform output spectrum
High core-clad concentricity, low splice loss
High energy conversion efficiency
High geometric uniformity
Low dispersion

Size:	8.8KM/ROLL
Availability:



Inquire Add to Basket

Product Description

Product Application

DWDM amplifier
ASE light source
Aerospace and defense
Erbium-doped fiber laser
Distributed sensing

Product Specifications

Item	Unit	Index
Model		EDFC6/125-21	EDFC5/125-24	EDFC5/125-23	EDFL4/125-26	EDFL5/125-26	EDFL4/80-26
Optical characteristics
Operating Wavelength	nm	1530～1565	1530～1565	1530～1565	1565～1625	1565～1625	1565～1625
Cut-off Wavelength	nm	≤960	≤1270	≤1270	≤1230	≤1230	≤1230
Core Absorption @1530nm	dB/m	7.0±1.0	14.0±1.5	21.0±2.0	30.0±3.0	37.0±3.0	30.0±3.0
Mode Field Diameter	μm	6.2±0.7	5.2±0.7	5.2±0.7	4.9±0.7	5.0±0.7	4.9±0.7
Attenuation @1200nm	dB/km	≤5.0	≤10.0	≤10.0	≤5.0	≤10.0	≤10.0
Core Numerical Aperture	/	0.21±0.02	0.24±0.02	023±0.02	0.26±0.02	0.26±0.02	0.26±0.02
Cladding Numerical Aperture	/	0.46±0.02	0.46±0.02	0.46±0.02	0.46±0.02	0.46±0.02	0.46±0.02
Geometric characteristics
Cladding Diameter	μm	125.0±1.0	125.0±1.0	125.0±1.0	125.0±1.0	125.0±1.0	80.0±1.0
Core-Cladding Concentricity	μm	≤0.3	≤0.3	≤0.3	≤0.3	≤03	≤0.3

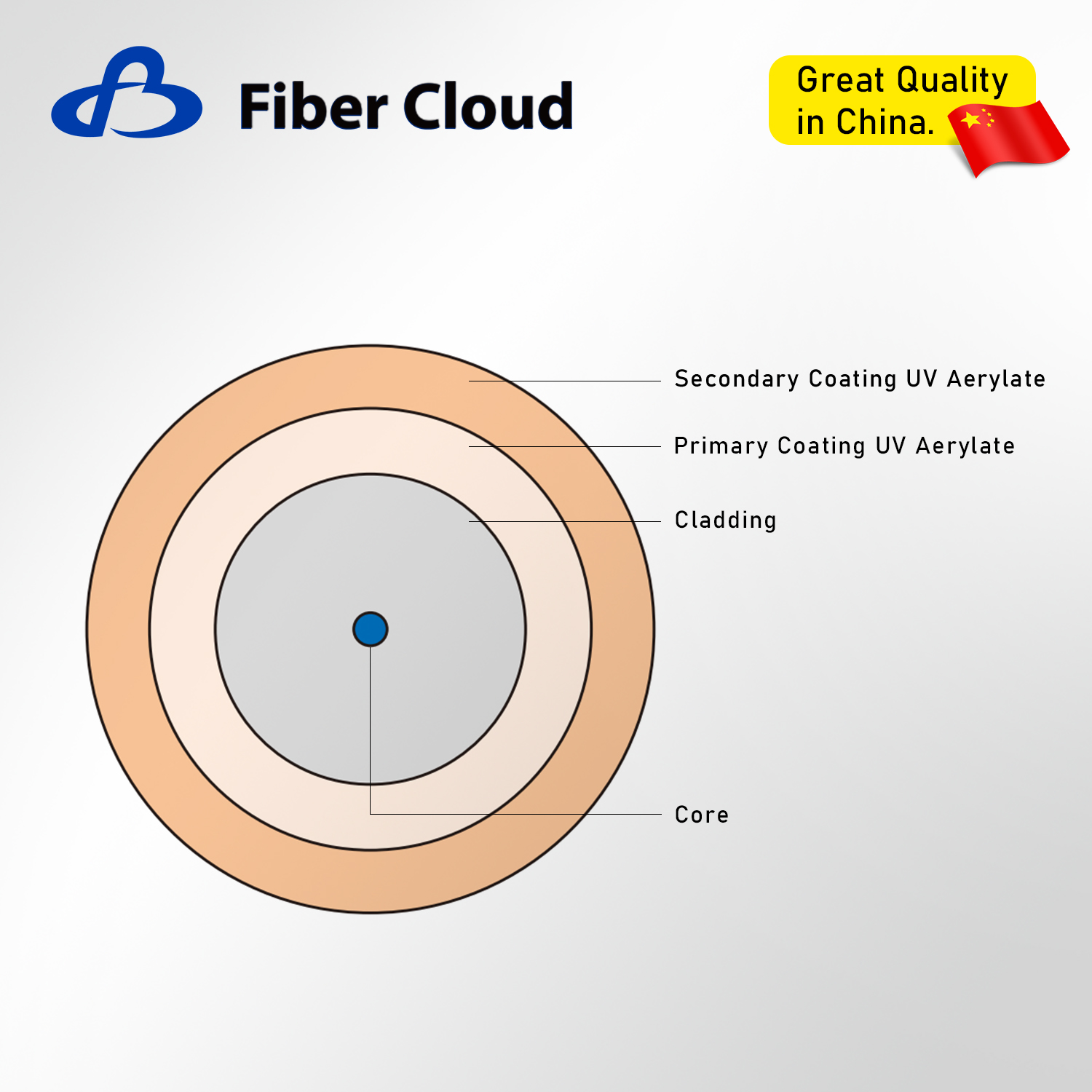

Coating Type	/	Double Layer UVcuring acrylic resin
Coating Diameter	μm	245.0±5.0	245.0±5.0	245.0±5.0	245.0±10.0	245.0±5.0	165.0±2.0
Environmental and mechanical characteristics
Operating Temperature	℃	-40～+85	-40～+85	-40～+85	-40～+85	-40～+85	-40～+85
Screening Strength	kpsi	200	200	200	200	200	200

Customized Information

The operating wavelength, mode field diameter, beat length, geometric dimensions, coating material,screening intensity and other indicators can be customized according to customer requirements.
