80µm Diameter Operating at 1310nm/1550nm Elliptically clad polarization-maintaining fiber

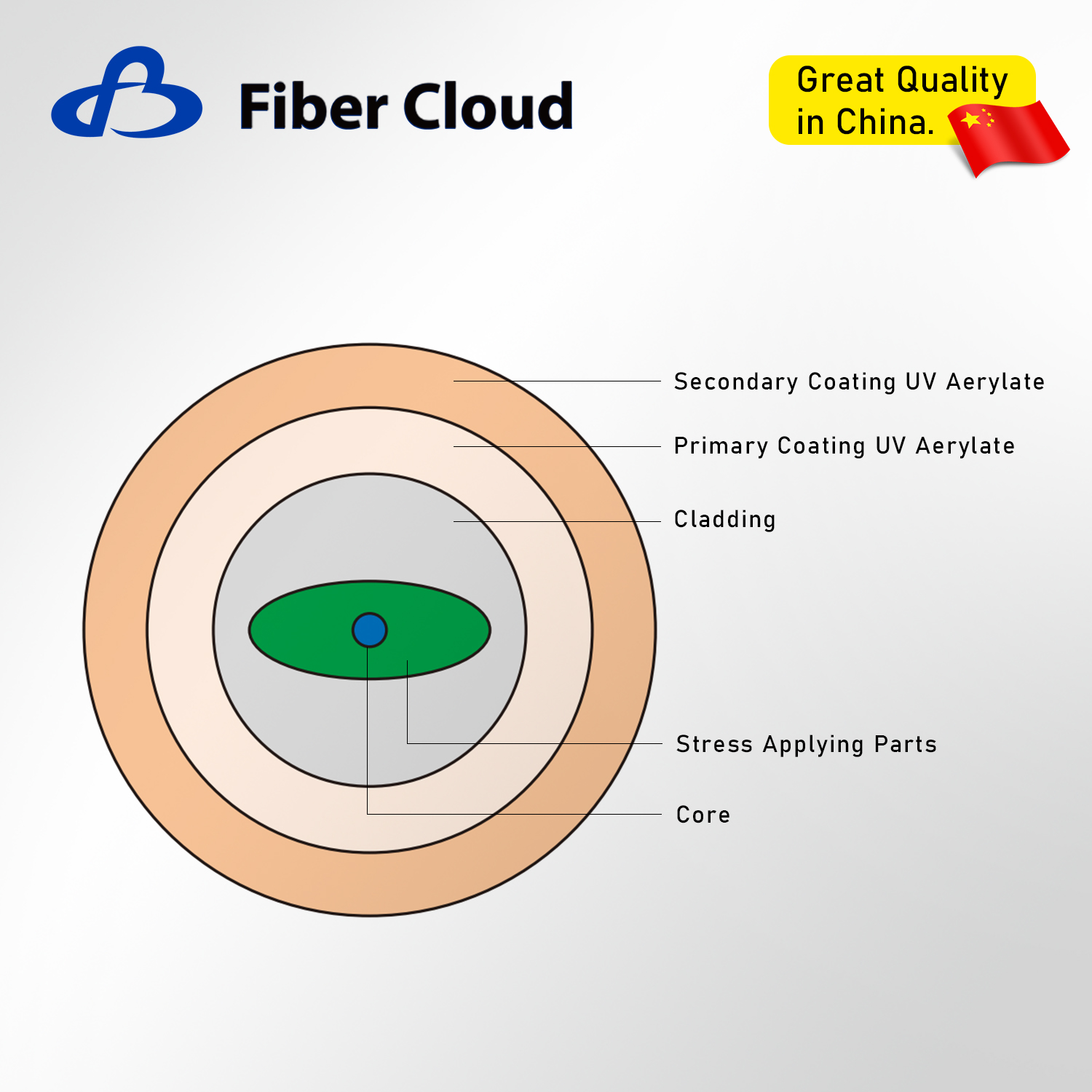

Elliptically clad polarization-maintaining fiber is a specially designed, stress-type polarization-maintaining fiber. Its structural characteristics provide excellent polarization-maintaining performance. Furthermore, compared to bowtie-type polarization-maintaining fiber, it reduces the manufacturing process complexity and maintains good geometric consistency. Fibercloud's elliptically clad polarization-maintaining fiber optimizes the fiber's axial uniformity. By utilizing proprietary internal and external coating materials, it exhibits excellent temperature stability and birefringence performance, making it widely applicable in fiber optic gyroscopes, current transformers, and other polarizationdependent devices.

Characteristics

High birefringence performance
Excellent bending resistance
High operational stability and reliabilit

Size:	8.8KM/ROLL
Availability:



Inquire Add to Basket

Product Description

Product Application

Fiber optic gyroscope
Fiber optic current transformer
Polarization-maintaining component

Specifications

Item	Unit	Index
Fiber model	/	EPM13-80-U13	EPM13-80-U16	EPM15-80-U13	EPM15-80-U16
Optical characteristics
Working wavelength	nm	1310	1310	1550	1550
Cut-off wavelength	nm	1100～1290	1100～1290	1290～1520	1290～1520
Mode field diameter	μm	6.0±1.0	6.0±1.0	6.5±1.0	6.5±1.0
Attenuation	dB/km	≤1.5	≤1.5	≤1.5	≤1.5
Beat Length	mm	≤2.5	≤2.5	≤3.0	≤3.0
Typical Crosstalk	dB	≤-25	≤-25	≤-25	≤-25
Geometric characteristics
Cladding Diameter	μm	80.0±1.0	80.0±1.0	80.0±1.0	80.0±1.0
Core Concentricity	μm	≤1.0	≤1.0	≤1.0	≤1.0
Cladding Out-of-Roundness	%	≤2.0	≤2.0	≤2.0	≤2.0
Coating Type	/	Double Layer UVcuring acrylic resin
Coating Diameter	μm	135.0±3.0	168.0±3.0	135.0±3.0	168.0±3.0
Environmental and mechanical characteristics
Operation Temperature	℃	-45～+85	-45～+85	-45～+85	-45～+85
Screening Tension	kps	100	100	100	100

Customized Information

The operating wavelength, mode field diameter, beat length, geometric dimensions, coating material,screening intensity and other indicators can be customized according to customer requirements.
