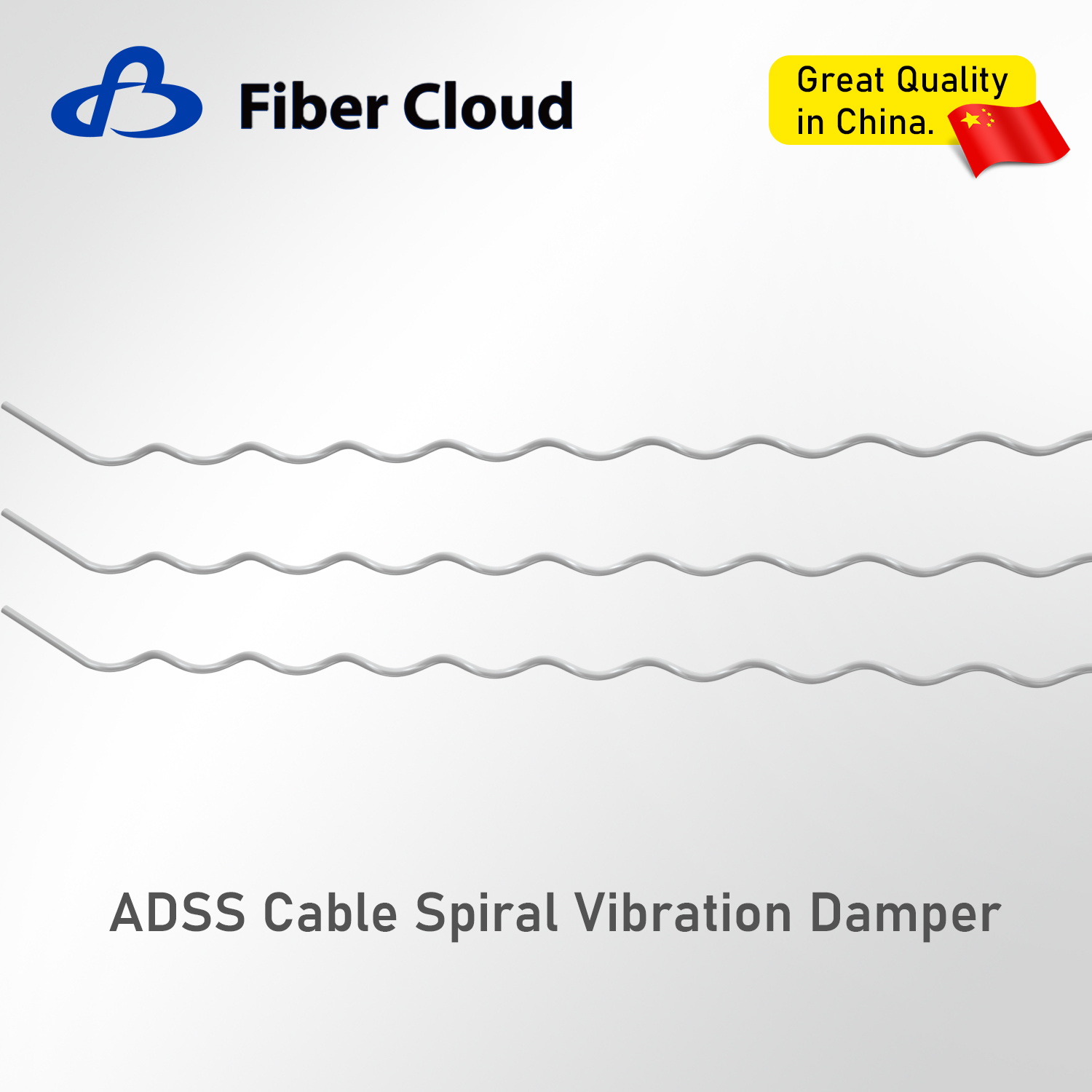

ADSS Fiber Optic Cable Vibration Absorber Damper for Helical Accessories

PVC spiral vibration damper is made of high-strength, antigenic and high-elasticity PVC plastic, easy to install and operate. The shock absorber damper is an interference type damper to attenuate vibration amplitude by impact with its damping section and especially designed for ADSS cable and OPGW cable of diameter less than 12mm.

Characteristics

Material: wedge shell- steel plate, the surface treatment for rust, folder block-hard plastic
The largest installation span is 75 meters

Availability:



Inquire Add to Basket

Product Description

Product Model	Cable Diameter (mm)	Gripping Length L1 (mm)	Total Length L (mm)	Weight (Kg)
FTL-11	8.3~11.7	250	1300	0.28
FTL-14	11.71~14.30	250	1350	0.30
FTL-16	14.31~19.30	330	1670	0.66

Applications

Select the Specification Model according to cable diameter
Installed Spiral Vibration Damper may be several along the cable or at the same point. Gripping section is close to pole or tower and the length from Damping Section to Inner Protection Rods end of Tension Set or Suspension Set is 12 cm
The quantity of damper per span is confirmed according to cable stress and span length. The normal specification is followed：

Span Length	Quantity
<100m	0
100-250m	2
250-400m	4
400-800m	6
