Fiber Optic Fittings Galvanized Steel Cable Storage Assembly Opgw ADSS Accessories

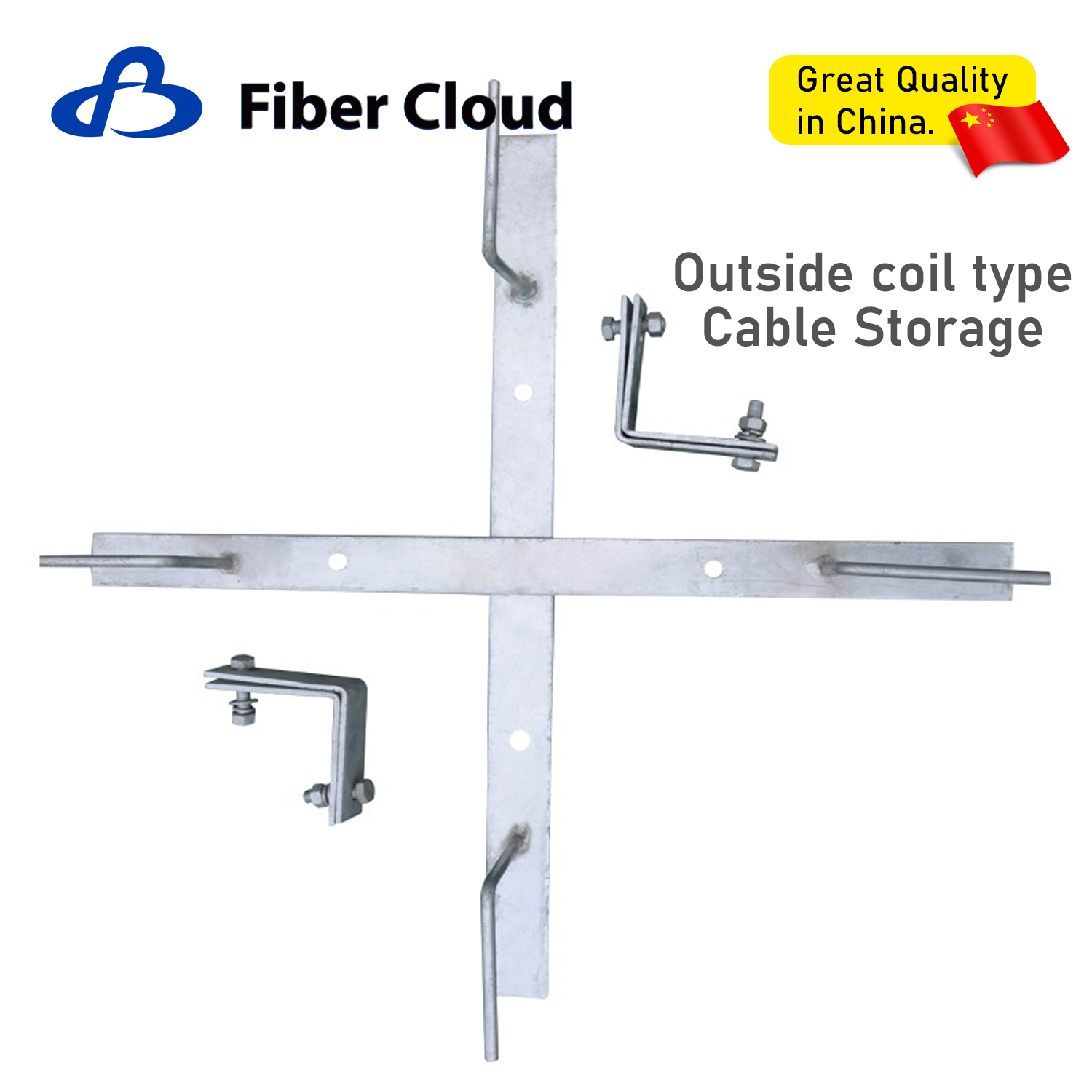

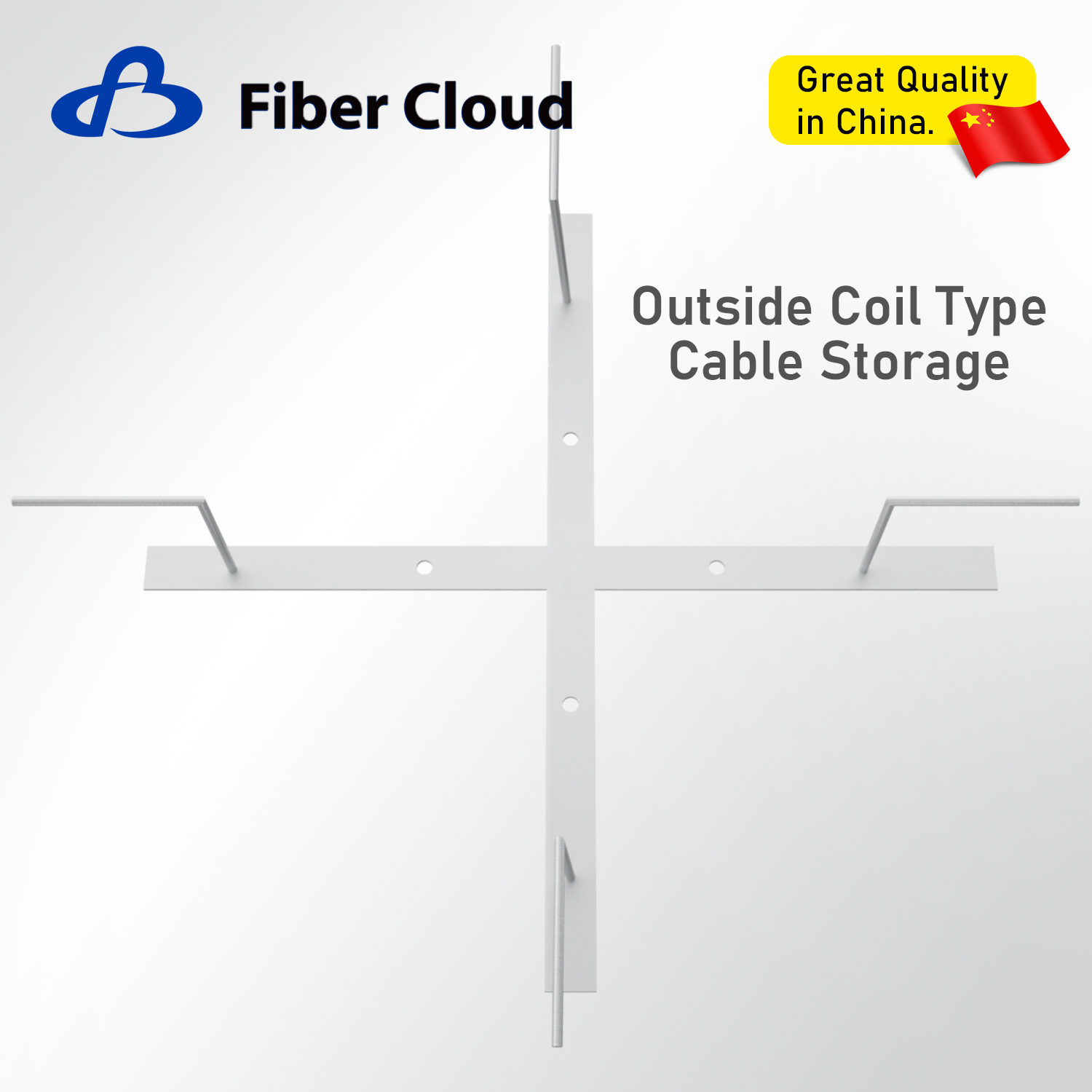

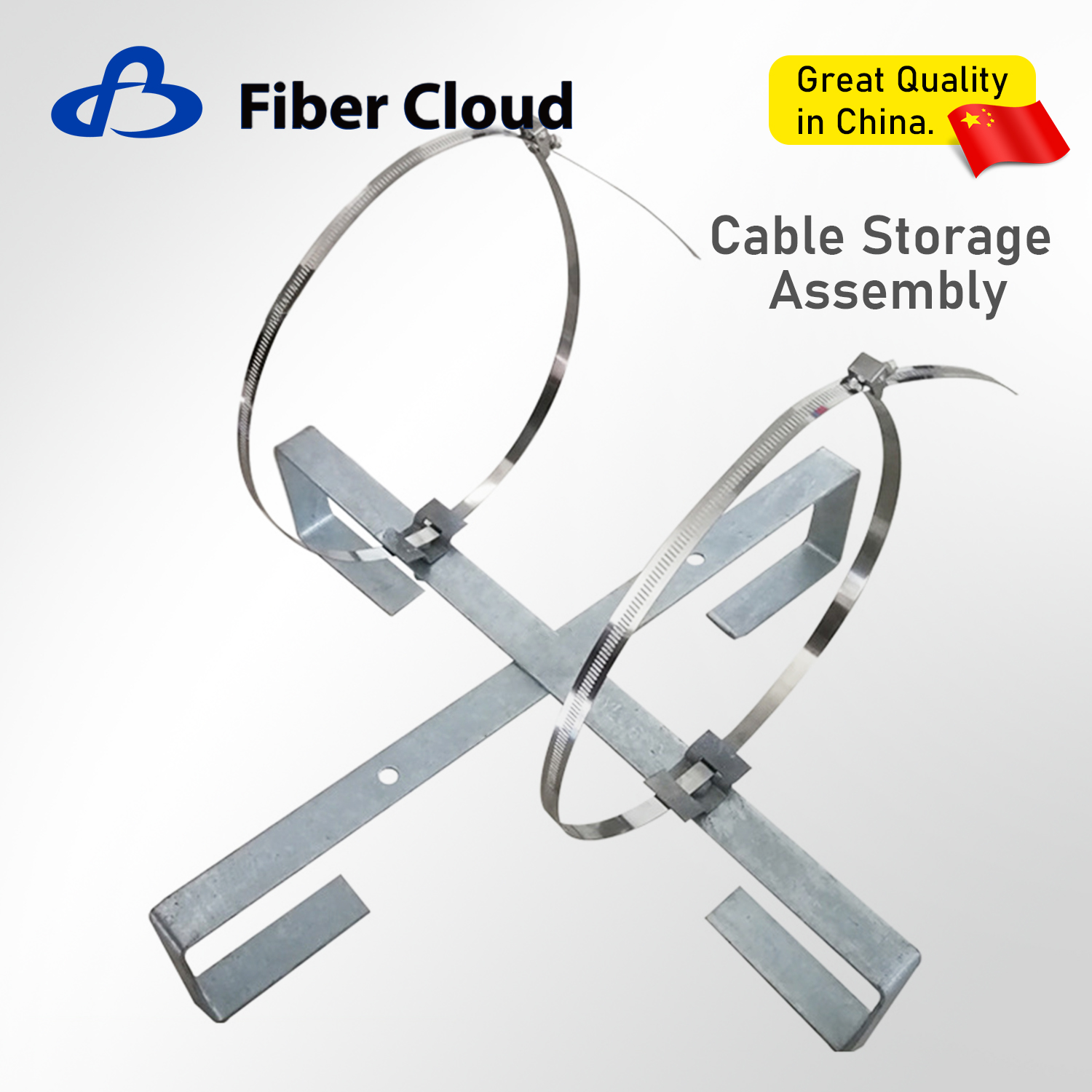

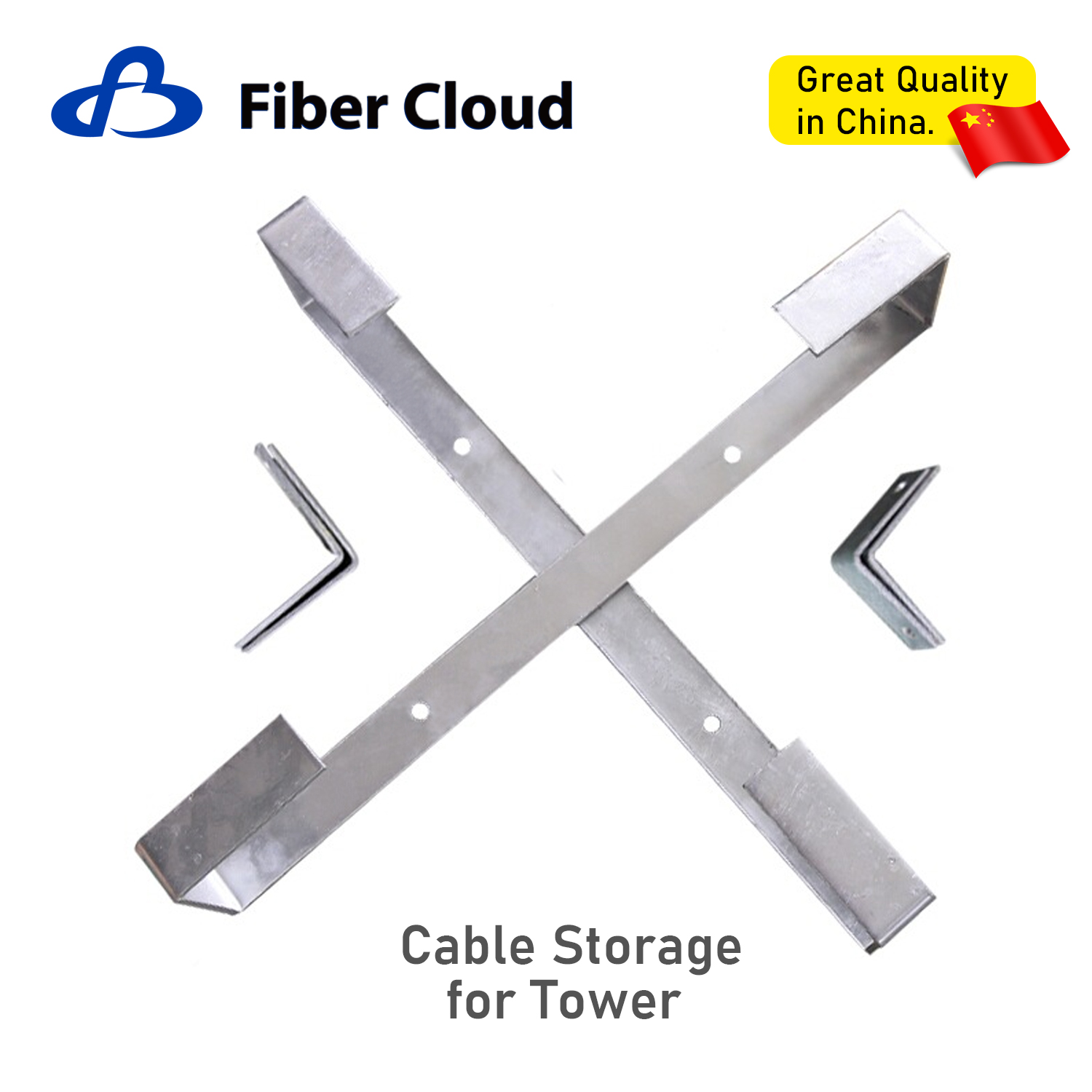

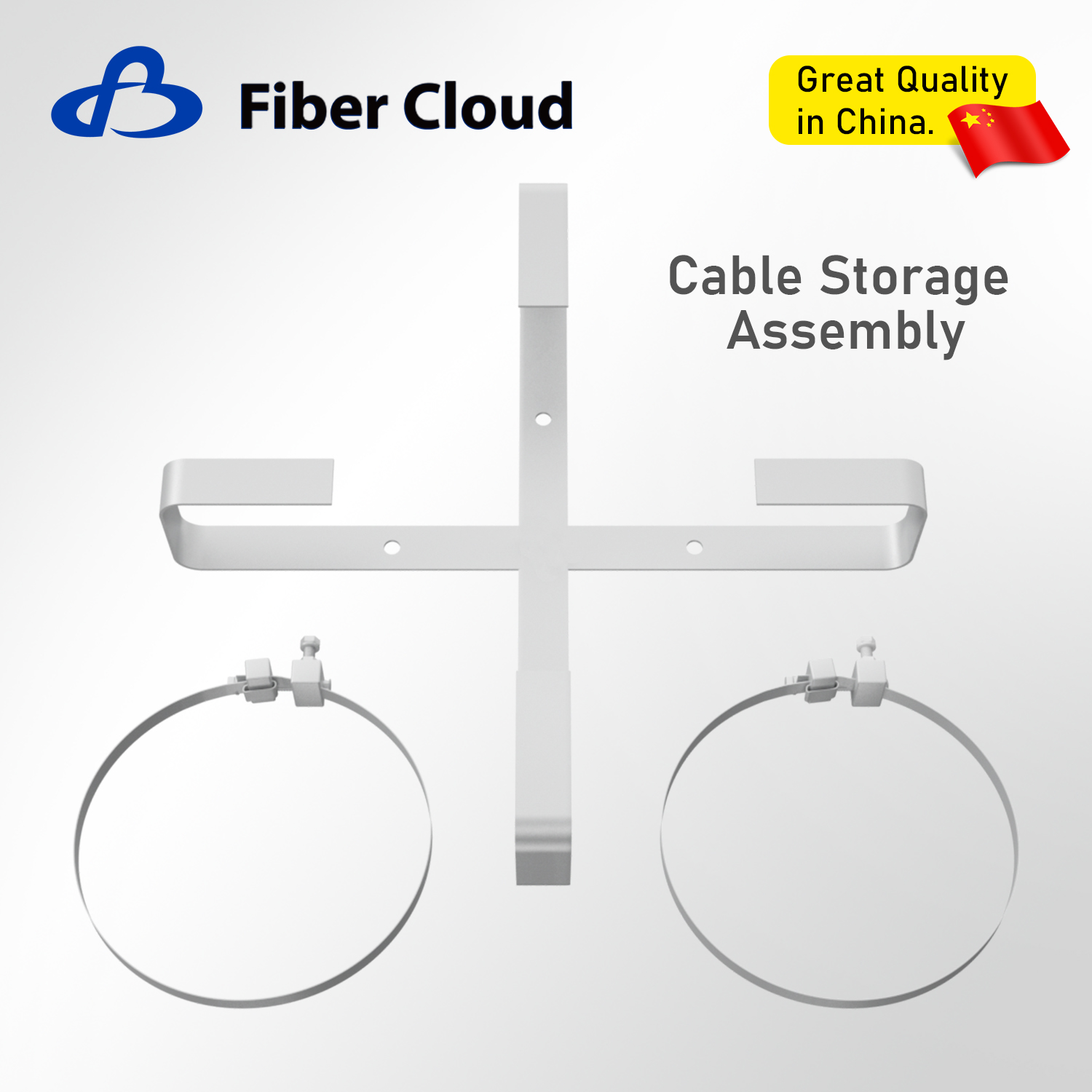

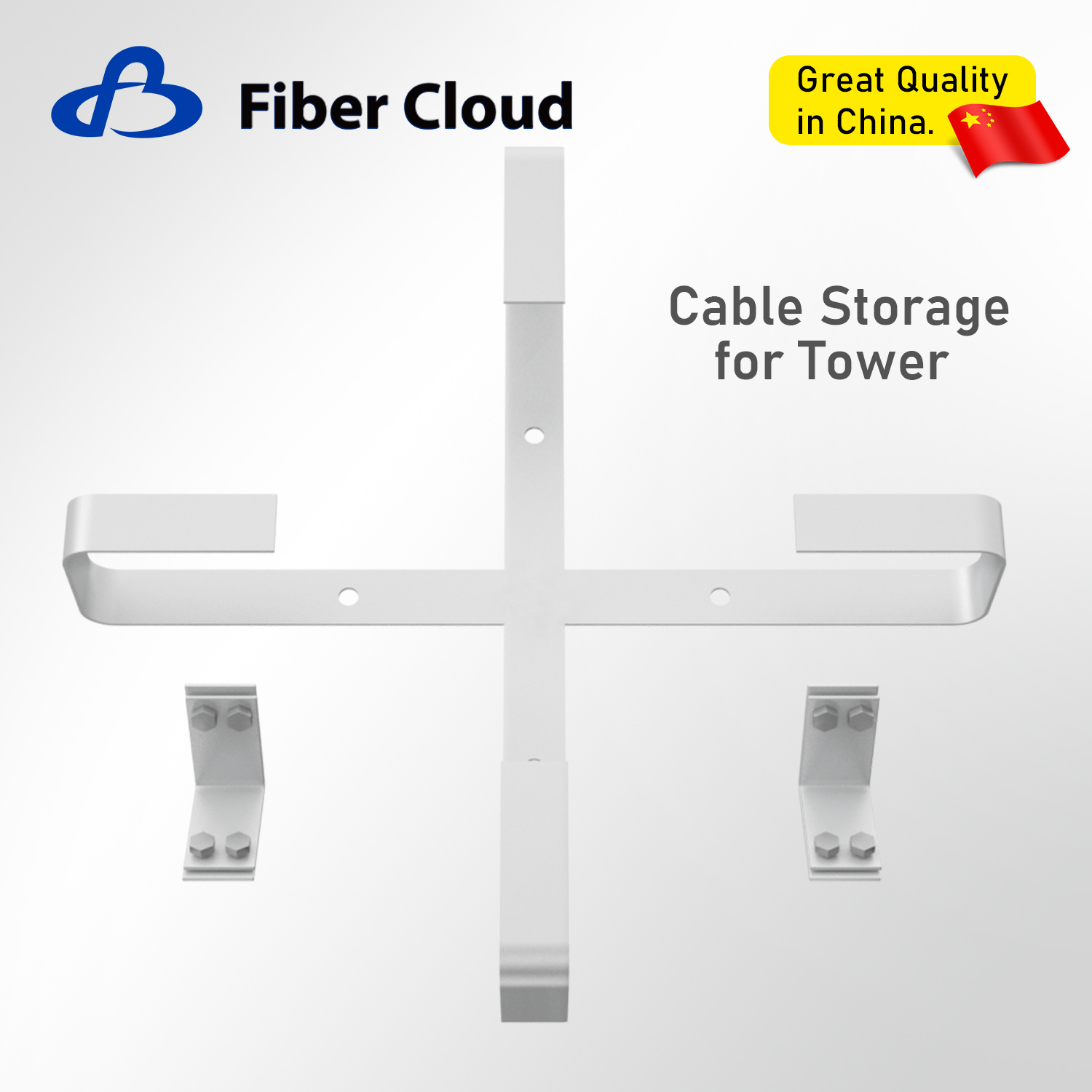

The function of the Cable Storage tray is to store reserved optical cables, which are generally used on tensile towers (poles). There are two types: Inner button and outer disc.When the Cable Storage rack is used for installation on the iron tower, it is equipped with two small splints. When the remaining cable rack is used for installation on a pole, it is equipped with two sets of pole rings. The pole support rings to fix the Cable Storage rack on the pole; the small splint serves to fix the Cable Storage rack on the iron tower.

Characteristic

Cable storage diameter (mm): 600mm
Weight (kg): 3.8
Material: galvanized steel

Availability:



Inquire Add to Basket

Product Description

Type	Max. Diameter(mm)
AW 0600	600 mm
AW 0800	800 mm
AW 1200	1200 mm

Product name	Cable Storage Tray
Material	Hot dip galvanized flat steel (40mm width × 4mm thickness or 50mm width × 5mm thickness)
Inner Diameter (mm)	660 ± 20 (suitable cable diameter ≤14.8mm); 880 ± 20 (suitable cable diameter >14.8mm)
Tower Mount Clamp	Material: Hot dip galvanizing flat steel
Tower Mount Clamp	Dimensions (mm): 40 (W) × 4 (T) or 50 (W) × 5 (T)
Pole Mount Steel Tape	Material: Stainless steel 304
Pole Mount Steel Tape	Dimension (mm): 20mm (W) × 0.7mm (T) × 1200mm (L) or 20mm (W) × 0.7mm (T) × 1500mm (L)
Model	Used for pole and pole diameter ≤350mm; Material: hot dip galvanized flat steel, dimensions (mm): 40 (W) ×4 (T), inner diameter: 660mm (suitable cable diameter ≤14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1200 (L)
	Used for pole and pole diameter ≤350mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) ×5 (T), inner diameter: 880mm (suitable cable diameter >14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1200 (L)
	Used for pole and pole diameter ≤450mm; Material: hot dip galvanized flat steel, dimensions (mm): 40 (W) ×4 (T), inner diameter: 660mm (suitable cable diameter ≤14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1500 (L)
	Used for pole and pole diameter ≤450mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) ×5 (T), inner diameter: 880mm (suitable cable diameter >14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1500 (L)
	Used for tower; Material: hot dip galvanized flat steel, dimensions (mm): 40 (W) ×4 (T), inner diameter: 660mm (suitable cable diameter ≤14.8mm); Tower mount clamp material: hot dip galvanized flat steel, dimensions(mm): 40(W) × 4(T)
	Used for tower; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) ×5 (T), inner diameter: 880mm (suitable cable diameter >14.8mm); Tower mount clamp material: hot dip galvanized flat steel, dimensions(mm):

Applications

It is used to place the surplus optical cable when the optical cable is connected. Generally, a splice box is provided with a surplus cable rack.The surplus cable rack is used to store the surplus optical cable on the tower. Its main technical parameter is the diameter of the surplus cable rack (mm). It is usually used in conjunction with the optical cable splice box. Each splice box is equipped with one surplus cable rack.
