Product Application
3 IN 1 fiber holder: SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Lighting for splicer: convenient for night operation

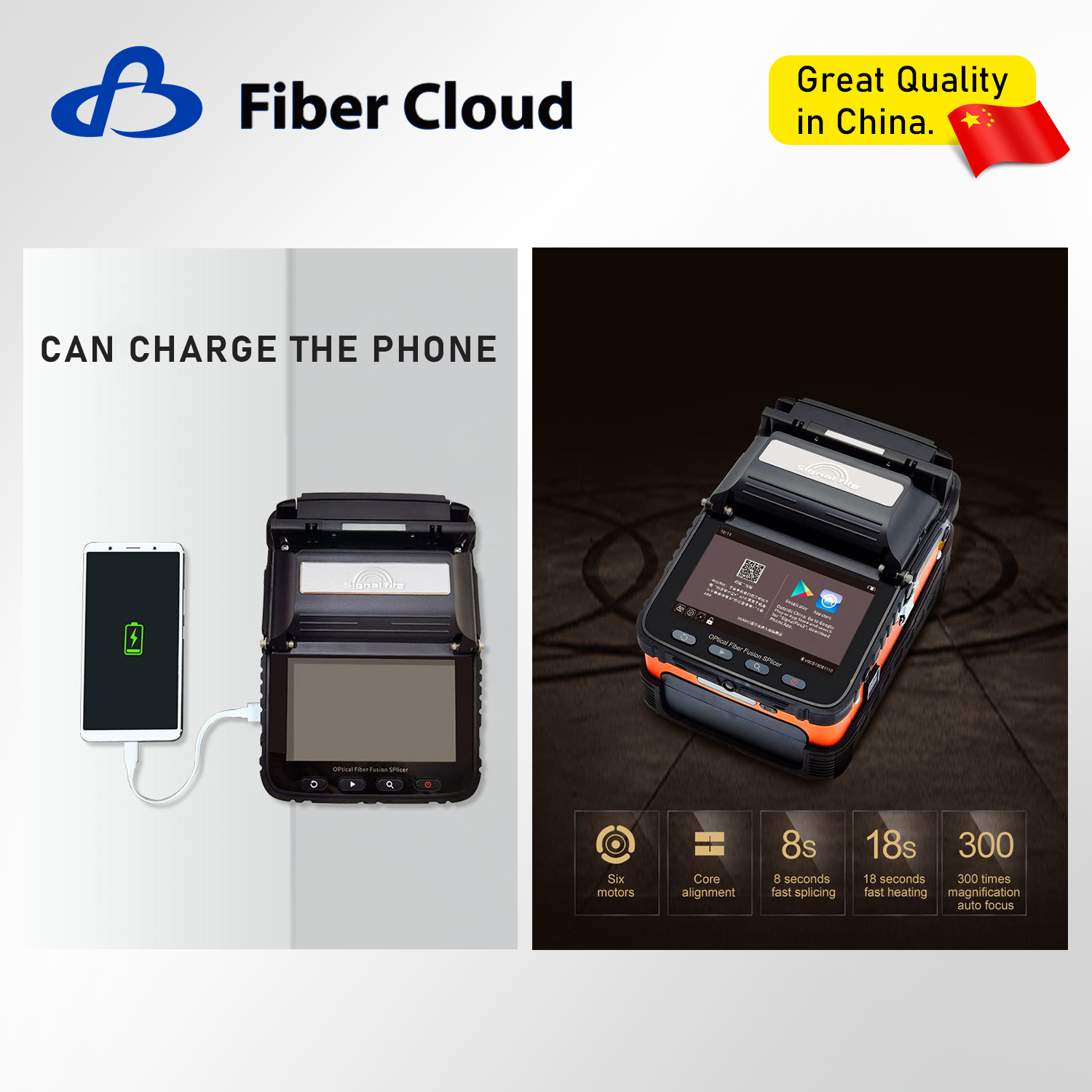

Charge the phone
Product Specifications
|
Fiber alignment
|
Core/cladding alignment / Manual alignment
|
|
Splicing time
|
8S
|
|
Heating time
|
18S
|
|
Heating mode
|
Automatic heating(Preheating)
|
|
Focus mode
|
Six motors Auto focus
|
|
Applicable Fibers
|
SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655)
|
|
Splice Loss
|
0.025dB(SM),0.01dB(MM)0.04dB(DSINZDS)
|
|
Control technology
|
Real-time control and calibration of fusion ARC
|
|
Return loss
|
Better than 60DB
|
|
Fiber diameter
|
Cladding Diameter:80-150ym Coating Diameter:100-1000um
|
|
Fiber Cleave Length
|
Coating less than 250um:8-16mm Coating less than 250-1000um:16mm
|
|
Built-in lighting
|
easy for night operation
|
|
Tension Test
|
Standard 2N
|
|
Fiber holders
|
3 in 1 fiber holder, SM, MM, bare fiber, pigtail. rubber-insulated, multi fiber cable
|
|
Magnification
|
300 for X or Y view, 150 for X or Y view
|
|

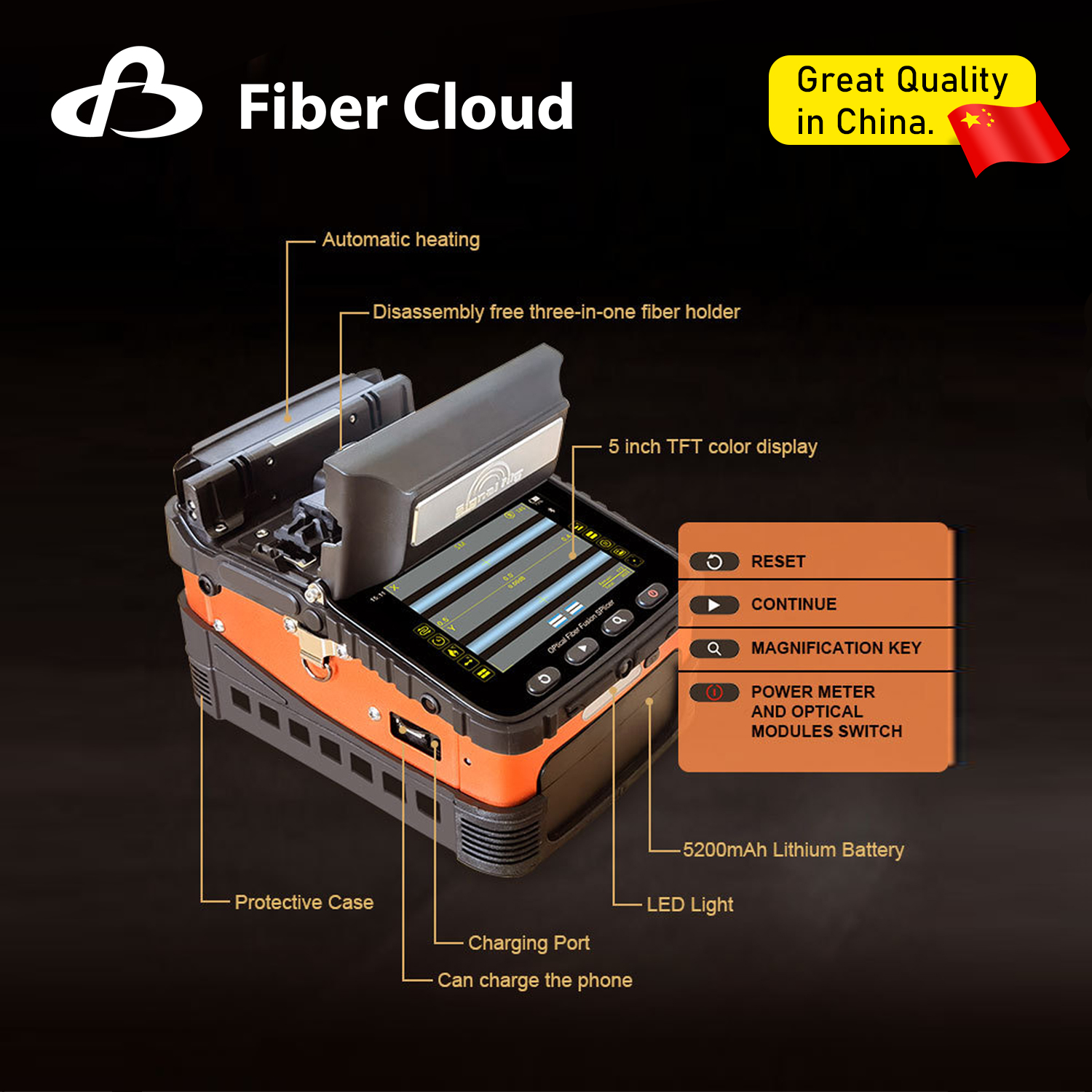

Screen
|
5 inch TFT color display
|
|
Splicing Mode
|
Normal / high precision splicing
|
|
Splicing record storage
|

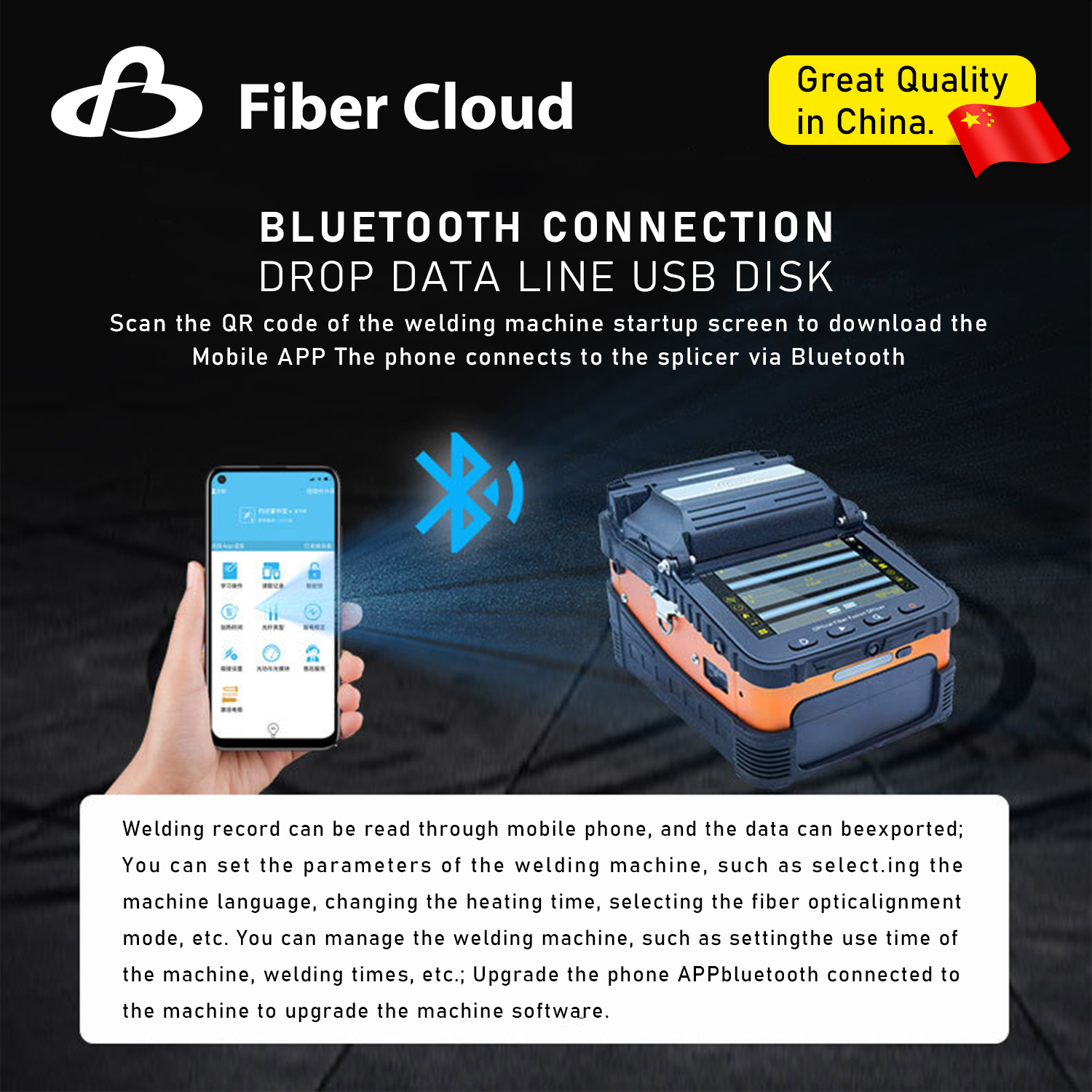

Synchronize to the phone, the server to cloud storage unlimited
|
|
Built-in battery
|
5200 mA high-capacity lithium battery, charging time s 3.5 hours, continuoussplicing and heating about 160 times
|
|
Power supply
|
Input AC100-240V 50 /60HZ, output DC13.5V / 4A, the current power mode canbe identified,real-time detection of battery power
|
