Product Specifications
| Parameter | Specification / Options |
| Visual Fault Indicator | |
| Red Light Wavelength | 650 nm |
| Red Light Power | 5, 15, 20, 30 mW (Optional) |
| Optical Measurement | |
| Wavelength Range | 800 to 1700 nm |
| Standard Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625 nm |
| Detector Type | InGaAs |
| Measurement Range | -70 to +6 dBm, -50 to +26 dBm |
| Uncertainty | ±5% |
| Display Resolution | Linear: 0.1%; Logarithmic: 0.01 dBm |
| General Features | |
| Tone Identification | 270 Hz, 1000 Hz, 2000 Hz |
| Wireless Module | 2G (Optional) |
| Data Storage Capacity | 20 records |
| Input Voltage | 3 ~ 6 V |
| Power & Operation | |

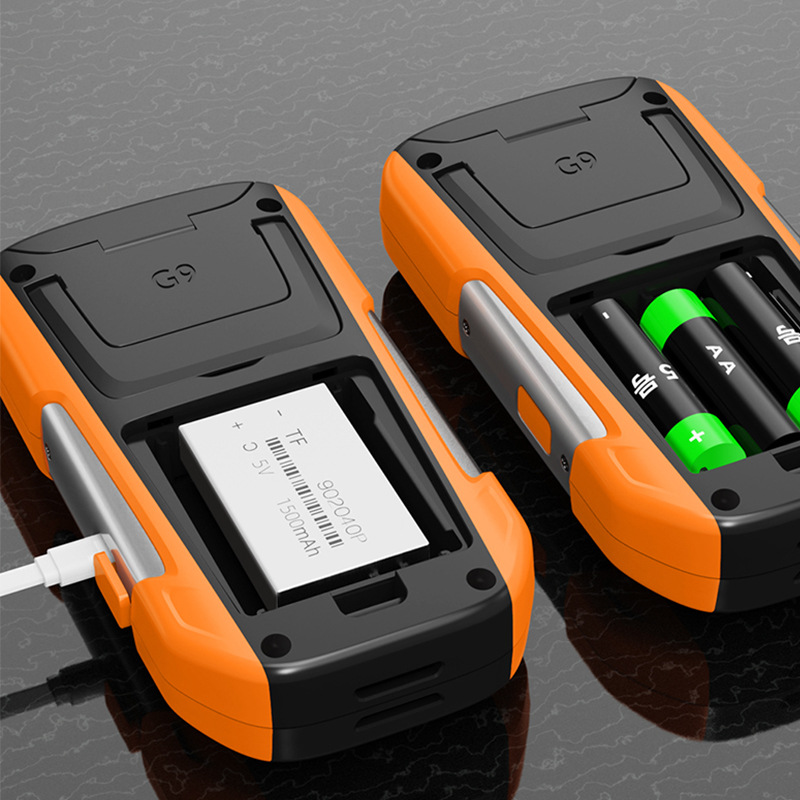

| Power Source | 3x AA Batteries (Optional), Rechargeable Battery (Optional), External USB Input |
| Operating Time | ≥ 48 Hours |
| Auto Shutdown | 10 minutes |
| Environmental | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -25 ~ +70 °C |
| Physical Specs | |
| Unit Dimensions | 142 × 76 × 30 mm |
| Package Dimensions | 172 × 77 × 40 mm |
| Unit Net Weight | 212 g / 224 g |
