Anti-rodent & Anti-termite Cable(GYFTA54) Fiber Optic Cable

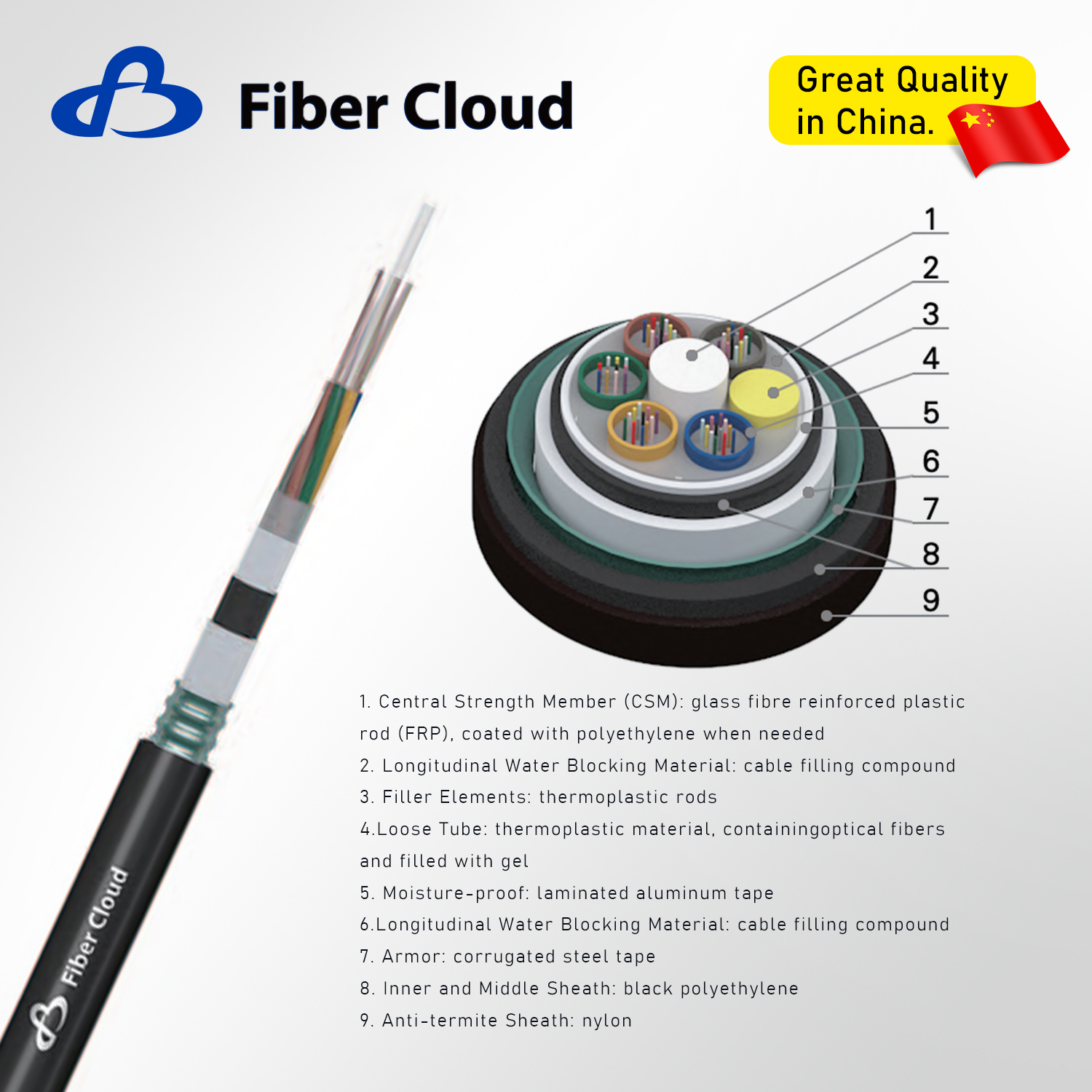

GYFTA54 is a kind of outdoor communication optical cable, which consists of a non-metallic central strength member, stranded loose tubes, a laminated aluminum tape armor, a PE inner sheath, a stainless steel tape armor, a PE middle sheath and a nylon outer sheath. Single-mode fibres are housed in loose tubes that are made of high modulus plastic and filled with tube filling compound. The tubes are stranded around the central member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then a PE inner sheath is extruded and armored with stainless steel tape. Finally, a middle PE sheath and a nylon outer sheath is extruded.

Characteristics

Rodent and termite resistance
Good crush resistance
Direct buried installation

Availability:



Inquire Add to Basket

Model:
GYFTA54

Product Description

Optical Characteristics

Parameter / Property	G.652.D	G.655	50/125μm	62.5/125μm
Attenuation @850nm	-	-	≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm	-	-	≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km	-	-
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km	-	-
Bandwidth @850nm	-	-	≥500 MHz·km	≥200 MHz·km
Bandwidth @1300nm	-	-	≥1000 MHz·km	≥600 MHz·km
Polarization mode dispersion (Individual fiber)	≤0.20 ps/√km	≤0.20 ps/√km	-	-
Design link value (M=20, Q=0.01%)	≤0.1 ps/√km	≤0.1 ps/√km	-	-

Technical Data

Item	Contents	Value
Item	Fiber Count	24	48	72	96	144	288
Loose Tube	No.of tubes*fibers per tube	4*6	4*12	6*12	8*12	12*12	24*12
Loose Tube	Outer diameter(mm)	1.9	2.4
Central Strength Member	Material	FRP
	Diameter(mm)	2.25	2.6	2.6	2.6	2.6	2.6
	Coated CSM diameter(mm)	-	-	-	4.2	7.4	4.8
Water blocking material	Material	Cable filling compound
Moisture-proof	Material	Laminated aluminum tape
Inner sheath	Thickness(mm)	Nominal:1.0
Armor	Material	Comugated steel tape
Middle sheath	Thickness(mm)	Nominal:1.5
Outer sheath	Thickness(mm)	Nominal:0.5
Cable Diameter(mm)Approx		14.4	15.0	15.0	16.8	20.0	22.4
Cable Weight(kg/km)Approx		225	250	250	300	370	465
Operating Temperature Range(℃)		-40~+70
Tensile Strength Short/Long Term(N)		2700/900
Crush Resistance Short/Long Term(N/100mm)		3000/1000

The color arangement of fiber is specified in the color identification table
Other stucture and fiber count are also available according to customer requirements

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 20Nm one in 3 different places	Additional attenuation ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation ≤ 0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	-40°C~+70°C	Attenuation change: ≤ 0.05dB/km after test
