Anti-rodent Armored Cable(GYTS53) Fiber Optic Cable

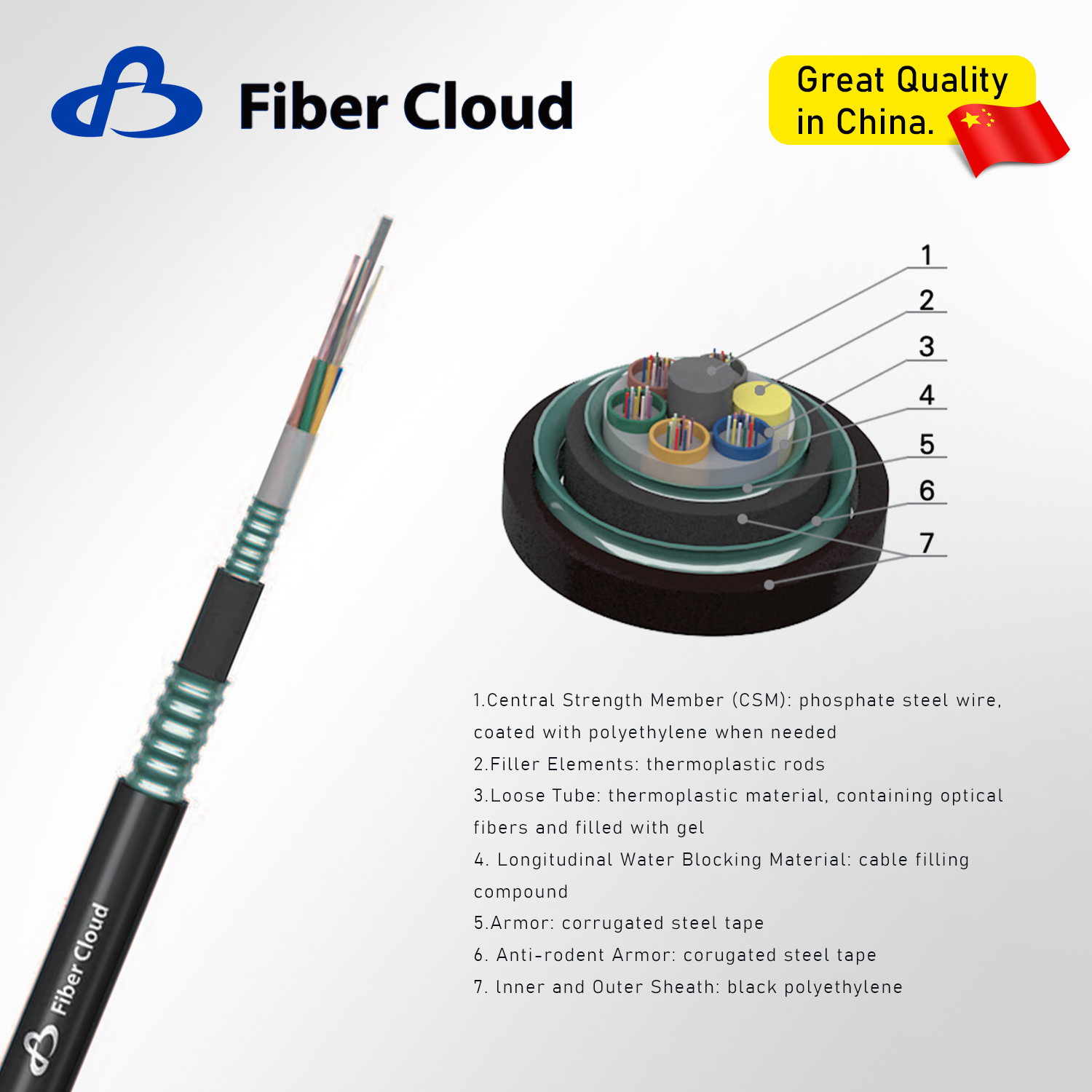

The structure of GYTS53 optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core. For some optical fiber cables, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filler rope) is twisted around the central reinforcing core to form a compact and round cable core, and the gaps in the cable core are filled with water blocking fillers. Plastic coated steel tape is longitudinally wrapped and then extruded with a layer of polyethylene inner sheath. Double-sided plastic coated steel tape (PSP) is longitudinally wrapped and then extruded with polyethylene sheath to form cables.

Characteristics

Excellent Anti-rodent performance
Excellent crush resistance
Direct-buried installation and aerial installation

Availability:



Inquire Add to Basket

Model:
GYTS53

Product Description

Optical Characteristics

Parameter / Property	G.652.D	G.655	50/125μm	62.5/125μm
Attenuation @850nm	-	-	≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm	-	-	≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km	-	-
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km	-	-
Bandwidth @850nm	-	-	≥500 MHz·km	≥200 MHz·km
Bandwidth @1300nm	-	-	≥1000 MHz·km	≥600 MHz·km
Polarization mode dispersion (Individual fibre)	≤0.20 ps/√km	≤0.20 ps/√km	-	-
Design link value (M=20, Q=0.01%)	≤0.1 ps/√km	≤0.1 ps/√km	-	-

Technical Data

lItem	Contents	Value
lItem	Fiber Count	24	48	72	96	144	288
Loose tube	No.of tubes*fibres per tube	4*6	4*12	6*12	8*12	12*12	24*12
Loose tube	Outer diameter(mm)	1.9	2.4
Central strength member	Material	Phosphated steel wire
	Diameter(mm)	2.0	2.0	2.0	2.0	2.0	2.0
	Coated CSM diameter(mm)	-	2.6	2.6	4.2	7.4	4.8
Water blocking material	Material	Cable filling compound
Armor	Material	Comugated steel tape
Inner sheath	Thickness(mm)	Nominal:1.0
Anti-rodent armor	Material	Corugated steel tape
Outer sheath	Thickness(mm)	Nominal:2.0
Cable Diameter(mm)Approx		14.2	15.7	15.7	17.5	21.0	23.0
Cable Weight(kg/km)Approx		230	265	265	305	390	460
Operating Temperature Range(℃)		-40~+70
Tensile Strength Short/Long Term(N)		3000/1000

The color arangement of fiber is specified in the color identification table
Other stucture and fiber count are also available according to customer requirements

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 20Nm one in 3 different places	Additional attenuation ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation ≤ 0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	-40°C~+70°C	Attenuation change: ≤ 0.05dB/km after test
