Earth Ground Resistance Tester USB Soil Testing Tool With Double Clamp Design

Share to:

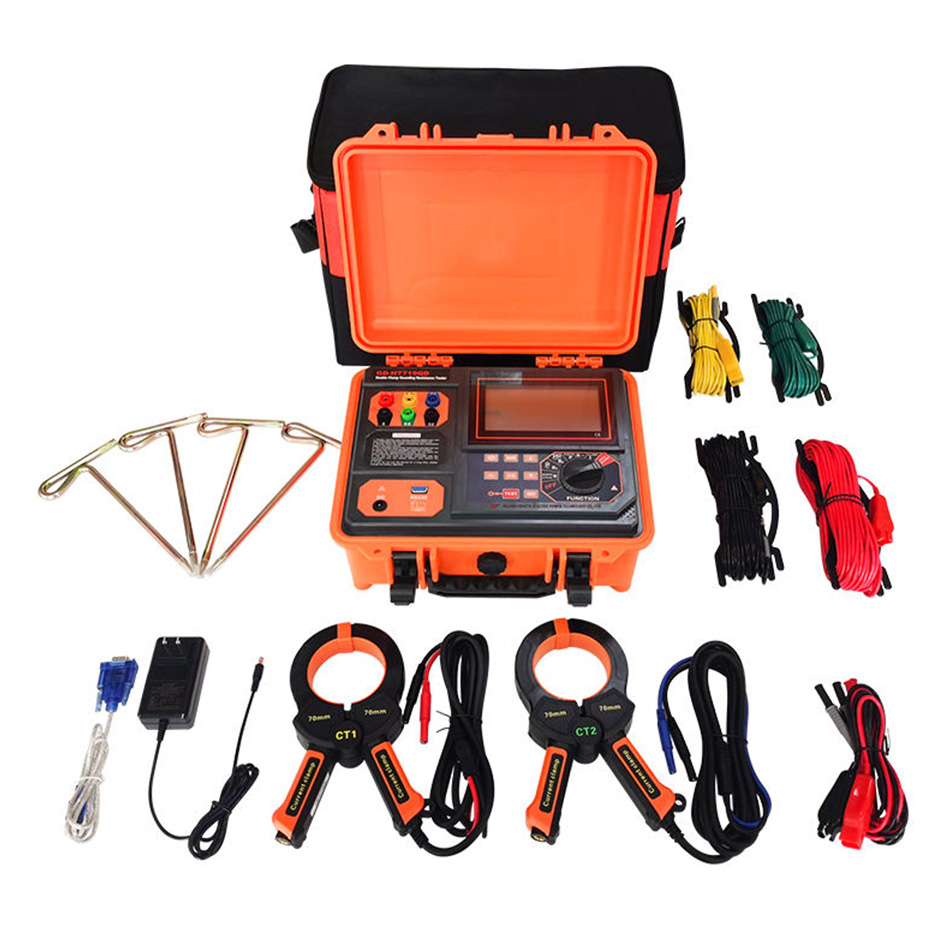

Earth Ground Resistance Tester USB Soil Testing Tool With Double Clamp Design

This Digital Ground Resistance Meter uses advanced FFT and AFC technologies for precise ground resistance and soil resistivity testing, featuring a durable toolbox design and compliance

Characteristics

• FFT and AFC technologies for accurate testing

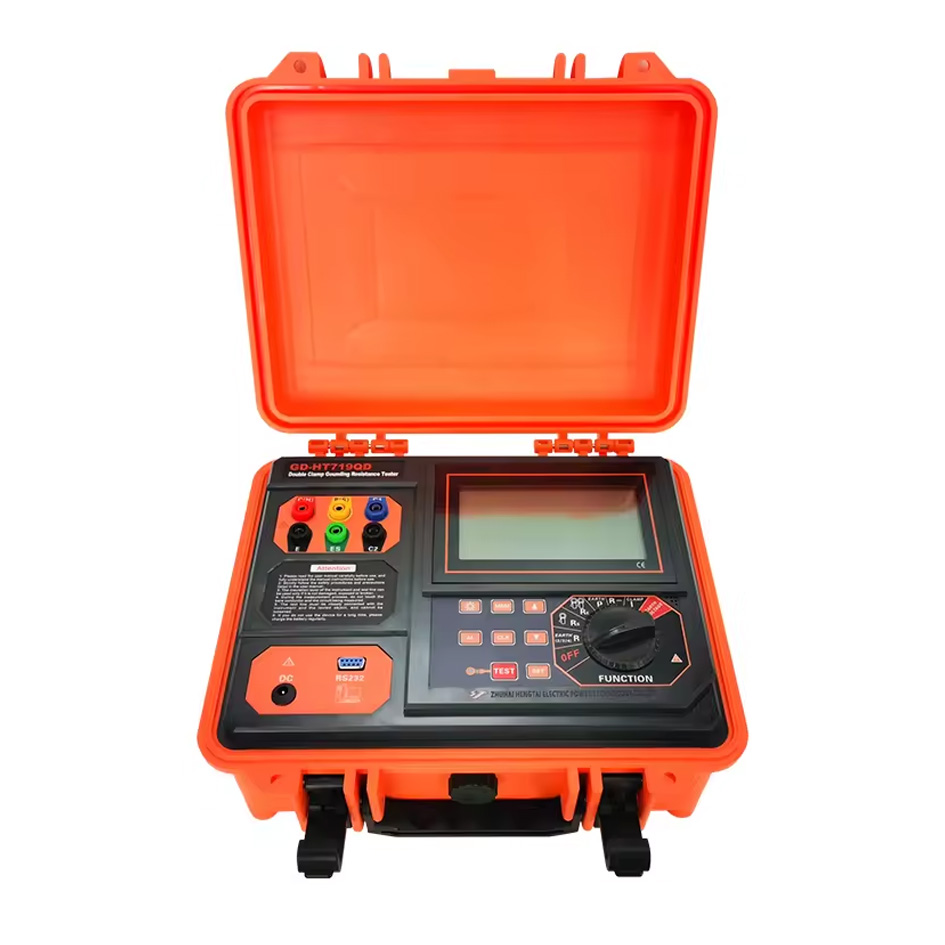

• Robust toolbox design, withstands 200kg pressure
• Large LCD display and 2000-group data storage
• Equipped with USB interface and automatic shutdown function
• ISO9001, ISO14001, and ISO45001 certified

Availability:



Inquire Add to Basket

Code:
9030332000

Earth Resistance Tester Datasheet

Customized support	OEM
Place of Origin	China
Warranty	1 Year
Power	Electronic
Brand Name	Hengtai
CT Size	70mm
Short-circuit Test Current	AC 250mA max
Open-circuit Test Current	AC 40V max
Test Frequency	128Hz/111Hz/105Hz/94Hz(AFC)
Data Storage	2000 groups
Automatic Shutdown	15 minutes without any operation after starting up
LCD Dimension	128mmX75mm; LCD display area:124m*67mm
Tester Dimension	280mm(L)260mm(W)160mm(H)
Working Current	Standby: 25mA (Backlight off); Measurement:100mA (Backlight off)
USB Interface	Equip with USB interface, software monitoring, storage data

Application

Power systems: Testing ground resistance of transformers, substations, and power transmission towers to ensure safe operation.
Construction projects: Measuring soil resistivity and grounding systems for buildings, factories, and infrastructure to meet electrical safety standards.
Telecommunications: Inspecting earthing performance of communication towers and base stations to protect equipment from lightning damage.
Industrial facilities: Verifying grounding effectiveness of machinery, workshops, and hazardous areas to prevent electrical hazards.

Product standards

International certifications: Complies with ISO9001 (quality management), ISO14001 (environmental management), and ISO45001 (occupational health and safety) standards.
Testing accuracy: Adopts advanced FFT and AFC technologies to ensure high-precision measurements, meeting industry requirements for ground resistance and soil resistivity testing.
Durability standards: Features a robust toolbox design that withstands 200kg pressure, adhering to durability and reliability benchmarks for professional testing equipment.
