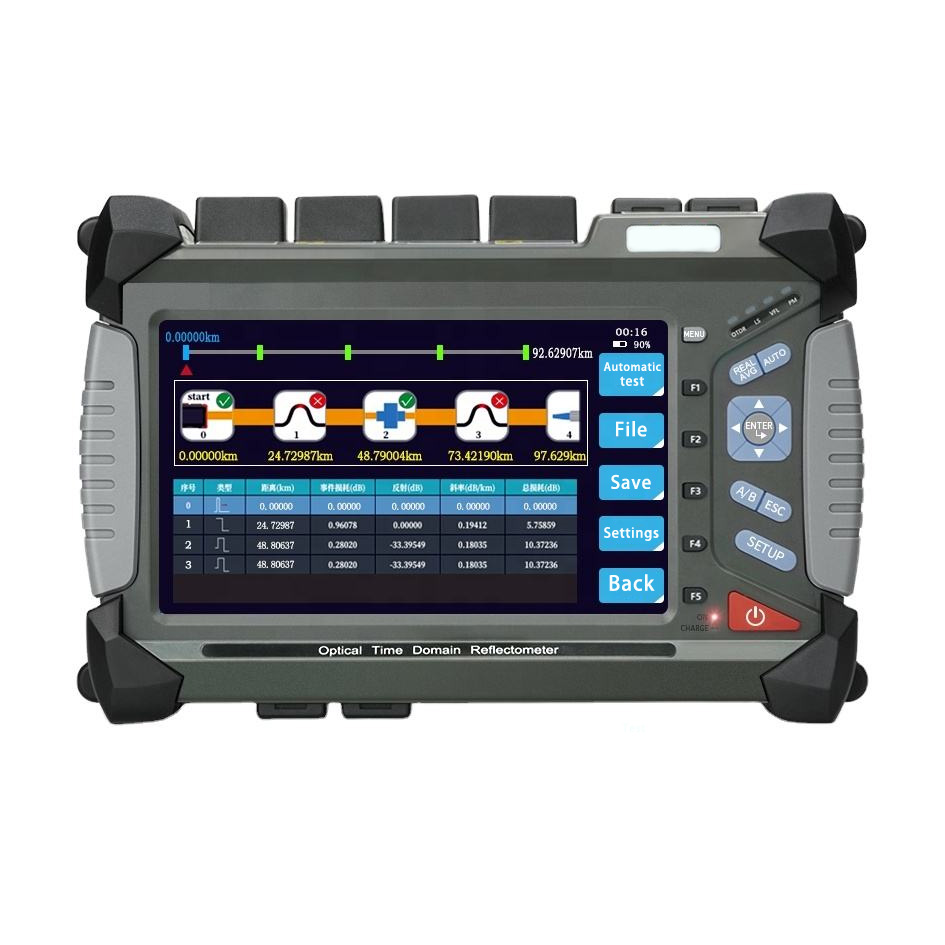

High Performance OTDR Fiber Optic Tester Long Distance Fiber Testing Tool

This OTDR Tester supports single-mode, multimode, and dual-mode testing, with 8-inch color LCD touch screen for clear data display, covering key wavelengths to meet fiber network construction, maintenance, and telecom project needs.

Characteristics
• 8-inch color LCD touch screen for intuitive operation and data viewing
• Covers wavelengths including 850/1300nm (multimode) and 1310/1550nm (single-mode)
• Test range up to 256km with ±(0.75m + sampling interval + 0.005% × test distance) accuracy
• Stores ≥2000 data records for convenient project tracking and analysis

Availability:



Inquire Add to Basket

Code:
9030409090

OTDR Tester Datasheet

Test Range	500m/1km/2km/4km/8km/16km/32km/64km/128km/256km
Test pulse width	5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns
Ranging accuracy	±(0.75m + sampling interval + 0.005% × test distance)
Loss accuracy	±0.05dB/dB
Reflection accuracy	±3dB
Data storage	≥2000
Optical port type	FC/PC (interchangeable SC, ST)
Data interface	10M/100M Ethernet port
VFL output	≥5mW
Light source output	≥ - 5dBm
Optical power meter	- 26dBm ~ 50dBm (Replaceable + 6dBm ~ 70dBm)
Power supply	AC/DC adapter: AC 100V - 240V/50/60Hz 0.6A; Lithium battery: 7.4V 6700mAh, Lithium ion
Operating temperature	- 5°C ~ 50°C
Storage temperature	- 20°C ~ 70°C
Relative humidity	0 - 95% No condensation
Total weight	≤1.1kg
Volume	295mm×190mm×195mm

Application

Fiber optic network construction: Testing and verifying the quality of newly laid fiber optic cables during network deployment.
Network maintenance and troubleshooting: Locating faults like breaks or attenuation in existing fiber optic networks to ensure smooth operation.
Telecom engineering projects: Conducting comprehensive tests on fiber optic links in telecom infrastructure development for optimal performance.

Product standards

Dynamic range: Meets standards with models offering dynamic ranges from 35/33dB up to 45dB for accurate long - distance fiber testing.
Wavelength coverage: Complies with industry norms for supporting key wavelengths (1310/1550nm for single - mode, 850/1300nm for multi - mode) used in fiber optic communications.
Test accuracy: Adheres to specifications for parameters like distance resolution and blind zone.
