Hybrid Optical and Electrical cable with TightBuffered Fibres(GDFJAHP) Fiber Optic Cable

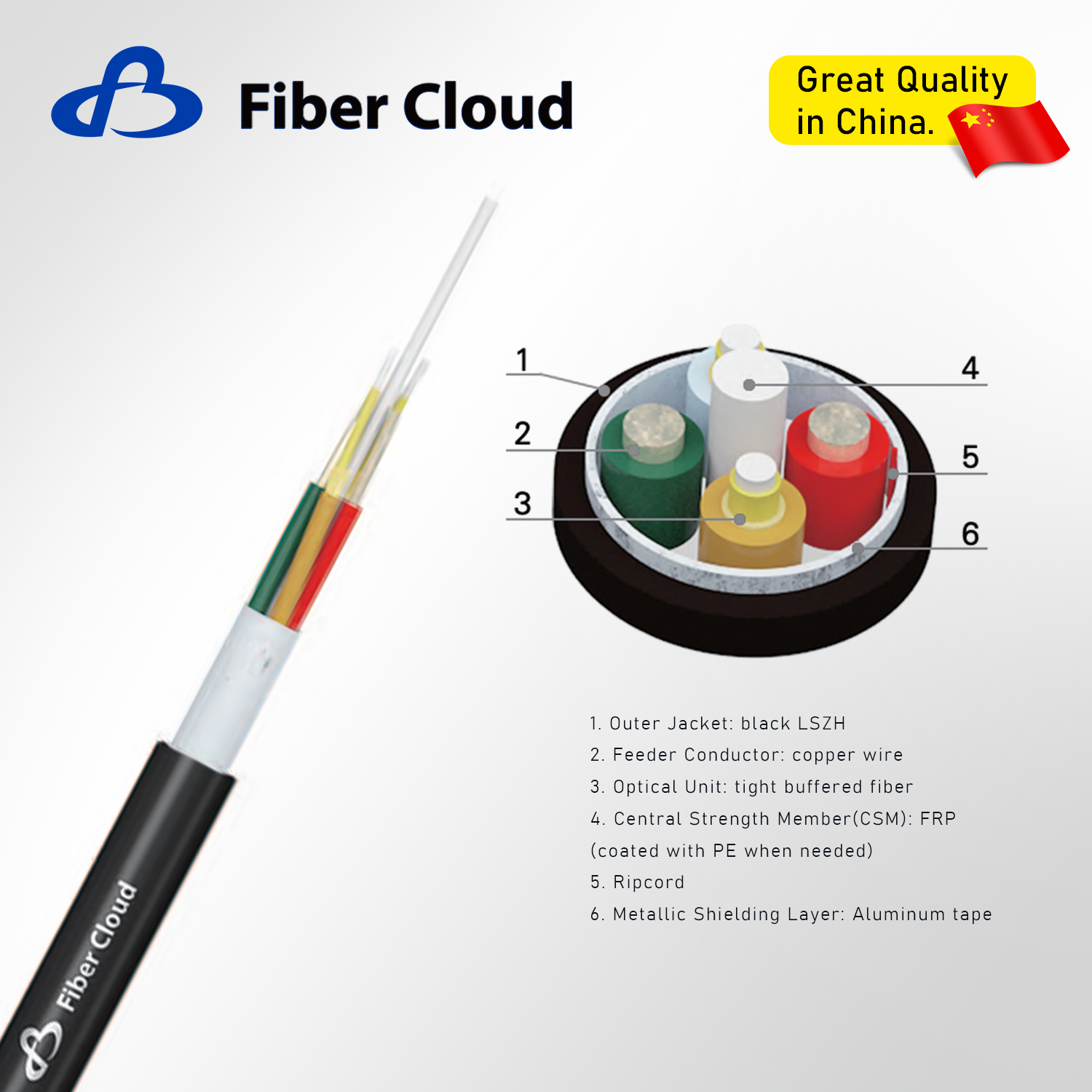

The large fibre count mixed branched cable takes 6-fibre cables (900µm tight buffered fibre with aramid yarn strength member) as the subunits which are stranded around the non-metallic strength member to form the cable core, then a PVC sheath is extruded outside. Other sheath materials, like LSZH and TPU,are available on request.

Characteristics

Optical and electrical hybrid design can decrease the construction and installation cost of wireless base station
Good flame retardant performance suitable for indoor installation

Availability:



Inquire Add to Basket

Model:
GDFJAHP

Product Description

Optical Characteristics

Parameter / Property	G.652.D	50/125μm	62.5/125μm
Attenuation @850nm	-	≤3.5 dB/km	≤3.5 dB/km
Attenuation @1300nm	-	≤1.5 dB/km	≤1.5 dB/km
Attenuation @1310nm	≤0.40 dB/km	-	-
Attenuation @1550nm	≤0.30 dB/km	-	-
Bandwidth @850nm	-	≥500 MHz·km	≥200 MHz·km
Bandwidth @1300nm	-	≥1000 MHz·km	≥600 MHz·km
Polarization mode dispersion (Individual fiber)	≤0.20 ps/√km	-	-
Design link value (M=20, Q=0.01%)	≤0.1 ps/√km	-	-

Technical Data

Product type	Product spec	Outer diameter Approx(mm)	Weight Approx (Kg/km)	Structure Type	Tensile(N)	Crush(N/100mm)
GDFJAHP	6B6a2+2*0.5	10.5	105	TypeⅡ	200/400	800/2000
GDFJAHP	2B6a2+2*1.0	8.0	78	TypeⅠ	200/400	800/2000
GDFJAHP	2B6a2+2*1.5	9.5	105	TypeⅠ	200/400	800/2000
GDFJAHP	2B6a2+2*2.0	10.3	119	TypeⅠ	200/400	800/2000
GDFJAHP	2B6a2+2*4.0	11.5	159	TypeⅠ	200/400	800/2000

2*0.5/2*1.0/ 2*1.5/ 2*2.0/2*4.0 denotes conductor count and spec
Other stucture and fiber count are also available according to customer requirements

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 10Nm one in 3 different places	Additional attenuation ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation ≤ 0.1dB after test
Temperature Cycling	IEC 60794-1-2-F1	-30°C~+70°C	Attenuation change: ≤ 0.05dB/km after test
