Short Span ADSS Tension Set
| Type | Available Dia. of Cable | Reference Span |
| Min.(mm) | Max.(mm) |
| NJA 1050/100 | 9.6 | 10.5 | Less than 100m span |
| NJA 1150/100 | 10.6 | 11.5 | Less than 100m span |
| NJA 1250/100 | 11.6 | 12.5 | Less than 100m span |
| NJA 1350/100 | 12.6 | 13.5 | Less than 100m span |
| NJA 1450/100 | 13.6 | 14.5 | Less than 100m span |
Note:
The symbols of 'NJA' are: N-tension set, J-helical rods, A-apply to ADSS cable
The products are beyond the schedule, if need more please contact our company freely

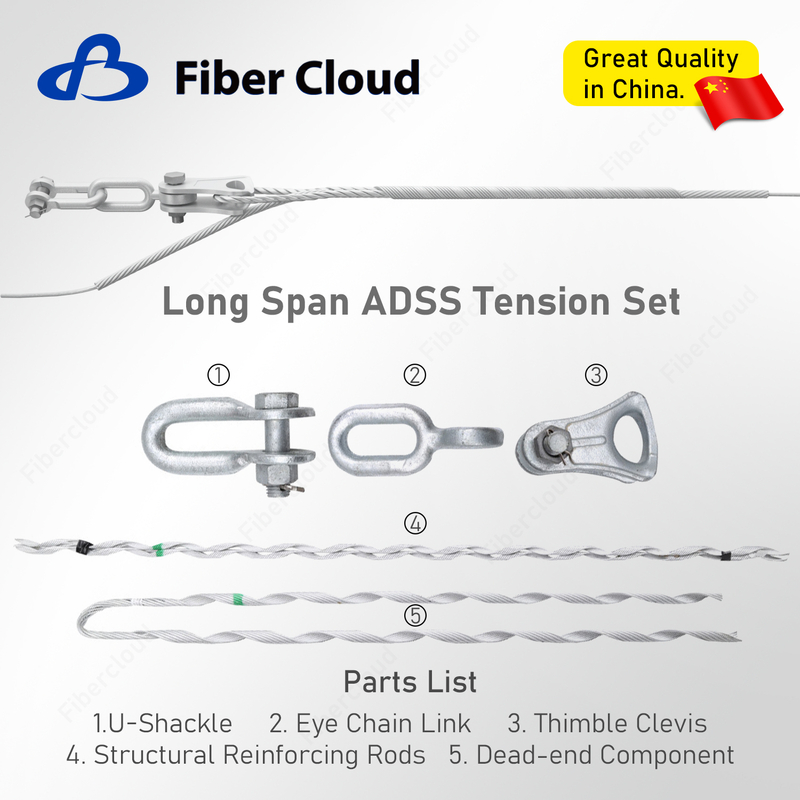

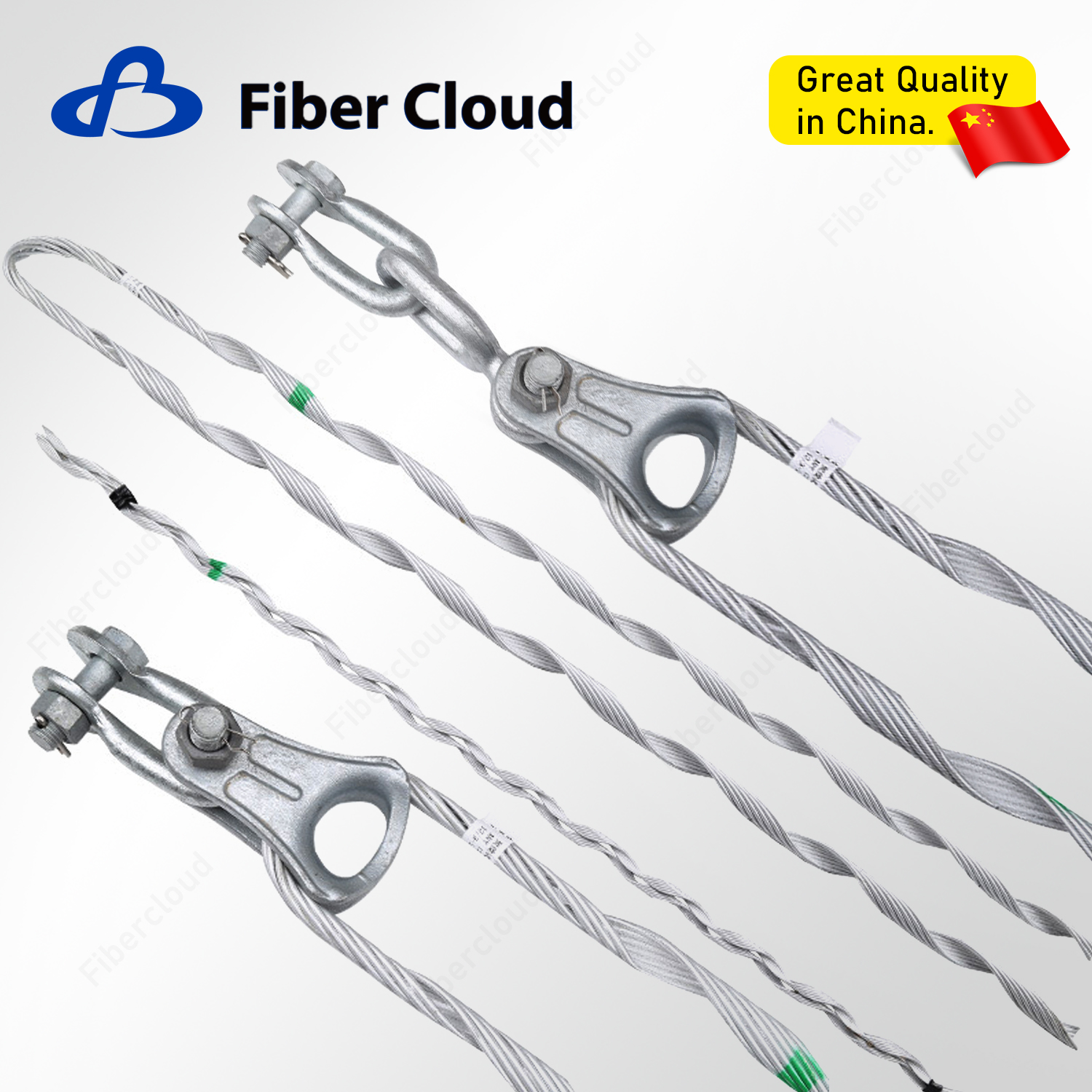

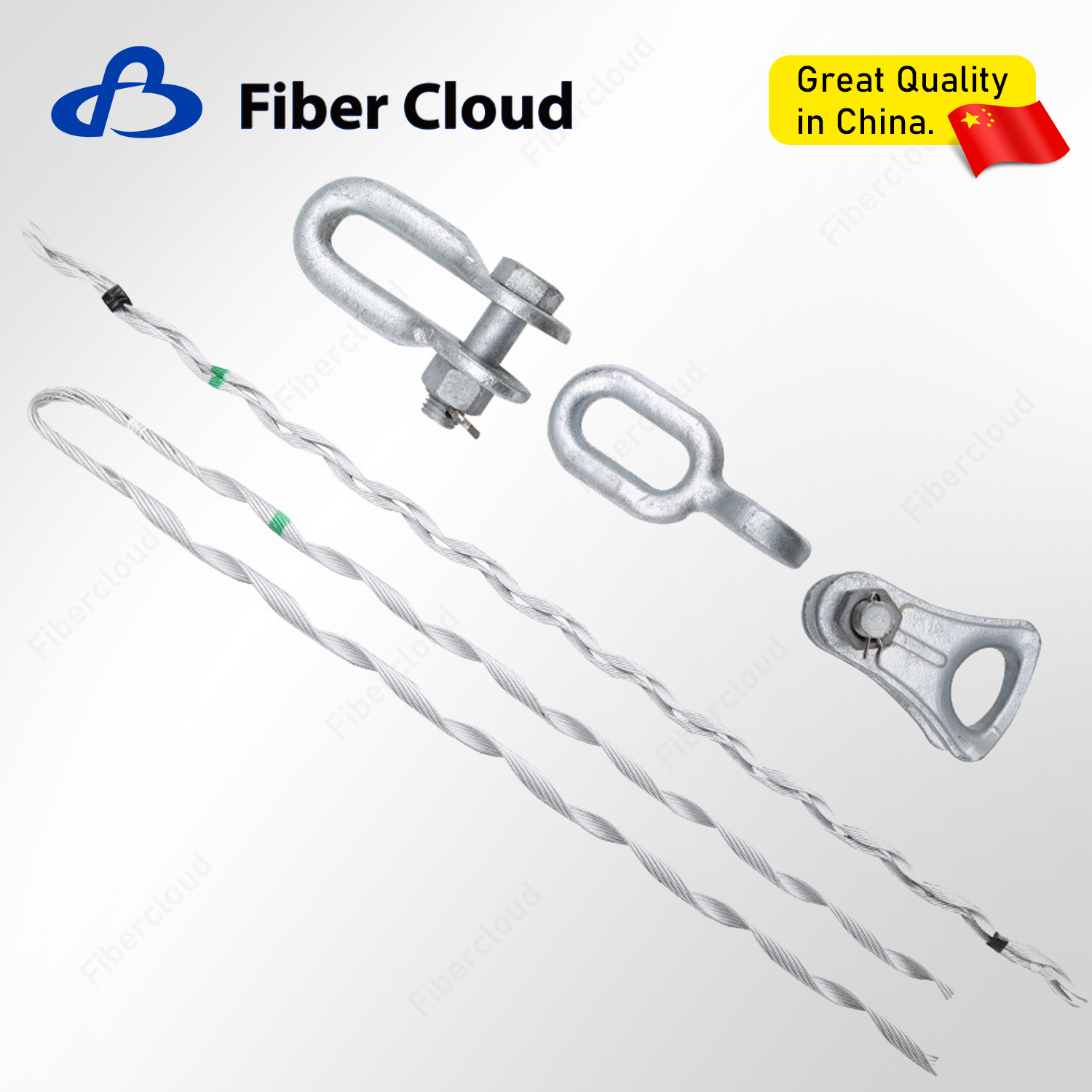

Medium/Long Span ADSS Tension Set
| Type | Available Dia. of Cable | Reference Span(m) |
| Min.(mm) | Max.(mm) |
| NJA 950/200 | 8.6 | 9.5 | 100-200 |
| NJA 1050/200 | 9.6 | 10.5 | 100-200 |
| NJA 1150/200 | 10.6 | 11.5 | 100-200 |
| NJA 1250/200 | 11.6 | 12.5 | 100-200 |
| NJA 1350/200 | 12.6 | 13.5 | 100-200 |
| NJA 1450/200 | 13.6 | 14.5 | 100-200 |
| NJA 1050/300 | 9.6 | 10.5 | 200-300 |
| NJA 1150/300 | 10.6 | 11.5 | 200-300 |
| NJA 1250/300 | 11.6 | 12.5 | 200-300 |
| NJA 1350/300 | 12.6 | 13.5 | 200-300 |
| NJA 1450/300 | 13.6 | 14.5 | 200-300 |
| NJA 1150/400 | 10.6 | 11.5 | 300-400 |
| NJA 1250/400 | 11.6 | 12.5 | 300-400 |
| NJA 1350/400 | 12.6 | 13.5 | 300-400 |
| NJA 1450/400 | 13.6 | 14.5 | 300-400 |
| NJA 1550/400 | 14.6 | 15.5 | 300-400 |
| NJA 1650/400 | 15.6 | 16.5 | 300-400 |
| NJA 1250/500 | 11.6 | 12.5 | 400-500 |
| NJA 1350/500 | 12.6 | 13.5 | 400-500 |
| NJA 1450/500 | 13.6 | 14.5 | 400-500 |
| NJA 1550/500 | 14.6 | 15.5 | 400-500 |
| NJA 1650/500 | 15.6 | 16.5 | 400-500 |
| NJA 1350/600 | 12.6 | 13.5 | 500-600 |
| NJA 1450/600 | 13.6 | 14.5 | 500-600 |
| NJA 1550/600 | 14.6 | 15.5 | 500-600 |
| NJA 1650/600 | 15.6 | 16.5 | 500-600 |
| NJA 1750/600 | 16.6 | 17.5 | 500-600 |
| NJA 1350/700 | 12.6 | 13.5 | 600-800 |
| NJA 1450/700 | 13.6 | 14.5 | 600-800 |
| NJA 1550/700 | 14.6 | 15.5 | 600-800 |
| NJA 1650/700 | 15.6 | 16.5 | 600-800 |
| NJA 1750/700 | 16.6 | 17.5 | 600-800 |
| NJA 1550/800 | 14.6 | 15.5 | 800-1000 |
| NJA 1650/800 | 15.6 | 16.5 | 800-1000 |
| NJA 1750/800 | 16.6 | 17.5 | 800-1000 |
| NJA 1850/800 | 17.6 | 18.5 | 800-1000 |
| NJA 1550/1000 | 14.6 | 15.5 | 1000 |
| NJA 1650/1000 | 15.6 | 16.5 | 1000 |
| NJA 1750/1000 | 16.6 | 17.5 | 1000 |
| NJA 1850/1000 | 17.6 | 18.5 | 1000 |
Note:
The symbols of'NJA'are: N-tension set, J-helical rods, A-apply to ADSS cable
The products are beyond the schedule, if need more please contact our company freely
Remarks: to insure the installation safety,during the line design and operation, when span length is larger than 1000m, or under condition which the capacity of electrical power line is heavy, please do contact with our company, we will provide special design or consultation service in accordance with specific circumstances of the electrical power line

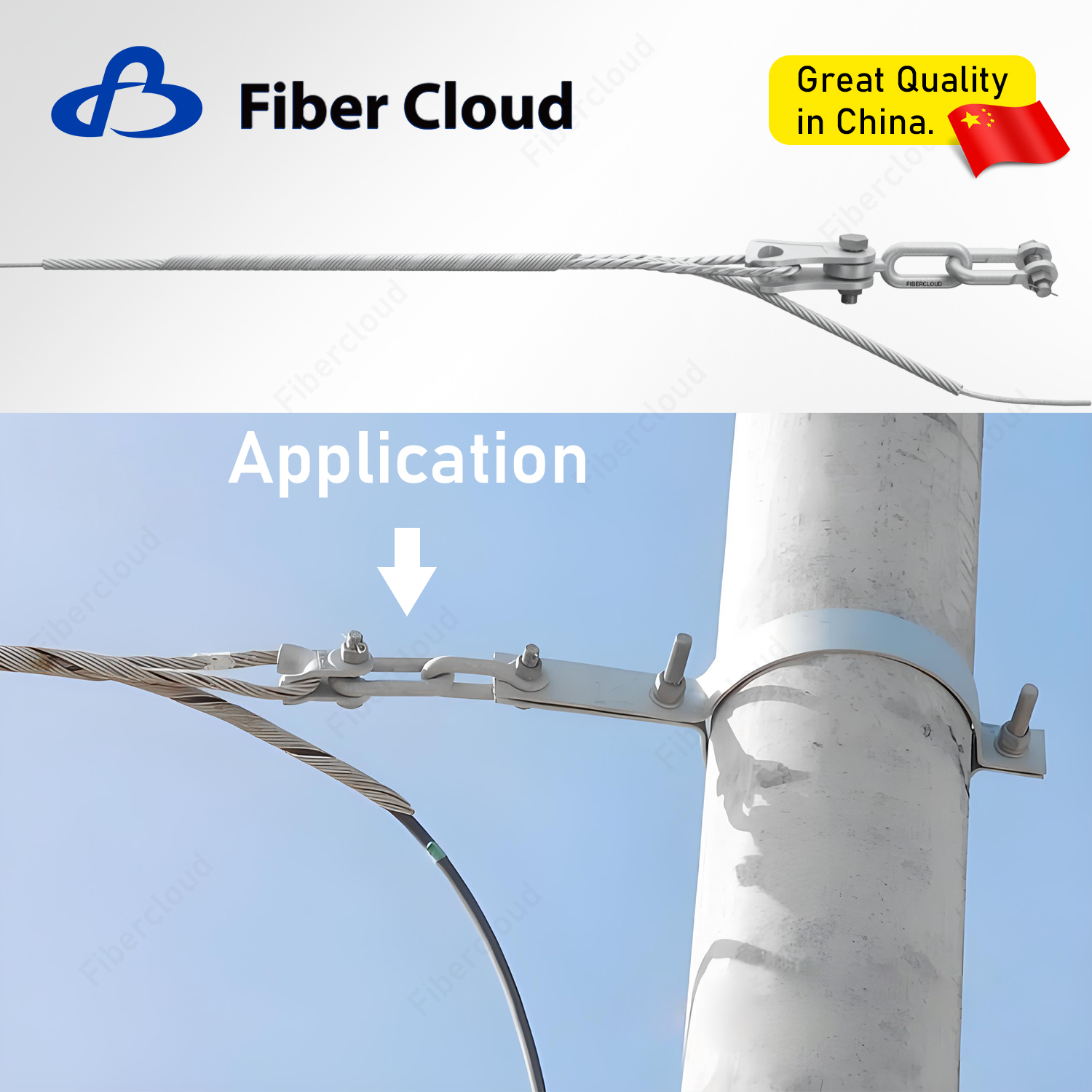

Applications
ADSS/OPGW power optical cable tension clamps are mainly used for connecting ADSS optical cables with tension poles, angle poles, terminal poles, tension towers, angle towers and terminal towers
Main and branch distribution lines for bare overhead conductors and insulated wires
