Ptical Fiber 19" Rack-mounted Terminal Distribution Box with Cables And Pigtails

Share to:

Ptical Fiber 19" Rack-mounted Terminal Distribution Box with Cables And Pigtails

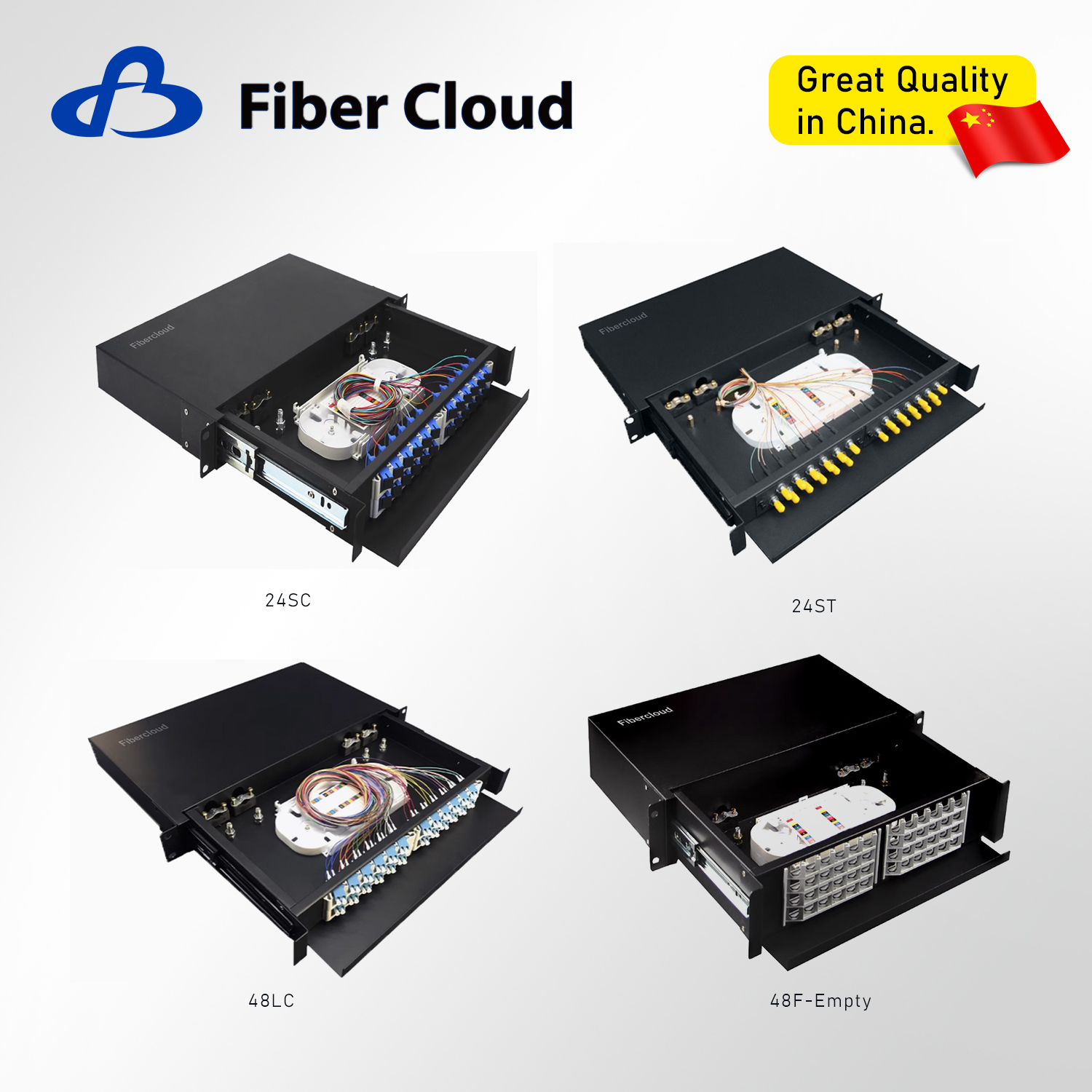

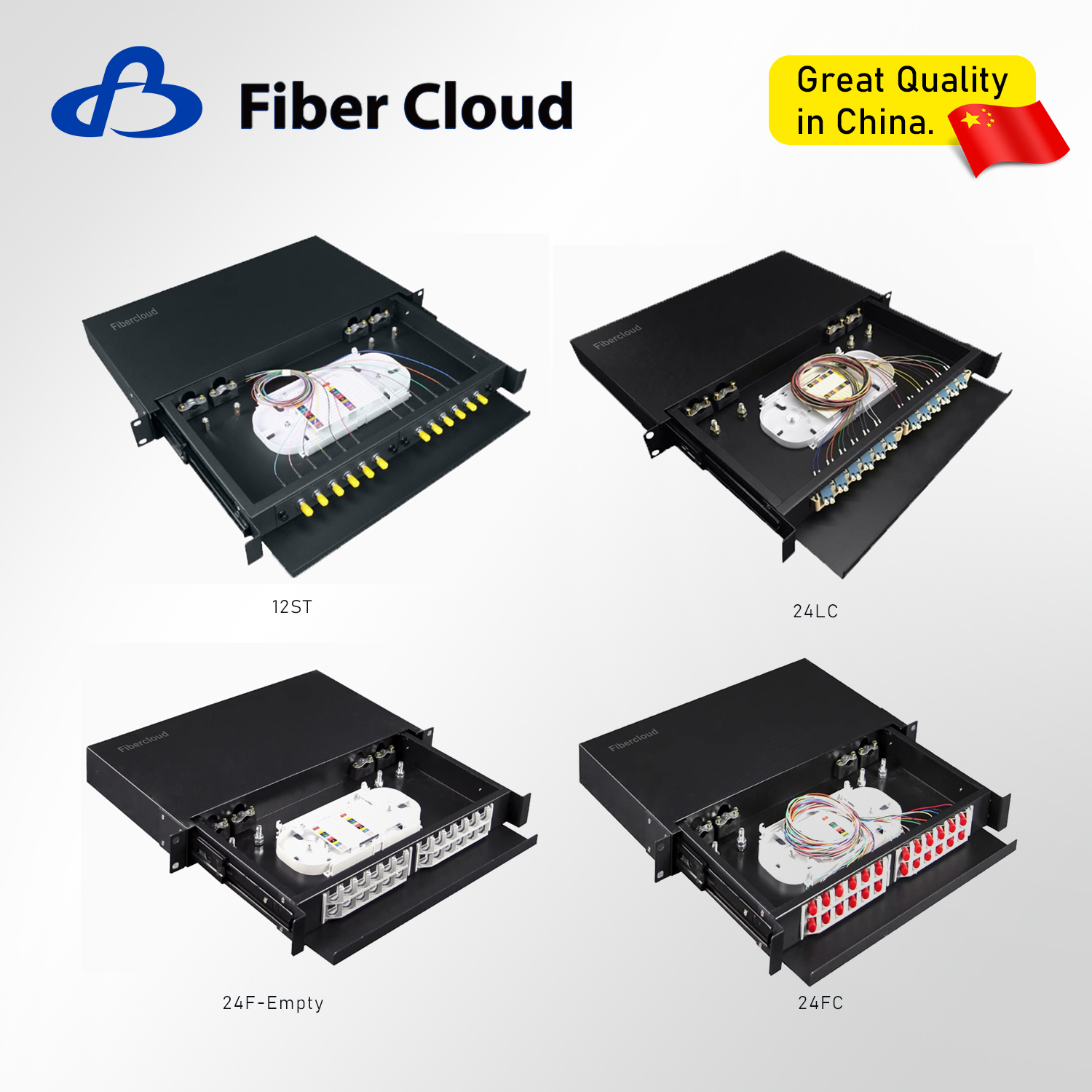

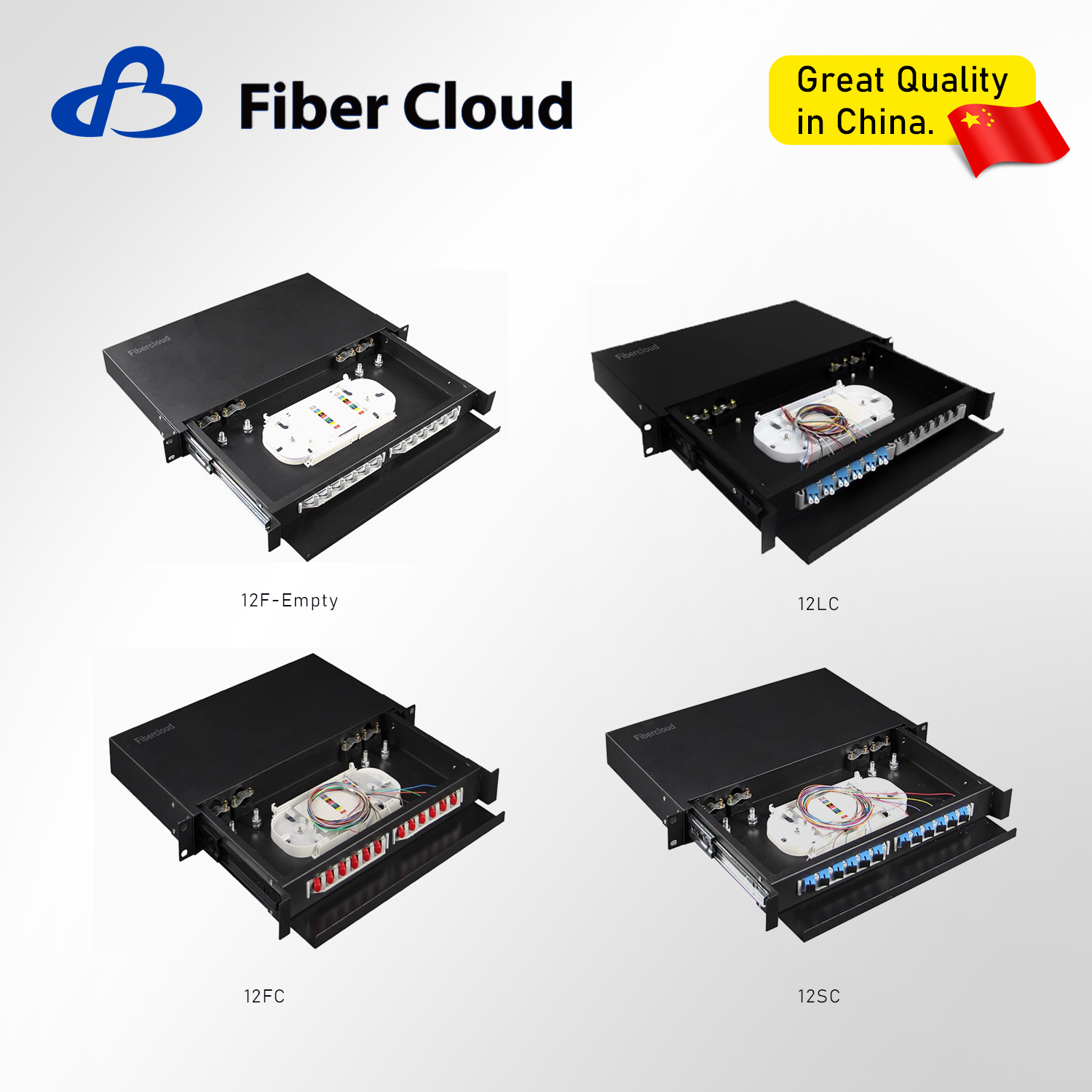

The Fibercloud 19" Rack-mounted Terminal Box (Rail-based) is a functional component foroptical fibre distribution frames or network integrated cabinets, offering fibre splicingdistribution, and tray storage. Featuring standard 19" installation based on a sliding rail anddrawer-type structure, this box consists of a fixed rack, sliding frame, and adapter panel, withthe sliding frame carrying a splice tray, wrapping post, and adapter panel bayonet permittingwithdrawal for maintenance.

Characteristics

High-quality cold-rolled steel, electrostatically spray-treated surface, elegant appearance
High density, 1U distribution capacity up to 48 cores, 2U up to 96 cores (dual-LC adapters)
Drawer-type structure for easy operations and maintenance
Panels can be selected and scheduled as required for capacity expansion or reconfiguration
Adaptable to FC (D type), SC, LC (simplex and duplex), and ST adapters,via choice ofadapter panel

Availability:



Inquire Add to Basket

Product Description

Product Parameters

Parameter	Specification
Color	Black or White
Operating Temperature	-40°C to +60°C
Ambient Humidity	≤ 95% (+40°C)
Atmospheric Pressure	70 kPa to 106 kPa
Nominal Operating Wavelength	850 nm, 1,310 nm, 1,550 nm
Insulation Resistance	> 1,000 MΩ/500 V (DC) between ground device and cabinet
Withstand Voltage	> 3,000 V (DC)/5 s between ground part and cabinet, no puncturing or arcing
Insertion Loss	≤ 0.2 dB
Return Loss	PC ≥ 45 dB, UPC ≥ 50 dB, APC ≥ 60 dB
Standards Compliance	Complies with YD/T 778-2011 ODF and other industry standards

Order Guide

Item	Type	Dimensions H×W×D (mm)	Capacity (Core)	Operating Environment	Remarks
19" rack-mounted terminal box (1U)	12LC	1U × 435×250	12	Standard 19" rack/cabinet	Configured with 6 duplex LC/UPC pigtail
	12SC	1U × 435×250	12	Standard 19" rack/cabinet	Configured with 12 simplex SC/UPC pigtail
	12FC	1U × 435×250	12	Standard 19" rack/cabinet	Configured with 12 simplex FC/UPC pigtail
	12ST	1U × 435×250	12	Standard 19" rack/cabinet	Configured with 12 simplex ST/UPC pigtail
	24LC	1U × 435×250	24	Standard 19" rack/cabinet	Configured with 12 duplex LC/UPC pigtail
	24SC	1U × 435×250	24	Standard 19" rack/cabinet	Configured with 24 simplex SC/UPC pigtail
	24FC	1U × 435×250	24	Standard 19" rack/cabinet	Configured with 24 simplex FC/UPC pigtail
	24ST	1U × 435×250	24	Standard 19" rack/cabinet	Configured with 24 simplex ST/UPC pigtail
	48LC	1U × 435×250	48	Standard 19" rack/cabinet	Configured with 24 duplex LC/UPC pigtail
19" rack-mounted terminal box (2U)	48SC	2U × 435×250	48	Standard 19" rack/cabinet	Configured with 48 simplex SC/UPC pigtail
	48FC	2U × 435×250	48	Standard 19" rack/cabinet	Configured with 48 simplex FC/UPC pigtail
	48ST	2U × 435×250	48	Standard 19" rack/cabinet	Configured with 48 simplex ST/UPC pigtail
	96LC	2U × 435×250	96	Standard 19" rack/cabinet	Configured with 48 duplex LC/UPC pigtail
