Stranded Gel-free Loose Tube APLArmored Cable (GYFA(ALL DRY)) Fiber Optic Cable

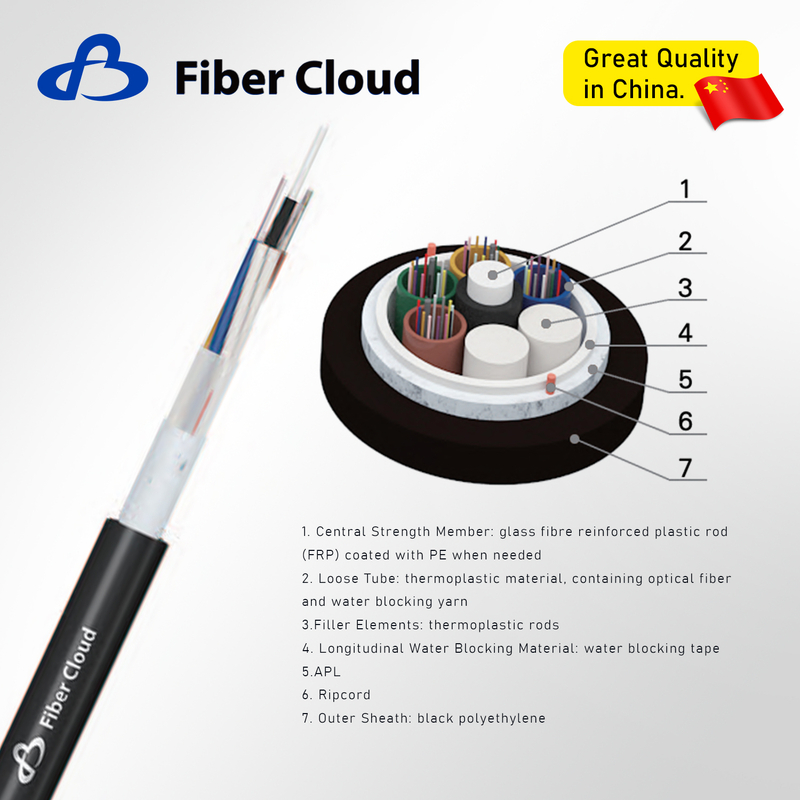

The fibers, are positioned in a loose tube made of a high modulus plastic. The interstice inside and outside of the tubes are filled with water-blocking yarns and water-blocking tape. A fiber reinforced plastic rod(FRP), coated with polyethylene if necessary locates in the center of core as a strength member. Tubers (and fillers) are stranded around the strength member to form a compact and circular cable core. A layer polyethylene sheath is extruded around the cable core to form a cable.

Characteristics

Gel-free cable structure
Easy for installation and splicing
Duct installation and aerial installation

Availability:



Inquire Add to Basket

Model:
GYFA(ALL DRY)

Product Description

Optical Characteristics

Parameter / Property	G.652.D	G.655	50/125μm	62.5/125μm
Attenuation @850nm	-	-	≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm	-	-	≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km	-	-
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km	-	-
Bandwidth @850nm	-	-	≥500 MHz·km	≥200 MHz·km
Bandwidth @1300nm	-	-	≥1000 MHz·km	≥600 MHz·km
Polarization mode dispersion (Individual fiber)	≤0.20 ps/√km	≤0.20 ps/√km	-	-
Design link value (M=20, Q=0.01%)	≤0.1 ps/√km	≤0.1 ps/√km	-	-

Technical Data

Item	Contents	Value
Item	Fiber Count	24	48	72	96	144	288
Loose Tube	No.of tubes*fibers per tube	2*12	4*12	6*12	8*12	12*12	24*12
Loose Tube	Outer diameter(mm)	2.4	2.4
Central Strength Member	Material	FRP
	Diameter(mm)	2.25	2.25	2.6	2.6	3.5	3.5
	Coated CSM diameter(mm)	-	-	-	4.2	7.2	4.8
Sheath	Thickness(mm)	Nominal:1.8
Cable Diameter(mm)Approx		12.0	12.0	12.5	14.0	17.0	19.5
Cable Weight(kg/km)Approx		120	120	125	155	225	295
Operating Temperature Range(℃)		-40~+70
Tensile Strength Short/Long Term(N)		2700/900
Crush Resistance Short/Long Term(N/100mm)		1000/300

The color arangement of fiber is specified in the color identification table
Other stucture and fiber count are also available according to customer requirements

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 10Nm one in 3 different places	Additional attenuation ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation ≤ 0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	-40°C~+70°C	Attenuation change: ≤ 0.05dB/km after test
