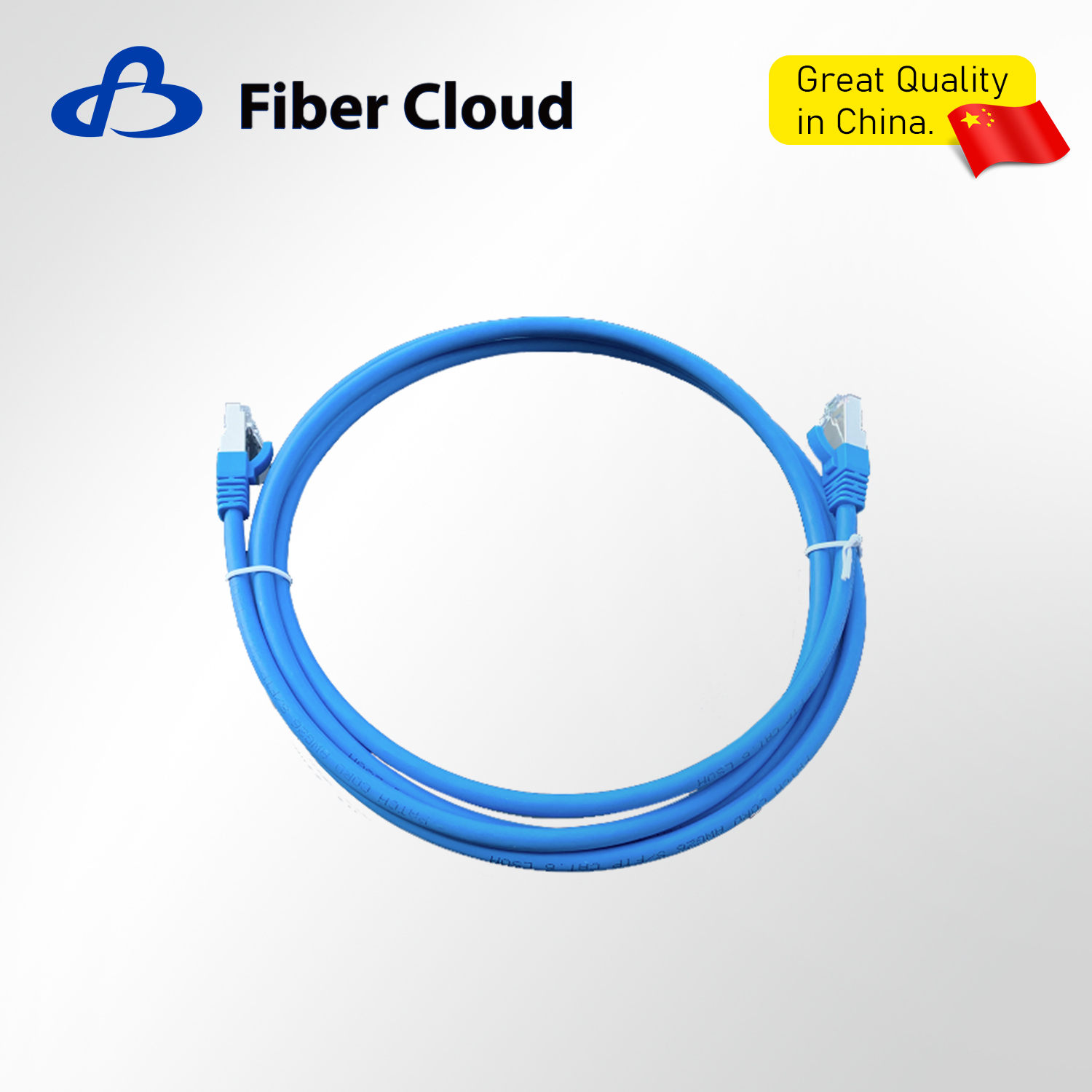

Cat.6 Shielded Patch Cords

Cat.6A Shielded Patch Cord is mainly applied to the connections between information modules, distributionframes, switches and equipment.

Characteristics

Cat.6 Shielded Patch Cords feature high-quality electricaland mechanical performance that exceeds the require-ments of ISO/IEC11801 and ANSI/TIA-568.2-D standards
Shielding structure is applied to the cable structure toenable outstanding shielding effect. Compact cable design

Product Description

Product standards

Comply with the requirements of ISO/IEC 11801-2002 version and ANSI/TIA/EIA568-D series connecting hardware and UL444 standards.
Comply with RoHS 2.0 and European Directive 2011/65/EU RoHS Compliance.
LSZH Cable: Flame retardant property conforms to: IEC60332-1 and IEC60332-3C; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2 smoke concentration standard: IEC61034-2.

Material and Structural Dimensions

Conductor: 26AWG multi-strand cable has S/FTP and FTP structures.
Sheath: LSZH, CM, PVC (No-rating) and other ﬂame-retardant classiﬁcations are provided.
The bandwidth exceeds the required standard 250MHz, and it can meet the network transmission requirements for the gigabit Ethernet
Durability ≥1250 times
Contact pins comply with FCC part 68, Subpart and IEC 60603-7 standard.
Contact pins: They are made of phosphor bronze with a thickness of 0.35mm. The bottom plated with 80u nickel is platedagain with 50u gold.

Product Model

Product Model	Product Description
iCONEC-CPC6SH16IW-020	Cat 6 Shielded Patch Cord, S/FTP, LSZH-1, 26AWG, White, 2m
iCONEC-CPC6SH16IW-030	Cat 6 Shielded Patch Cord, S/FTP, LSZH-1, 26AWG, White, 3m
iCONEC-CPC6SH16IW-050	Cat 6 Shielded Patch Cord, S/FTP, LSZH-1, 26AWG, White, 5m
iCONEC-CPC6SH16IW-100	Cat 6 Shielded Patch Cord, S/FTP, LSZH-1, 26AWG, White, 2m
iCONEC-CPC6SCM6BU-020	Cat 6 Shielded Patch Cord, S/FTP, CM, 26AWG, Blue, 2m
iCONEC-CPC6SCM6BU-030	Cat 6 Shielded Patch Cord, S/FTP, CM, 26AWG, Blue, 3m
iCONEC-CPC6SCM6BU-050	Cat 6 Shielded Patch Cord, S/FTP, CM, 26AWG, Blue, 5m
iCONEC-CPC6SCM6BU-100	Cat 6 Shielded Patch Cord, S/FTP, CM, 26AWG, Blue, 10m
iCONEC-CPC6FH16IW-020	Cat 6 Shielded Patch Cord, S/FTP, LSZH, 26AWG, White, 2m
iCONEC-CPC6FH16IW-030	Cat 6 Shielded Patch Cord, S/FTP, LSZH, 26AWG, White, 3m
iCONEC-CPC6FH16IW-050	Cat 6 Shielded Patch Cord, S/FTP, LSZH, 26AWG, white 5 m
iCONEC-CPC6FH16IW-100	Cat 6 Shielded Patch Cord, S/FTP, LSZH, 26AWG, White, 10m
