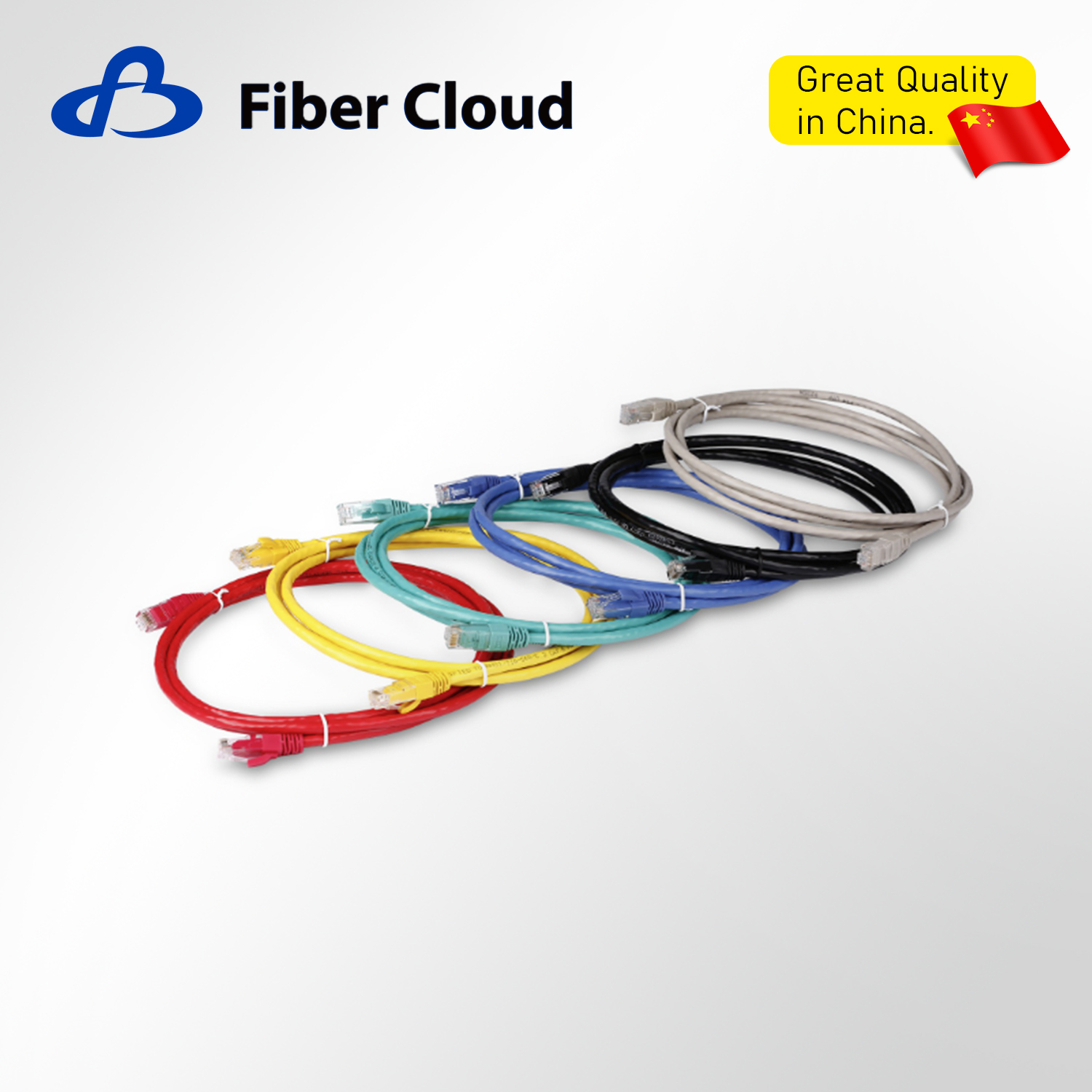

Cat.6A Unshielded Patch Cords

Cat.6A Unshielded Patch Cord is mainly applied to the connections between information modules, distribution frames, switches and equipment.

Characteristics

Cat.6A Unshielded Patch Cords feature high-quality electrical and mechanical performance that exceeds the requirements of ISO/IEC11801 and ANSI/TIA-568.2-D standards

Product Description

Product standards

Comply with the requirements of ISO/IEC 11801-2002 version and ANSI/TIA/EIA568-D series connecting hardware and UL444standards
Comply with RoHS 2.0 and European Directive 2011/65/EU RoHS Compliance
LSZH Cable: Flame retardant property conforms to: IEC60332-1 and IEC60332-3C; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2 smoke concentration standard: IEC61034-2

Material and Structural Dimensions

Conductor: 26AWG/28AWG multi-strand cable
Sheath: LSZH, CM, PVC (No-rating) and other ﬂame-retardant classiﬁcations are provided
The bandwidth exceeds the required standard 500MHz, and it can meet the network transmission requirements for the 10-gigabit Ethernet
Durability ≥1250 times
Contact pins comply with FCC part 68, Subpart and IEC 60603-7 standard
Contact pins: They are made of phosphor bronze with a thickness of 0.35mm. The bottom plated with 80u nickel is platedagain with 50u gold

Product Model

Product Model	Product Description
iCONEC-CP6AUH16IW-020	Cat 6a Unshielded Patch Cord, UTP, LSZH-1, 26AWG, White, 2m
iCONEC-CP6AUH16IW-030	Cat 6a Unshielded Patch Cord, UTP, LSZH-1, 26AWG, White, 3m
iCONEC-CP6AUH16IW-050	Cat 6a Unshielded Patch Cord, UTP, LSZH-1, 26AWG, White, 5m
iCONEC-CP6AUH16IW-100	Cat 6a Unshielded Patch Cord, UTP, LSZH-1, 26AWG, White, 10m
iCONEC-CP6AUCM6BU-020	Cat 6a Unshielded Patch Cord, UTP, CM, 26AWG, Blue, 2m
iCONEC-CP6AUCM6BU-030	Cat 6a Unshielded Patch Cord, UTP, CM, 26AWG, Blue, 3m
iCONEC-CP6AUCM6BU-050	Cat 6a Unshielded Patch Cord, UTP, CM, 26AWG, Blue, 5m
iCONEC-CP6AUCM6BU-100	Cat 6a Unshielded Patch Cord, UTP, CM, 26AWG, Blue, 10m
