Product Application
Laser coupling
Beam homogenization
Laser cleanin
Product Specifications
| Item | Unit | Index |
| Product Model | / | SI50/70/360-22/540 | SI100/120/360-22/540 | SI 200/220/360-22/540 |
| Optical characteristics |
| Numerical Aperture | / | 0.22±0.02 | 0.22±0.02 | 0.22±0.02 |
| Clad Numerical Aperture | / | ≥0.46 | ≥0.46 | ≥0.46 |

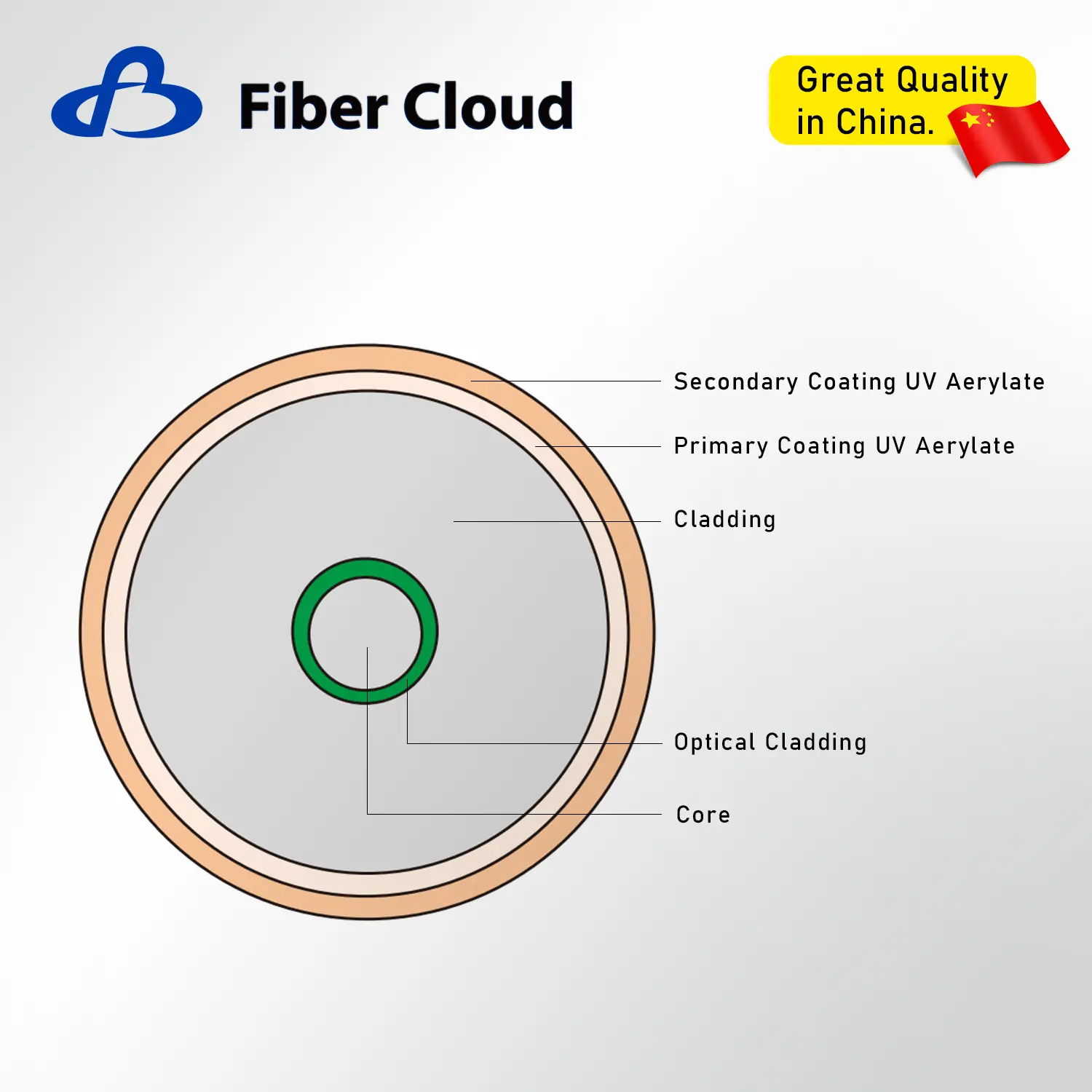

| Geometric characteristics |
| Core Diameter | μm | 50.0±2.0 | 102.0±2.0 | 200.0±4.0 |
| Inner Cladding Diameter | μm | 70.0±3.0 | 123.0±3.0 | 220.0±3.0 |
| Outer Cladding Diameter | μm | 365.0±5.0 | 365.0±5.0 | 365.0±5.0 |
| Coating Diameter | μm | 540.0±15.0 | 540.0±15.0 | 540.0±15.0 |
| Core-Cladding Concentricity | μm | ≤2.0 | ≤2.0 | ≤2.0 |
| Core Out-of-Circularity | % | ≤2.0 | ≤2.0 | ≤2.0 |
| Mechanical properties |
| Screening Strength | kpsi | 100 | 100 | 100 |
| Material description |
| Core Material | / | High-purity quartz glass |
| Inner Coating Material | / | Low-refractive index coating |
| Outer Coating Material | / | Acrylic resin |
| Item | Unit | Index |
| Product Model | / | HF 105/125-22/250 | HF 200/220-22/320 |
| Optical characteristics |
| Clad Numerical Aperture | / | 0.22±0.02 | 0.22±0.02 |
| Geometric and mechanical properties |
| Core Diameter | μm | 105.0±4.0 | 200.0±4.0 |
| Cladding Diameter | μm | 125.0±3.0 | 220.0±3.0 |
| Coating Diameter | μm | 250.0±15.0 | 320.0±15.0 |
| Core-Clad Concentricity | μm | ≤3.0 | ≤2.0 |
| Cladding Non-Circularity | % | ≤2.0 | ≤1.0 |
| Screening Strength | kpsi | ≥100 | ≥100 |
| Coating Material |
| Acrylic resin |
Customized Information
The operating wavelength, mode field diameter, beat length, geometric dimensions, coating material,screening intensity and other indicators can be customized according to customer requirements.
