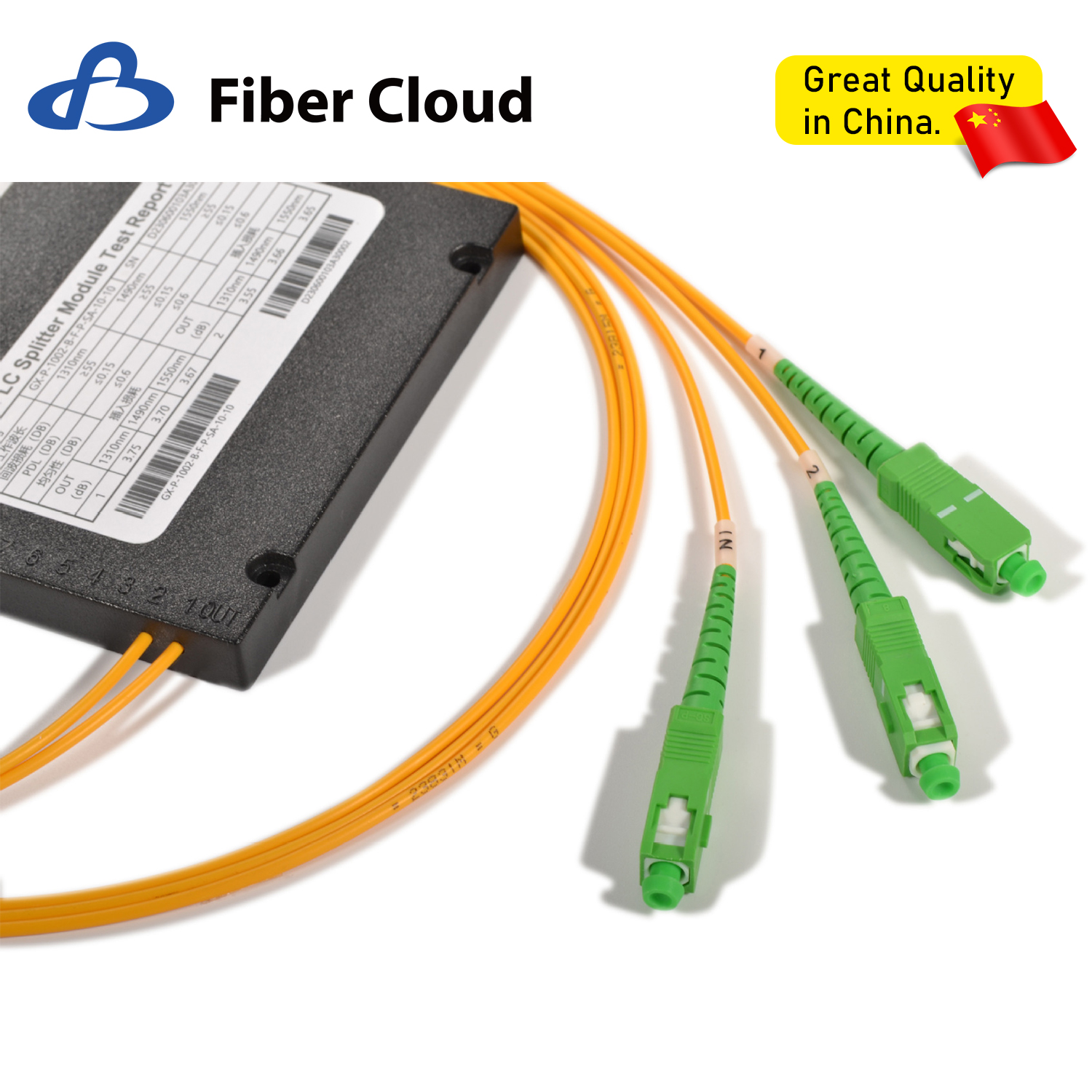

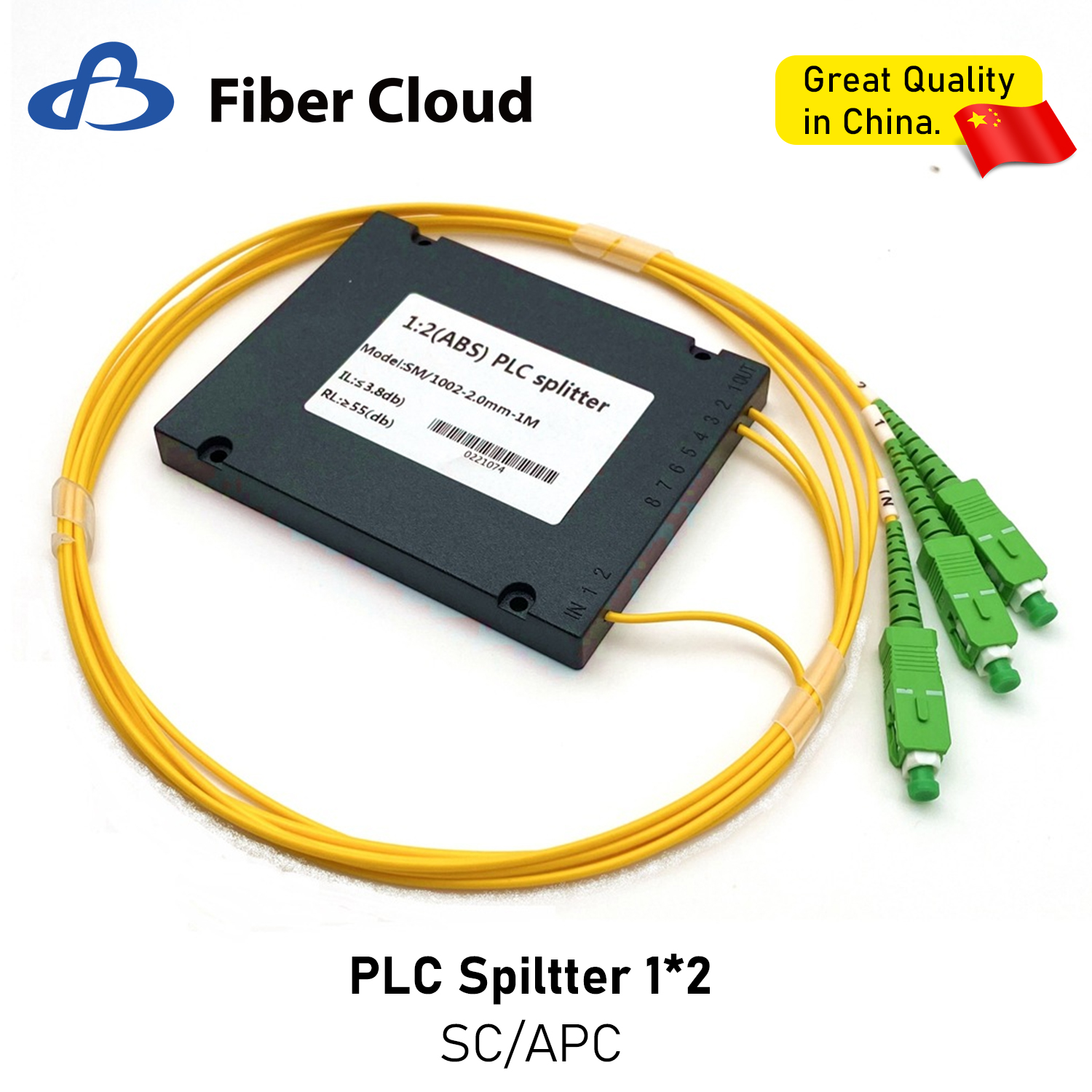

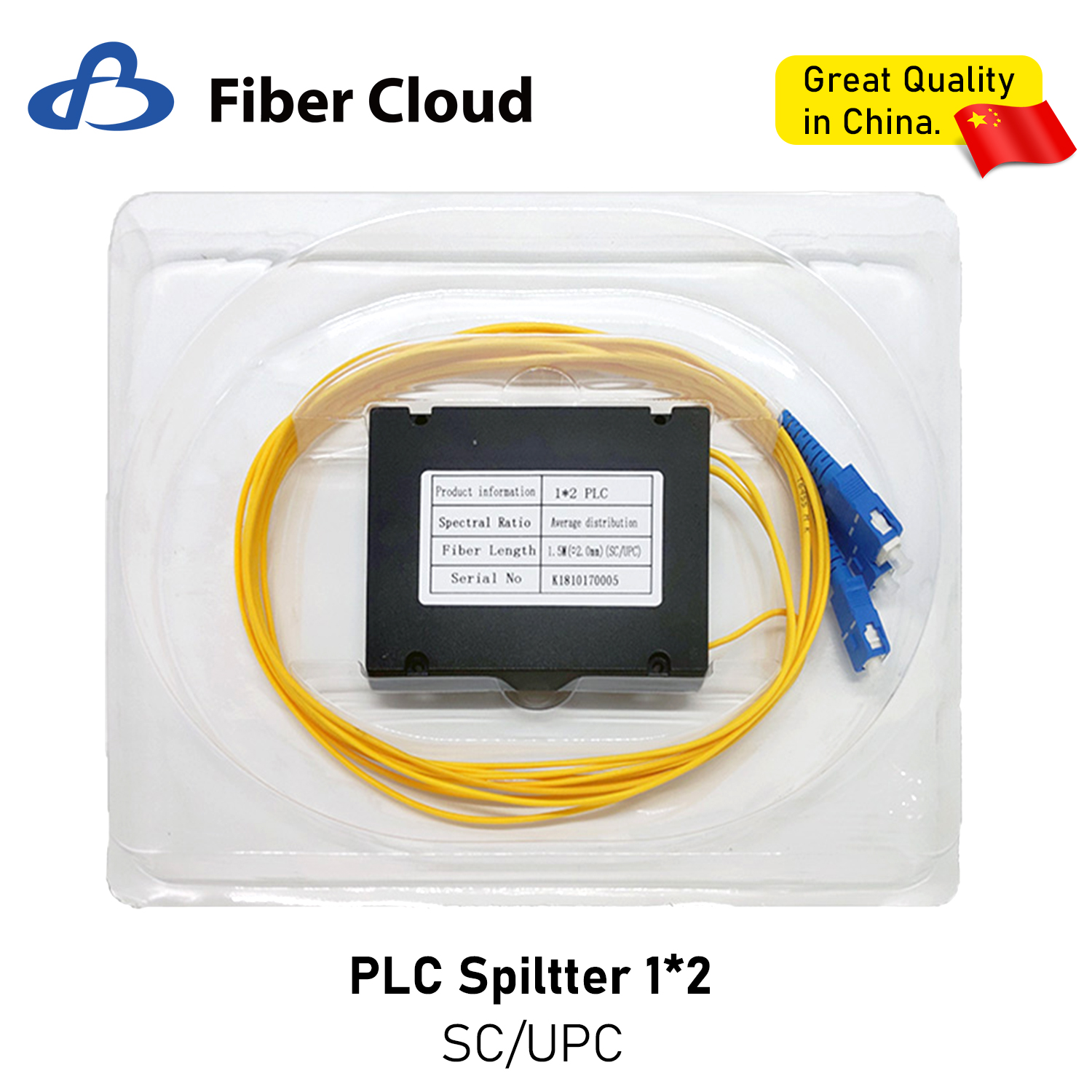

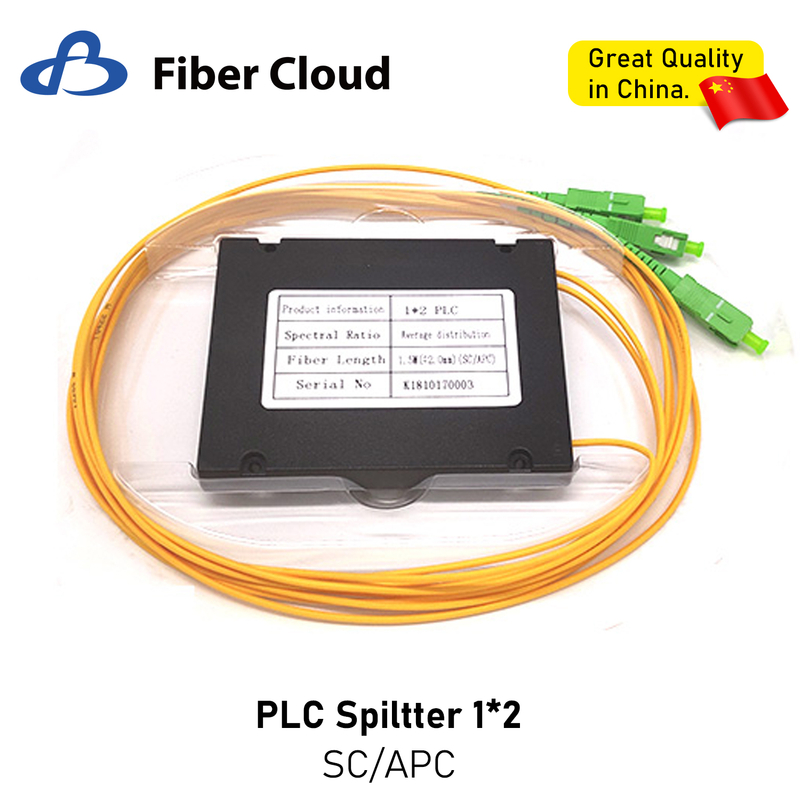

LSZH 2.0mm Sc Upc Box Type Single Mode Simplex Fiber Optic Pigtail 1X2 PLC ABS Fiber Splitter

Share to:

LSZH 1X2 2.0mm SC/APC Box Type Single Mode Simplex Fiber Optic Pigtail PLC ABS Fiber Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.

Characteristic

PLC fiber splitter 1x 2
ABS box package
0.9/2.0/3.0mm input/output fiber cable
Single-mode fiber SMF-28e
Customized input/output fiber cable length

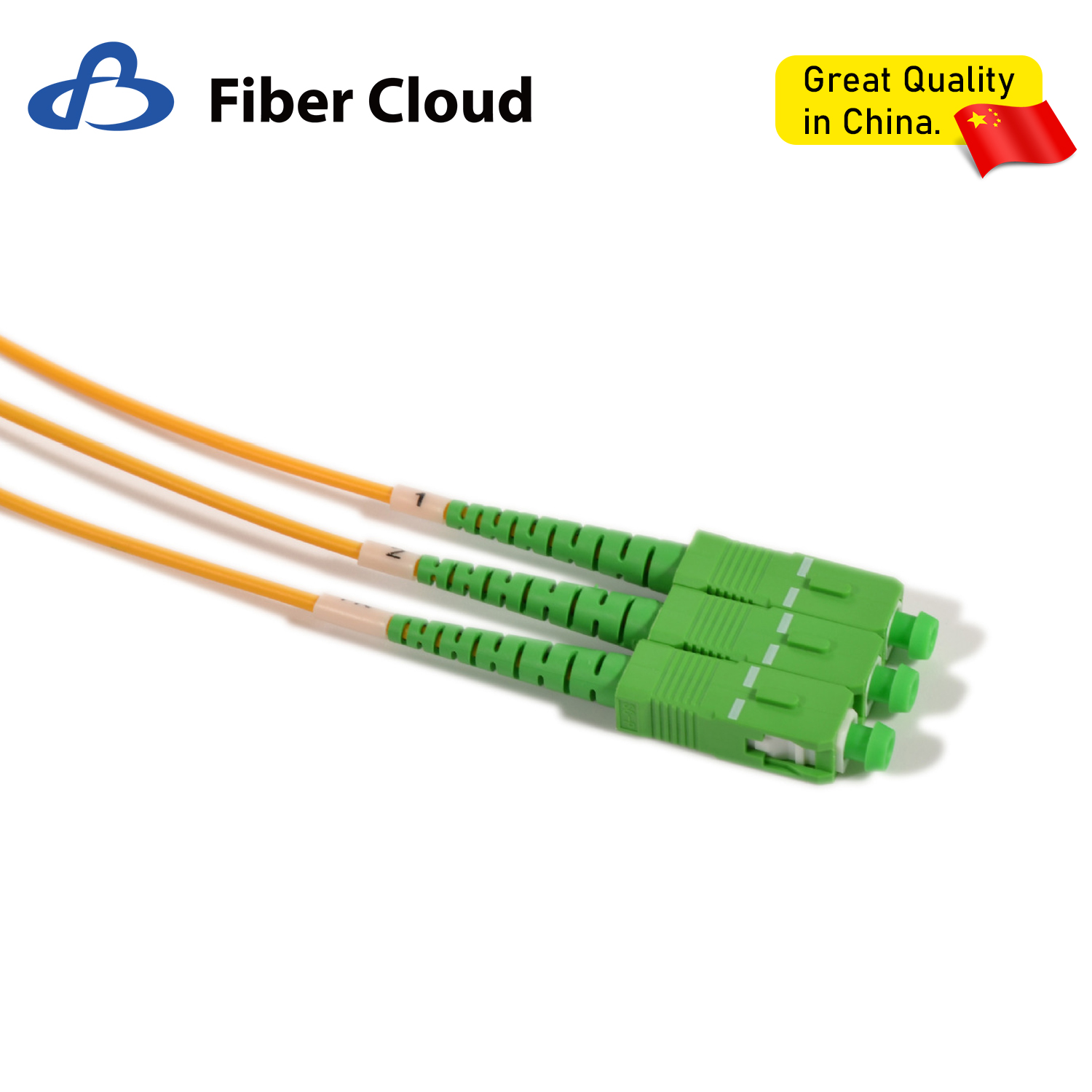

SC, LC, FC, ST connectors for option
APC, UPC polished fiberoptic connectors available
Good uniformity and directivity
Low insertion loss and low PDL
High reliability
Wide wavelength range

Availability:



Inquire Add to Basket

Model:
1X2 PLC

Product Description

Type	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Fiber Type	G.657.A
Wavelength	1260nm-1650nm
Insertion Loss (dB)	≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4	≤23.7
Port Insertion Loss Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Wavelength-to-Wavelength Insertion Loss Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.0	≤1.0	≤1.2
Return Loss (Output is cut off) (dB)	≥55	≥55	≥55	≥55	≥55	≥55	≥55
Return Loss (Output open circuit) (dB)	≥18	≥20	≥22	≥24	≥28	≥28	≥30
Directionality (dB)	≥55	≥55	≥55	≥55	≥55	≥55	≥55
Module Size (mm)	100X80X10	100X80X10	100X80X10	120X80X10	120X80X10	120X80X10	140×114×18

Applications

Telecommunications system
CATV networks
Local Access Network(LAN)
Fiber To The Home(FTTH)
Analog/Digital Passive Qp tical Networks(PON)

Product Description

Related Products

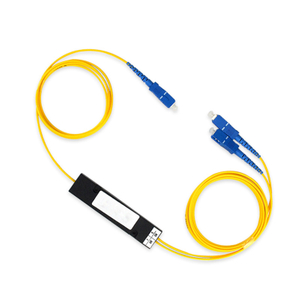

Telecom-grade 1-to-2 conical SC fiber optic splitter FBT box-type splitter
