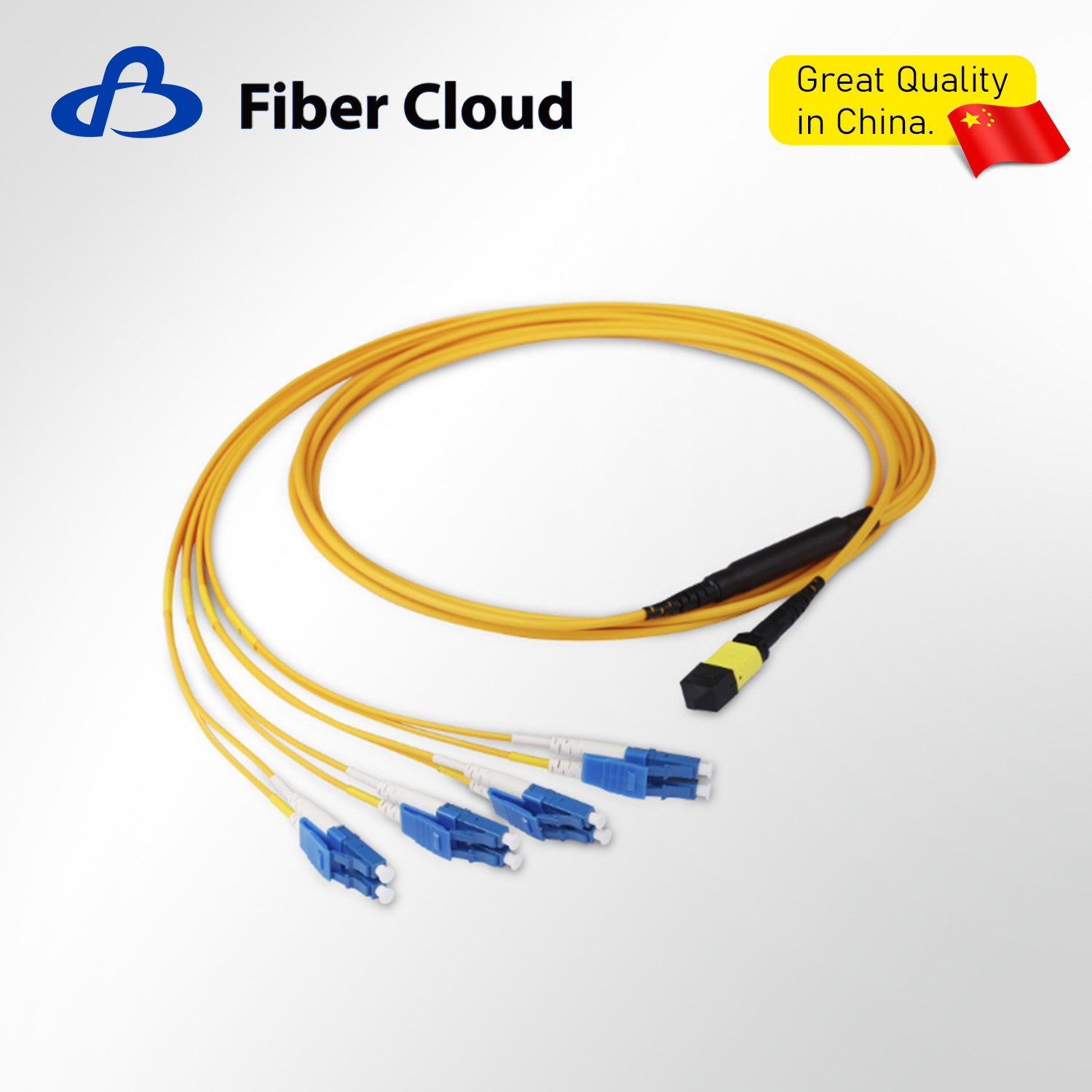

MPO/MTP Branching Patch Cord for FTTH Data Center

Pre-terminated optical ﬁber patch cords are available in MTP-MTP and MTP-LC types. Each patch cord is 100% tested in the factory, has low insertion loss and complies with international standards and data center requirements. Each opening in the optical ﬁber harness is numbered for easy use and maintenance.

Characteristic

Standard high-precision MPO/MTP optical ﬁbre connectors and simplex/duplex LC/SC connectors are used in this product
It is available in 6 cores, 8 cores, 12 cores, 16 cores, etc
A wide range of cable arrangement products are available
Rapid upgrading to support parallel transmission system applications
The length of trunk and branch harnesses can be custom-ized
Multiple ﬂame retardant outer sheaths are available: LSZH,OFNR, OFNP

Availability:



Inquire Add to Basket

Model:
MPO/MTP

Product Description

Optical Fiber Performance

Fiber Type	Core/Cladding Dia. (µm)	Bandwidth (MHZ·km)	Wavelength (nm)	Max. Attenuation (dB/km)
G.657.A2	9/125	NA	1310/1550	0.35/0.21
BI OM3	50/125	2000	850/1300	2.4/0.6
BI OM4	50/125	4700	850/1300	2.4/0.6
BI OM5	50/125	4700	850/1300	2.4/0.6

Connector Performance

Connector Performance	IL（dB）	RL（dB）
MTP Multi-Mode High-Accuracy	≤0.25	-28
MPO Multi-Mode High-Accuracy	≤0.30	-25
MTP Singlei-Mode High-Accuracy	≤0.35	-65
MTP Multi-Mode General-Accuracy	≤0.35	-28
MPO Multi-Mode General-Accuracy	≤0.35	-25
MTP Singlei-Mode General-Accuracy	≤0.60	-65

Mechanical Performance

Fibre Count	Static Bending Radius (mm)	Dynamic Bending Radius (mm)	Operation Temperature (°C)	Installation Temperature (°C)	Transport and Storage Temperature (°C)	Package
8	10D	20D	-20 to +60	-5 to +50	-25 to +75	PE bag for L<50m Reel packaging for L≥50m
12	10D	20D	-20 to +60	-5 to +50	-25 to +75
24	10D	20D	-20 to +60	-5 to +50	-25 to +75
48	10D	20D	-20 to +60	-5 to +50	-25 to +75

Product model

Product Model	Product Description
DBPBTTFFE12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, G.657.A2, Type B, 3m.
DBPBTTFFA12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, OM3, Type B, 3m.
DBPBTTFFN12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, OM4, Type B, 3m.
DBPBTTFFD12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, OM5, Type B, 3m.
DBPBTTFFE12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, G.657.A2, Type B, 3m.
DBPBTTFFA12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, OM3, Type B, 3m.
DBPBTTFFN12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, OM4, Type B, 3m.
DBPBTTFFD12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, OM5, Type B, 3m.
DBPBTTFFE12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, G.657.A2, Type B, 3m.
DBPBTTFFA12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, OM3, Type B, 3m.
DBPBTTFFN12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, OM4, Type B, 3m.
DBPBTTFFD12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, OM5, Type B, 3m.
DBPBTTFFE12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, G.657.A2, Type B, 3m.
DBPBTTFFA12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, OM3, Type B, 3m.
DBPBTTFFN12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, OM4, Type B, 3m.
DBPBTTFFD12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, OM5, Type B, 3m.
DBPBPTFFA12H-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-1, OM3, Type B, 3m.
DBPBPTFFN12H-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-1, OM4, Type B, 3m.
DBPBPTFFD12H-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-1, OM5, Type B, 3m.
DBPBPTFFE12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, G.657.A2, Type B, 3m.
DBPBPTFFA12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, OM3, Type B, 3m.
DBPBPTFFN12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, OM4, Type B, 3m.
DBPBPTFFD12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, OM5, Type B, 3m.
DBPBPTFFE12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, G.657.A2, Type B, 3m.
DBPBPTFFA12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, OM3, Type B, 3m.
DBPBPTFFN12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, OM4, Type B, 3m.
DBPBPTFFD12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, OM5, Type B, 3m.
DBPBPTFFE12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, G.657.A2, Type B, 3m.
DBPBPTFFA12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, OM3, Type B, 3m.
DBPBPTFFN12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, OM4, Type B, 3m.
DBPBPTFFD12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, OM5, Type B, 3m.
