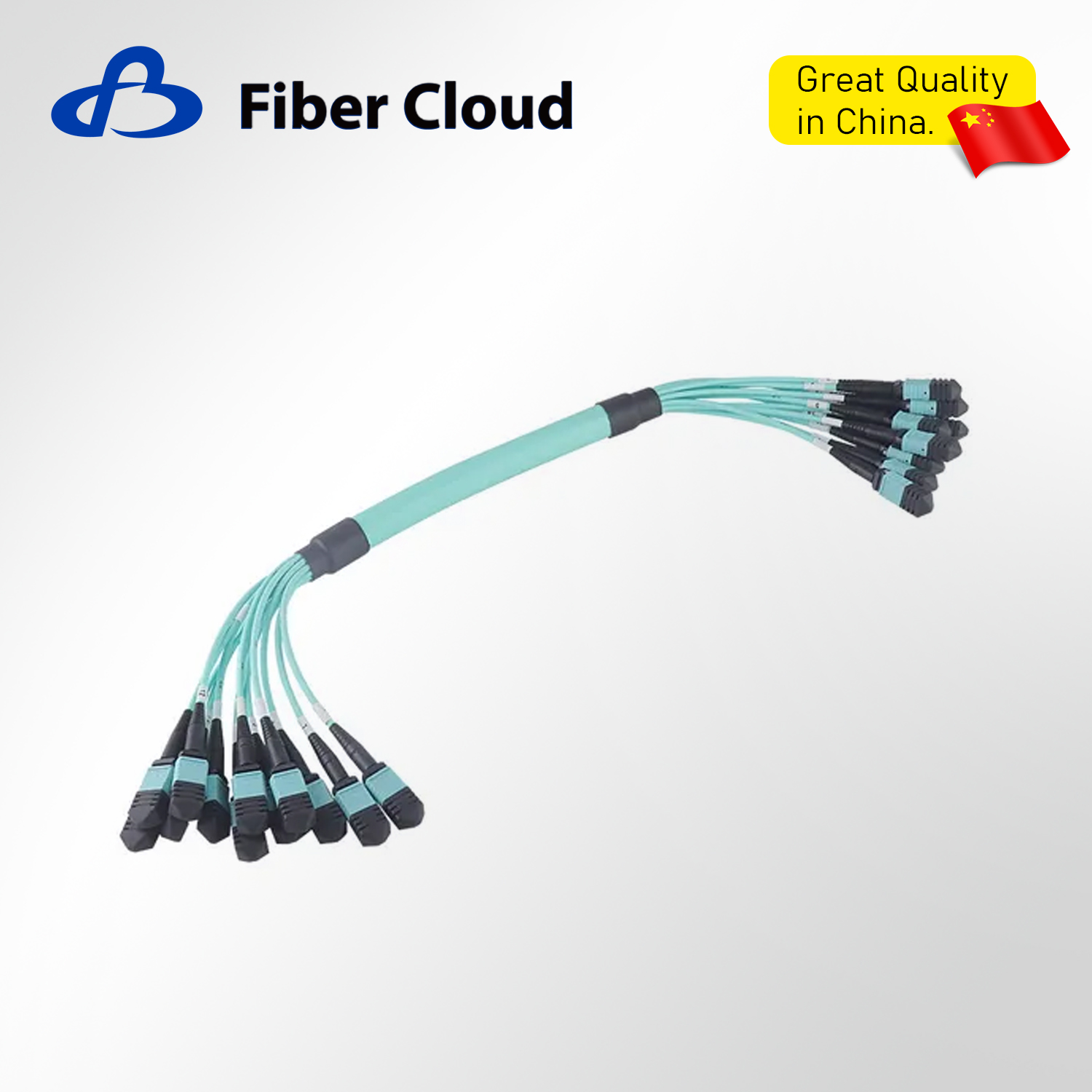

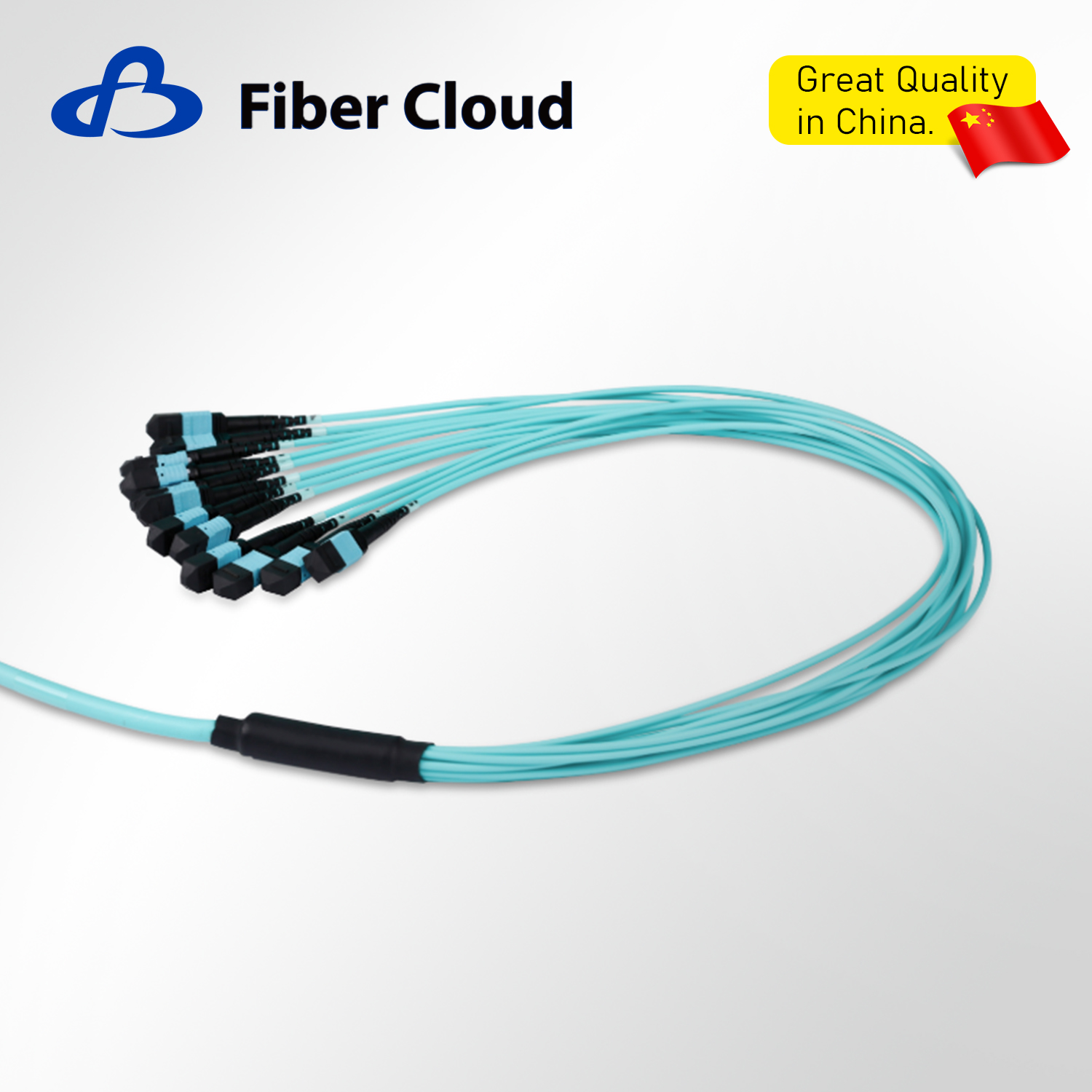

Pre-Terminated MPO/MTP 8/12/24/48/96cores Fiber Optic Trunk Patch Cable for FTTH Data Center

The pre-terminated optical cable system, a pre-terminatedfiber optic connection system, is designed to meet the grow.ing demand for high bandwidth and high density in datacenter networks and enterprise building applications. ltprovides more optimized system performance for factoriesin pre-terminated solutions, and ensures the compatibilityand qualitystability ofcomponents.The MTp pre-terminatedoptical cable system makes it possible to greatly simplify theconfiguration process of fiber networks and minimize installation time and costs in space-constrained environmentsespecially in data center applications.

Characteristic

Factory pre-termination, 100% tested to leave the factory
Flexible polarity selection (Type A, Type B and Type C)
With pulling hooks for easy installation, each fiber optic cable is labeledfor product manufacturing and quality traceability
OM3, OM4 and OM5 cables are designed to withstand slight bends.which can greatly alleviate the system operation interruption and degra-dation caused by bending problems
Fast configuration and networking to reduce on-site installation time.*Rapid upgrading to support parallel transmission system applications
LSZH, OFNR and OFNP materials are available for outer sheath
Insertion loss: lLs0.25 (multi-mode): lL<0.35 (single-mode)

Availability:



Inquire Add to Basket

Model:
MPO/MTP

Product Description

Optical Fiber Performance

Fiber Type	Core/Cladding Dia. (µm)	Bandwidth (MHZ km)	Wavelength (nm)	Max. Attenuation (dB/km)
0.657.A2	9/125	NA	1310/1550	0.35/0.21
BI OM3	50/125	2000	850/1300	2.4/0.6
BI OM4	50/125	4700	850/1300	2.4/0.6
BI OM5	50/125	4700	850/1300	2.4/0.6

Connector Performance

Fiber Type	IL (dB)	RL (dB)
MTP Multi-Mode High-Accuracy	≤0.25	-28
MPO Multi-Mode High-Accuracy	≤0.30	-25
MTP Single-Mode High-Accuracy	≤0.35	-65
MTP Multi-Mode General-Accuracy	≤0.35	-28
MPO Multi-Mode General-Accuracy	≤0.35	-25
MTP Single-Mode General-Accuracy	≤0.60	-65

Mechanical Performance

Fibre Count	Fan-out Length (cm)	Pulling Hook Max.Tension(N)	Pulling Hook Max.Impact(N/cm)	Static Bending Radius(mm)	Dynamic Bending Radius(mm)	Operation Temperature(℃)	Installation Temperature(℃)	Transport and Storage Temperature(℃)	Package
12	60-100	400	100	10D	20D	-20~+60	-5~+50	-25~+75	PE bag for L<50m Reel packag- ing for L≥ 50m
24	60-100	450	100	10D	20D	-20~+60	-5~+50	-25~+75
48	60-100	450	100	10D	20D	-20~+60	-5~+50	-25~+75
72	60-100	450	100	10D	20D	-20~+60	-5~+50	-25~+75
96	60-100	450	100	10D	20D	-20~+60	-5~+50	-25~+75
144	60-100	450	100	10D	20D	-20~+60	-5~+50	-25~+75

Product model

Product Model	Product Description
DTHBTTFFE12H-0100	MTP Pre-terminated Trunk Cable,Connector F-F,12-core,LSZH-1.Type B,C657A2,10m.
DTHBTTFFE12R-0100	MTP Pre-terminated Trunk Cable.Connector F-F,12-core,OFNR.Type BC657A2,10m.
DTHBTTFFE12P-0100	MTP Pre-terminated Trunk Cable,Connector F-F,12-core,OFNP.Type B.C657A2,10m.
DTHBTTFFA12H-0100	MTP Pre-terminated Trunk Cable,Connector F-F,12-coreLSZH-1.Type B.OM3,10m.
DTHBTTFFA12R-0100	MTP Pre-terminated Trunk Cable.Connector F-F,12-Core,OFNR,Type B.OM3,10m.
DTHBTTFFA12P-0100	MTP Pre-terminated Trunk Cable,Connector F-F,12-core.OFNP.Type B,OM3,10m.
DTHBTTFFN12H-0100	MTP Pre-terminated Trunk Cable,Connector F-F,12-core,LSZH-1.Type B.OM4,10m.
DTHBTTFFN12R-0100	MTP Pre-terminated Trunk Cable.Connector F-F,12-core.OFNR.Type B,OM4,10m
DTHBTTFFN12P-0100	MTP Pre-terminated Trunk Cable,Connector F-F,12-core.OFNP.Type B,OM4.10m
DTHBPTFFE12H-0100	MPO Pre-terminated Trunk Cable,Connector F-F,12-core,LSZH-1.Type B,C657A2,10m
DTHBPTFFE12R-0100	MPO Pre-terminated Trunk Cable,Connector F-F,12-core,OFNR.Type B,G657A2,10m
DTHBPTFFE12P-0100	MPO Pre-terminated Trunk Cable.Connector F-F,12-core.OFNP.Type B.C657A2,10m
DTHBPTFFA12H-0100	MPO Pre-terminated Trunk Cable,Connector F-F,12-core,LSZH-1.Type B,OM3,10m.
DTHBPTFFA12R-0100	MPO Pre-terminated Trunk Cable,Connector F-F,12-core,OFNR.Type B,OM3.10m.
DTHBPTFFA12P-0100	MPO Pre-terminated Trunk Cable.Connector F-F.12-core.OFNP.Type B.OM3.10m.
DTHBPTFFN12H-0100	MPO Pre-terminated Trunk Cable,Connector F-F,12-core,LSZH-1,Type B,OM4.10m.
DTHBPTFFN12R-0100	MPO Pre-terminated Trunk Cable,Connector F-F,12-core,OFNR.Type B,OM4,10m.
DTHBPTFFN12P-0100	MPO Pre-terminated Trunk Cable.Connector F-F.12-core.OFNP.Type B,OM4,10m.
