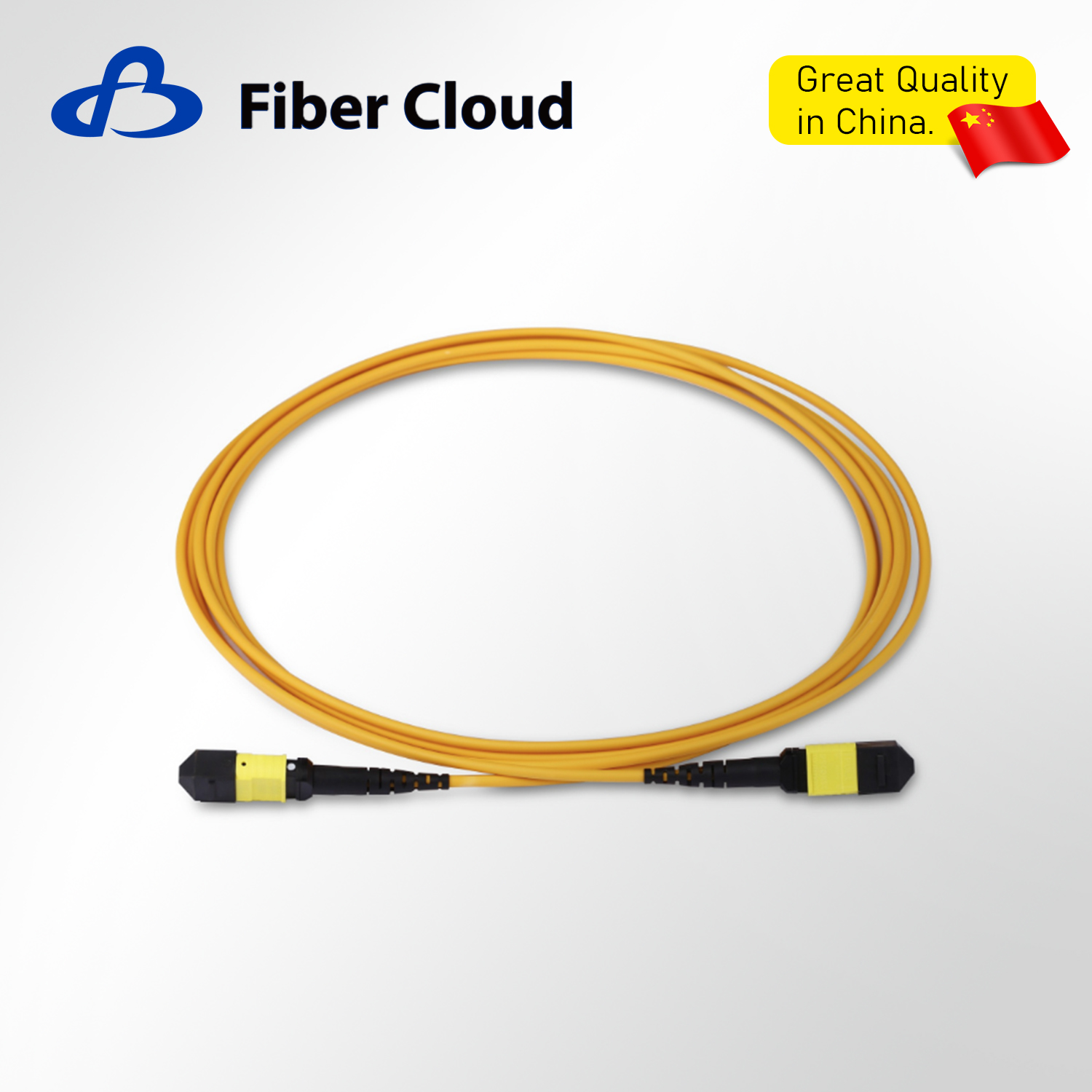

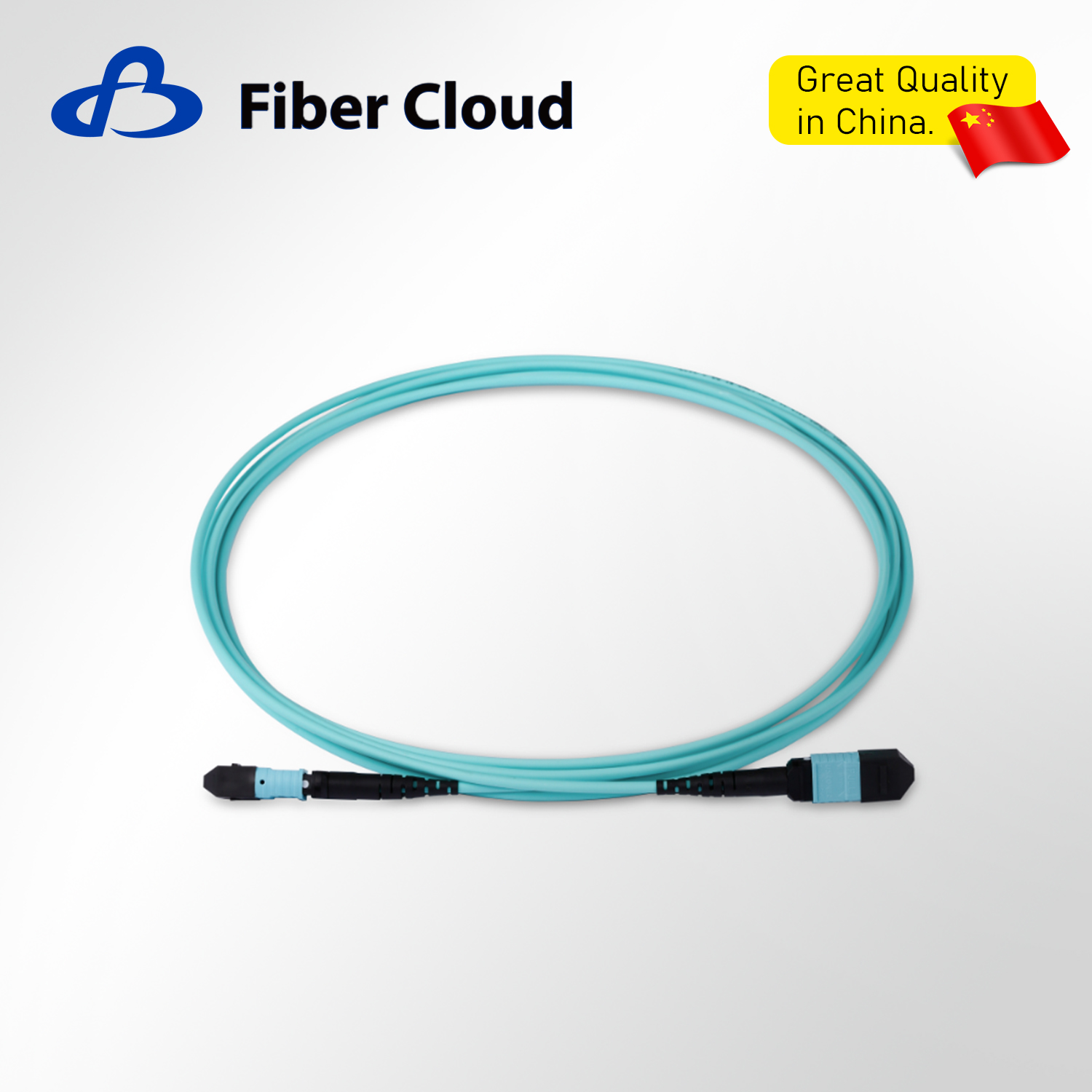

MPO/MTP Pre-terminated Patch Cord for FTTH Data Center

Pre-terminated optical ﬁber patch cords are available in MTP-MTP and MTP-LC types. Each patch cord is 100% tested in the factory, has low insertion loss and complies with international standards and data center requirements.

Characteristic

Comply with TIA/EIA-568-C.3, ISO/IEC 11801
Factory pre-termination, 100% tested to leave the factory
Flexible choice of cable arrangement
Handles are provided for easy installation
Each cable is labeled for the product manufacturing and quality traceability
OM3 and OM4 cables are designed to withstand slight bends, which can greatly alleviate the system operation interruption and degradation caused by bending problems

Availability:



Inquire Add to Basket

Model:
MPO/MTP

Product Description

Optical Fiber Performance

Fiber Type	Core/Cladding Dia. (µm)	Bandwidth (MHZ·km)	Wavelength (nm)	Max. Attenuation (dB/km)
G.657.A2	9/125	NA	1310/1550	0.35/0.21
BI OM3	50/125	2000	850/1300	2.4/0.6
BI OM4	50/125	4700	850/1300	2.4/0.6
BI OM5	50/125	4700	850/1300	2.4/0.6

Connector Performance

Connector Performance	IL（dB）	RL（dB）
MTP Multi-Mode High-Accuracy	≤0.25	-28
MPO Multi-Mode High-Accuracy	≤0.30	-25
MTP Singlei-Mode High-Accuracy	≤0.35	-65
MTP Multi-Mode General-Accuracy	≤0.35	-28
MPO Multi-Mode General-Accuracy	≤0.35	-25
MTP Singlei-Mode General-Accuracy	≤0.60	-65

Mechanical Performance

Fibre Count	Static Bending Radius (mm)	Dynamic Bending Radius (mm)	Operation Temperature (°C)	Installation Temperature (°C)	Transport and Storage Temperature (°C)	Package
8	10D	20D	-20 to +60	-5 to +50	-25 to +75	PE bag for L<50m, Reel packaging for L≥50m
12	10D	20D	-20 to +60	-5 to +50	-25 to +75
24	10D	20D	-20 to +60	-5 to +50	-25 to +75
48	10D	20D	-20 to +60	-5 to +50	-25 to +75

Product model

Product Model	Product Description
DBPBTTFFE12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, G.657.A2, Type B, 3m.
DBPBTTFFA12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, OM3, Type B, 3m.
DBPBTTFFN12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, OM4, Type B, 3m.
DBPBTTFFD12H-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-1, OM5, Type B, 3m.
DBPBTTFFE12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, G.657.A2, Type B, 3m.
DBPBTTFFA12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, OM3, Type B, 3m.
DBPBTTFFN12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, OM4, Type B, 3m.
DBPBTTFFD12L-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, LSZH-3, OM5, Type B, 3m.
DBPBTTFFE12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, G.657.A2, Type B, 3m.
DBPBTTFFA12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, OM3, Type B, 3m.
DBPBTTFFN12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, OM4, Type B, 3m.
DBPBTTFFD12R-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNR, OM5, Type B, 3m.
DBPBTTFFE12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, G.657.A2, Type B, 3m.
DBPBTTFFA12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, OM3, Type B, 3m.
DBPBTTFFN12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, OM4, Type B, 3m.
DBPBTTFFD12P-0030	MTP-MTP Patch Cord, Connector F-F, 12-Core, OFNP, OM5, Type B, 3m.
DBPBPTFFA12H-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-1, OM3, Type B, 3m.
DBPBPTFFN12H-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-1, OM4, Type B, 3m.
DBPBPTFFD12H-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-1, OM5, Type B, 3m.
DBPBPTFFE12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, G.657.A2, Type B, 3m.
DBPBPTFFA12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, OM3, Type B, 3m.
DBPBPTFFN12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, OM4, Type B, 3m.
DBPBPTFFD12L-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, LSZH-3, OM5, Type B, 3m.
DBPBPTFFE12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, G.657.A2, Type B, 3m.
DBPBPTFFA12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, OM3, Type B, 3m.
DBPBPTFFN12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, OM4, Type B, 3m.
DBPBPTFFD12R-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNR, OM5, Type B, 3m.
DBPBPTFFE12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, G.657.A2, Type B, 3m.
DBPBPTFFA12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, OM3, Type B, 3m.
DBPBPTFFN12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, OM4, Type B, 3m.
DBPBPTFFD12P-0030	MPO-MPO Patch Cord, Connector F-F, 12-Core, OFNP, OM5, Type B, 3m.
