Stranded Loose Tube Non-metallicStrength Member Cable (GYFTA) Fiber Optic Cable

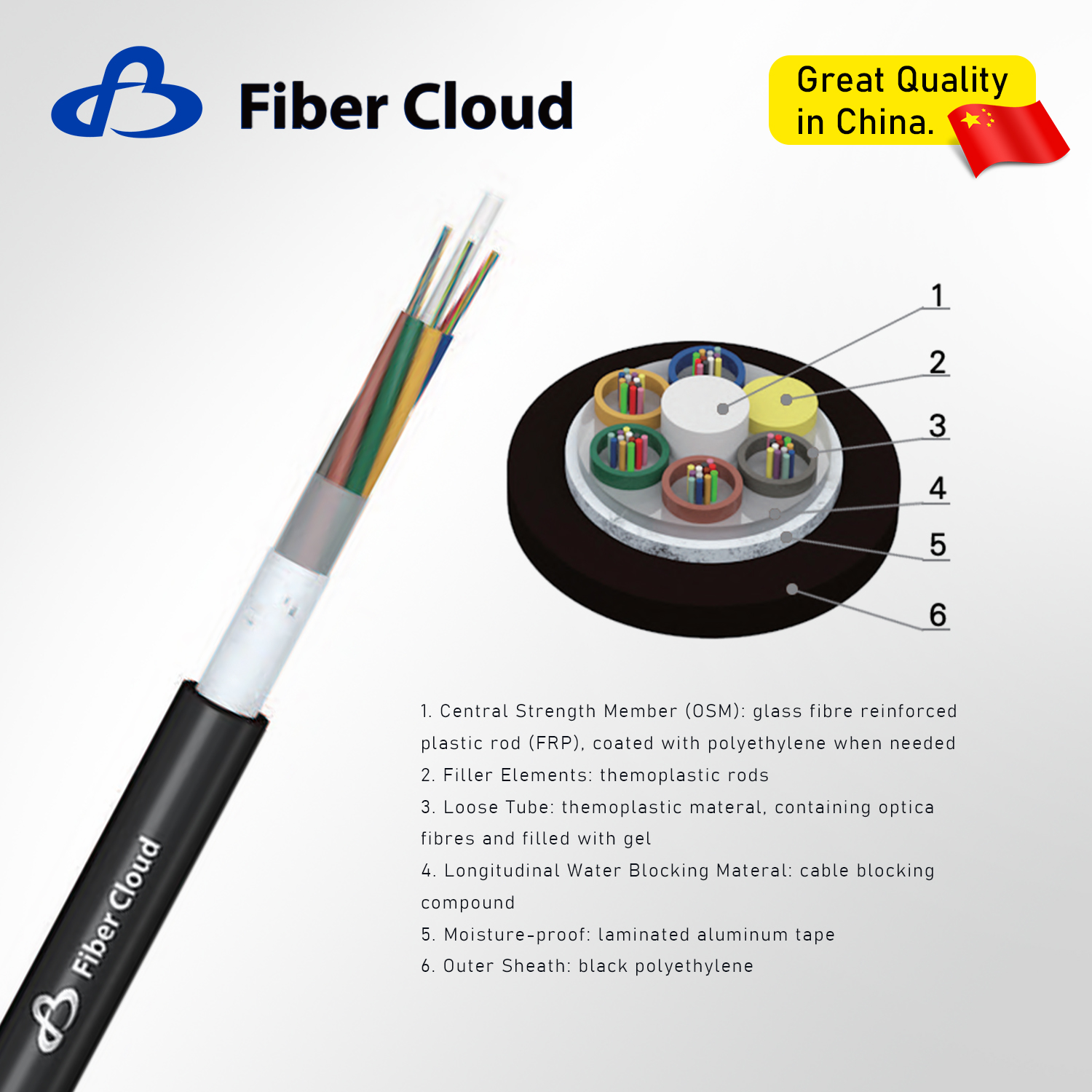

The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.

Characteristics

Good flexibility
Duct installation or aerial installation

Availability:



Inquire Add to Basket

Model:
GYFTA

Product Description

Optical Characteristics

Parameter / Property	G.652.D	G.655	50/125μm	62.5/125μm
Attenuation @850nm	-	-	≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm	-	-	≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km	-	-
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km	-	-
Bandwidth @850nm	-	-	≥500 MHz·km	≥200 MHz·km
Bandwidth @1300nm	-	-	≥1000 MHz·km	≥600 MHz·km
Polarization mode dispersion (Individual fiber)	≤0.20 ps/√km	≤0.20 ps/√km	-	-
Design link value (M=20, Q=0.01%)	≤0.1 ps/√km	≤0.1 ps/√km	-	-

Technical Data

Item	Contents	Value
Item	Fibre Count	24	48	72	96	144	288
Loose Tube	No.of tubes*fibres per tube	4*6	4*12	6*12	8*12	12*12	24*12
Loose Tube	Outer diameter(mm)	1.9	2.4
Central Strength Member	Material	FRP
	Diameter(mm)	2.0	2.0	2.6	2.6	2.6	2.6
	Coated CSM diameter(mm)	-	-		4.2	7.4	4.8
Water blocking material	Material	Cable filling compound
Armor	Material	Laminated aluminum tape
Sheath	Thickness (mm)	Nominal:1.8
Cable Diameter(mm)Approx		10.2	10.6	11.4	13.6	16.4	19.5
Cable Weight(kg/km)Approx		90	110	130	165	240	290
Operating Temperature Range(℃)		-40~+70
Tensile Strength Short/Long Term(N)		2000/600
Crush Resistance Short/Long Term(N/100mm)		1000/300

The colour arrangement of fibre and tube is specified in the color identification table.
Other structure and fibre count are also available according to customer requirements.

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 10Nm one in 3 different places	Additional attenuation ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation ≤ 0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m, 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	-40°C~+70°C	Attenuation change: ≤ 0.05dB/km after test
