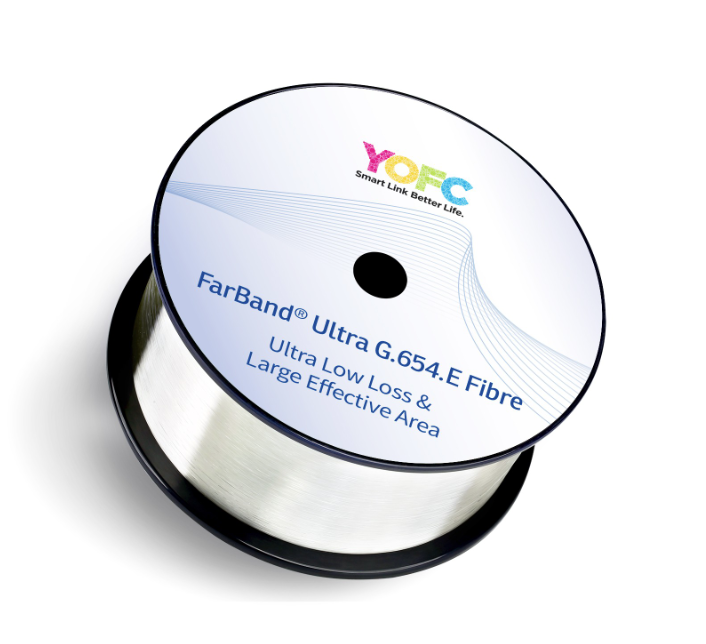

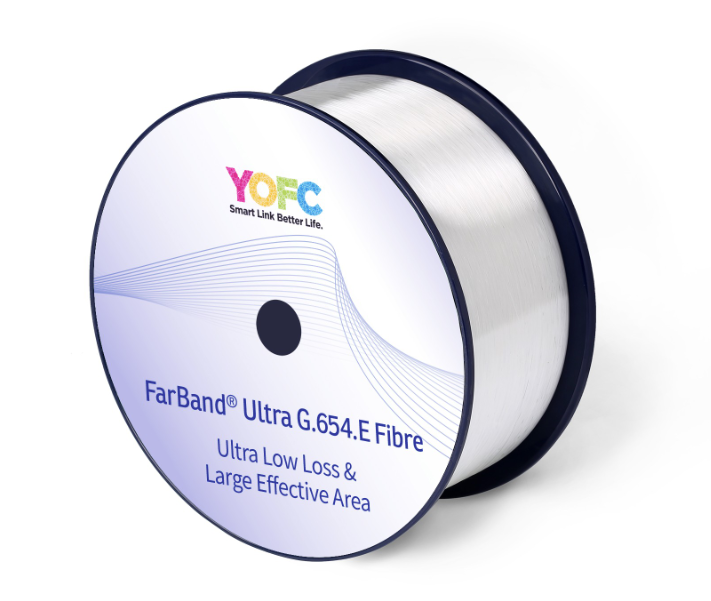

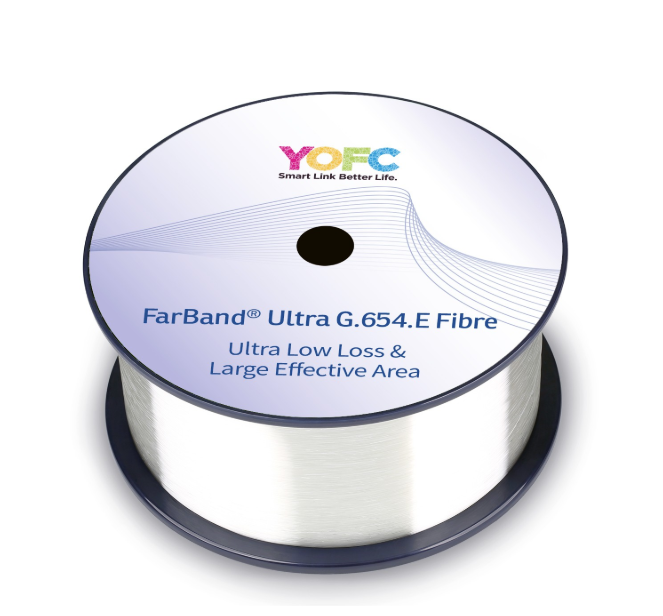

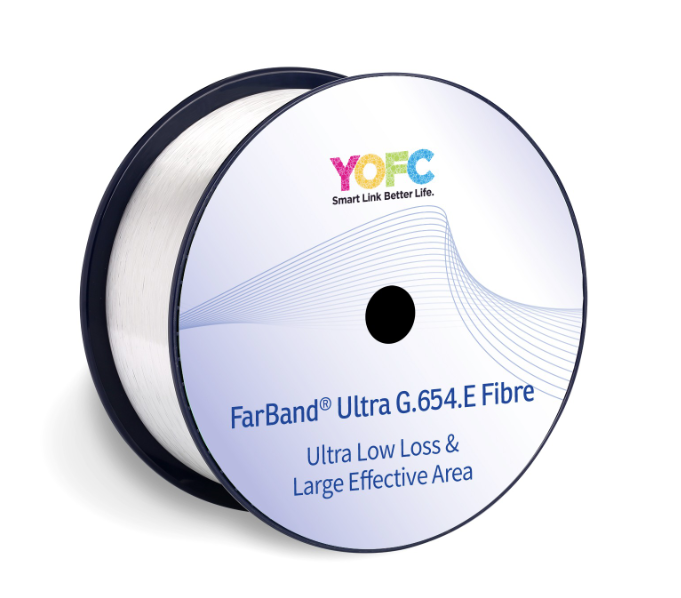

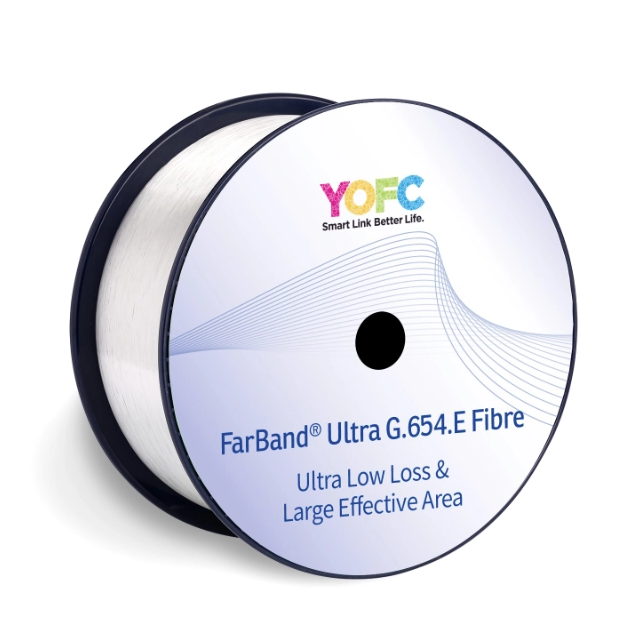

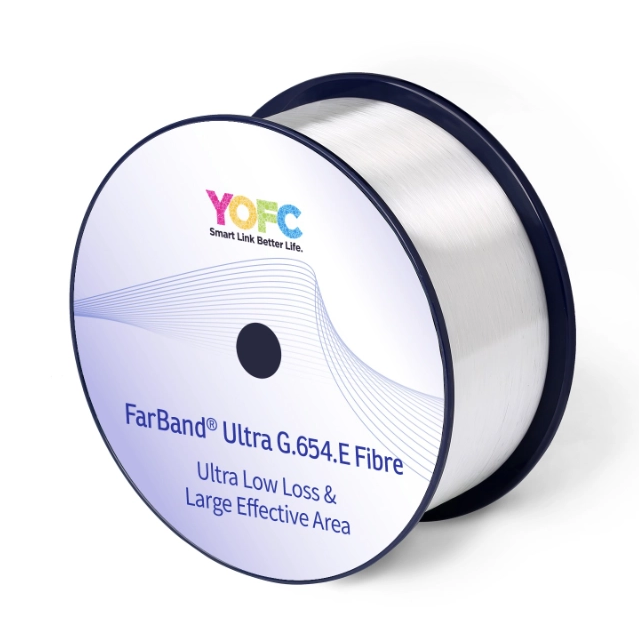

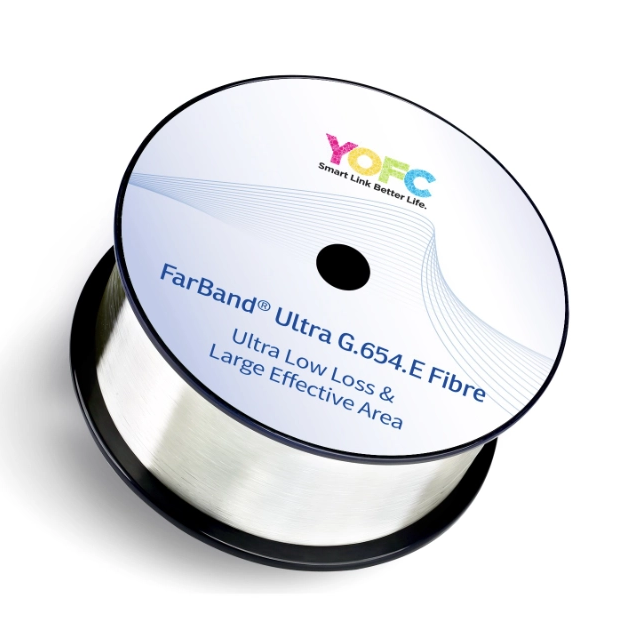

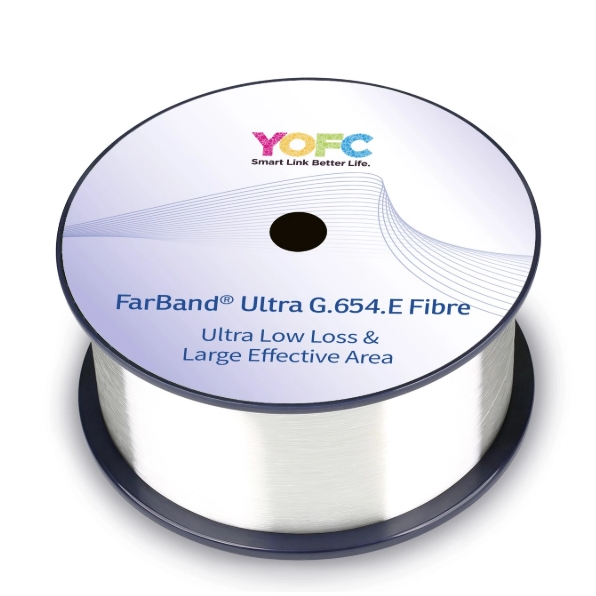

YOFC G.654 FarBand® Ultra Low Loss and Large Effective Area Fibre

For the next generation optical transmission network, lower attenuation or larger effective area of the fibre can help the system meet 3U (Ultra high speed, Ultra large capacity, Ultra long-haul) features. Now YOFC can deliver you larger effective area and lower attenuation within one fibre: FarBand® Ultra.

Characteristics

Larger effective area reduces nonlinear effect and enables higher signal power launched into the transmission system
Enable higher transmission speeds with more wavelengths over ultra long-haul distances
Lower attenuation level which meets the demand of extended long distance transmission
Reduce number of repeaters and minimize CAPEX and OPEX
Lower bending induced loss to meet complicated deployment conditions and cable structures

Size:	25.2KM/ROLL 50.4KM/ROLL Other
Availability:



Inquire Add to Basket

Model:
G.654

G.654 FarBand® Ultra Low Loss and Large Effective Area Fibre

Characteristics		Conditions	Speciﬁed values		Units
Optical Speciﬁcations
Nominal Eﬀective Area		1550nm	110	125	[μm2]
Mode Field Diameter		1550nm	11.4-12.2	12.0-13.0	[μm]
		1550nm	≤0.17		[dB/km]
Attenuation		1625nm	≤0.20		[dB/km]
Attenuation vs. Wavelength		1525-1575nm, in reference to 1550nm	≤0.02		[dB/km]
Max. α diﬀerence		1550-1625nm, in reference to 1550nm	≤0.03		[dB/km]
Dispersion Coeﬃcient		1550nm	≤23		[ps/nm·km]
		1625nm	≤27		[ps/nm·km]
Dispersion Slope		1550nm	0.050-0.070		[ps/nm2·km]
PMD	Maximum Individual Fibre	--	≤0.1		[ps/√km]
	Link Design Value（M=20，Q=0.01%)	--	≤0.06		[ps/√km]
	Typical Value	--	0.04		[ps/√km]
Cable Cutoﬀ Wavelength (λCC)		--	≤ 1520		[nm]
Eﬀective Group Index of Refraction		1550nm	1.463	1.465	--
Point Discontinuities		1550nm	≤0.05		[dB]
Geometrical Speciﬁcations
Cladding Diameter		--	125.0±1.0		[μm]
Cladding Non-Circularity		--	≤1.0		[%]
Coating Diameter		--	235-255		[μm]
Coating-Cladding Concentricity		--	≤12		[μm]
Coating Non-Circularity		--	≤6		[%]
Core-Cladding Concentricity		--	≤0.6		[μm]
Fibre Curl(Radius)		--	≥4		[m]
Delivery Length1		--	Up to 25.2		[km/reel]
Environmental Speciﬁcations @1550nm & 1625nm
Temperature Dependence		-60℃ to +85℃	≤0.05		[dB/km]
Temperature-Humidity Cycling		-10°C to +85°C, 98% RH	≤0.05		[dB/km]
Water Immersion		23°C，for 30 days	≤0.05		[dB/km]
Damp Heat		85°C , 85% RH，for 30 days	≤0.05		[dB/km]
Heat Aging		85℃，30 days	≤0.05		[dB/km]
Mechanical Speciﬁcations
Proof Test2		--	≥9.0		[N]
		--	≥1.0		[%]
		--	≥100		[kpsi]
Macro-bend Induced Loss	100 Turns Around a Mandrel of 30 mm Radius	1550nm	≤0.10		[dB]
		1625nm	≤0.10		[dB]
Coating Strip Force		typical average force	1.5		[N]
		peak force	1.3-8.9		[N]
Dynamic Fatigue Parameter(nd)		--	≥20		--
