G652D Datasheet
| Specifications （G652D） |
| Characteristics | Conditions | Specified values | Units |
| Optical Characteristics |
| Attenuation | 1310nm | ≤0.32 | [dB/km] |
| 1383nm(after H2-aging) | ≤0.31 | [dB/km] |
| 1550nm | ≤0.18 | [dB/km] |
| 1625nm | ≤0.20 | [dB/km] |
| Attenuation vs. Wavelength | 1285-1330nm, in reference to 1310nm | ≤0.03 | [dB/km] |
| Max. α difference | 1525-1575nm, in reference to 1550nm | ≤0.02 | [dB/km] |
| Dispersion Coefficient | 1285-1340nm | -3.5 to 3.5 | [ps/(nm·km)] |
| 1550nm | ≤18 | [ps/(nm·km)] |
| 1625nm | ≤22 | [ps/(nm·km)] |
| Zero Dispersion Wavelength(λ0) | -- | 1300-1324 | [nm] |
| Zero Dispersion Slope(S0) | -- | ≤0.092 | [ps/(nm2·km)] |
| Typical Value | -- | 0.086 | [ps/(nm2·km)] |
| P M D | Maximum Individual Fibre | -- | ≤0.1 | [ps/√km] |
| Link Design Value（M=20，Q=0.01%) | -- | ≤0.06 | [ps/√km] |
| Typical Value | -- | 0.04 | [ps/√km] |
| Cable Cutoff Wavelength (λCC) | -- | ≤1260 | [nm] |
| Mode Field Diameter（MFD） | 1310nm | 8.7-9.5 | [μm] |
| 1550nm | 9.8-10.8 | [μm] |
| Effective Group Index of Refraction（Neff ） | 1310nm | 1.466 | -- |
| 1550nm | 1.467 | -- |
| Point Discontinuities | 1310nm | ≤0.05 | [dB] |
| 1550nm | ≤0.05 | [dB] |
| Geometrical Characteristics |
| Cladding Diameter | -- | 125.0±0.7 | [μm] |
| Cladding Non-Circularity | -- | ≤1.0 | [%] |
| Coating Diameter | -- | 235-245 | [μm] |
| Coating-Cladding Concentricity Error | -- | ≤12.0 | [μm] |
| Coating Non-Circularity | -- | ≤6.0 | [%] |
| Core-Cladding Concentricity Error | -- | ≤0.6 | [μm] |
| Curl(radius) | -- | ≥4 | [m] |

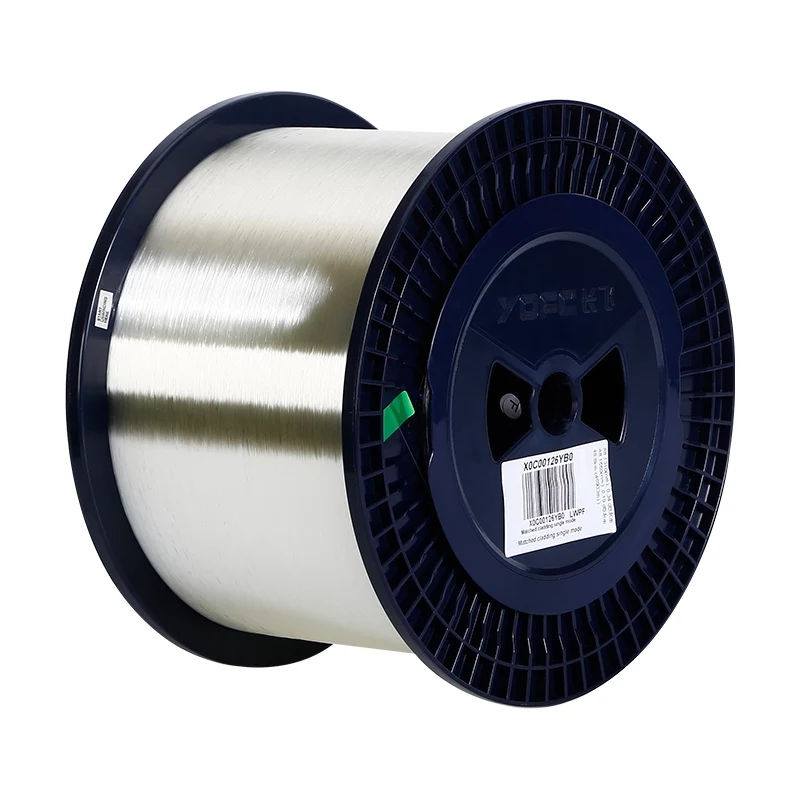

| Delivery Length | -- | Up to 50.4 | [km/reel] |
| Environmental Characteristics | 1310nm, 1550nm & 1625nm |
| Temperature Dependence Induced Attenuation | -60℃ to +85℃ | ≤0.05 | [dB/km] |
| Temperature-Humidity Cycling Induced Attenuation | -10°C to +85°C, 98% RH | ≤0.05 | [dB/km] |
| Watersoak Dependence Induced Attenuation | 23°C，for 30 days | ≤0.05 | [dB/km] |
| Damp Heat Dependence Induced Attenuation | 85°C and 85% RH，for 30 days | ≤0.05 | [dB/km] |
| Dry Heat Aging | 85℃, for 30 days | ≤0.05 | [dB/km] |
| Mechanical Specification |
| Proof Test | -- | ≥9.0 | [N] |
| -- | ≥1.0 | [%] |
| -- | ≥100 | [kpsi] |
| Macro-bend Induced Attenuation | 100 Turns Around a Mandrel of 30 mm Radius | 1625nm | ≤0.05 | [dB] |
| 100 Turns Around a Mandrel of 25 mm Radius | 1310nm and 1550nm | ≤0.05 | [dB] |
| 1 Turn Around a Mandrel of 16 mm Radius | 1550nm | ≤0.05 | [dB] |
| Coating Strip Force | typical average force | 1.5 | [N] |
| peak force | 1.3-8.9 | [N] |
| Dynamic Fatigue Parameter(nd) | -- | ≥20 | -- |
Fiber Applications

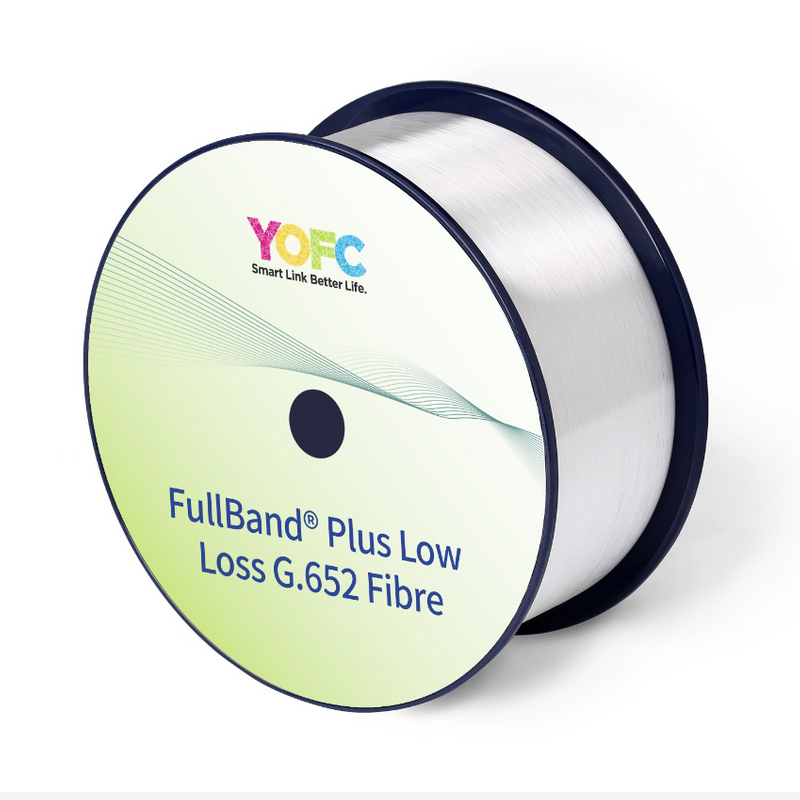

Thanks to its broad usable optical spectrum and outstanding attenuation performance, YOFC G652D Low Loss Single-mode Fiber is the optimum choice that supports various applications such as Ethernet, Internet Protocol (IP), Asychronous Transfer Mode (ATM), Synchronous Distribution Network (SDH) and Wavelength Division Multiplexing (WDM). YOFC G652D Low Loss Singlemode Fiber provides wider bandwidth and much lower signal attenuation for backbone, metropolitan area and access networks.
Product standards
YOFC G652D fibre complies with or even exceeds the ITU-T Recommendation G.652.D and the IEC 60793-2-50 type B1.3 Optical Fibre Specification.
