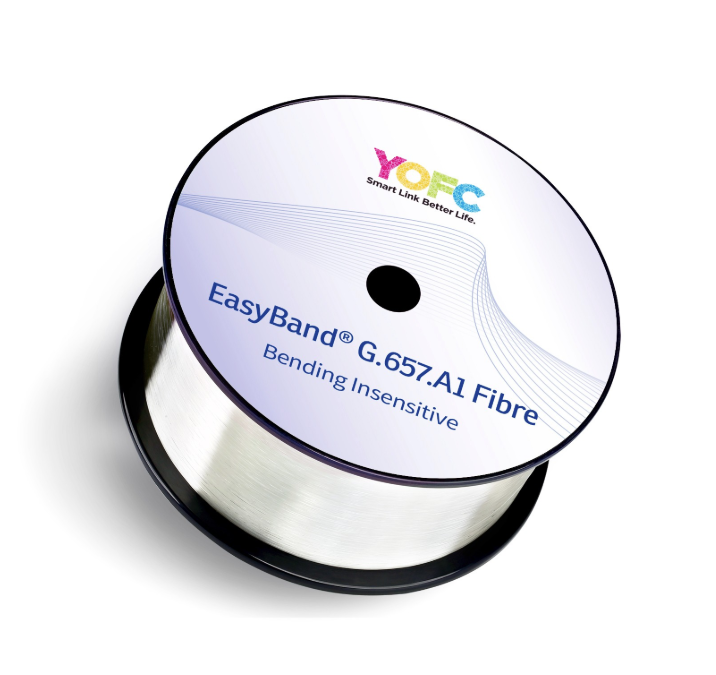

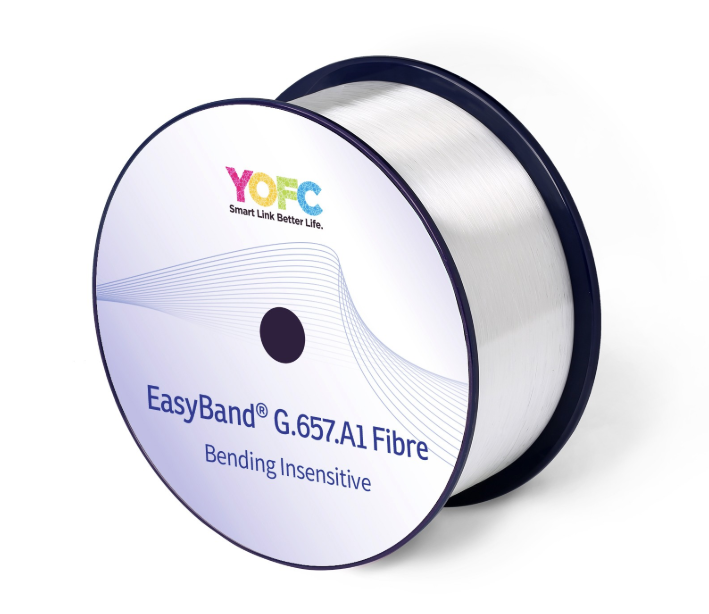

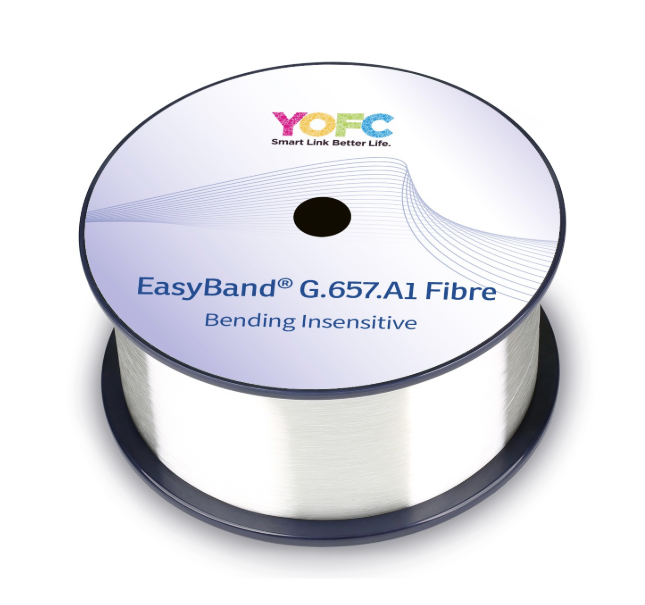

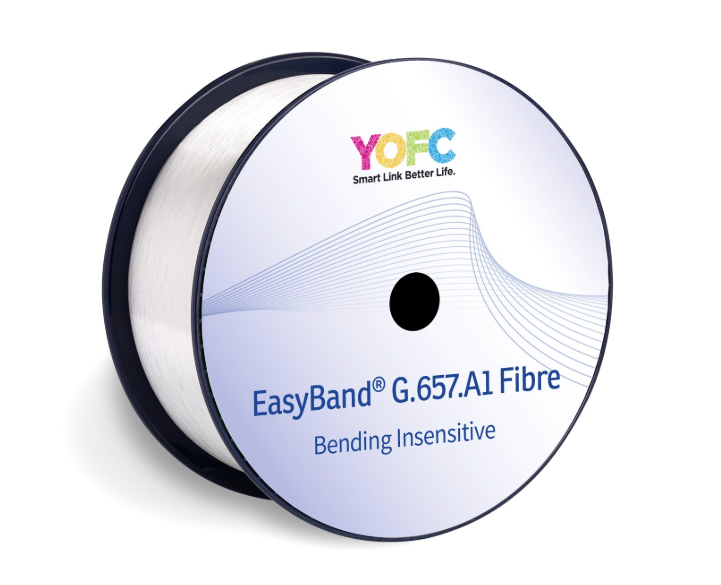

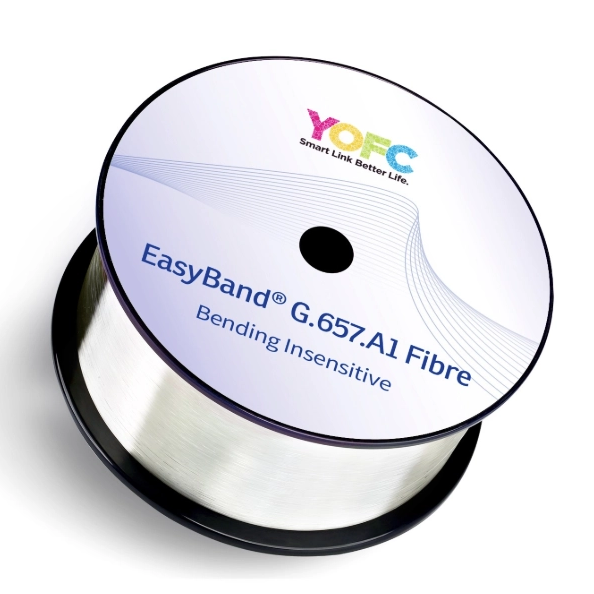

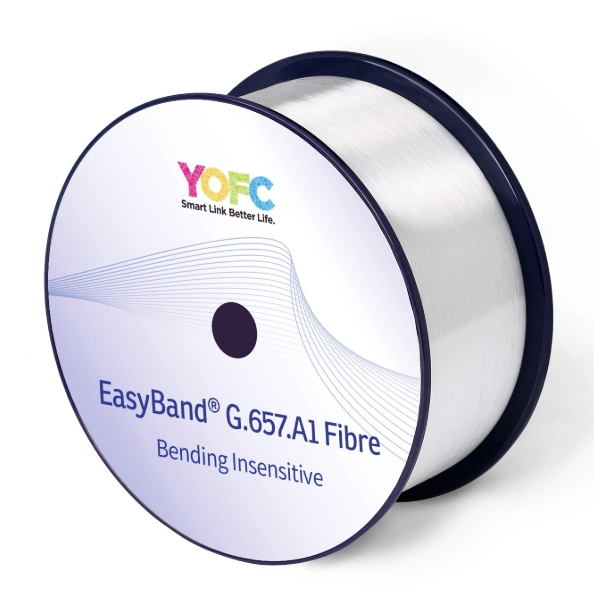

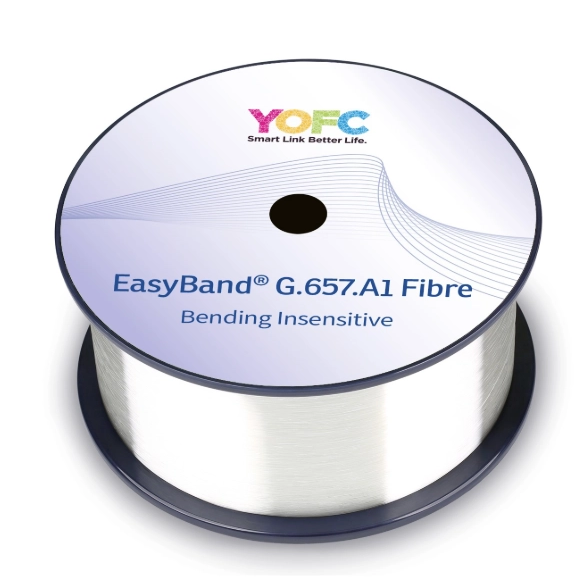

YOFC EasyBand® bending insensitive single-mode fibre encompasses all the features of FullBand® fibre and provides good resistance to maro-bending. It has low macro-bending sensitivity and low water-peak level. It is comprehensively optimized for use in O-E-S-C-L band (1260 -1625 nm). It offers good resistance to additional losses due to low macro-bending in the 1625 nm wavelength region. This not only supports L-band applications but also allows for easy installation without excessive care when storing the fibre, for example, in splicing cassettes. For cable use inside buildings, the fibre supports installation with small cable bending radii and compact organizers.

Characteristics

Low attenuation satisfying the operation demand in O-E-S-C-L band
Good bending loss resistance at short radius bends
Low bending loss for highly demanding cable designs including ribbons
Low PMD satisfying high bit-rate and long distance transmission requirements
Accurate geometrical parameters that insure low splicing loss and high splicing efficiency

Size:	25.2KM/ROLL 50.4KM/ROLL Other
Availability:



Inquire Add to Basket

Model:
G.657.A1

G657A1 Bending Insensitive Datasheet

Specifications （G657A1）
Characteristics		Conditions	Speciﬁed values	Units
Optical Characteristics
Attenuation		1310nm	≤0.35	[dB/km]
		1383nm(after H2-aging)	≤0.35	[dB/km]
		1460nm	≤0.25	[dB/km]
		1550nm	≤0.21	[dB/km]
		1625nm	≤0.23	[dB/km]
Attenuation vs. Wavelength		1285-1330nm, in reference to 1310nm	≤0.03	[dB/km]
Max. α diﬀerence		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
		1285-1340nm	-3.5 to 3.5	[ps/(nm·km)]
Dispersion Coeﬃcient		1550nm	≤18	[ps/(nm·km)]
		1625nm	≤22	[ps/(nm·km)]
Zero Dispersion Wavelength(λ0)		--	1300-1324	[nm]
Zero Dispersion Slope(S0)		--	≤0.092	[ps/(nm2·km)]
Typical Value		--	0.086	[ps/(nm2·km)]
PMD	Maximum Individual Fibre	--	≤0.1	[ps/√km]
	Link Design Value（M=20，Q=0.01%)	--	≤0.06	[ps/√km]
	Typical Value	--	0.04	[ps/√km]
Cable Cutoﬀ Wavelength (λCC)		--	≤1260	[nm]
Mode Field Diameter（MFD）		1310nm	8.4-9.2	[μm]
Mode Field Diameter（MFD）		1550nm	9.3-10.3	[μm]
Eﬀective Group Index of Refraction（Neﬀ ）		1310nm	1.466	--
Eﬀective Group Index of Refraction（Neﬀ ）		1550nm	1.467	--
Point Discontinuities		1310nm	≤0.05	[dB]
Point Discontinuities		1550nm	≤0.05	[dB]
Geometrical Characteristics
Cladding Diameter		--	125.0±0.7	[μm]
Cladding Non-Circularity		--	≤0.7	[%]
Coating Diameter		--	235-245	[μm]
Coating-Cladding Concentricity Error		--	≤12.0	[μm]
Coating Non-Circularity		--	≤6.0	[%]
Core-Cladding Concentricity Error		--	≤0.5	[μm]
Curl(radius)		--	≥4	[m]
Delivery Length		--	Up to 50.4	[km/reel]
Environmental Characteristics		1310nm, 1550nm & 1625nm
Temperature Dependence Induced Attenuation		-60℃ to +85℃	≤0.05	[dB/km]
Temperature-Humidity Cycling Induced Attenuation		-10°C to +85°C, 98% RH	≤0.05	[dB/km]
Watersoak Dependence Induced Attenuation		23°C, for 30 days	≤0.05	[dB/km]
Damp Heat Dependence Induced Attenuation		85°C and 85% RH, for 30 days	≤0.05	[dB/km]
Dry Heat Aging		85℃, for 30 days	≤0.05	[dB/km]
Mechanical Speciﬁcation
Proof Test		--	≥9.0	[N]
		--	≥1.0	[%]
		--	≥100	[kpsi]
Macro-bend Induced Loss	10 Turns Around a Mandrel of 15 mm Radius	1550nm	≤0.25	[dB]
	10 Turns Around a Mandrel of 15 mm Radius	1625nm	≤1.0	[dB]
	1 Turn Around a Mandrel of 10 mm Radius	1550nm	≤0.75	[dB]
	1 Turn Around a Mandrel of 10 mm Radius	1625nm	≤1.5	[dB]
Coating Strip Force		typical average force	1.5	[N]
Coating Strip Force		peak force	1.3-8.9	[N]
Dynamic Fatigue Parameter (nd)		--	≥20	--

Applications

Short pitch cables for special application
High performance optical network operating in O-E-S-C-L band
High speed optical routes in buildings (FTTx)
Cables with low bending requirements

Product standards

YOFC EasyBand® bending insensitive single mode fibre meets or exceeds the ITU-T Recommendation G.652.D/G.657.A1 including the IEC 60793-2-50 type B1.3/B6.a1 Optical Fibre Specification.
