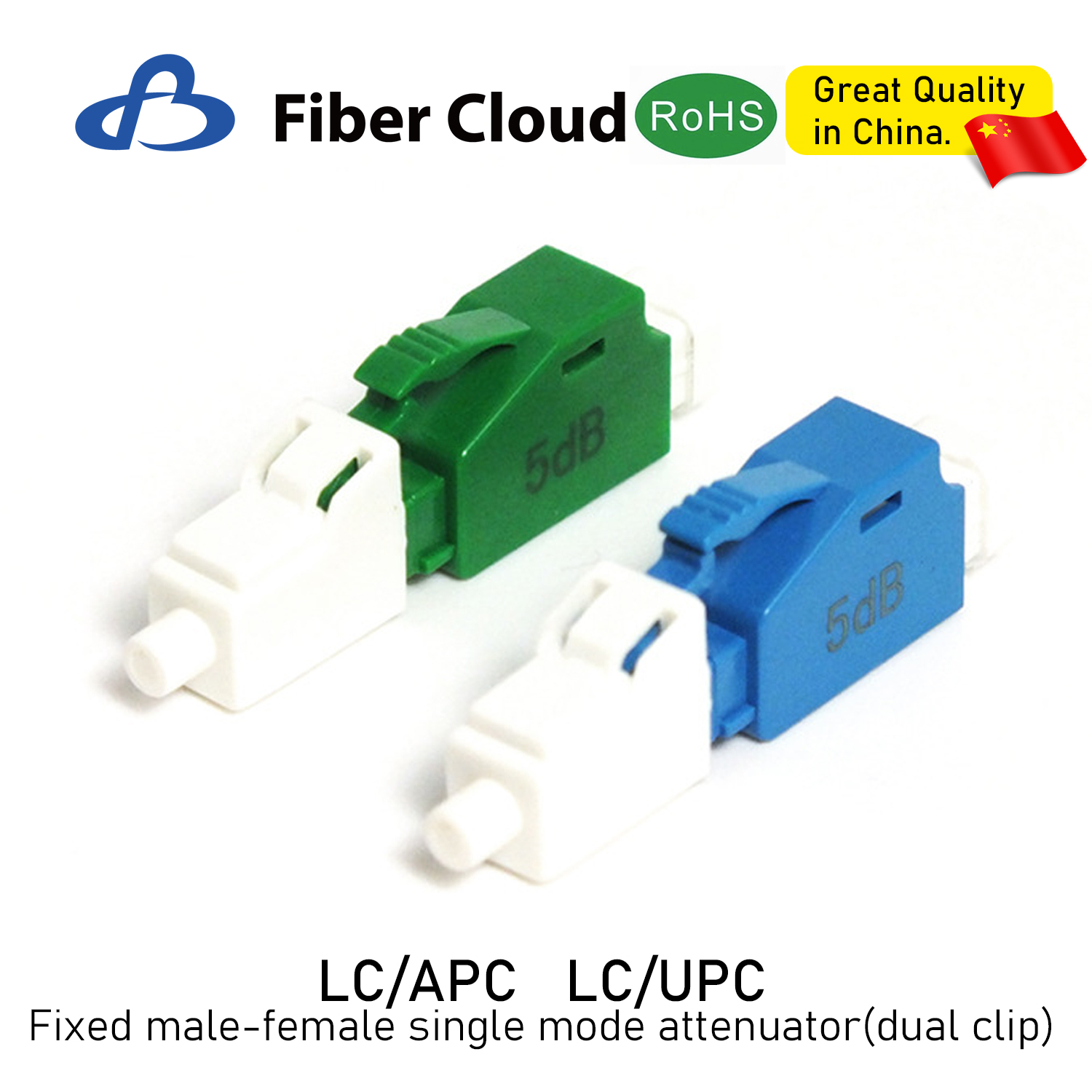

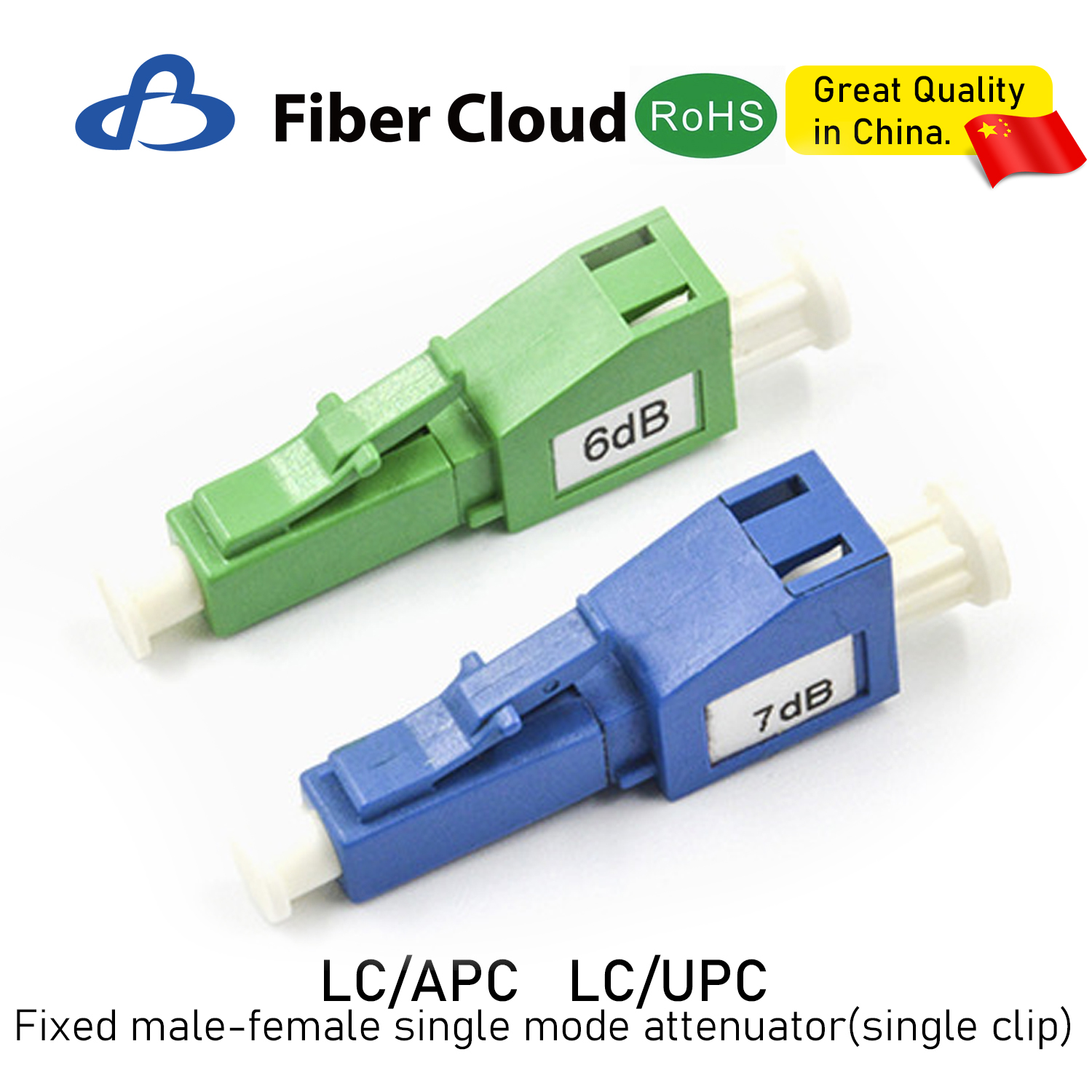

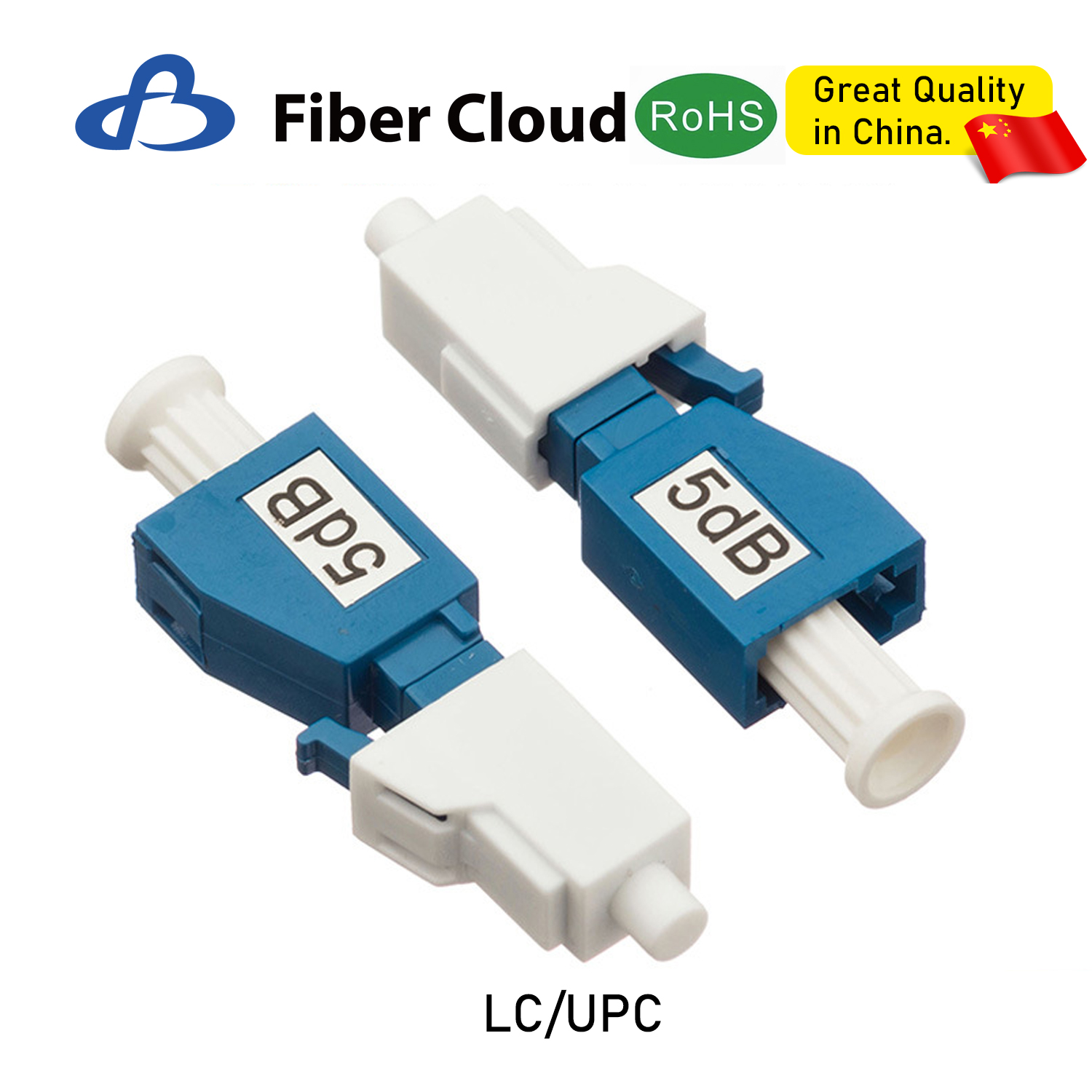

Edit LC/Upc 2-15dB Male and Female Optical Connector Fiber Optic Attenuator

As an optical passive device, the optical fiber attenuator is used to debug optical power performance in optical communication systems, debug the calibration and correction of optical fiber instruments, and attenuate optical fiber signals. The product is made of attenuated optical fiber doped with metal ions, which can adjust the optical power to the required level. The fixed attenuator is an optical device that can reduce the energy of optical signals. It is used to attenuate the input optical power and avoid the distortion of the optical receiver caused by the excessive input optical power. Fibercloud's fixed attenuator products include six models: 2dB, 3dB, 5dB, 7dB, 10dB and 15dB.

Characteristic

Optional attenuation value:2dB, 3dB, 5dB, 7dB, 10dB and 15dB
Communication band:1260-1625nm
Easy-to-install plug-in construction
Diverse plug types
Zirconia core:accurate attenuation and high return loss

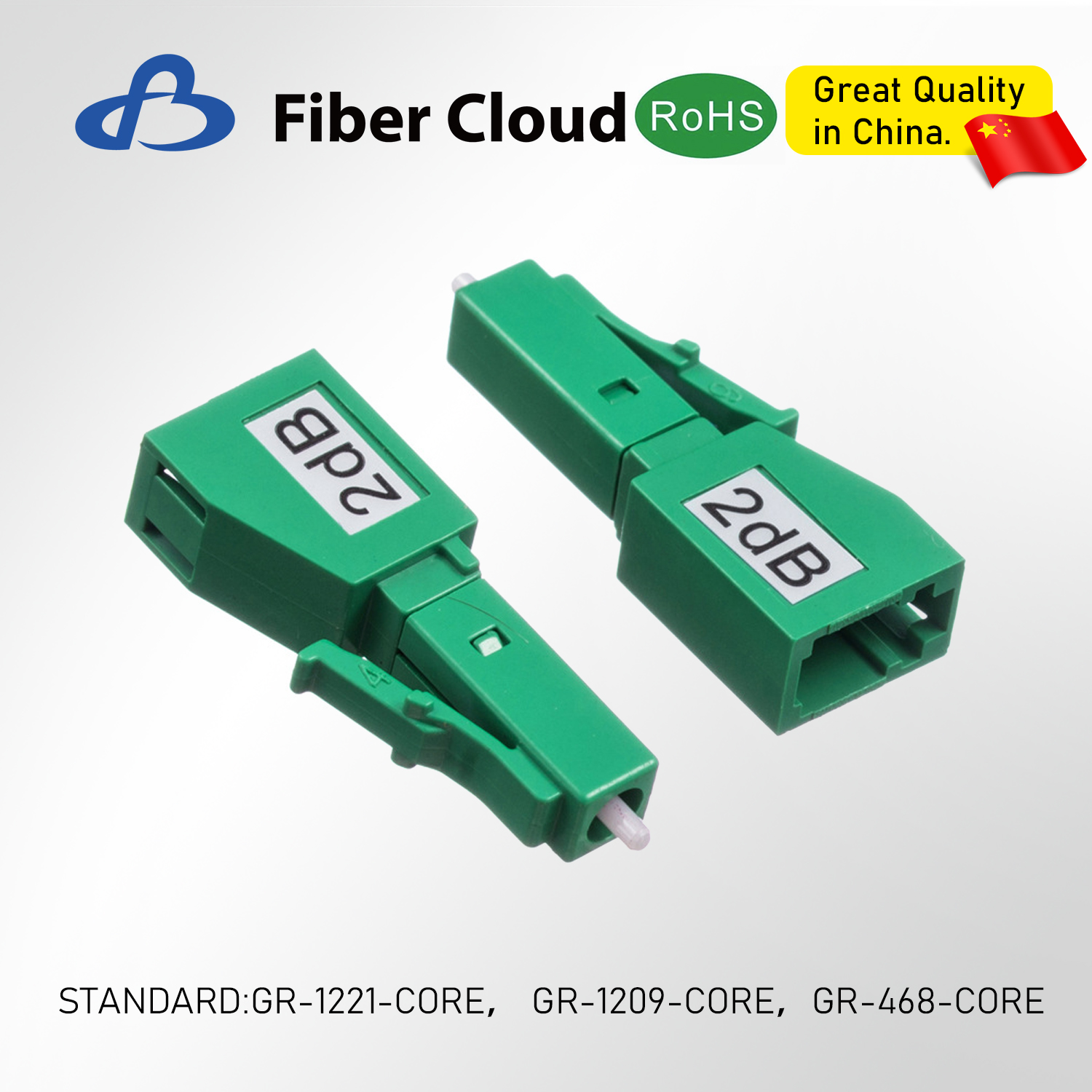

STANDARD:GR-1221-CORE, GR-1209-CORE
RoHS compliant
Telcordia(bellcore)GR-468-CORE reliability compliant
Operating temperature -40 to +85ºC
Plug and unplug>1000 time

Availability:



Inquire Add to Basket

Model:
LC/FC/SC/ST/LSH/MU

Product Description

Optical parameters
Wavelength range (nm)	1260 ~ 1625
Attenuation value (dB)	2	3	5	7	10	15
Attenuation range (dB)@1260nm~1610nm	2.0 ± 0.5	3.0 ± 0.5	5.0 ± 0.5	7.0 ± 0.7	10.0 ± 1.0	15.0 ± 1.5
Attenuation range(dB)@1610nm~1625nm	2.00 ± 0.75	3.00 ± 0.75	5.00 ± 0.75	7.00 ± 0.95	10.0 ± 1.0	15.0 ± 1.5
Repeatability (dB)	2.0 ± 0.5	3.0 ± 0.5	5.0 ± 0.5	7.0 ± 0.5	10.0 ± 0.5	15.0 ± 0.5
Number of pluggable times (circle)	≥ 1000
Optical power (mW)	≥ 500
Return loss (dB)	≥ 45
Connector type	LC/UPC, SC/UPC, ST/UPC, FC/UPC, MU/UPC
Environmental characteristics
storage temperature(ºC)	-40		--		85
Operating temperature (ºC)	-5		--		65
Relative humidity (RH%)	5		--		95
