10/100/1000m Fiber Optic Transceiver 2-Optical-4-Electric Single-Mode Converter

Share to:

10/100/1000m Fiber Optic Transceiver 2-Optical-4-Electric Single-Mode Converter

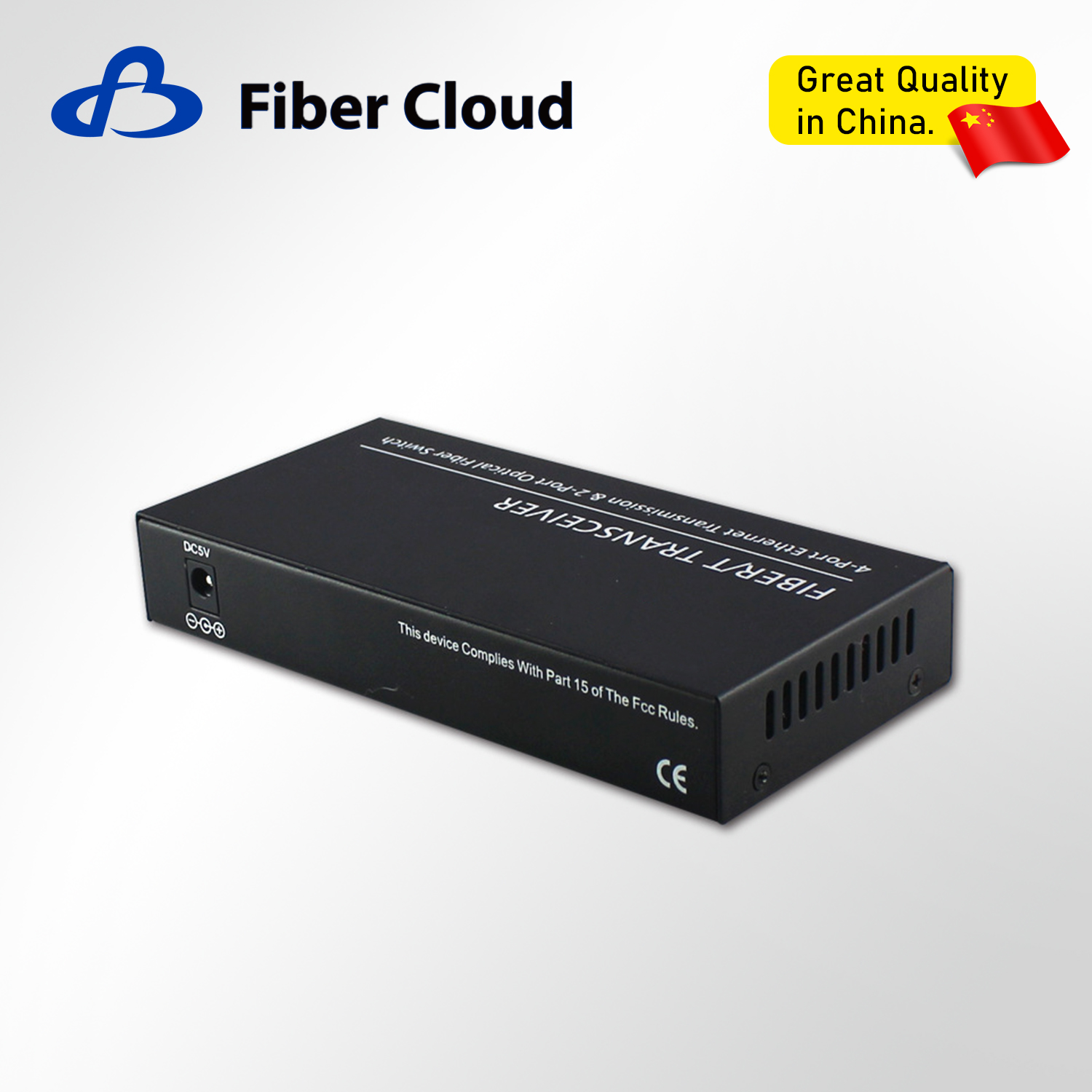

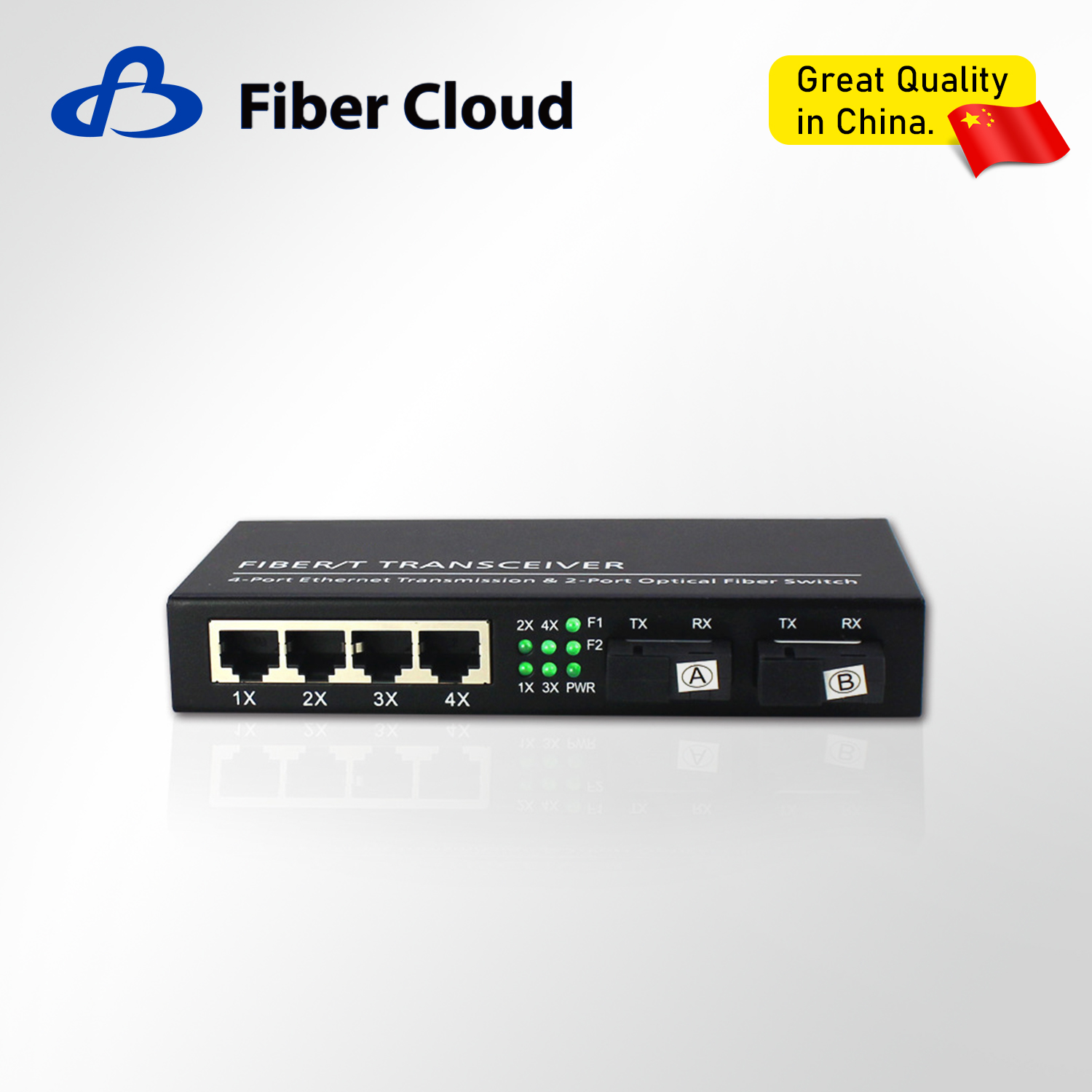

The 2 Light 4 Electrical (2L4E) Single-Mode Fiber Optic Transceiver is a compact, high-performance media converter designed to extend network connectivity by converting electrical signals (copper) to optical signals (fiber) and vice versa. It features 2 fiber optic ports (single-mode) and 4 electrical ports (typically RJ45 Ethernet), enabling seamless integration between fiber and copper-based networks.
Characteristics

Gigabit two-optical four-electric optical fiber transceiver
The fuselage is made of frosted painting, the thickness of the cold-rolled plate of the shell up to 0.8mm
10/100/1000M high-speed
The heat dissipation is good, and the use is extended

Availability:



Inquire Add to Basket

Model:
NST-GQS24

Product Description

Product Application

Fiber-to-the-home

Office network construction

Community/campus network construction

Radio and television transmission

Security surveillance

Product Specifications

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Wave length	A-terminal 1310/1550 nm B-terminal 1550/1310 nm
Transmission distance	20 km
Conversion means	Media conversion
Project weight	525g
Port	2 optical ports &4 RJ45 electrical ports
MTBF	100,000 hours
Operating temperature	-20℃~+70℃
Operating humidity	5%~90%
Maintaining temperature	-40℃~+85℃C
Dimensions	158mm89mm27mm

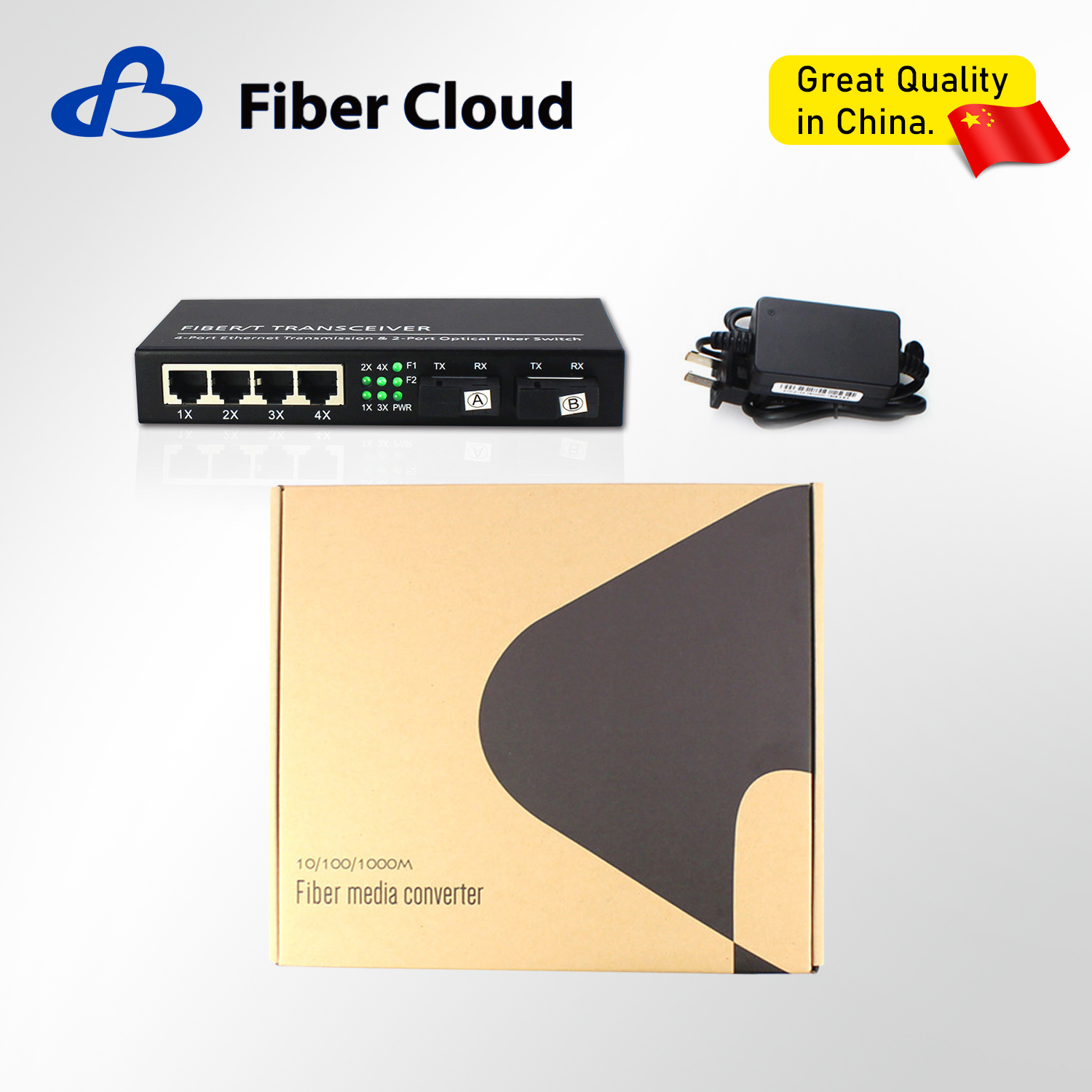

Product list	1 transceiver, 1 external power supply, 1 appearance and size manual, 1 warranty card
