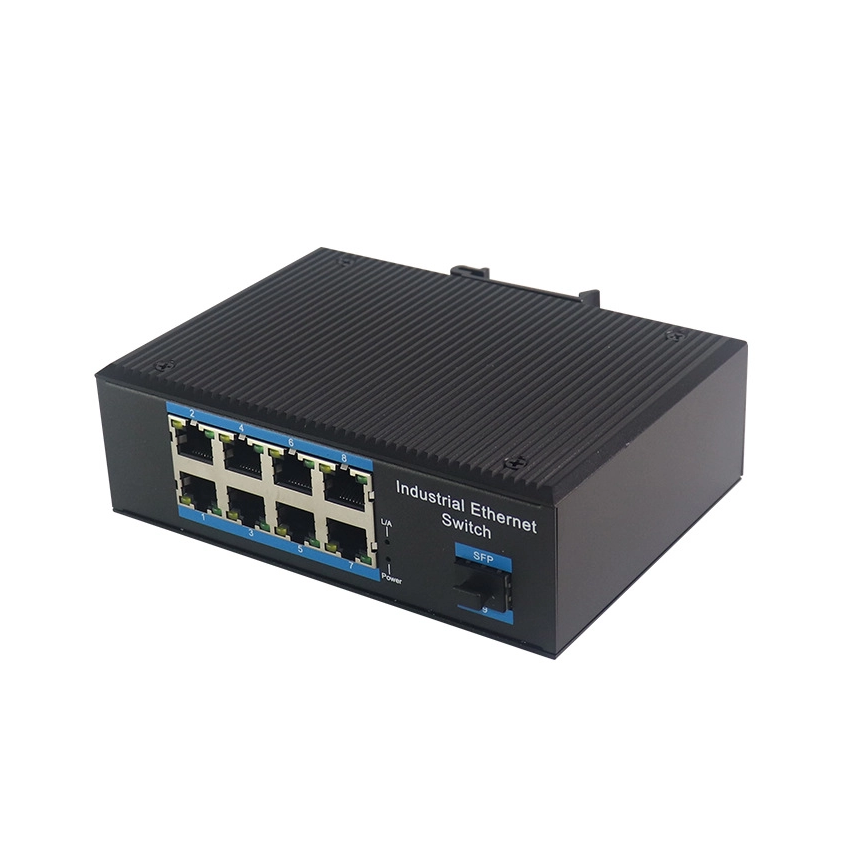

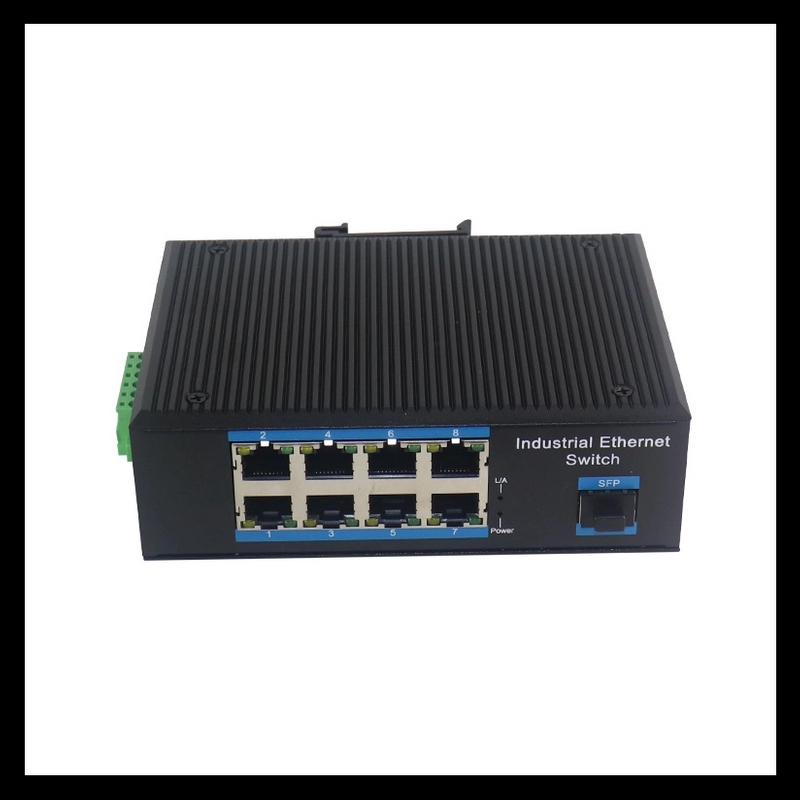

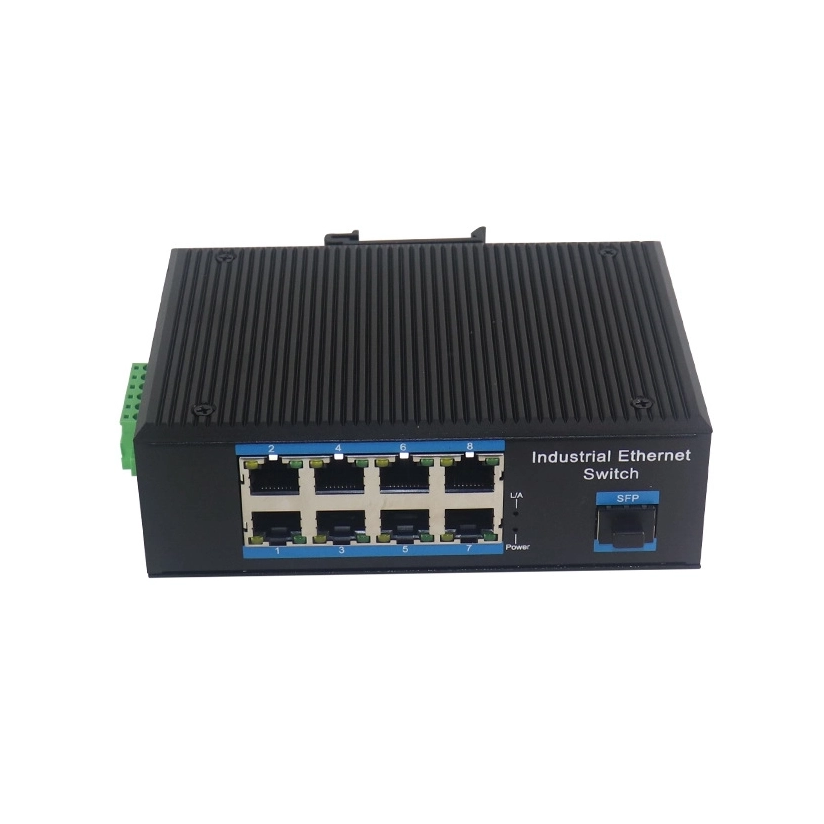

Industrial Gigabit 1 SFP & 8-Port Ethernet Media Converter

Share to:

Industrial Gigabit 1 SFP & 8-Port Ethernet Media Converter

The switch is an industrial-grade Gigabit media converter designed to bridge fiber optic and copper networks in harsh environments. It features one SFP slot for fiber connectivity (supporting up to 20km transmission) and eight Gigabit copper ports, with four ports supporting IEEE 802.3at/af PoE for powering remote devices. Encased in a robust, fanless metal housing with IP40 protection, it operates reliably across a wide temperature range of -40°C to 85°C. With DIN-rail mounting, wide voltage input (12-57V DC), and high MTBF, it delivers critical network extension and power for industrial automation, surveillance, and transportation applications.

Availability:



Inquire Add to Basket

Model:
NST-GY-GS18-SFP

Product Description

Parameter	Specification
Product Name	Industrial Gigabit 1 SFP & 8-Port Ethernet Media Converter
Model Number	NST-GY-GS18-SFP
Networking Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at
MTBF	>100,000 hours
Dimensions (L×W×H)	155mm × 115mm × 50mm
Power Supply	Input Voltage: DC 12-48V (Non-PoE), DC 48-57V (PoE) Per Port: Auto-sensing IEEE 802.3at/af, ≤30W Max Default Pinout: 1/2+; 3/6- Connector: 6-position 5.08mm Industrial Terminal Block
Environmental Specs	Operating Temp: -40°C to +85°C Storage Temp: -50°C to +100°C Operating/Storage Humidity: 5% to 95% (Non-condensing)
Transmission Distance	Twisted Pair: 100m (using CAT5/CAT5e cable) Multimode Fiber: 2km Singlemode Fiber: 20km
Mechanical Properties	Housing: Aluminum alloy, IP40 rated Cooling: Fanless (natural convection) Mounting: DIN-rail mountable Weight: 658g (with packaging, excluding external power adapter)
