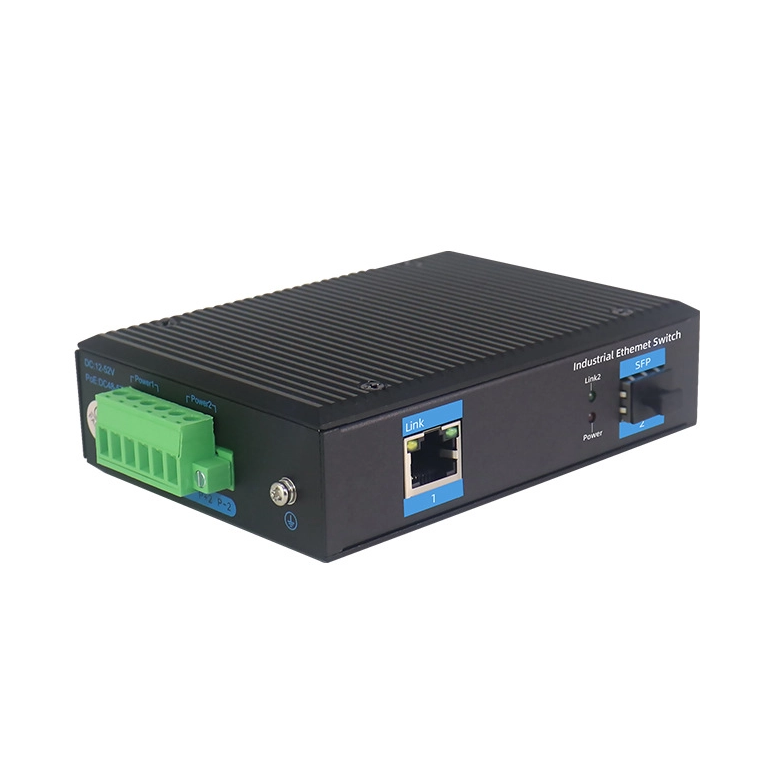

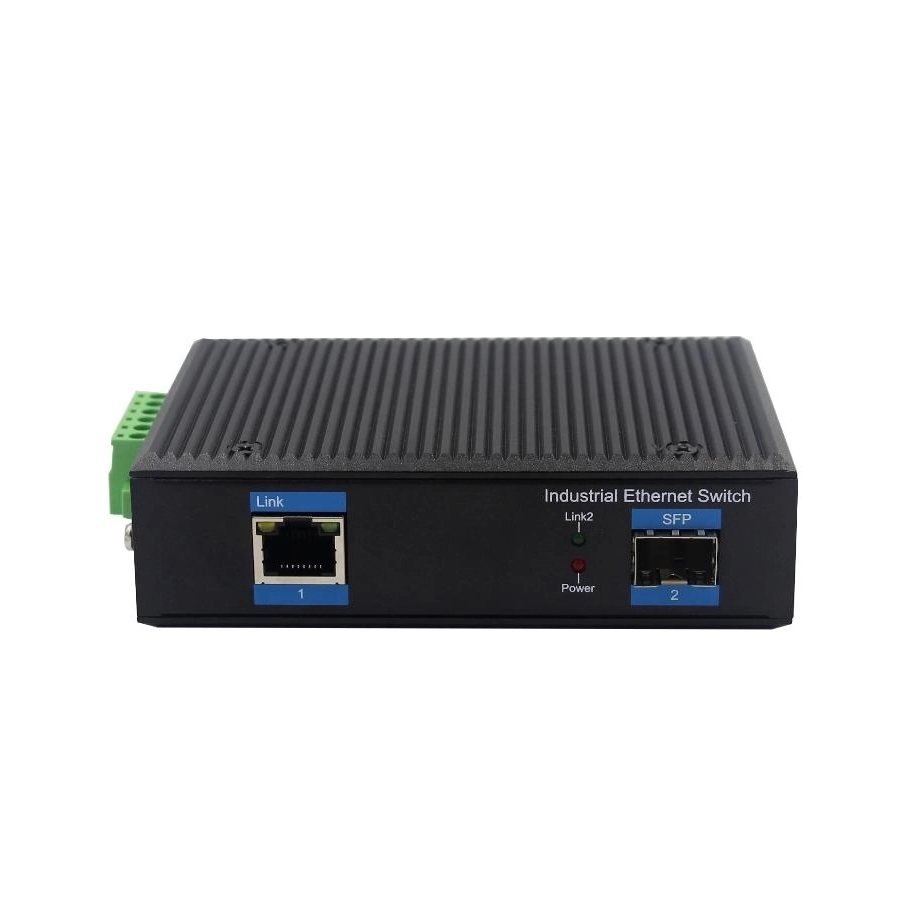

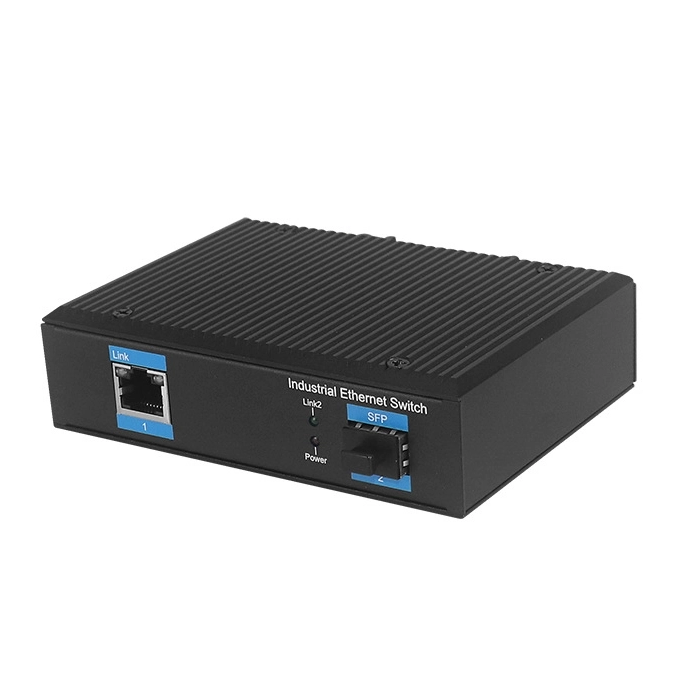

Industrial Gigabit 1 SFP & 1-Port Ethernet Media Converter

Share to:

Industrial Gigabit 1 SFP & 1-Port Ethernet Media Converter

The switch is a compact industrial-grade media converter designed for reliable fiber-copper network conversion in harsh environments. It features one SFP slot supporting both multimode (2km) and singlemode (20km) fiber connections, along with one 10/100/1000Base-T copper port with IEEE 802.3at/af PoE+ support delivering up to 30W. Built with a fanless aluminum enclosure and IP40 protection, it operates reliably across -40°C to 85°C temperature range. Supporting wide DC input voltage (12-57V) and DIN-rail mounting, this robust converter ensures stable network extension for industrial automation, security surveillance, and transportation infrastructure applications.

Availability:



Inquire Add to Basket

Model:
NST-GY-GS01-SFP

Product Description

Parameter	Specification
Product Name	Industrial Gigabit 1 SFP & 1-Port Ethernet Media Converter
Model Number	NST-GY-GS01-SFP
Networking Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at
MTBF	>100,000 hours
Dimensions (L×W×H)	128mm × 97mm × 35mm
Power Supply	Input Voltage: DC 12-48V (Non-PoE), DC 48-57V (PoE) Per Port: Auto-sensing IEEE 802.3at/af, ≤30W Max Default Pinout: 1/2+; 3/6- Connector: 6-position 5.08mm Industrial Terminal Block
Environmental Specs	Operating Temp: -40°C to +85°C Storage Temp: -50°C to +100°C Operating/Storage Humidity: 5% to 95% (Non-condensing)
Transmission Distance	Twisted Pair: 100m (using CAT5/CAT5e cable) Multimode Fiber: 2km Singlemode Fiber: 20km
Mechanical Properties	Housing: Aluminum alloy, IP40 rated Cooling: Fanless (natural convection) Mounting: DIN-rail mountable Weight: 408g (with packaging, excluding external power adapter)
