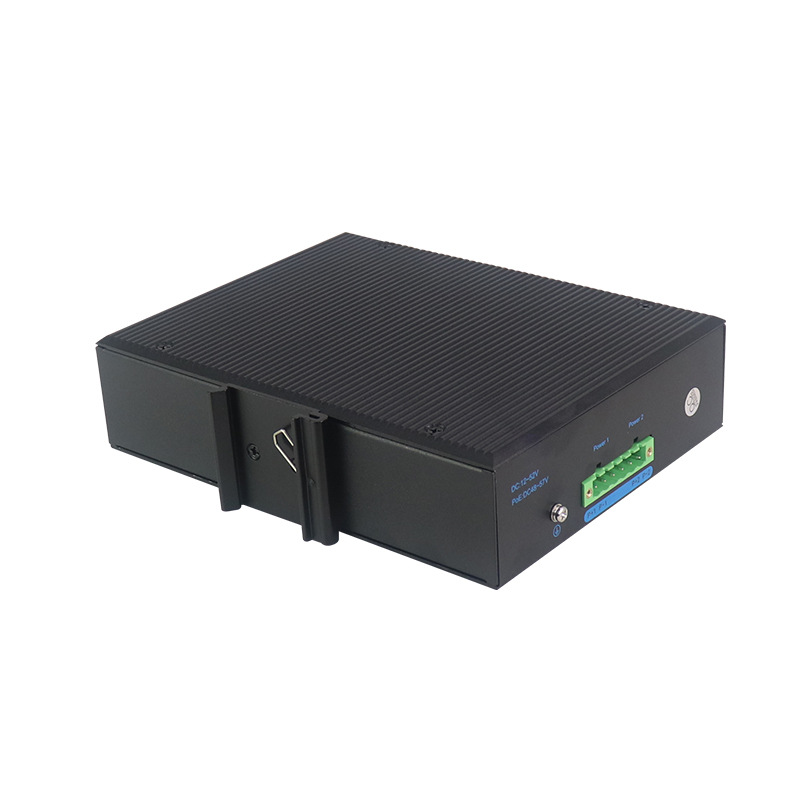

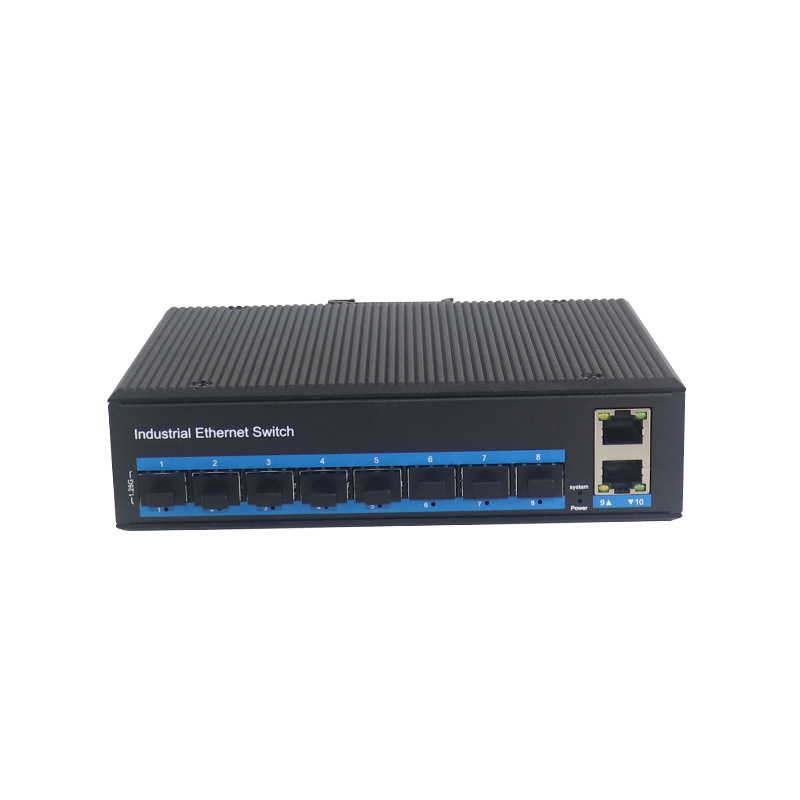

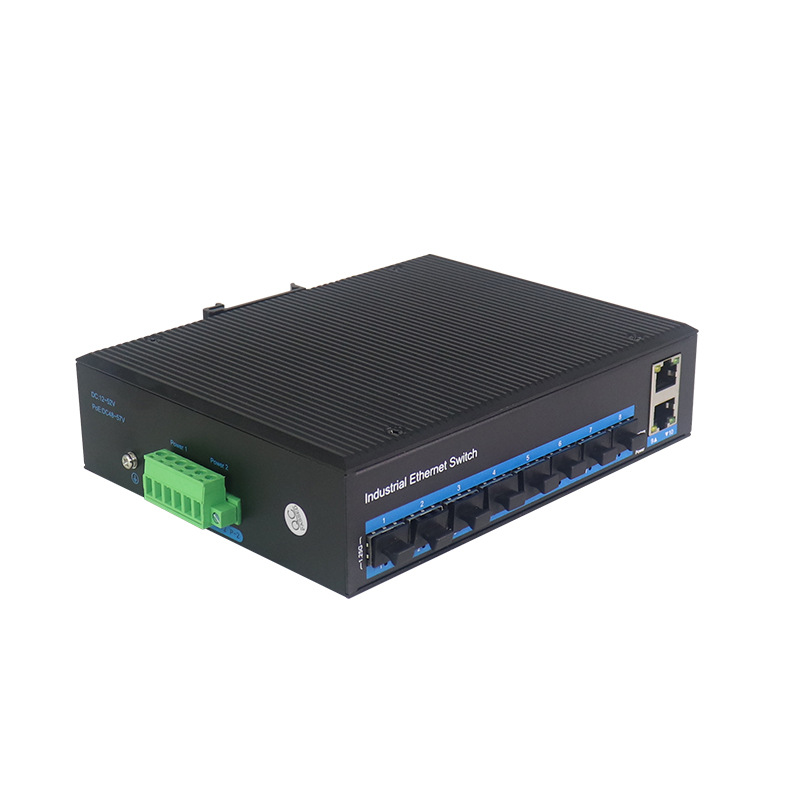

Industrial Gigabit 2 SFP & 8-Port Ethernet Media Converter

Share to:

Industrial Gigabit 2 SFP & 8-Port Ethernet Media Converter

The switch is a compact industrial media converter featuring one SFP fiber slot and four Gigabit Ethernet ports, designed for reliable network extension in harsh environments. It delivers robust fiber-copper conversion with multimode/singlemode support for transmission distances up to 20km, while providing IEEE 802.3at/af PoE+ support on all copper ports with up to 30W per port. Housed in a fanless aluminum enclosure with IP40 protection, it operates reliably across -40°C to 85°C and supports wide-range DC power input (12-57V) via industrial terminal blocks. With DIN-rail mounting and >100,000 hours MTBF, it ensures stable connectivity for industrial automation, surveillance systems, and intelligent transportation applications.

Availability:



Inquire Add to Basket

Model:
NST-GY-GS82-SFP

Product Description

Parameter	Specification
Product Model	NST-GY-GS82-SFP
Network Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at
MTBF	>100,000 hours
Product Dimensions	220 mm × 190 mm × 73 mm
Power Supply	Input Voltage: DC 12~48V PoE: DC 48~57V Single Port Max. Power: 30W (Auto-detection AF/AT) Default Pinout: 1/2+; 3/6- Connection: 6-position 5.08mm Industrial Terminal Block
Environmental Specifications	Operating Temperature: -40 ~ +85 ℃ Storage Temperature: -50 ~ +100 ℃ Operating/Storage Humidity: 5% ~ 95% (non-condensing)
Transmission Distance	Twisted Pair: 100m (CAT5/CAT5e cable) Multimode Fiber: 2 km Single-mode Fiber: 20 km
Mechanical Characteristics	Enclosure: Aluminum, IP40 Protection Cooling: Fanless (Natural Convection) Mounting: DIN Rail Mounting Weight: 940g/unit (with packaging, power supply sold separately)
