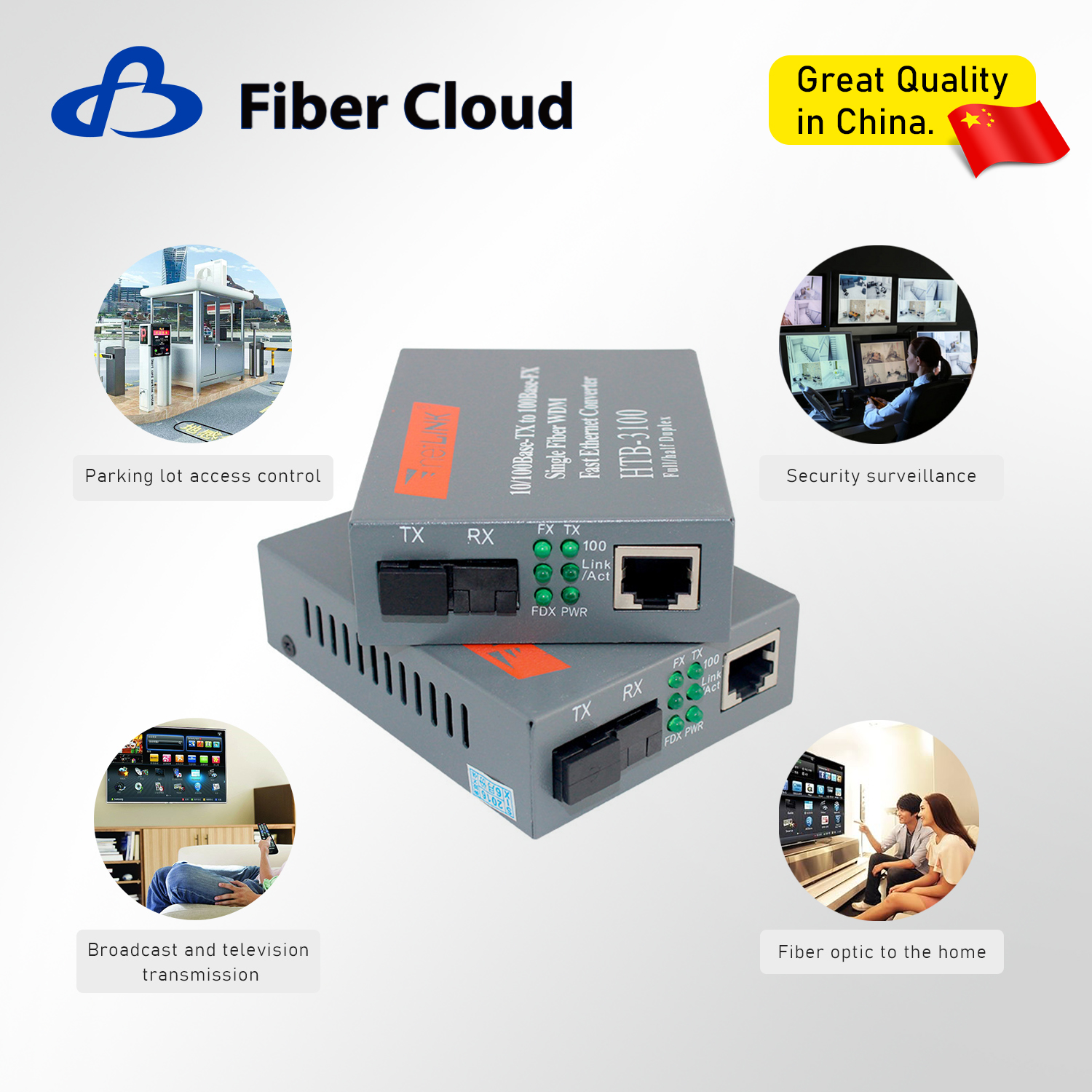

Product Application
Parking lot access control
Security surveillance
Broadcast and television
Fiber optic to the home
Product Specifications
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
Single-mode Dual-fiber: 20/40/60/80 Km
Single-mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m |
| Conversion means | Media conversion |
| Project weight | 225g |
| Conversion means | Store and Forward mode or Cut-Through mode |

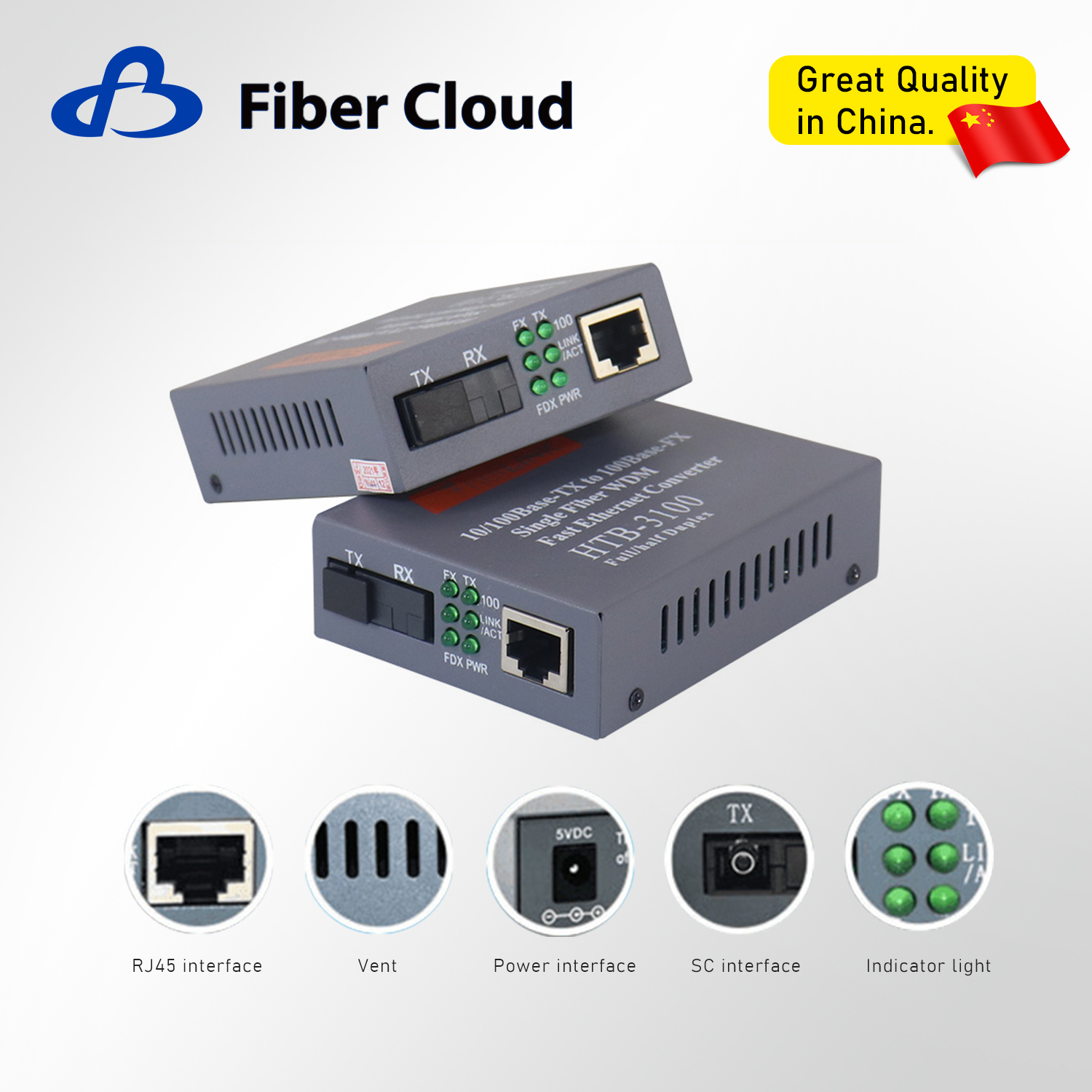

| Port | One RJ45 port:
Connecting with STP/UTP category-5 twisted pairs
One optical port:
Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm)
Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm)
Single mode Single fiber: SC/FC/LC(SFP) (9/125μm) |
| MTBF | 100,000 hours |
| Operating temperature | -20℃~+70℃ |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40℃~+85℃ |
| Dimensions | 158mm(W)×146mm(D)×40mm(H) (internal power supply)
71mm (W)×94mm (D)×26 mm (H) (external power supply)

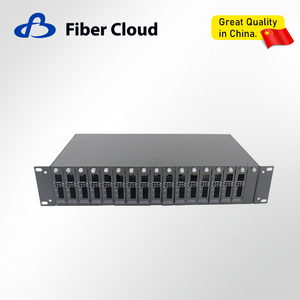

26mm(W)×88mm(D)×114mm(H) (card type) |
