Stranded Loose Tube Micro-duct Air-blown Cable(GCYFY)

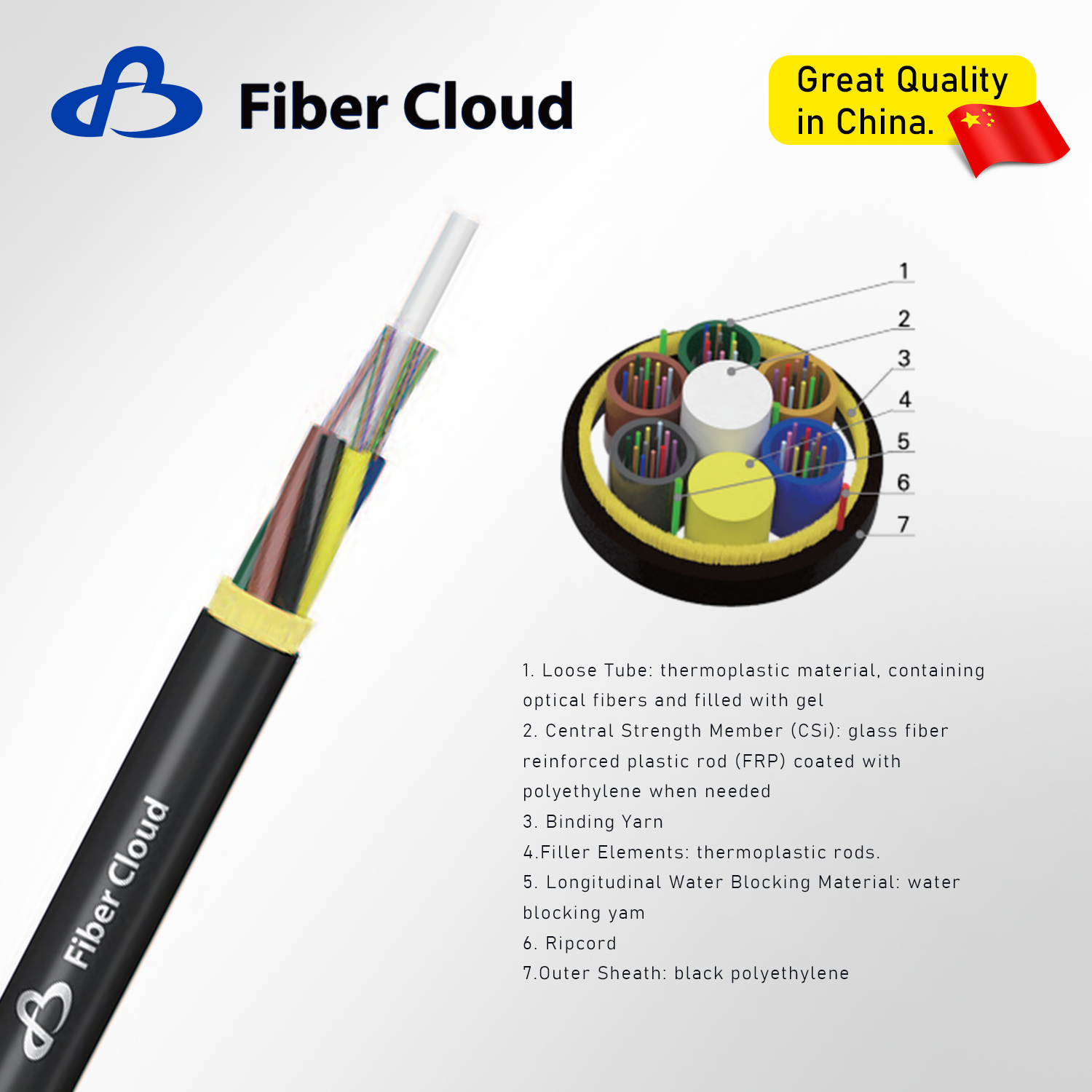

Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member andsurrounded with dry water-blocking material to form a cable core. An extremely thin outer PE sheath is extruded outside the core.

Characteristics

Small diameter and light weight
Non-metallic structure
Semi-dry core design, easy for splicing
Suitable for long distance air blowing installation
Blowing distance up to 1000m

Availability:



Inquire Add to Basket

Model:
GCYFY

Product Description

Optical Characteristics

Parameter / Property	G.652.D	G.657
Attenuation @1310nm	≤ 0.35 dB/km	≤ 0.35 dB/km
Attenuation @1550nm	≤ 0.22 dB/km	≤ 0.21 dB/km
Polarization Mode Dispersion (Individual fiber)	≤ 0.20 ps/√km	≤ 0.20 ps/√km
Design link value (M=20, Q=0.01%)	≤ 0.1 ps/√km	≤ 0.1 ps/√km

Technical Data

Item	Contents	Value
Item	Fiber Count	12	24	36	24	48	72	96	144	192	216	288
Loose tube	Number	2	4	6	2	4	6	8	12	16	18	24
Loose tube	Outer Diameter(±0.1mm)	1.2			1.45
Filler	Number	4	2	0	4	2	0	0	0	2	0	0
Fiber counts per tube	-	6			12
Central Strength Member	Material	FRP
	Diameter(mm)	1.2			1.6				1.8	1.5		2.0
	Coated CSM Diameter	-						2.4	4.1	-		2.8
Outer sheath	Material	HDPE
	Color	Black
	Thickness(mm)	Approx.0.5
Cable Diameter(±0.2mm)		4.3	4.3	4.3	5.4	5.4	5.4	6.0	7.6	7.6	7.6	9.1
Cable Weight(kg/km)Approx.		16	16	16	26	26	26	29	48	48	48	74
Operating Temperature Range(℃)		-40-+70
Tensile Strength Short/Long Term(N)		1.0 G/0.5G
Crush Resistance Short/Long Term(N/100mm)		450/150

“G" is the weight of cable per kilometer, the unit is Newton (N).
The colour arrangement of fibre and tube is specified in the color identification table.
Other structure and fibre count are also available according to customer reguirements.

Main Mechanical and Environmental Performances

Item	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical data	Additional attenuation: ≤ 0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical data	Additional attenuation: ≤ 0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 2Nm, one in 3 different places	Additional attenuation: ≤ 0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20°D	Additional attenuation: ≤ 0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m, 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	-40°C~+70°C	Attenuation change: ≤ 0.1dB/km after test
