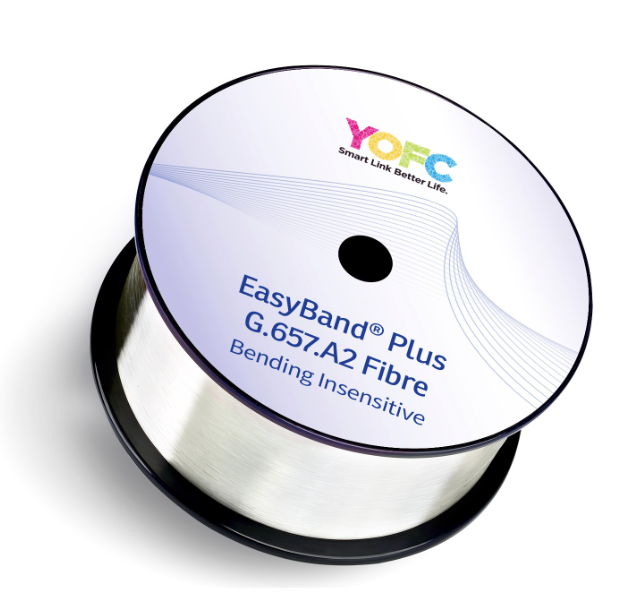

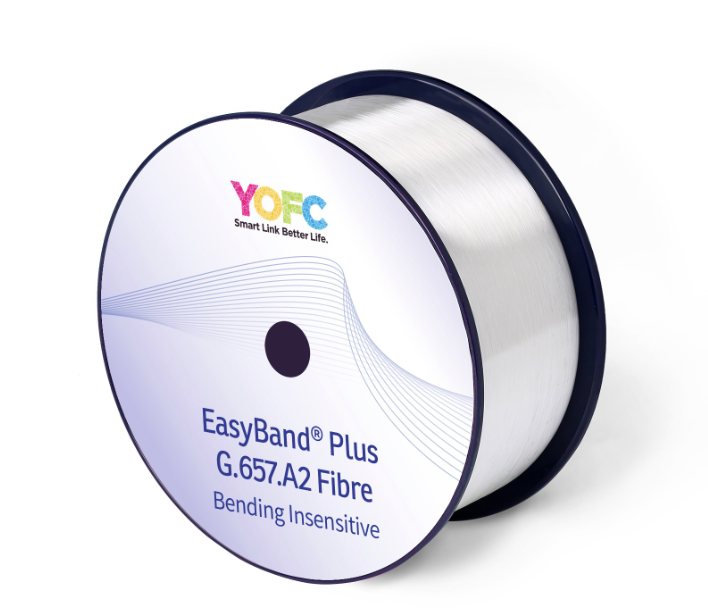

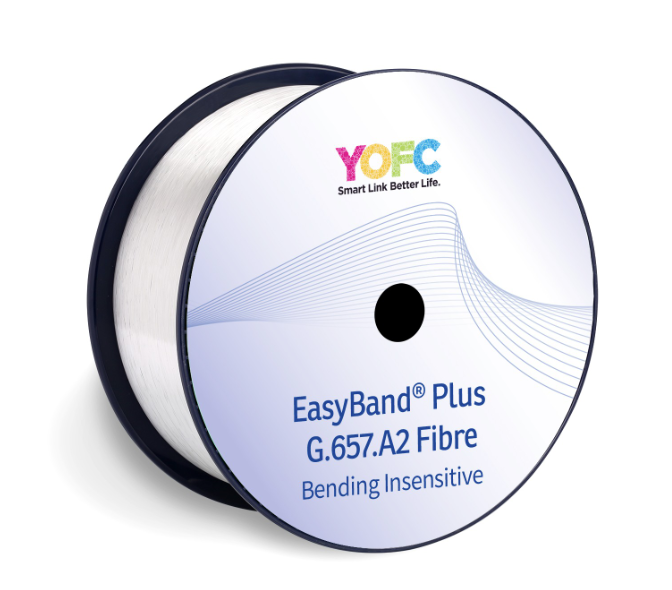

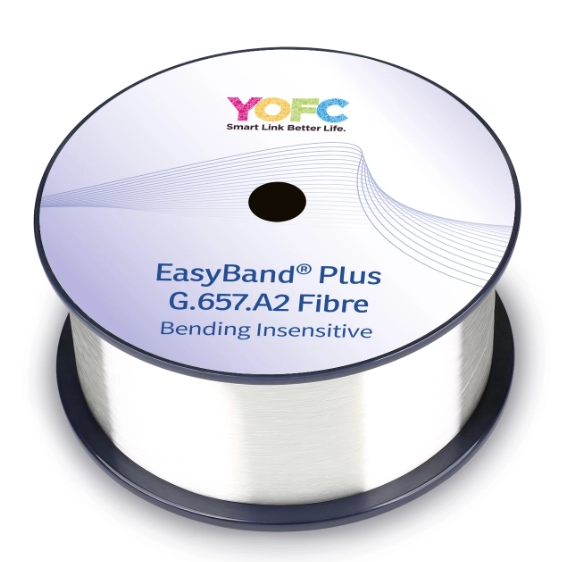

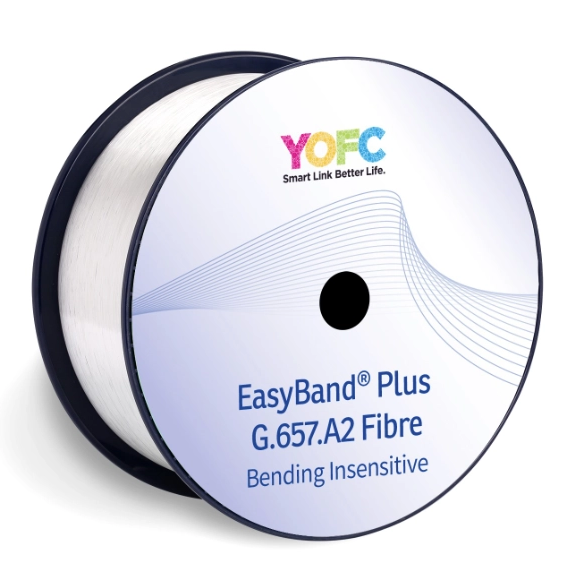

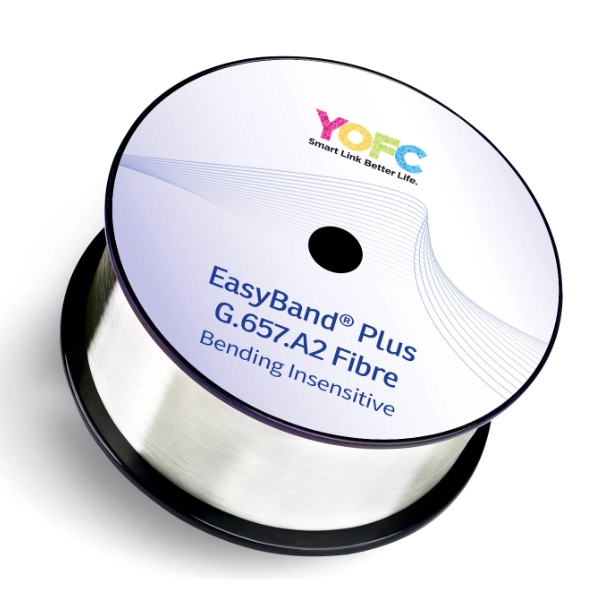

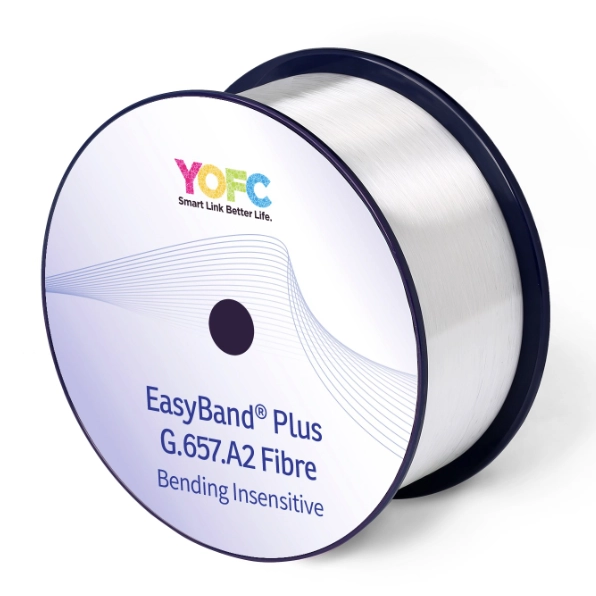

YOFC G.657.A2 EasyBand® Bending Insensitive Single-mode Fibre

YOFC EasyBand® Plus bending insensitive single-mode fibre combines two attractive features: excellent low macro-bending sensitivity and low water-peak level. It is comprehensively optimized for use in O-E-S-C-L band (1260 -1625 nm). The EasyBand® Plus's bending insensitive feature not only guarantees L-band applications but also allows for easy installation without excessive care when storing the fibre especially for FTTH networks application. Bending radii in fibre guidance ports can be reduced as well as minimum bend radii in wall and corner mountings.

Characteristics

Extremely high bending loss resistance in the 7.5 to 15 mm bending radius range
Full compatibility with all G.652 fibres for any applications
Low attenuation satisfying the operation demand in O-E-S-C-L band
Low PMD satisfying high bit-rate and long distance transmission requirements
Low bending loss for highly demanding cable designs including ribbons
Accurate geometrical parameters that insure low splicing loss and high splicing efficiency
High nd-value satisfying long operational lifetime in minimum bend radius

Size:	25.2KM/ROLL 50.4KM/ROLL Other
Availability:



Inquire Add to Basket

Model:
G.657.A2

G657A2 Bending Insensitive Datasheet

Specifications （G657A2）
Characteristics		Conditions	Speciﬁed values	Units
Optical Characteristics
Attenuation		1310nm	≤0.35	[dB/km]
		1383nm(after H2-aging)	≤0.35	[dB/km]
		1460nm	≤0.25	[dB/km]
		1490nm	≤0.23	[dB/km]
		1550nm	≤0.21	[dB/km]
		1625nm	≤0.23	[dB/km]
Attenuation vs. Wavelength		1285-1330nm, in reference to 1310nm	≤0.03	[dB/km]
Max. α diﬀerence		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
Zero Dispersion Wavelength(λ0)		--	1300-1324	[nm]
Zero Dispersion Slope(S0)		--	≤0.092	[ps/(nm2·km)]
PMD	Maximum Individual Fibre	--	≤0.1	[ps/√km]
	Link Design Value（M=20，Q=0.01%)	--	≤0.06	[ps/√km]
	Typical Value	--	0.04	[ps/√km]
Cable Cutoﬀ Wavelength (λCC)		--	≤1260	[nm]
Mode Field Diameter（MFD）		1310nm	8.4-9.2	[μm]
Mode Field Diameter（MFD）		1550nm	9.3-10.3	[μm]
Eﬀective Group Index of Refraction（Neﬀ ）		1310nm	1.466	--
Eﬀective Group Index of Refraction（Neﬀ ）		1550nm	1.467	--
Point Discontinuities		1310nm	≤0.05	[dB]
Point Discontinuities		1550nm	≤0.05	[dB]
Geometrical Characteristics
Cladding Diameter		--	125.0±0.7	[μm]
Cladding Non-Circularity		--	≤0.7	[%]
Coating Diameter		--	235-245	[μm]
Coating-Cladding Concentricity Error		--	≤12.0	[μm]
Coating Non-Circularity		--	≤6.0	[%]
Core-Cladding Concentricity Error		--	≤0.5	[μm]
Curl(radius)		--	≥4	[m]
Delivery Length		--	Up to 50.4	[km/reel]
Environmental Characteristics		1310nm, 1550nm & 1625nm
Temperature Dependence Induced Attenuation		-60℃ to +85℃	≤0.05	[dB/km]
Temperature-Humidity Cycling Induced Attenuation		-10°C to +85°C, 98% RH	≤0.05	[dB/km]
Watersoak Dependence Induced Attenuation		23°C, for 30 days	≤0.05	[dB/km]
Damp Heat Dependence Induced Attenuation		85°C and 85% RH, for 30 days	≤0.05	[dB/km]
Dry Heat Aging		85℃, for 30 days	≤0.05	[dB/km]
Mechanical Speciﬁcation
Proof Test		--	≥9.0	[N]
		--	≥1.0	[%]
		--	≥100	[kpsi]
Macro-bend Induced Attenuation	10 Turns Around a Mandrel of 15 mm Radius	1550nm	≤0.03	[dB]
	10 Turns Around a Mandrel of 15 mm Radius	1625nm	≤0.1	[dB]
	1 Turn Around a Mandrel of 10 mm Radius	1550nm	≤0.1	[dB]
	1 Turn Around a Mandrel of 10 mm Radius	1625nm	≤0.2	[dB]
	1 Turn Around a Mandrel of 7.5 mm Radius	1550nm	≤0.5	[dB]
	1 Turn Around a Mandrel of 7.5 mm Radius	1625nm	≤1.0	[dB]
Coating Strip Force		typical average force	1.5	[N]
Coating Strip Force		peak force	1.3-8.9	[N]
Dynamic Fatigue Parameter(nd)		--	≥20	--

Applications

All types of fibre cables with different structures
High performance optical network operating in O-E-S-C-L band
High speed optical routes for Fibre-to-the-Home networks
Cables with extreme low bending requirements
Small-sized fibre cable and optical component

Product standards

YOFC EasyBand® Plus bending insensitive single mode fibre meets or exceeds the ITU-T Recommendation G.652.D/G.657.A1/G.657.A2/G.657.B2 including the IEC 60793-2-50 type B1.3/B6.a1/B6.a2/B6.b2 Optical Fibre Specification.
