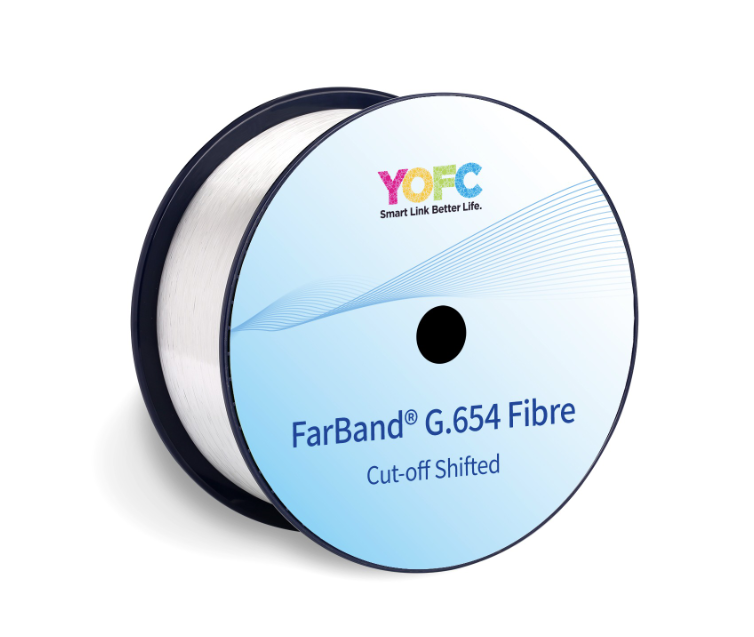

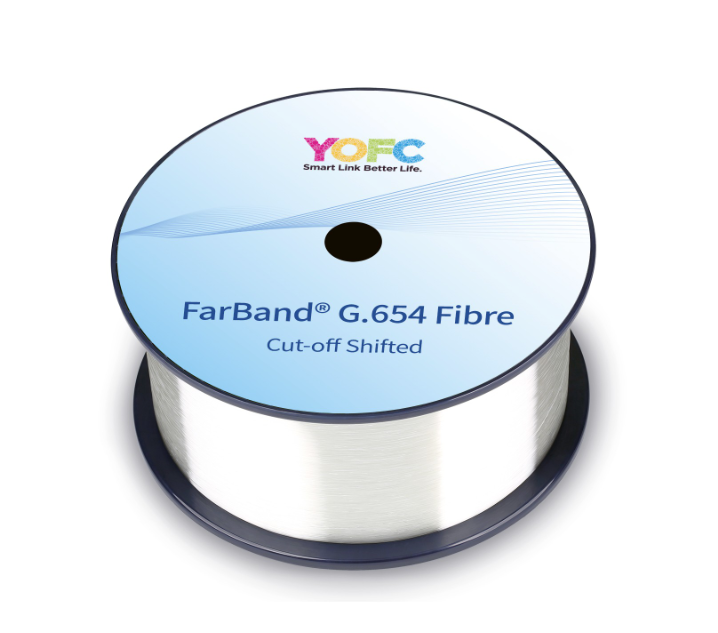

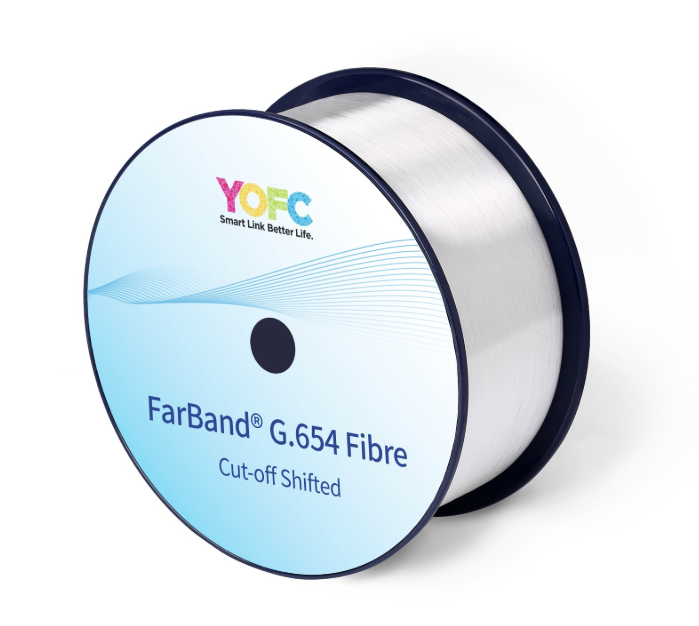

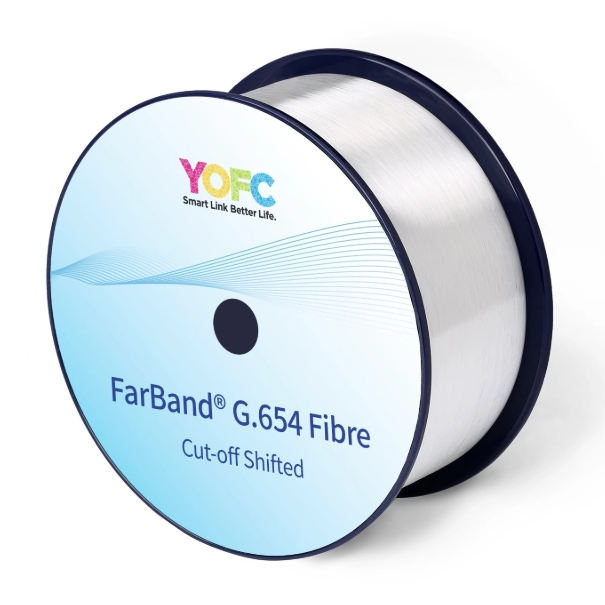

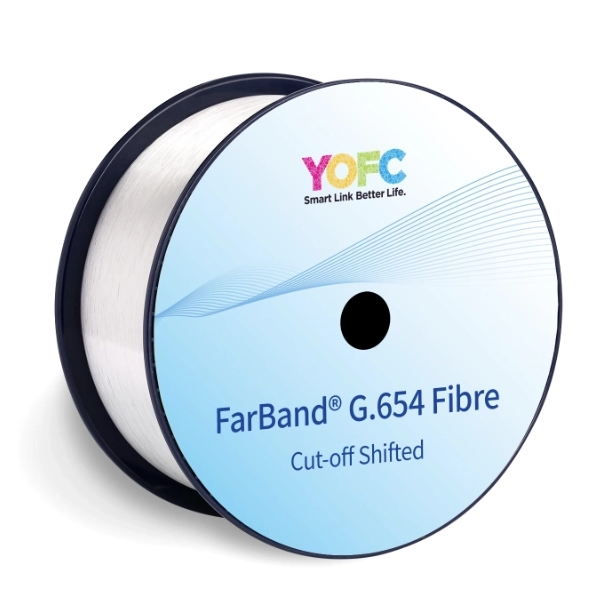

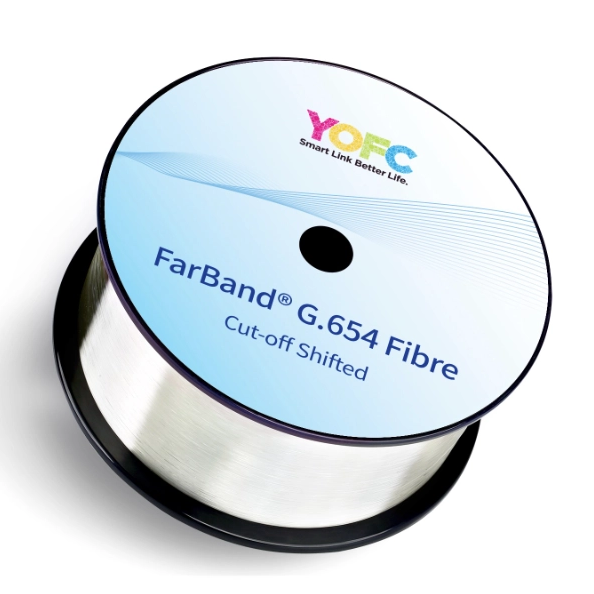

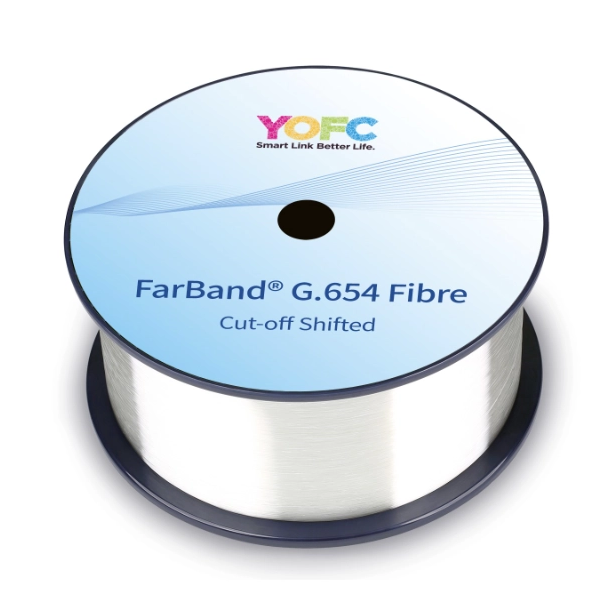

G654
| Characteristics | Conditions | Specified values | Units | ||
| Optical Characteristics | |||||
| Nominal Effective Area | 1550nm | 125 | [μm2] | ||
| Mode Field Diameter | 1550nm | 12.0-13.0 | [μm] | ||
| Attenuation | 1550nm | ≤0.19 | [dB/km] | ||
| 1625nm | ≤0.21 | [dB/km] | |||
| Attenuation vs. Wavelength | 1525-1575nm, in reference to 1550nm | ≤0.02 | [dB/km] | ||
| Max. α difference | 1550-1625nm, in reference to 1550nm | ≤0.03 | [dB/km] | ||
| Dispersion Coefficient | 1550nm | ≤23 | [ps/(nm·km)] | ||
| 1625nm | ≤27 | [ps/(nm·km)] | |||
| Dispersion Slope | 1550nm | 0.050-0.070 | [ps/(nm2·km)] | ||
| PMD | Maximum Individual Fibre | -- | ≤0.1 | [ps/√km] | |
| Link Design Value(M=20,Q=0.01%) | -- | ≤0.04 | [ps/√km] | ||
| Typical Value | -- | 0.03 | [ps/√km] | ||
| Cable Cutoff Wavelength (λCC) | -- | ≤ 1520 | [nm] | ||
| Effective Group Index of Refraction | 1550nm | 1.465 | -- | ||
| Point Discontinuities | 1550nm | ≤0.05 | [dB] | ||
| Geometrical Characteristics | |||||
| Cladding Diameter | -- | 125.0±1.0 | [μm] | ||
| Cladding Non-Circularity | -- | ≤1.0 | [%] | ||
| Coating Diameter | -- | 235-255 | [μm] | ||
| Coating-Cladding Concentricity Error | -- | ≤12.0 | [μm] | ||
| Coating Non-Circularity | -- | ≤6.0 | [%] | ||
| Core-Cladding Concentricity Error | -- | ≤0.6 | [μm] | ||
| Curl(radius) | -- | ≥4 | [m] | ||
| Delivery Length1 | -- | Up to 25.2 | [km/reel] | ||
| Environmental Characteristics 1550nm & 1625nm | |||||
| Temperature Dependence Induced Attenuation | -60℃ to 85℃ | ≤0.05 | [dB/km] | ||
| Temperature-Humidity Cycling Induced Attenuation | -10°C to 85°C, 98% RH | ≤0.05 | [dB/km] | ||
| Watersoak Dependence Induced Attenuation | 23°C,for 30 days | ≤0.05 | [dB/km] | ||
| Damp Heat Dependence Induced Attenuation | 85°C , 85% RH,30 days | ≤0.05 | [dB/km] | ||
| Dry Heat Aging | 85℃,for 30 days | ≤0.05 | [dB/km] | ||
| Proof Test2 | -- | ≥9.0 | [N] | ||
| -- | ≥1.0 | [%] | |||
| -- | ≥100 | [kpsi] | |||
| Macro-bend Induced Loss | 100 Turns Around a Mandrel of 30 mm Radius | 1550nm | ≤0.10 | [dB] | |
| 1625nm | ≤0.10 | [dB] | |||
| Coating Strip Force | typical average force | 1.5 | [N] | ||
| peak force | 1.3-8.9 | [N] | |||
| Dynamic Fatigue Parameter(nd) | -- | ≥20 | -- | ||
| Remark: 1. Other delivery lengths are available. 2. Higher proof test level is available. | |||||
Applications
Attributed to its large effective area and lower attenuation performance, FarBand® fibre is the optimum choice that supports various applications such as Ethernet, Internet Protocol (IP), Synchronous Optical Network (SONET) and Wavelength Division Multiplexing (WDM). FarBand® fibre enables high input power and minishes transmitted power distribution density because of its enlarged effective area, suppressing nonlinear effect, such as Brillouin scattering, self-phase modulation and cross phase modulation, thus it satisfys multi-channel DWDM system. Meanwhile FarBand® fibre provides low signal attenuation, which satisfys the optical fibre attenution requirement in long haul transmission, and provides more system redundancy.
Product standards
FarBand® fibre complies with or even exceeds the ITU-T G.654.B/E recommendation and IEC 60793-2-50 B1.2 Optical Fibre Specification. YOFC tightens many parameters of fibre products.
