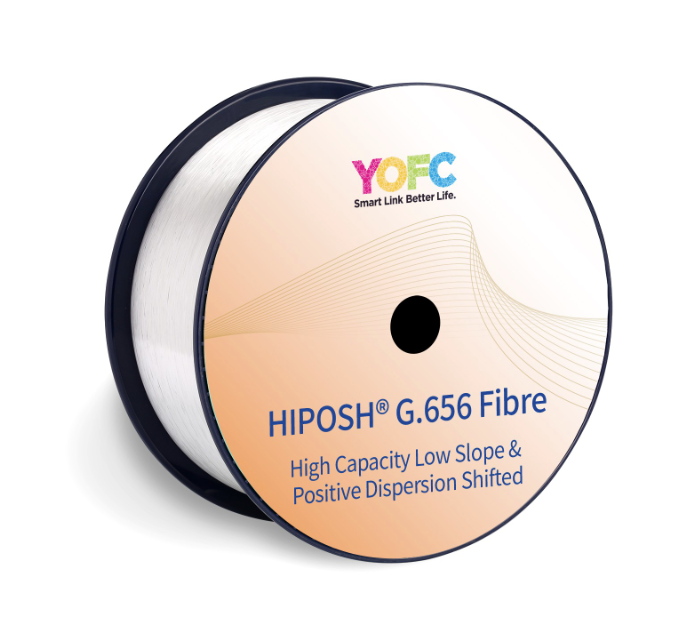

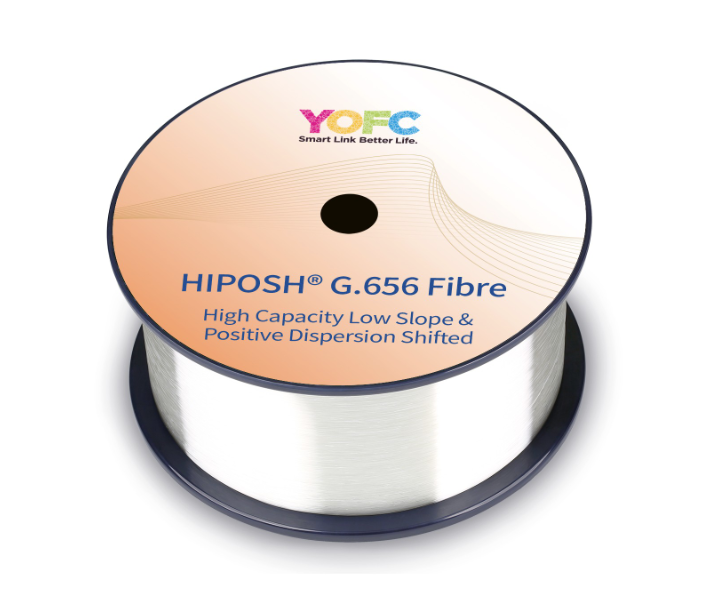

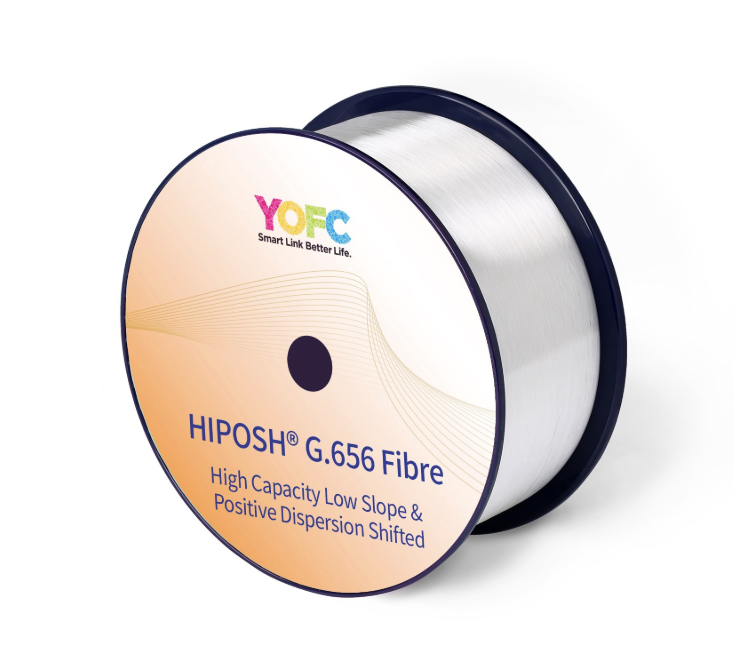

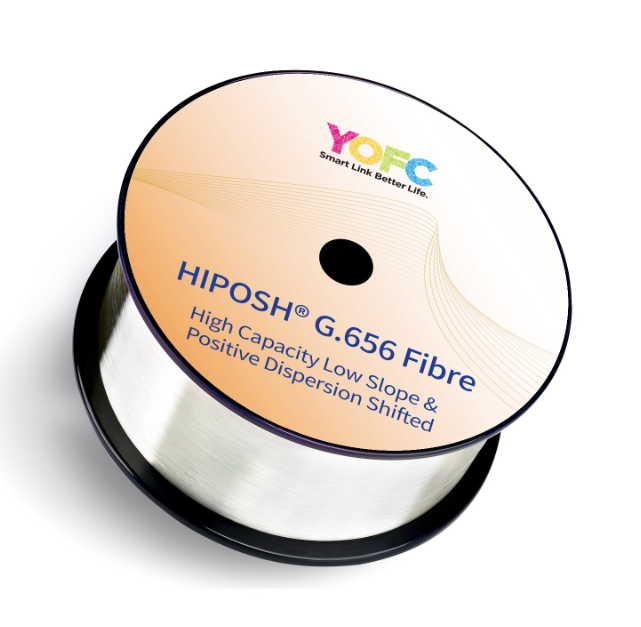

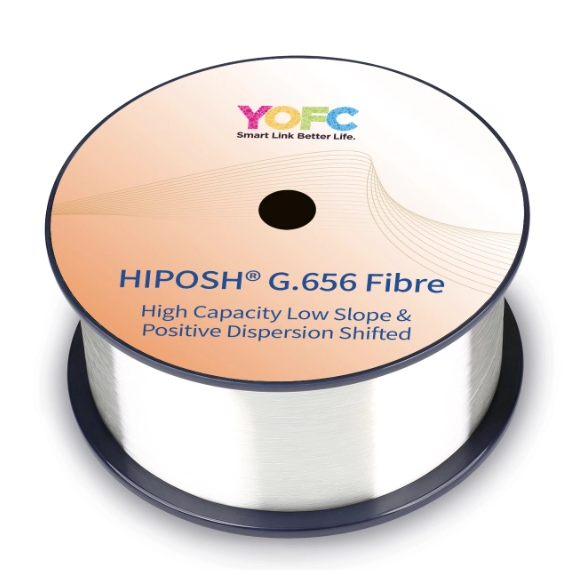

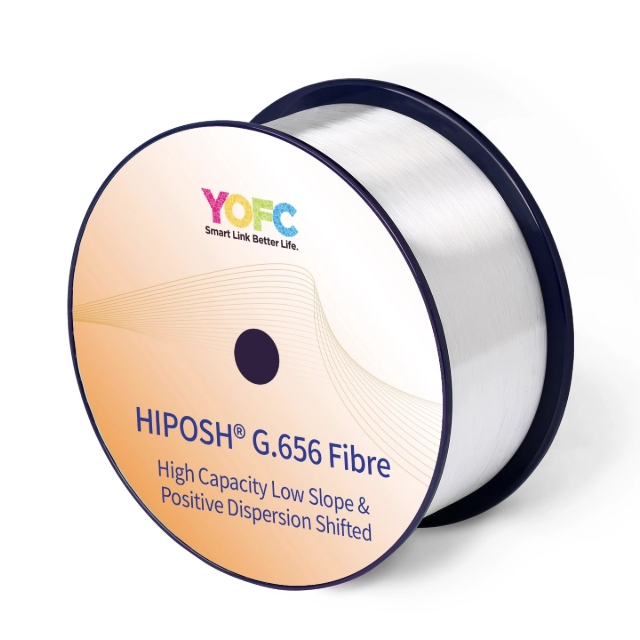

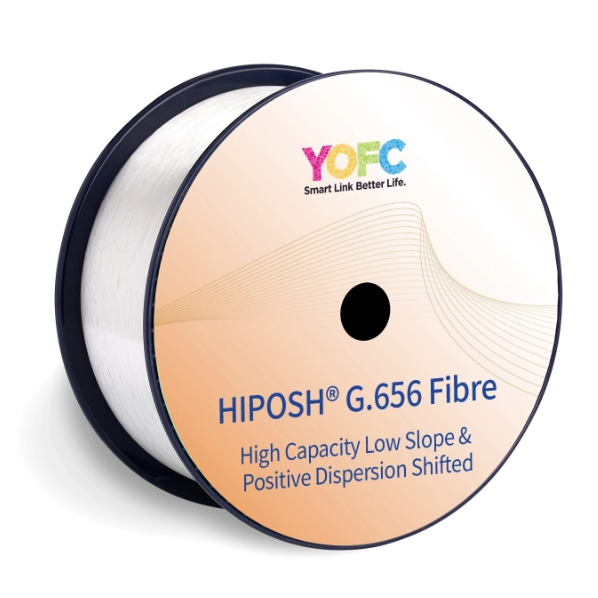

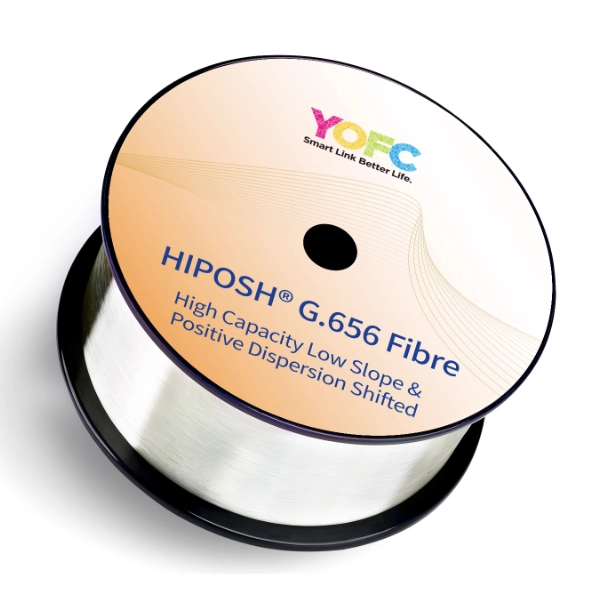

YOFC G656 HIPOSH® High Capacity Low Slope Dispersion Shifted Single-mode Fibre

HIPOSH® fibre of YOFC provides an ideal fibre solution for high bit-rate, explosive transmission capacity and long transmission distance. Several key factors affecting fibre performance: chromatic dispersion, dispersion slope, attenuation and effective area have been optimized. The transmission window is extended from C&L band to S-band. At the same time, the O-band of HIPOSH® fibre can be applied because the cable cut off wavelength is below to 1260 nm and dispersion is low in 1310 nm transmission window. With low attenuation, PMD value and appropriate chromatic dispersion value, HIPOSH® fibre is suitable for long distance and high bit-rate, such as 10 Gb/s and 40 Gb/s transmission system. Furthermore, the flatter dispersion slope provides an easy way to compensate the chromatic dispersion and dispersion slope using commercially available dispersion compensating devices. YOFC HIPOSH® fibre is designed and manufactured according to the most advanced level in the world. It's applicable in all types including ribbon cable, loose tube stranded cable, slotted core cable, unitube cable and tight-buffer cable.

Characteristics

Suitable for high bit-rate (10 Gb/s and 40 Gb/s) and long distance DWDM transmission system in S+C+L bands
Supporting 1310 nm window transmission on the same fibre
Lower dispersion compensation costs for metro networks, providing lowest first channel costs
A relative low dispersion slope applicable for chromatic dispersion and dispersion slope compensation
Low bending induced loss at 1550 nm and at the more sensitive 1625 nm wavelength

Size:	25.2KM/ROLL 50.4KM/ROLL Other
Availability:



Inquire Add to Basket

Model:
G656

G656 HIPOSH® High Capacity Low Slope Dispersion Shifted Single-mode Fibre

Characteristics		Conditions	Speciﬁed values	Units
Optical Characteristics
Attenuation		1310nm	≤0.38	[dB/km]
		1383nm	≤1.00	[dB/km]
		1460nm	≤0.28	[dB/km]
		1550nm	≤0.21	[dB/km]
		1625nm	≤0.24	[dB/km]
Attenuation vs. Wavelength		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
Max. α Diﬀerence		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
Dispersion Coeﬃcient		1460nm	≥2.0	[ps/(nm·km)]
		1530-1565nm	5.5-10.0	[ps/(nm·km)]
		1565-1625nm	7.5-13.4	[ps/(nm·km)]
Zero Dispersion Wavelength(λ0)		--	≤1420	[nm]
Dispersion Slope		1550nm	≤0.06	[ps/(nm2·km)]
Typical dispersion slope		1550nm	0.052	[ps/(nm2·km)]
PMD	Maximum Individual Fibre	--	≤0.2	[ps/√km]
	Link Design Value（M=20，Q=0.01%)	--	≤0.08	[ps/√km]
	Typical Value	--	0.04	[ps/√km]
Cable Cutoﬀ Wavelength (λCC)		--	≤1260	[nm]
Mode ﬁeld diameter (MFD)		1550nm	8.5-9.5	[μm]
Eﬀective Group Index of Refraction（Neﬀ）		1550nm&1625nm	1.469	--
Point Discontinuities		1550nm	≤0.05	[dB]
Geometrical Characteristics
Cladding Diameter		--	125.0±0.7	[μm]
Cladding Non-Circularity		--	≤1.0	[%]
Coating Diameter		--	235-255	[μm]
Coating-Cladding Concentricity Error		--	≤12.0	[μm]
Coating Non-Circularity		--	≤6.0	[%]
Core-Cladding Concentricity Error		--	≤0.6	[μm]
Curl(Radius)		--	≥4	[m]
Delivery Length		--	Up to 25.2	[km/reel]
Environmental Characteristics 1550nm & 1625nm
Temperature Dependence Induced Attenuation		-60℃ to +85℃	≤0.05	[dB/km]
Temperature-Humidity Cycling Induced Attenuation		-10°C to +85°C, 98% RH	≤0.05	[dB/km]
Watersoak Dependence Induced Attenuation		23°C, for 30 days	≤0.05	[dB/km]
Damp Heat Dependence Induced Attenuation		85°C and 85% RH, for 30 days	≤0.05	[dB/km]
Dry Heat Aging		85℃, for 30 days	≤0.05	[dB/km]
Mechanical Speciﬁcation
Proof Test		--	≥9.0	[N]
		--	≥1.0	[%]
		--	≥100	[kpsi]
Macro-bend Induced Attenuation	100 Turns Around a Mandrel of 30 mm Radius	1625nm	≤0.05	[dB]
	100 Turns Around a Mandrel of 25 mm Radius	1310nm&1550nm	≤0.05	[dB]
	1 Turn Around a Mandrel of 16 mm Radius	1550nm	≤0.05	[dB]
Coating Strip Force		typical average force	1.5	[N]
Coating Strip Force		peak force	1.3-8.9	[N]
Dynamic Fatigue Parameter(nd)		--	≥20	--

Product standards

YOFC HIPOSH® fibre complies with or exceeds the ITU-T Recommendation G.655.E/G.656 and IEC 60793-2-50 B4.e/B5 Optical Fibre Specification.
YOFC tightens many parameters of fibre products so as to offer more conveniences to customers.
