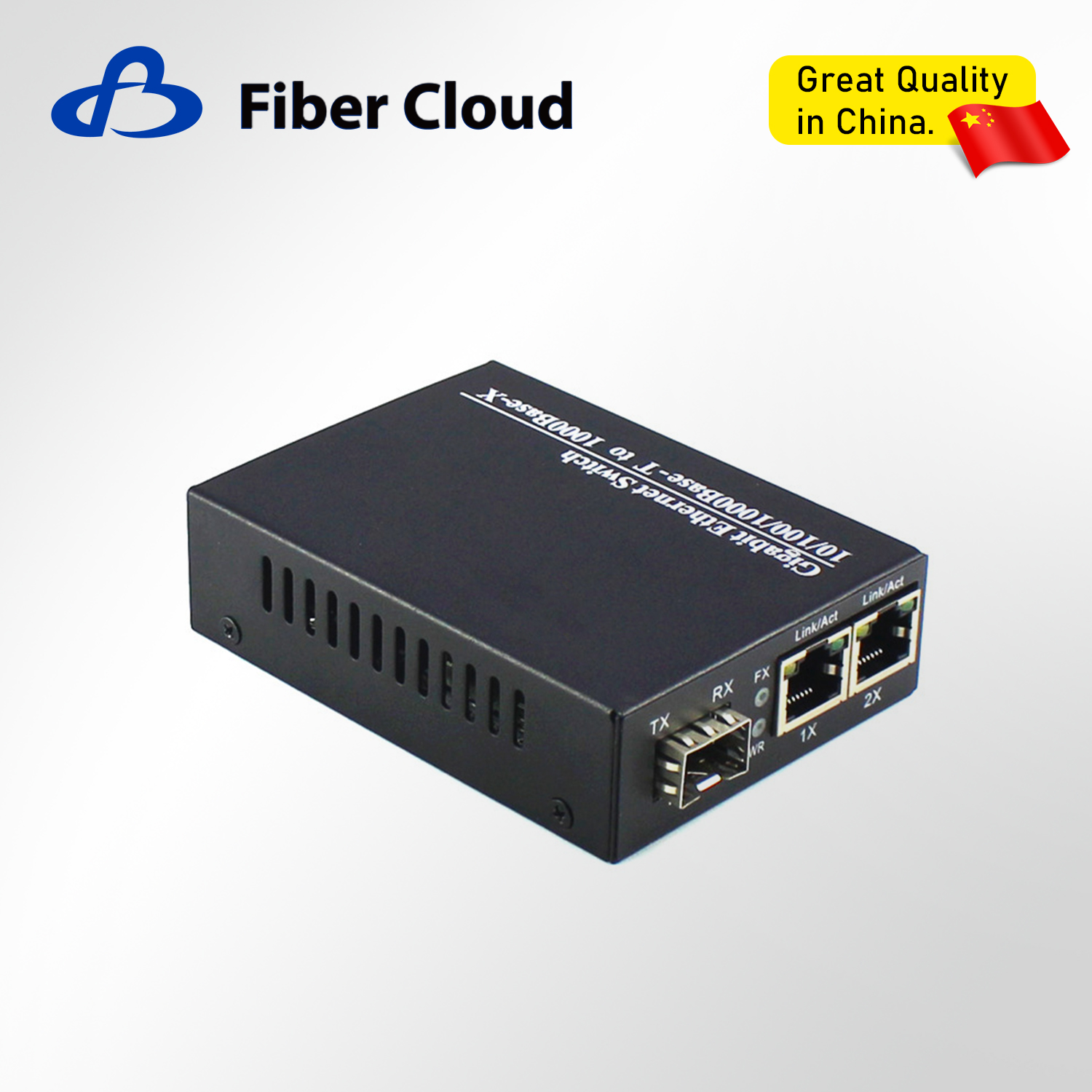

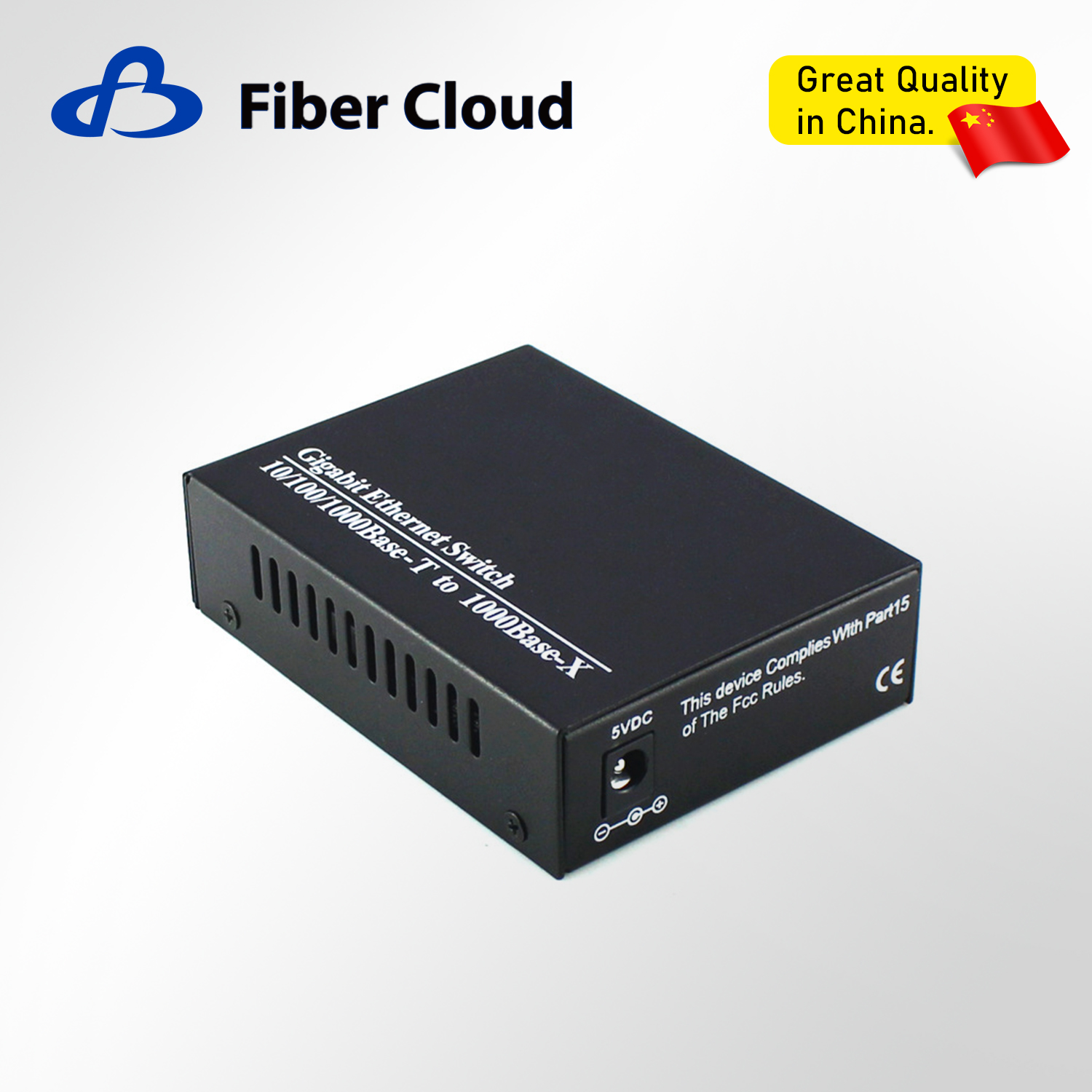

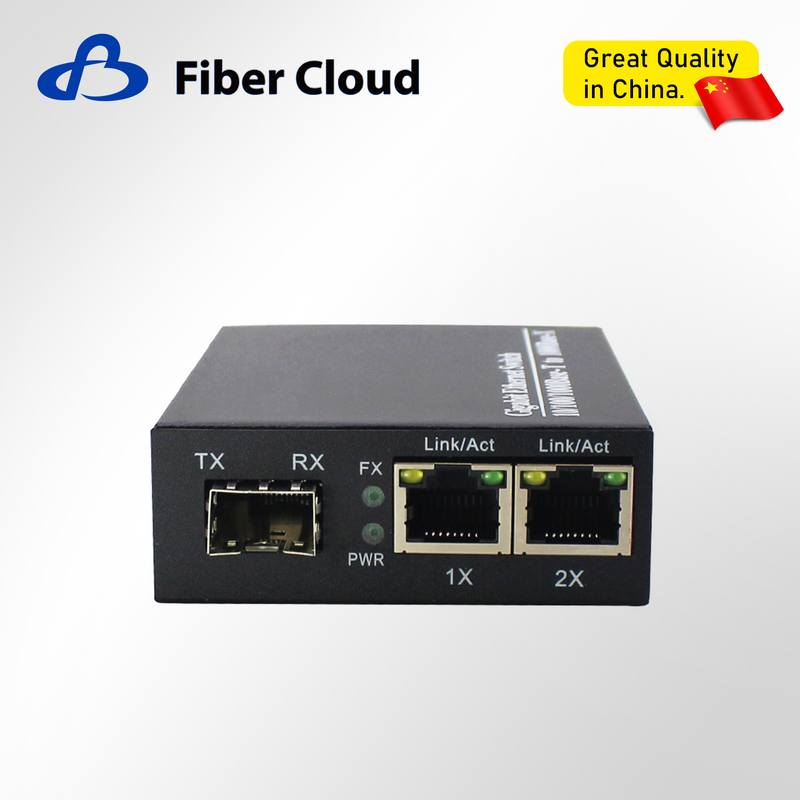

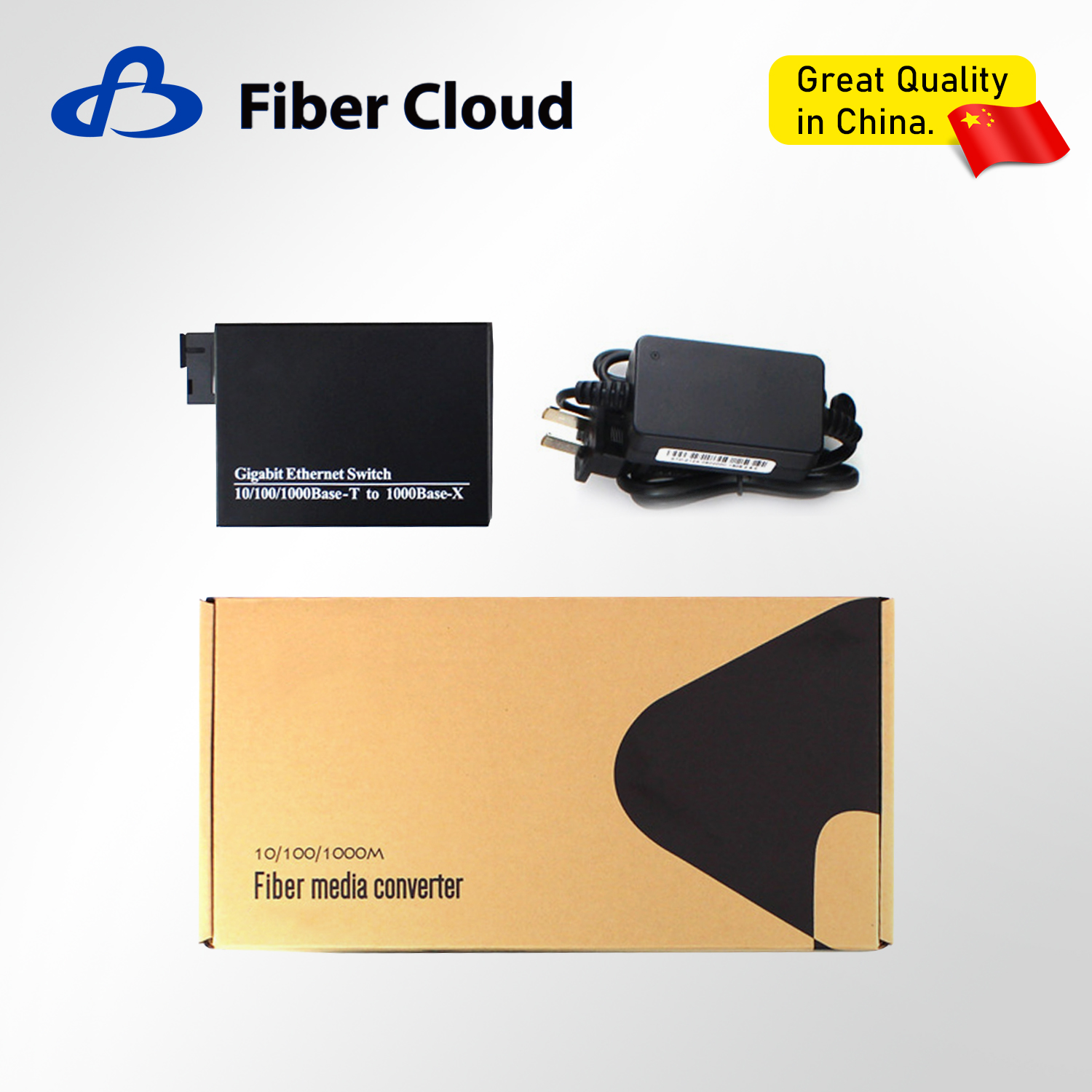

10/100/1000m SFP FTTH Epon Fiber Optic Transceiver Single-Mode Converter

The 1L2E SFP (Small Form-factor Pluggable) Transceiver is a compact, hot-swappable media converter that enables flexible fiber-to-copper network connectivity. It features 1 SFP fiber slot (for single-mode or multi-mode modules) and 2 Gigabit Ethernet RJ45 ports, making it ideal for extending fiber links while supporting copper-based devices.

Characteristics

Gigabit one-optical two-electric optical fiber transceiver
The fuselage is made of frosted painting
The thickness of the cold-rolled plate of the shell up to 0.8mm
High-speed up to 10/100/1000M

Availability:



Inquire Add to Basket

Model:
NST-GQS12

Product Description

Product Application

Fiber-to-the-home

Office network construction

Community/campus network construction

Radio and television transmission

Security surveillance

Product Specifications

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE 802.3/802.3u/802.3ab
Wavelength	1550-1310nm
Transmission distance	20km
Conversion means	Media conversion
Project weight	350g
Port	1 SFP&2 RJ45
MTBF	100,000 hours
Operating temperature	-20℃~+70℃
Operating humidity	5%~90%
Maintaining temperature	-40℃~+85℃
Dimensions	95mm(W)×75mm(D)×60mm(H)

Product Description
