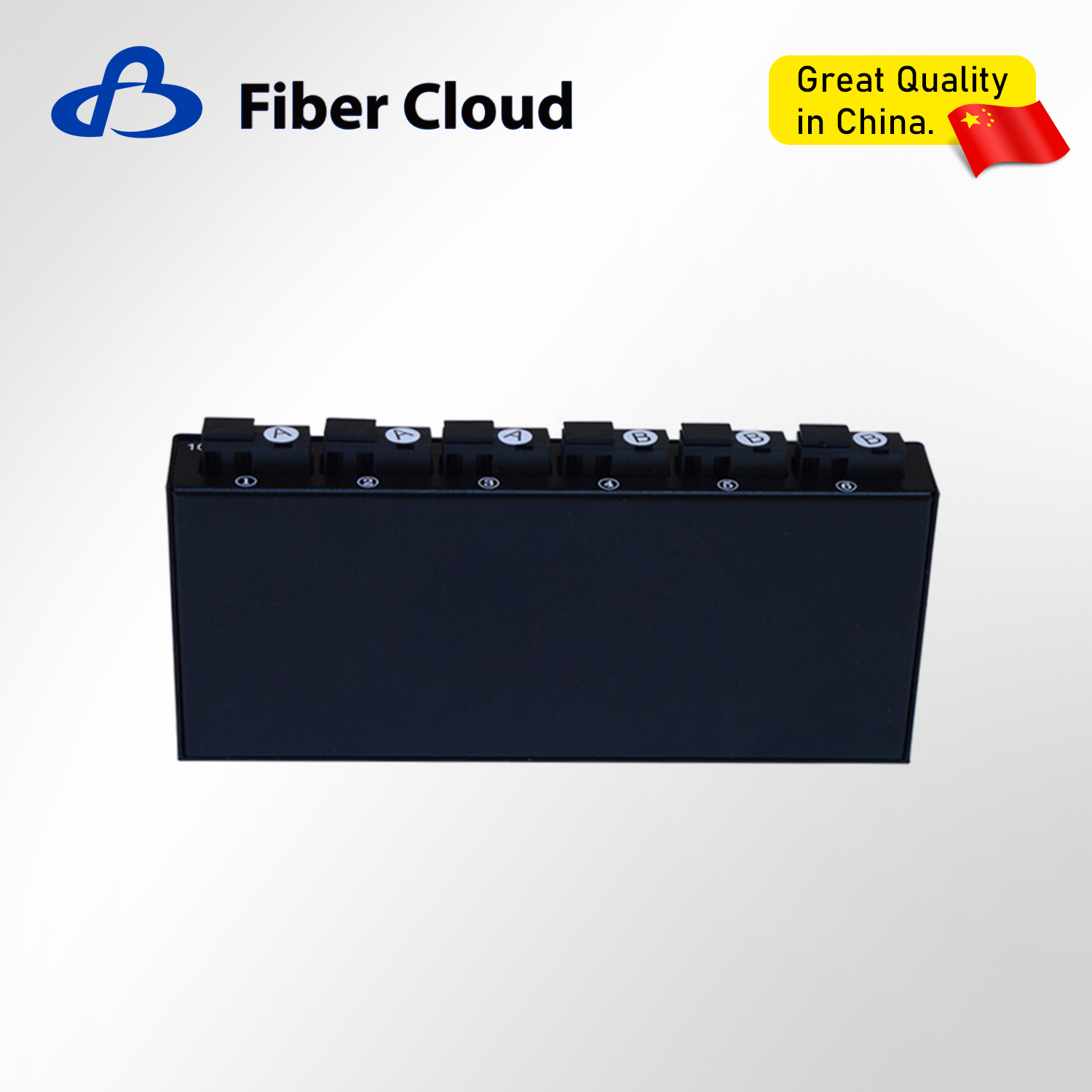

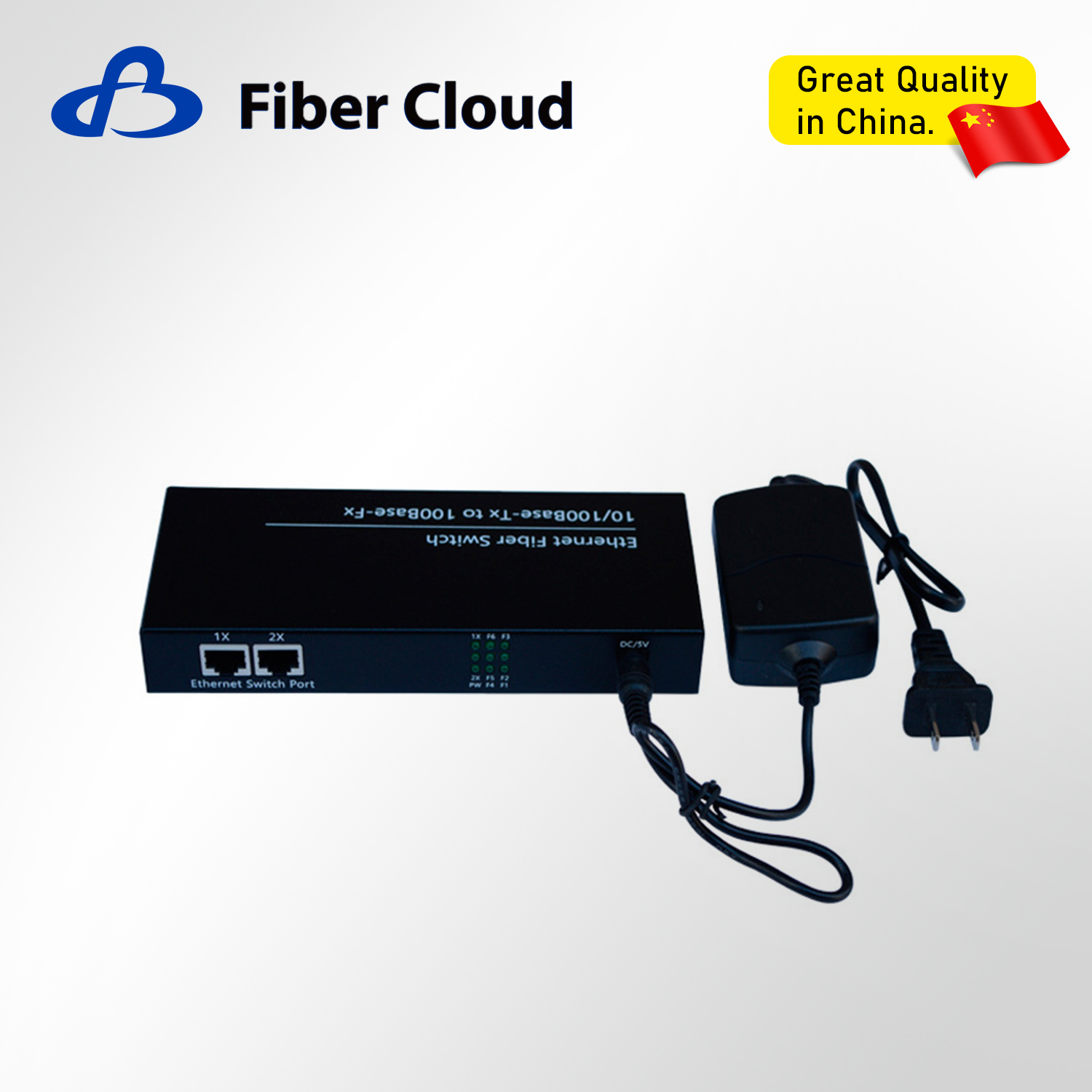

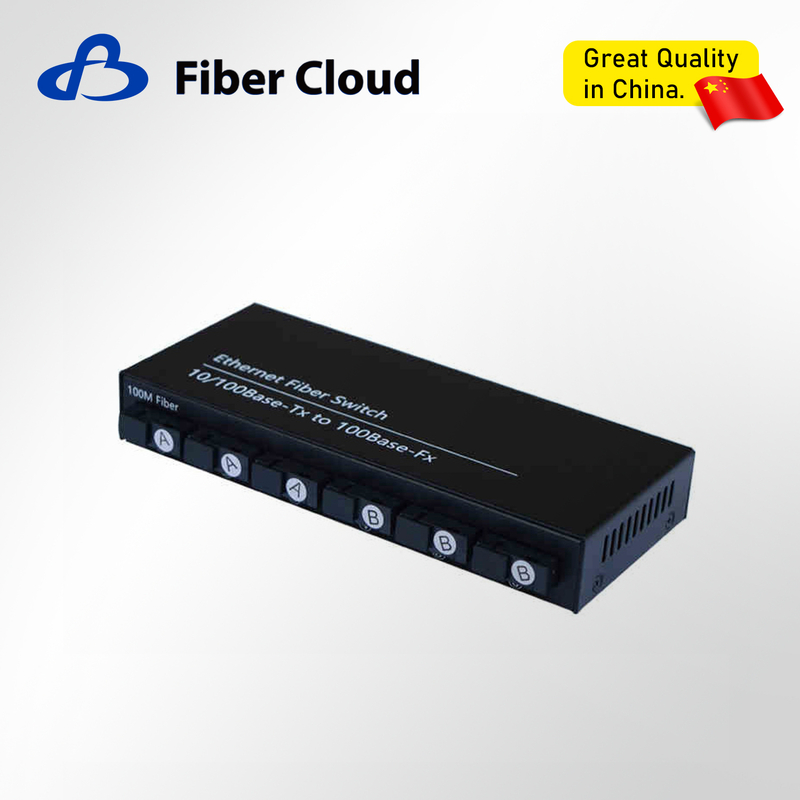

10/100m Single-Mode Optical Ethernet Transceiver Converter

The 6L2E Single-Mode Fiber Transceiver is a high-density media converter designed for demanding network environments, combining 6 single-mode fiber (SMF) ports and 2 Gigabit Ethernet copper ports (RJ45). It efficiently bridges fiber-optic and copper networks, enabling scalable, high-speed data transmission with superior reliability.
Characteristics

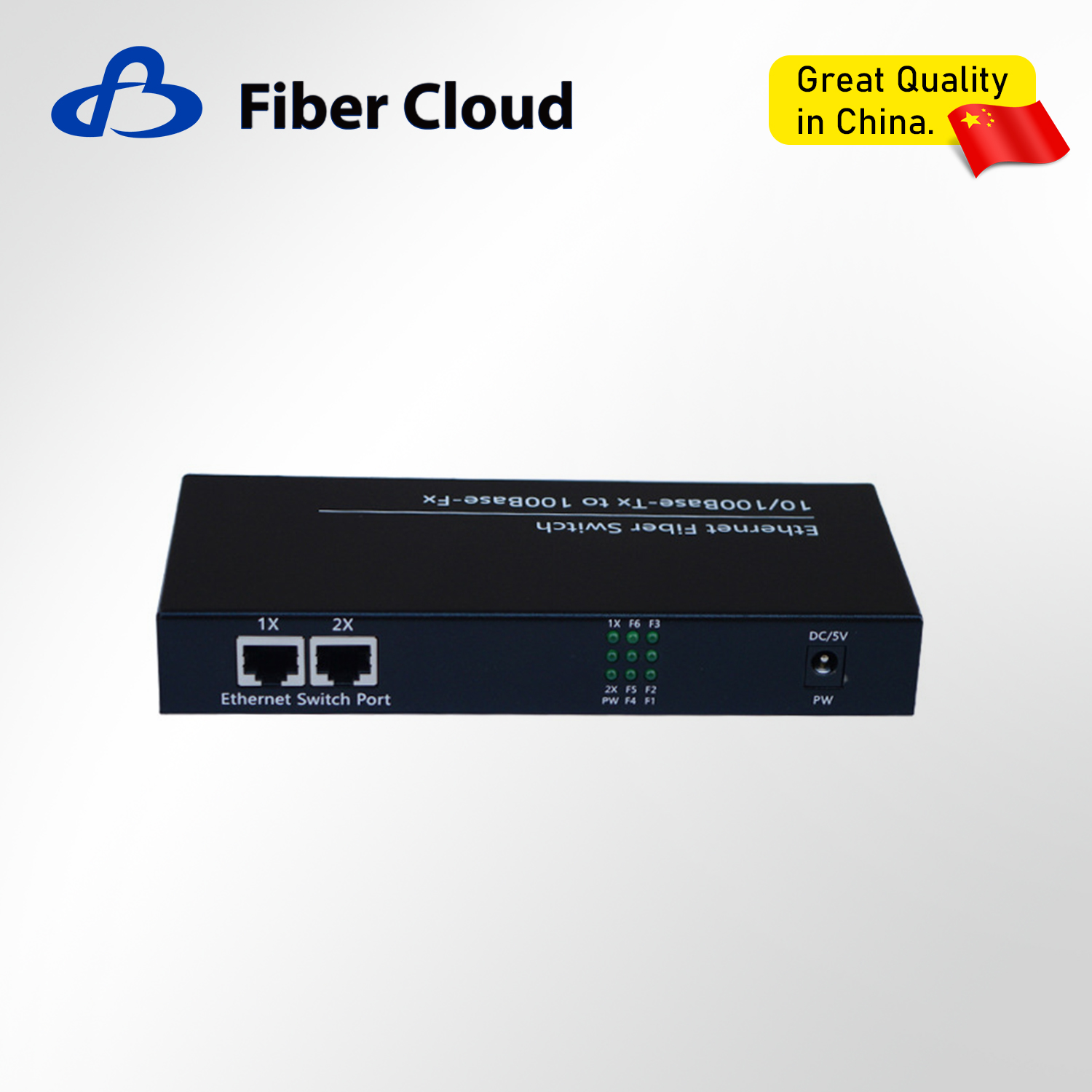

2 RJ45 electrical ports and 6 optical ports
The electrical port can be self-adapting 10/100M
Full/half-duplex mode
Straight-through/cross-wire connection mode.
Prevent broadcast storms, Support 1536 bytes packets
Useing lightning protection devices

Availability:



Inquire Add to Basket

Model:
RS-262S-W12-20

Product Description

Product Application

Fiber-to-the-home

Office network construction

Community/campus network construction

Radio and television transmission

Security surveillance

Product Specifications

Parameter	Specifications
Access mode	10/100Mbps Gigabit Ethernet
Standard	IEEE 802.3/802.3u/802.3ab
Wavelength	1310-1550 nm
Transmission distance	20 km
Conversion means	Media conversion
Project weight	500g
Port	SC
MTBF	100,000 hours
Operating temperature	-30℃~+70℃
Operating humidity	5%~90%
Maintaining temperature	-40℃~+70℃

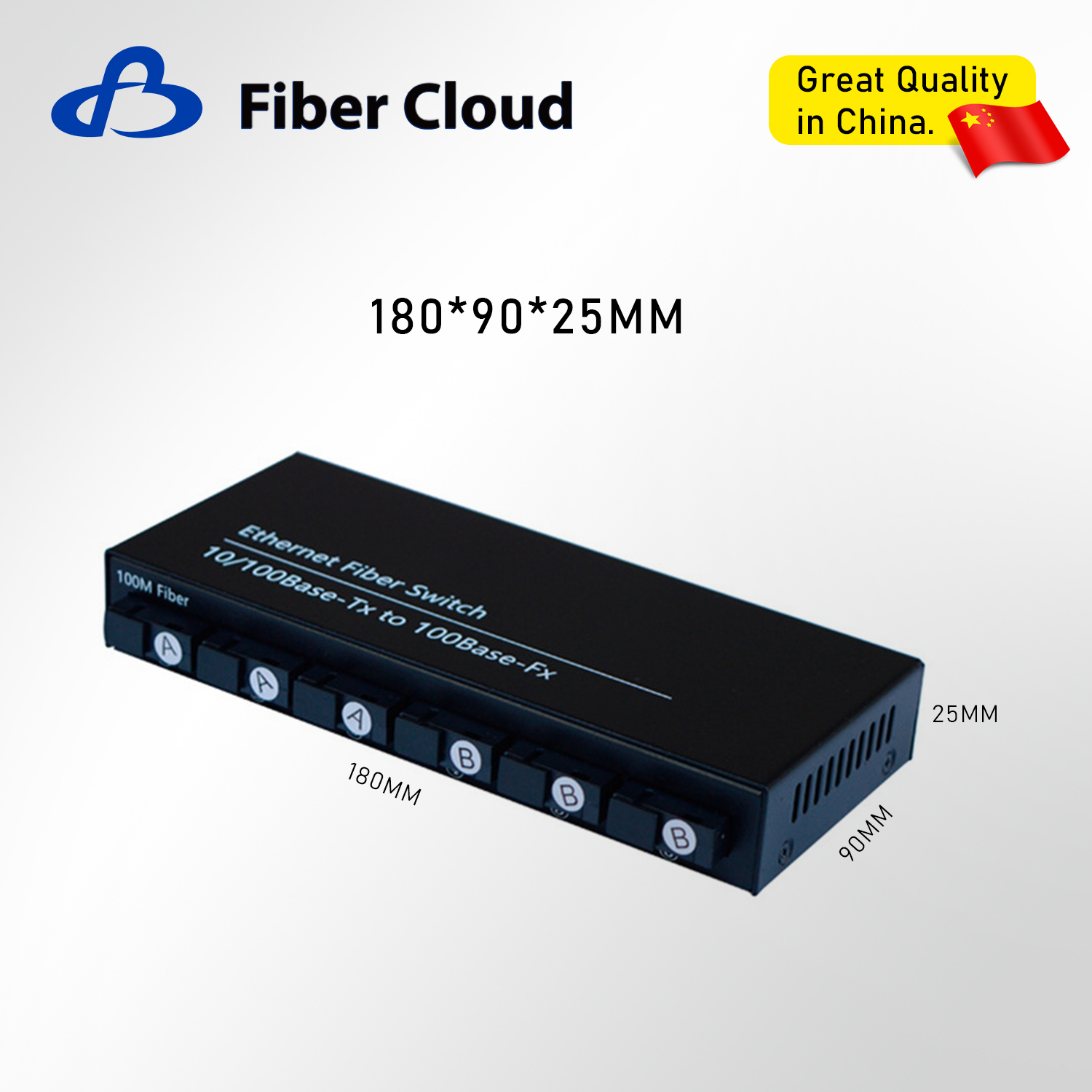

Dimensions	180mm(W)×90mm(D)×25mm(H)

Product Description
