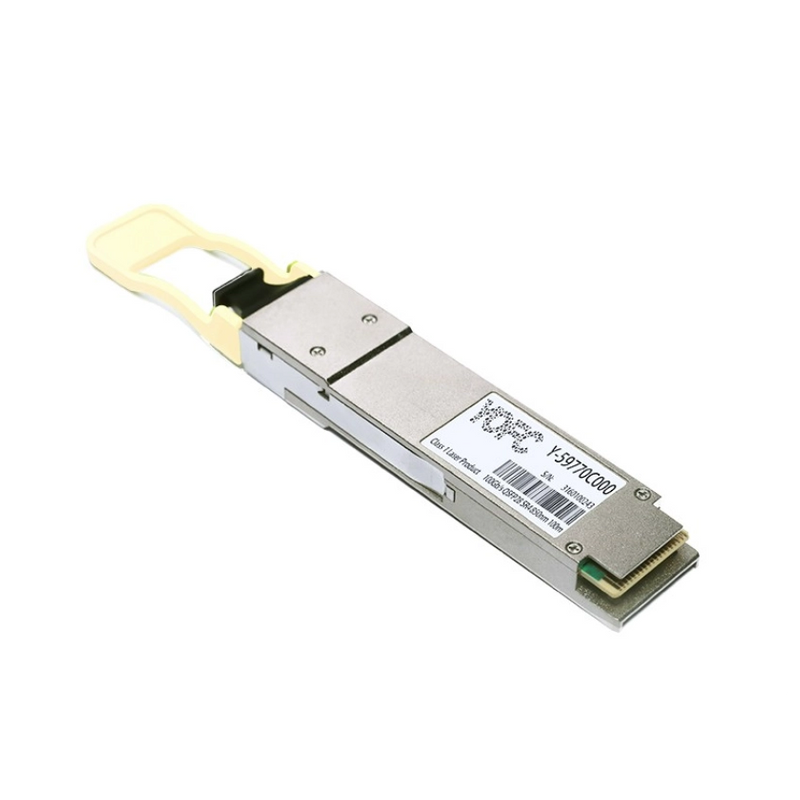

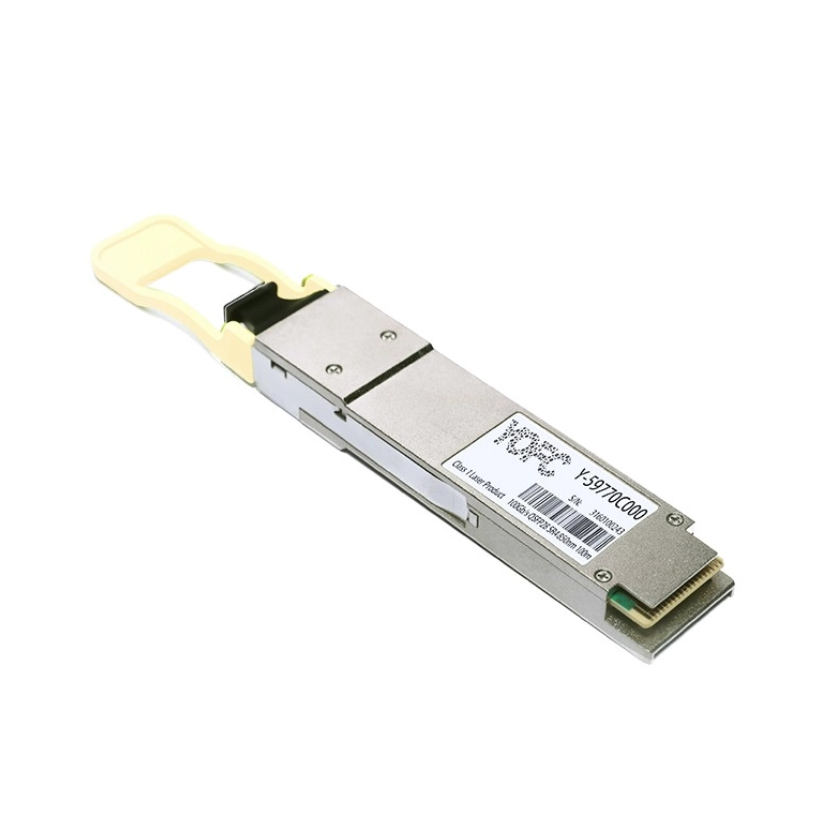

YOFC 100g QSFP28 Mini Gigabit Interface Converter Optical Transceiver

This product is applicable to 100Gb/s MMF link. This module is designed by integrating a 4-channel VCSEL array and a 4-channel PIN photodiode array, and with MPO optical connector. It can realize data transmission within 70m at 103.1Gb/s with OM3 or OM4 MMF fibre, and within 100m at 103.1Gb/s with OM4 MMF fibre. This product conforms to QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4.

Characteristics

Compliant QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4/LR4/ER4, OTN OTU3/OTU4
Hot-pluggable, digital diagnostics functions
4 channels full-duplex
Up to 28Gb/s per channel
Single 3.3V power supply
Meet EMI, ESD
RoHS compliant
Class 1/1M Standard product, Compliant IEC60825-1
Telcordia（bellcore）GR-468-CORE reliability compliant
Operating temperature 0 - 70℃

Availability:



Inquire Add to Basket

Model:
100g

100g Optical Transceiver

Remark	Package	Connector	Data Rate	Wavelength	Reach	Transmitter	Power	Receiver	Power	Part NO.
100GBASE-SR4	QSFP28	MPO	100G	850nm	100m	VCSEL	-8.4 to 2.4dBm	PIN	-10.3 to 2.4dBm	Y-59770C000
100GBASE-CWDM4	QSFP28	LC	100G	CWDM	2km	DFB	-6.5 to 2.5dBm	PIN	-11.5 to 2.5dBm	Y-59683C000
100GBASE-PSM4	QSFP28	MPO	100G	1310nm	500m	DFB	-9.4 to 2dBm	PIN	-12.6 to 2dBm	Y-59782C000
100GBASE-LR4	QSFP28	LC	100G	LWDM	10km	EML	-4.3 to 4.5dBm	PIN	-10.6 to 4.5dBm	Y-59674C000
100G LR1	QSFP28	LC	100G	1310nm	10km	EML	--	PIN	--	Y-59014C000
100G ER4 lite	QSFP28	LC	100G	1294nm - 1310nm	30km	EML	-2.9 to 4.5dBm	APD	-15 to -4dBm	Y-59677C000
100G ER4	QSFP28	LC	100G	1294nm - 1310nm	40km	EML	-2.9 to 2.9dBm	SOA+PIN	-21 to -3dBm	Y-59678C000
100G ZR4	QSFP28	LC	100G	1294nm - 1310nm	80km	EML	2 to 6.5dBm	SOA+PIN	-28 to -3.5dBm	Y-5967AC000
